◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11720 - FRR AUST/NZ JNLT09 SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#175585) — 95 parça

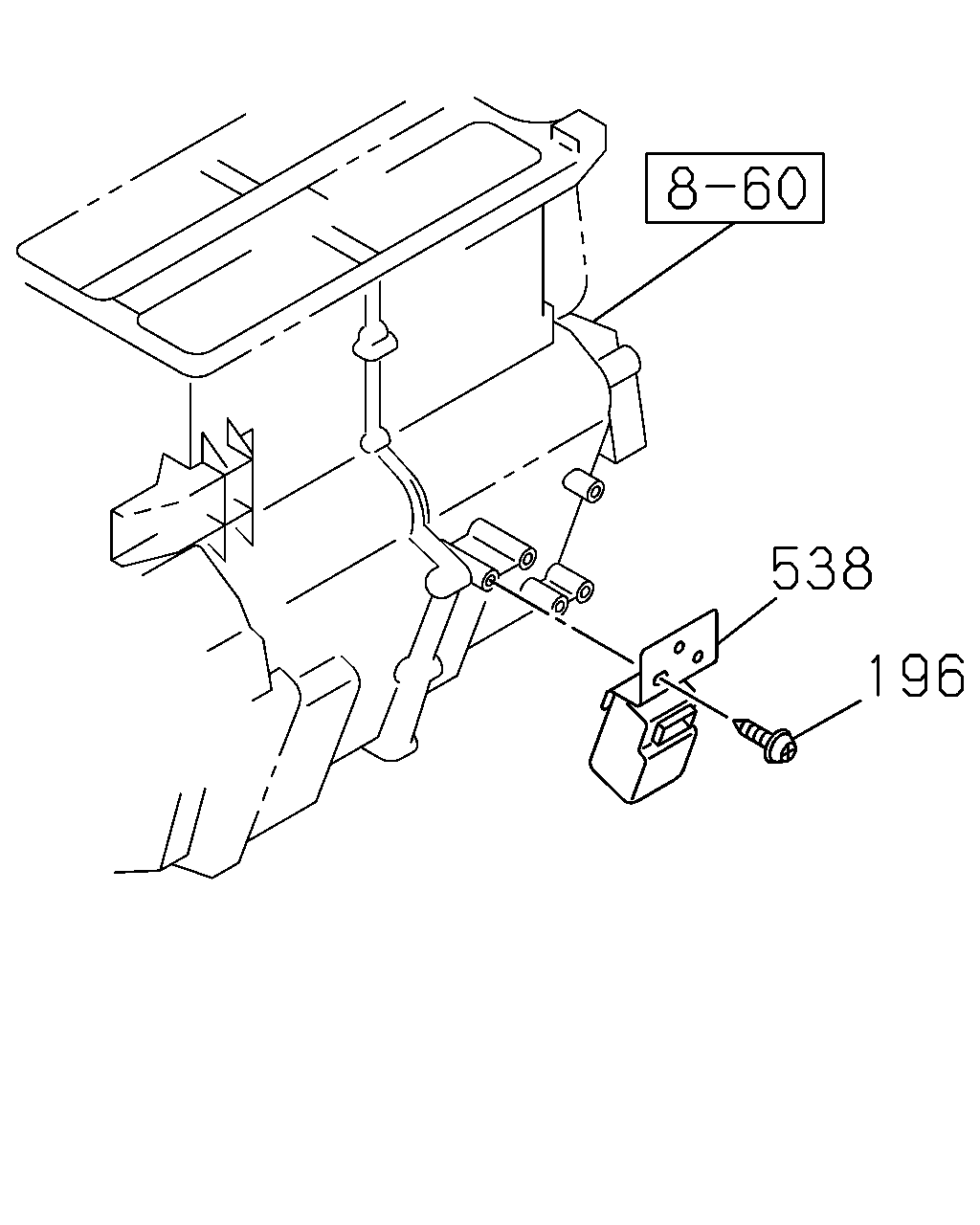

çizim 514027
538 196
BalonParca AdiParca NoAdetTipApplied Date A B
196 BOLT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1601- ● ●
538 CONTROLLER; LEVEL 8-98330-611-0 01 1 1601- ● ●

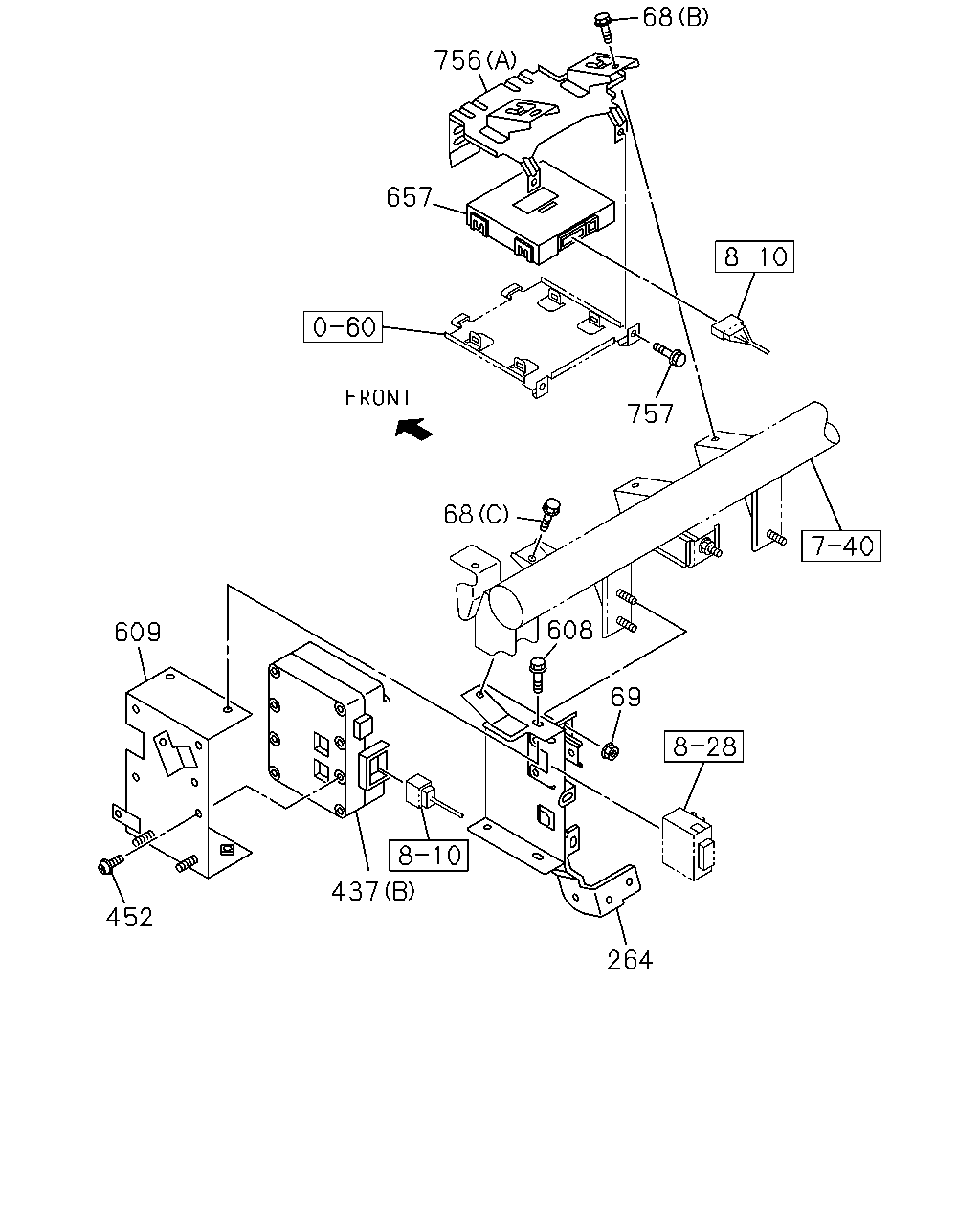

çizim 514060
68 756 657 757 68 609 437 452 264 69 608
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1601- ● ●
68 BOLT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ), SMOOTHER-FX(TYPE2)(8NS) (C) M6X16 FLANGE 		0-28650-616-0 01 1 1601- ● ●
68 BOLT; BRKT
IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) M6X16 FLANGE 		0-28650-616-0 01 1 1601- ● ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 1601- ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1601- ● ●
69 NUT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ), SMOOTHER-FX(TYPE2)(8NS) M6 FLANGE 		0-91180-106-0 01 1 1601- ● ●
69 NUT; BRKT
IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> M6 FLANGE 		0-91180-106-0 01 1 1601- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1601- ● ●
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 1601- ● ●
437 CONVERTER; DC
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ), SMOOTHER-FX(TYPE2)(8NS) (B) 		8-98223-665-0 01 1 1601- ● ●
437 CONVERTER; DC
IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS) EXC. H.S.A SYSTEM<6EP> (B) 		8-98223-665-0 01 1 1601- ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) KOITO 		8-97359-129-0 01 1 1601- ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ), SMOOTHER-FX(TYPE2)(8NS) M5X12 		0-38050-512-0 04 1 1601- ● ●
452 BOLT; BRKT
IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS) EXC. H.S.A SYSTEM<6EP> M5X12 		0-38050-512-0 04 1 1601- ● ●
608 BOLT; CONT UNIT,AIR SUS
IDLE STOP SYSTEM VAR2<8BM> M6X16 FLANGE 		0-28650-616-0 05 1 1601- ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ), SMOOTHER-FX(TYPE2)(8NS) 		8-98305-920-0 01 1 1601- ● ●
657 CONTROL UNIT; MIMAMORI
IDLE STOP SYSTEM VAR2<8BM> 		8-98312-617-0 01 1 1601- ● ●
657 CONTROL UNIT; MIMAMORI
EXC. IDLE STOP SYSTEM VAR2<8BM> 		8-98312-616-1 01 1 1601- ● ●
756 BRACKET; ECU,BCM
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98252-076-1 01 1 1601- ● ●
756 BRACKET; ECU,BCM
IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98252-076-1 01 1 1601- ● ●
756 BRACKET; ECU,BCM
H.S.A SYSTEM<6EP> SMOOTHER-FX(TYPE2)(8NS) (D) 		8-98252-077-1 01 1 1601- ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1601- ● ●
756 BRACKET; ECU,BCM
(B) 		8-98203-991-0 01 1 1601- ● ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 1601- ● ●
757 BOLT; BRKT,BCM
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1601- ● ●

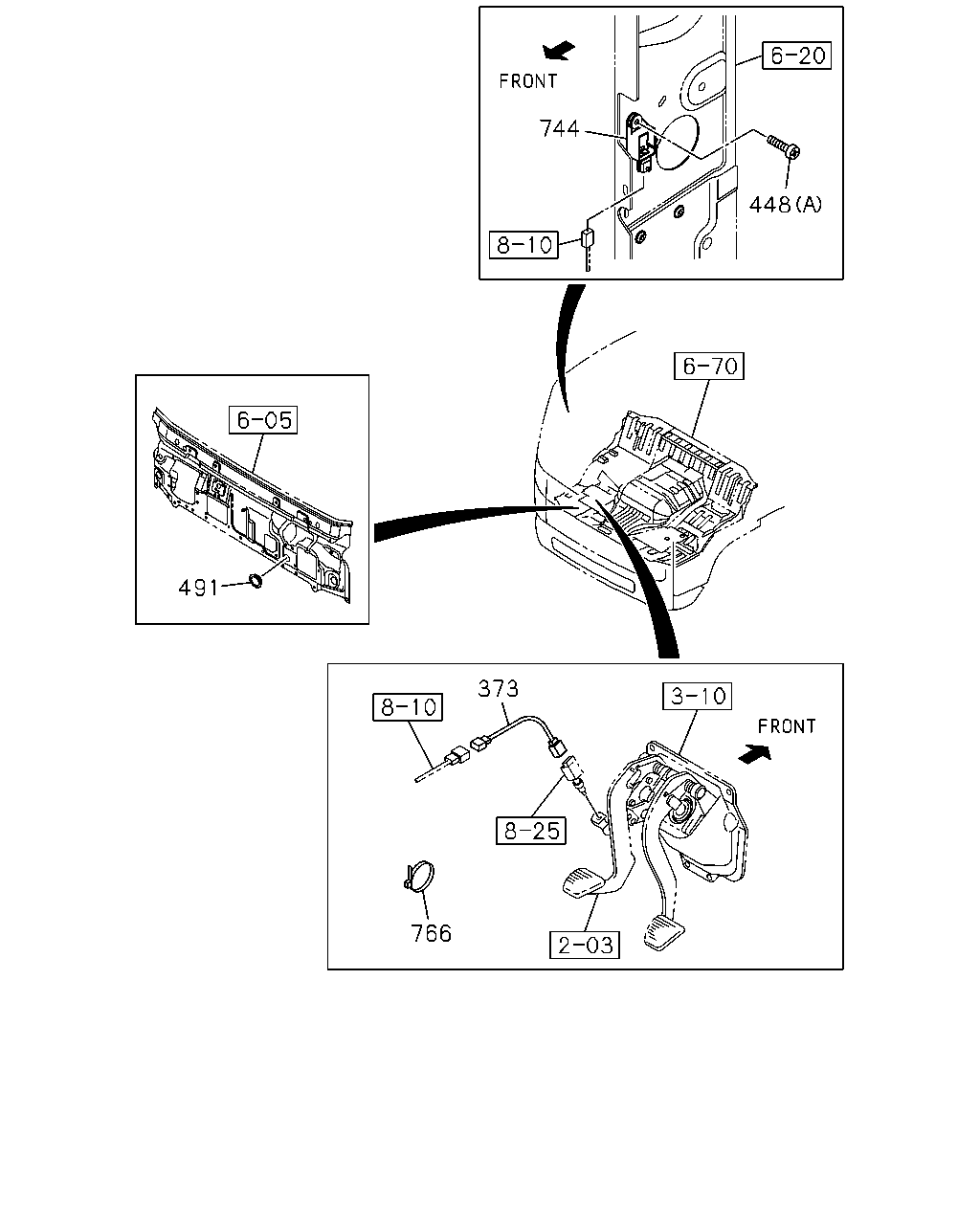

çizim 514065
491 373 766 744 448
BalonParca AdiParca NoAdetTipApplied Date A B
373 HARNESS; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98059-419-2 01 1 1601- ● ●
448 BOLT; SENSOR
(A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1601- ● ●
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1601- ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1601- ● ●
744 SENSOR; AIR BAG 8-98190-212-0 01 1 1601- ● ●
766 BAND; CLIP
H.S.A SYSTEM<6EP> SMOOTHER-FX(TYPE2)(8NS) L=140 		5-09707-031-1 01 1 1601- ● ●
çizim 514066
380 507
BalonParca AdiParca NoAdetTipApplied Date A B
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1601- ● ●
507 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1601- ● ●
çizim 515105
747 319 275
BalonParca AdiParca NoAdetTipApplied Date A B
275 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1601- ● ●
319 PLATE; LK 8-98151-544-2 01 1 1601- ● ●
747 CONTROL UNIT; TURBOCHARGER 8-98316-478-0 01 1 1601- ● ●

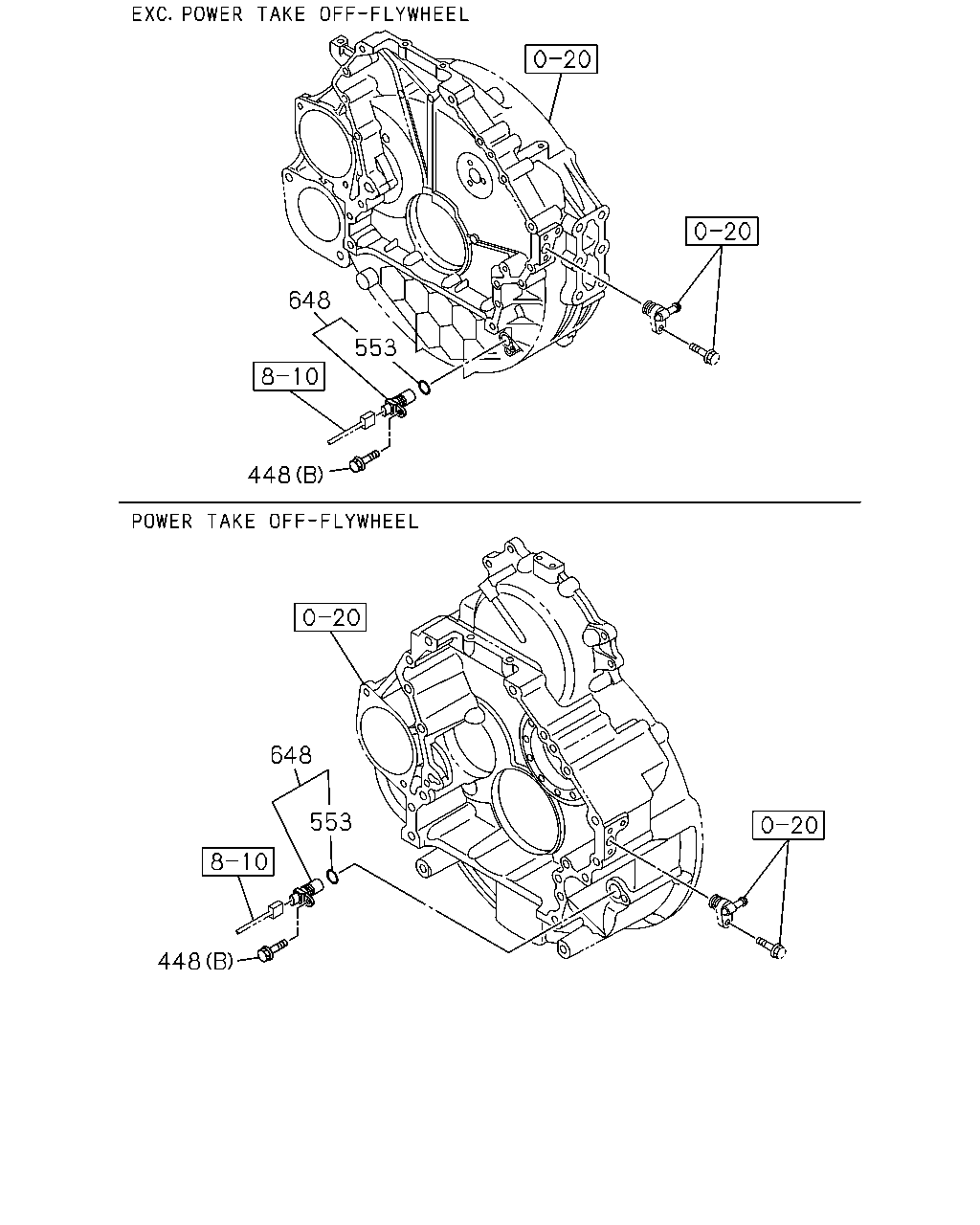

çizim 515108
648 553 448 648 553 448
BalonParca AdiParca NoAdetTipApplied Date A B
448 BOLT; SENSOR
(A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1601- ● ●
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1601- ● ●
553 GASKET
ID=14.2 OD=18.8 		8-97369-404-0 01 1 1601- ● ●
648 SENSOR; CRANK ANGLE 8-97606-943-0 01 1 1601- ● ●

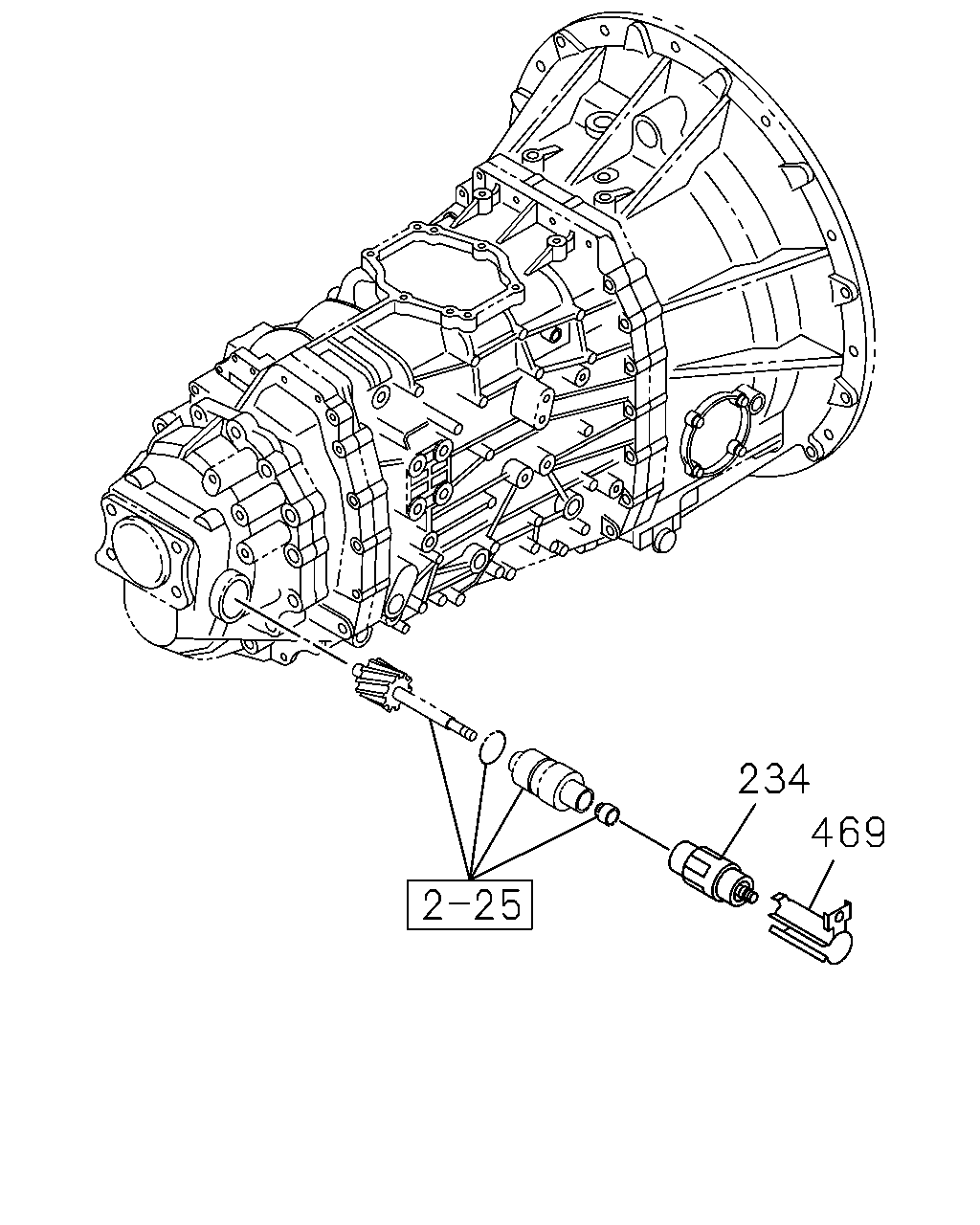

çizim 515109
234 469
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1601- ● ●
469 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 1601- ● ●

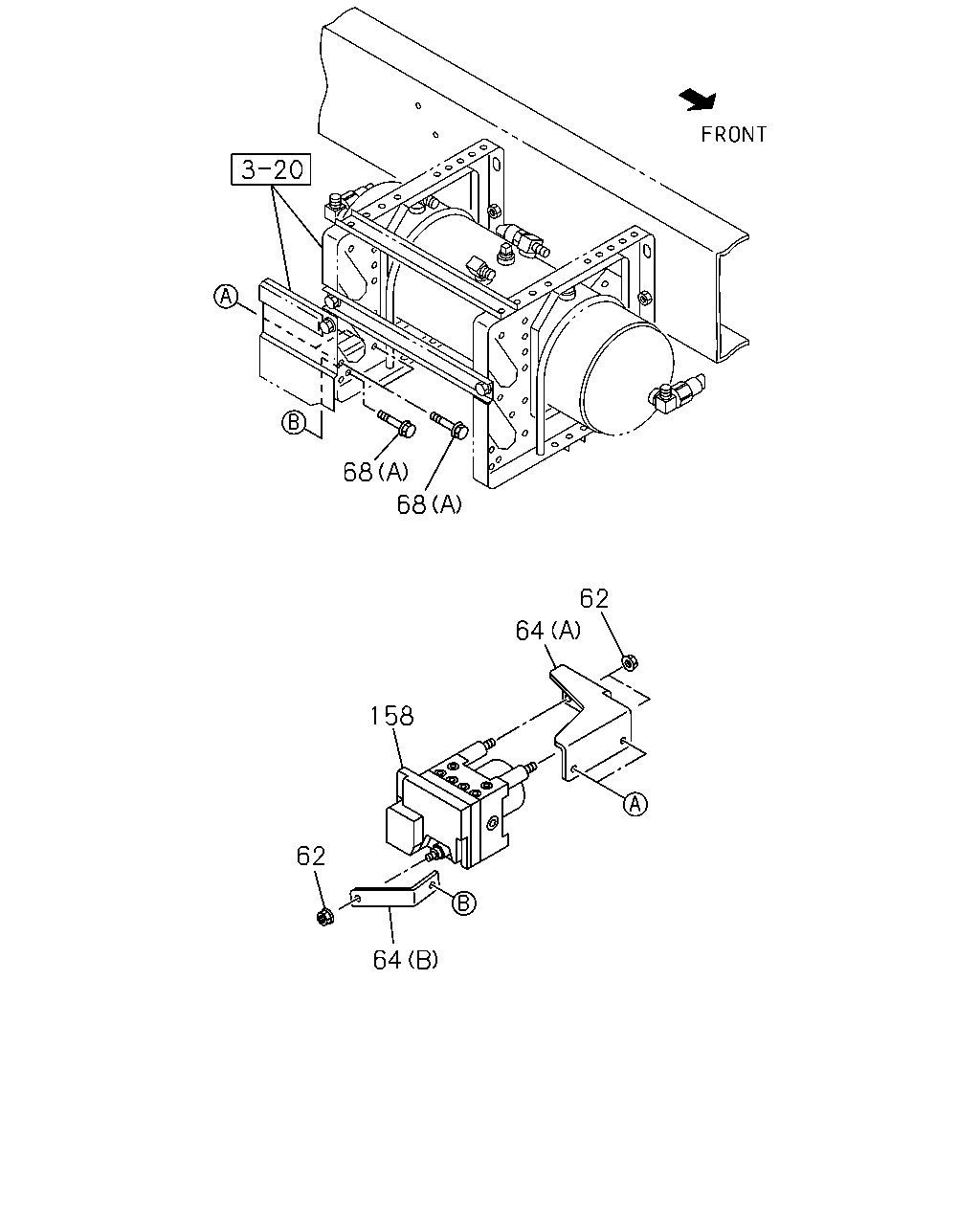

çizim 515123
68 68 62 64 158 62 64
BalonParca AdiParca NoAdetTipApplied Date A B
62 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1601- ● ●
64 BRACKET; CONTROLLER
(A) 		8-98044-238-2 01 1 1601- ● ●
64 BRACKET; CONTROLLER
(B) 		8-98044-239-1 01 1 1601- ● ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1601- ● ●
68 BOLT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ), SMOOTHER-FX(TYPE2)(8NS) (C) M6X16 FLANGE 		0-28650-616-0 01 1 1601- ● ●
68 BOLT; BRKT
IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) M6X16 FLANGE 		0-28650-616-0 01 1 1601- ● ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 1601- ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1601- ● ●
158 CONTROLLER; ABS
THROTTLE CONTROL SYSTEM(6XH) 		8-98157-999-1 01 1 1601- ●
158 CONTROLLER; ABS
TIRE 9.5R 17.5-129/127L FRT RIB RR TRACTION(5J6), TIRE 9.5R 17.5-129/127(83N) THROTTLE CONTROL SYSTEM(6XH) 		8-98157-999-1 01 1 1601- ●
158 CONTROLLER; ABS
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-993-1 01 1 1601- ●
158 CONTROLLER; ABS
TIRE 9.5R 17.5-129/127L FRT RIB RR TRACTION(5J6), TIRE 9.5R 17.5-129/127(83N) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-993-1 01 1 1601- ●
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M EXP RIB(5J9),TIRE 235/75R17.5-132/130M EXP RIB BS BRAND(5P0) THROTTLE CONTROL SYSTEM(6XH) 		8-98157-998-1 01 1 1601- ●
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M EXP RIB(5J9),TIRE 235/75R17.5-132/130M EXP RIB BS BRAND(5P0) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-992-1 01 1 1601- ●

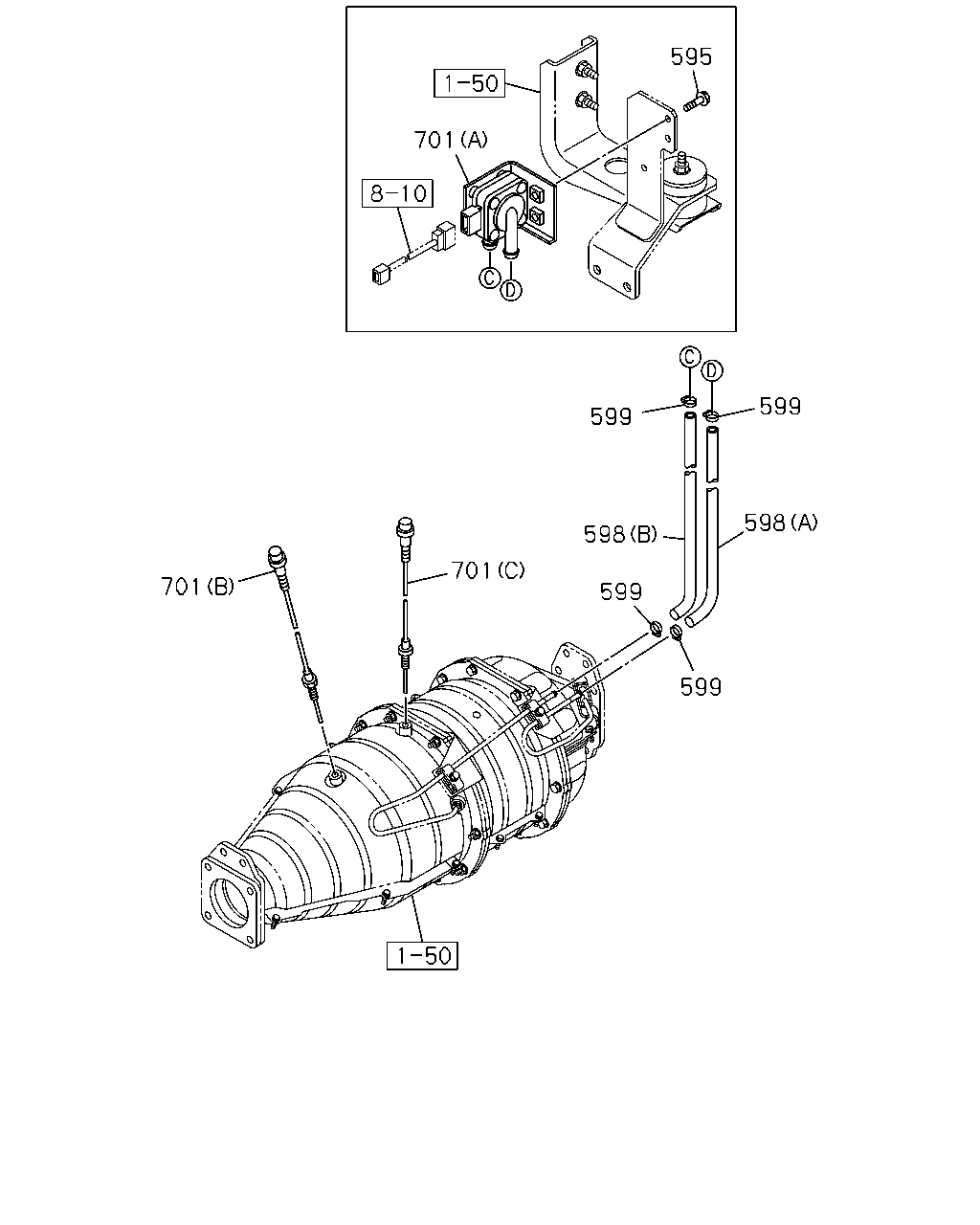

çizim 515125
595 701 701 701 599 598 599 599 598 599
BalonParca AdiParca NoAdetTipApplied Date A B
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 1601- ● ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98253-792-0 01 1 1601- ● ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98253-793-0 01 1 1601- ● ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 02 1 1601- ● ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 1601- ● ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 1601- ● ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 1601- ● ●

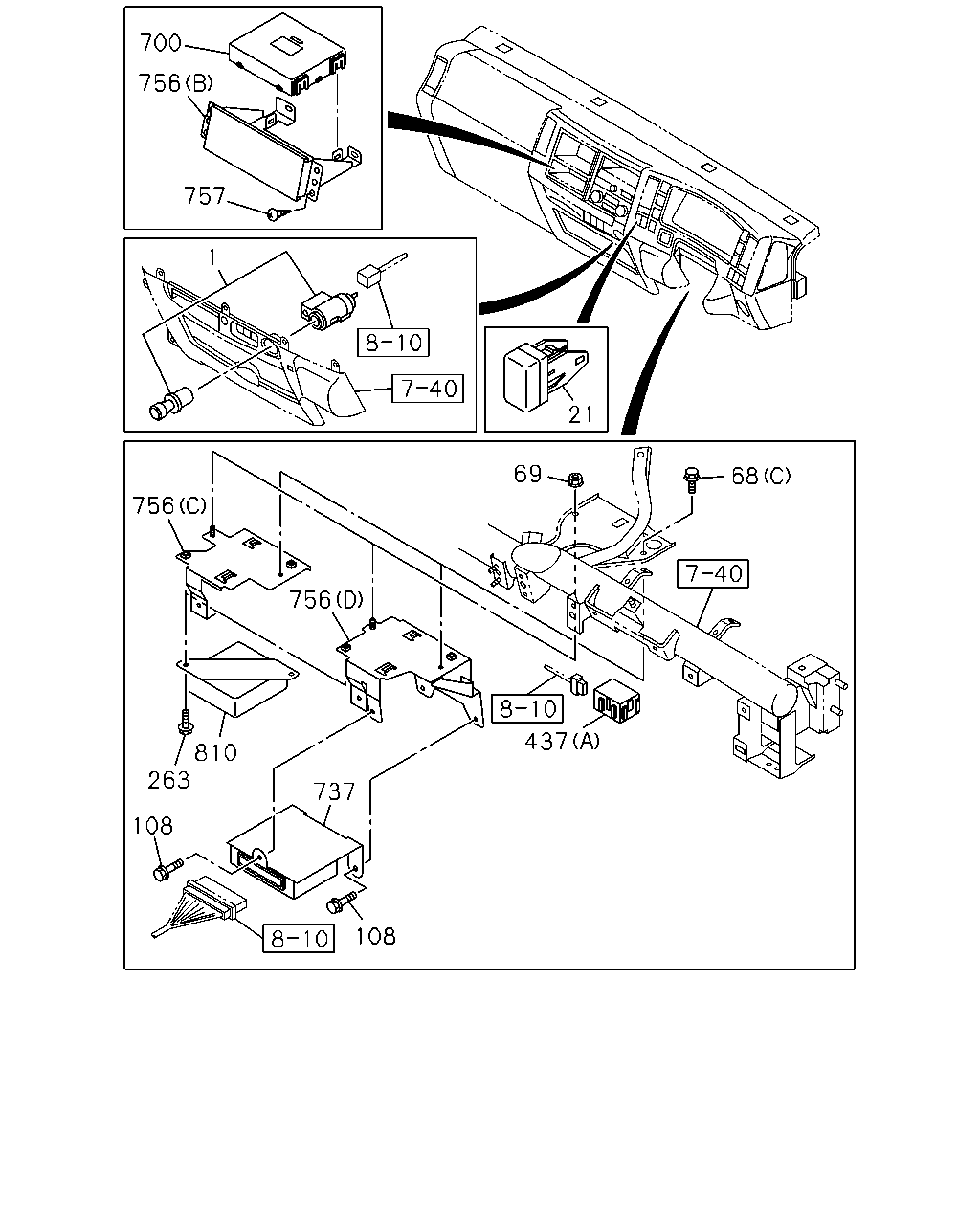

çizim 515159
700 756 757 1 21 69 437 756 756 810 737 263 108 108 68
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX> 		8-98142-962-0 01 1 1601- ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1601- ● ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1601- ● ●
68 BOLT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ), SMOOTHER-FX(TYPE2)(8NS) (C) M6X16 FLANGE 		0-28650-616-0 01 1 1601- ● ●
68 BOLT; BRKT
IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) M6X16 FLANGE 		0-28650-616-0 01 1 1601- ● ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 1601- ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1601- ● ●
69 NUT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ), SMOOTHER-FX(TYPE2)(8NS) M6 FLANGE 		0-91180-106-0 01 1 1601- ● ●
69 NUT; BRKT
IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> M6 FLANGE 		0-91180-106-0 01 1 1601- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1601- ● ●
108 BOLT; TRANS CONT MODULE
SMOOTHER-FX(TYPE2)(8NS) M6X16 FLANGE 		0-28650-616-0 03 1 1601- ● ●
263 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1601- ● ●
263 BOLT; CONT UNIT
EXC. IDLE STOP SYSTEM DELETE<Q3Q>,H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1601- ● ●
437 CONVERTER; DC
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ), SMOOTHER-FX(TYPE2)(8NS) (B) 		8-98223-665-0 01 1 1601- ● ●
437 CONVERTER; DC
IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS) EXC. H.S.A SYSTEM<6EP> (B) 		8-98223-665-0 01 1 1601- ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) KOITO 		8-97359-129-0 01 1 1601- ●
700 CONTROL UNIT; CAN CONVERTER 8-98219-812-1 01 1 1601- ● ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) SMOOTHER-FX(TYPE2)(8NS) 		8-98328-097-0 01 1 1601- ● ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCH ENG(RDW) SMOOTHER-FX(TYPE2)(8NS) 		8-98328-098-0 01 1 1601- ●
756 BRACKET; ECU,BCM
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98252-076-1 01 1 1601- ● ●
756 BRACKET; ECU,BCM
IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98252-076-1 01 1 1601- ● ●
756 BRACKET; ECU,BCM
H.S.A SYSTEM<6EP> SMOOTHER-FX(TYPE2)(8NS) (D) 		8-98252-077-1 01 1 1601- ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1601- ● ●
756 BRACKET; ECU,BCM
(B) 		8-98203-991-0 01 1 1601- ● ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 1601- ● ●
757 BOLT; BRKT,BCM
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1601- ● ●
810 CONTROL UNIT; ISS
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98322-712-0 01 1 1601- ● ●
810 CONTROL UNIT; ISS
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM DELETE<Q3Q> SMOOTHER-FX(TYPE2)(8NS) 		8-98322-712-0 01 1 1601- ● ●
810 CONTROL UNIT; ISS
IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98322-712-0 01 1 1601- ● ●
810 CONTROL UNIT; ISS
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS) 		8-98322-711-0 01 1 1601- ● ●
