Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#175580) — 537 parça

180 486 1 1 570 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-480-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-472-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-481-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-476-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-468-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-477-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-478-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-470-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-479-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-474-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-466-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-475-2	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-266-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-262-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-264-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-260-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-265-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-261-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-263-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-259-1	01	1	1601-	●	●
180	HARNESS; CABLE	8-98289-975-0	01	1	1601-	●
180	HARNESS; CABLE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)	8-98289-975-0	01	1	1601-		●
180	HARNESS; CABLE WHEEL BASE 3700MM(37W)	8-98268-857-1	01	1	1601-		●
339	HARNESS; EXT,FUEL	8-98247-534-0	01	1	1601-	●
339	HARNESS; EXT,FUEL WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)	8-98247-534-0	01	1	1601-		●
486	HARNESS; ALL SPEED ACCEL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4>	1-82675-898-0	01	1	1601-	●	●
570	HARNESS; SPEED SENSOR SPEED LIMITER 95KM(NNT)	8-98172-313-0	01	1	1601-	●	●

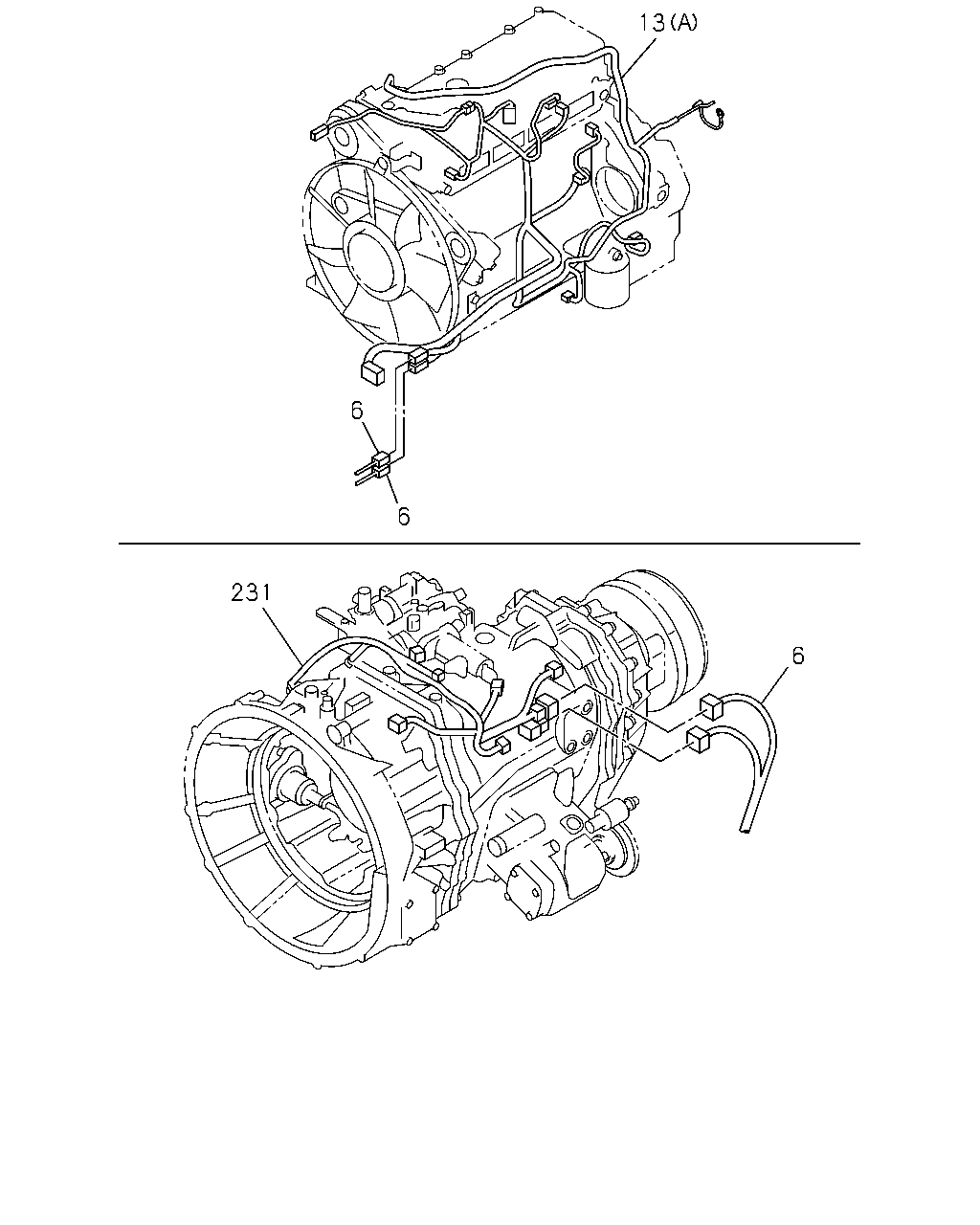

13 6 6 231 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98330-553-0	01	1	1601-	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98330-553-0	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) SMOOTHER-FX(TYPE2)(8NS)	8-98330-554-0	01	1	1601-	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) SMOOTHER-FX(TYPE2)(8NS)	8-98330-554-0	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-136-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 3700MM(37W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-134-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-132-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-130-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98330-551-0	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) SMOOTHER-FX(TYPE2)(8NS)	8-98330-552-0	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-135-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-133-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-131-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-129-1	01	1	1601-		●
13	HARNESS; ENG GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL<6SZ> (A)	8-98335-152-0	01	1	1601-		●
13	HARNESS; ENG (A)	8-98324-198-0	01	1	1601-	●
13	HARNESS; ENG GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A)	8-98324-198-0	01	1	1601-		●
13	HARNESS; ENG (B)	8-98120-924-0	01	1	1601-	●	●
13	HARNESS; ENG GENERATOR 24V60A(KG2) (A)	8-98324-197-0	01	1	1601-		●
231	HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98178-491-2	01	1	1601-	●	●
231	HARNESS; TRANS SMOOTHER-FX(TYPE2)(8NS)	8-98234-229-1	01	1	1601-	●	●

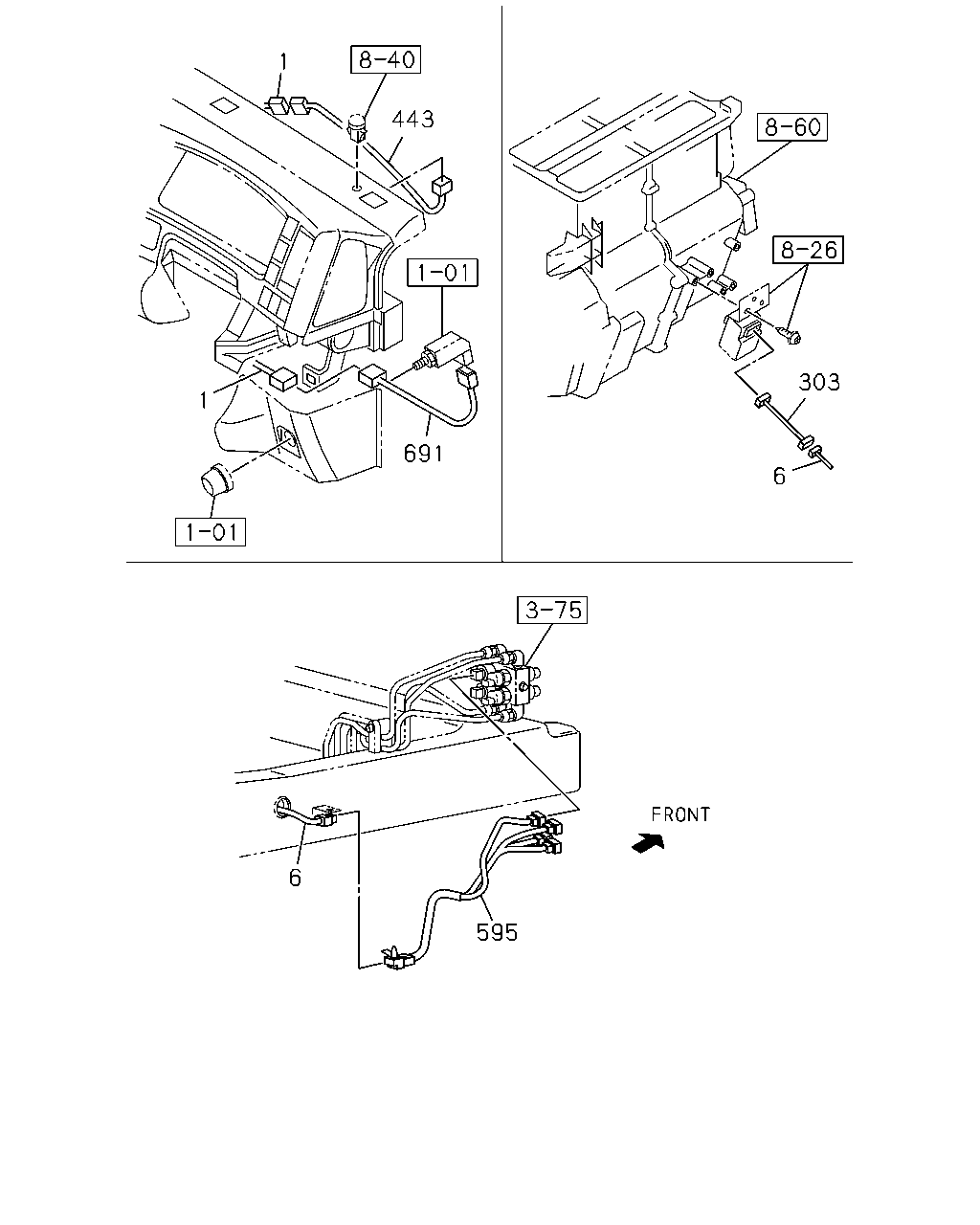

1 443 691 1 6 595 6 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-480-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-472-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-481-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-476-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-468-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-477-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-478-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-470-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-479-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-474-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-466-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-475-2	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-266-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-262-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-264-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-260-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-265-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-261-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-263-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-259-1	01	1	1601-	●	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98330-553-0	01	1	1601-	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98330-553-0	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) SMOOTHER-FX(TYPE2)(8NS)	8-98330-554-0	01	1	1601-	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) SMOOTHER-FX(TYPE2)(8NS)	8-98330-554-0	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-136-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 3700MM(37W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-134-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-132-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-130-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98330-551-0	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) SMOOTHER-FX(TYPE2)(8NS)	8-98330-552-0	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-135-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-133-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-131-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-129-1	01	1	1601-		●
303	HARNESS; WATER LEVEL	8-98309-145-1	01	1	1601-	●	●
443	HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98096-565-0	01	1	1601-	●	●
595	HARNESS; WARNING,BRK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98328-473-0	01	1	1601-	●	●
595	HARNESS; WARNING,BRK SMOOTHER-FX(TYPE2)(8NS)	8-98254-946-2	01	1	1601-	●	●
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	1601-	●	●

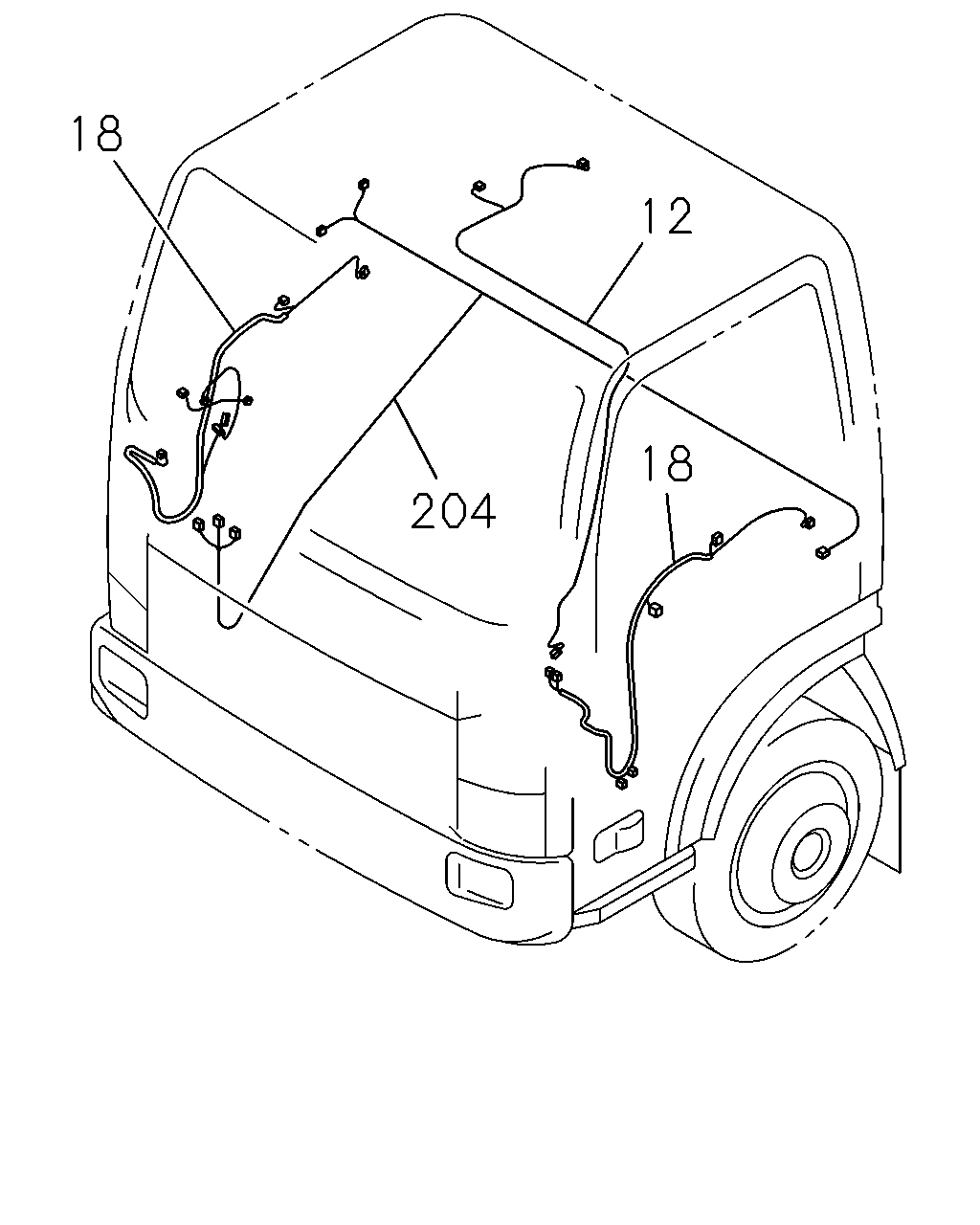

18 12 204 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	HARNESS; ROOF	8-98079-071-1	01	1	1601-	●	●
18	HARNESS; DOOR	8-98225-378-0	01	1	1601-	●	●
18	HARNESS; DOOR	8-98225-379-0	01	1	1601-	●	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-196-2	01	1	1601-	●	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) SMOOTHER-FX(TYPE2)(8NS)	8-98084-210-2	01	1	1601-	●	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-201-1	01	1	1601-	●	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) SMOOTHER-FX(TYPE2)(8NS)	8-98084-214-1	01	1	1601-	●	●

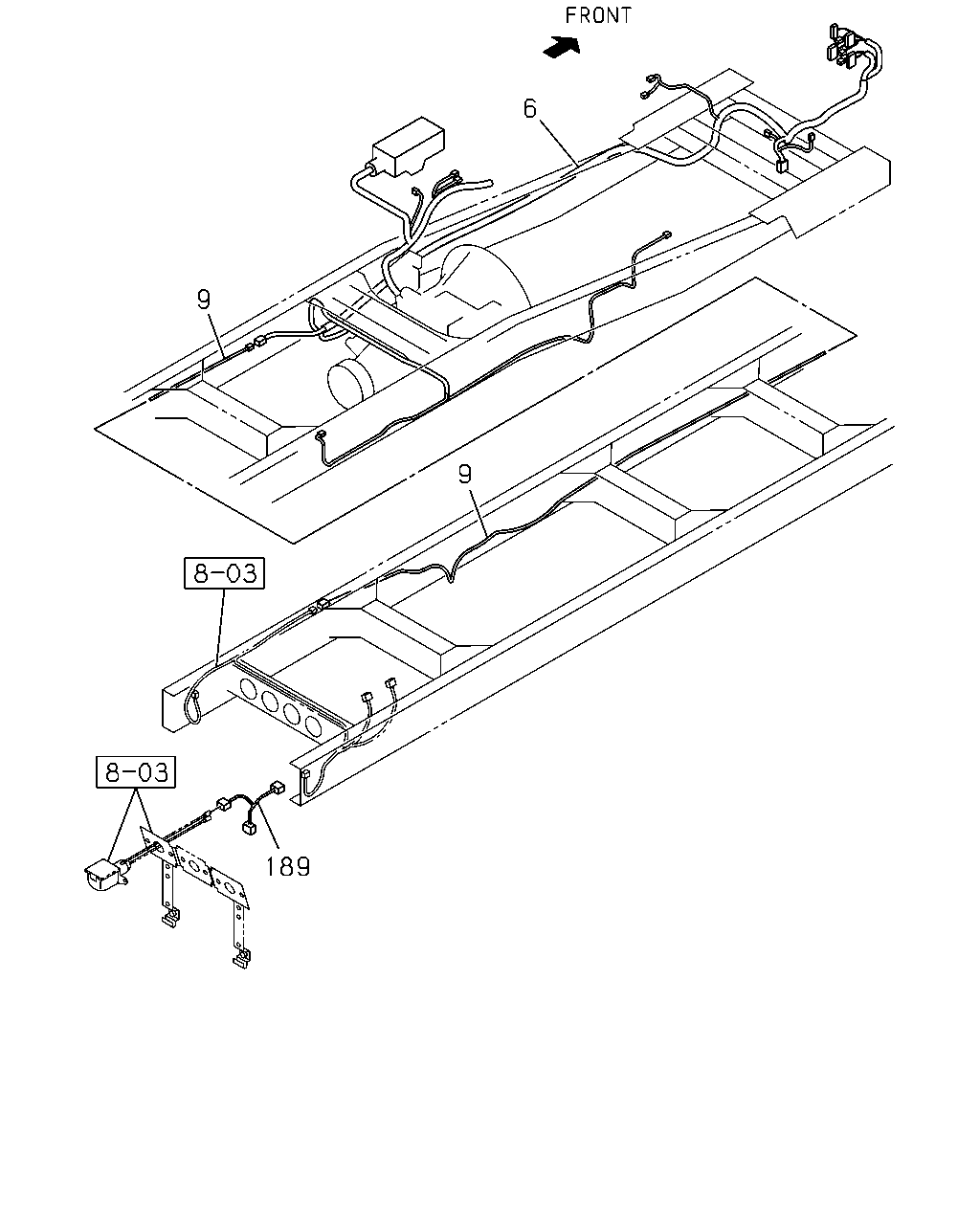

9 9 189 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98330-553-0	01	1	1601-	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98330-553-0	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) SMOOTHER-FX(TYPE2)(8NS)	8-98330-554-0	01	1	1601-	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) SMOOTHER-FX(TYPE2)(8NS)	8-98330-554-0	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-136-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 3700MM(37W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-134-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-132-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-130-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98330-551-0	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) SMOOTHER-FX(TYPE2)(8NS)	8-98330-552-0	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-135-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-133-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-131-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-129-1	01	1	1601-		●
9	HARNESS; FRAME,RR	8-98233-636-1	01	1	1601-	●
9	HARNESS; FRAME,RR WHEEL BASE 4000MM(40W)	8-98327-623-0	01	1	1601-		●
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W)	8-98327-624-0	01	1	1601-		●
9	HARNESS; FRAME,RR WHEEL BASE 4900MM(49W)	8-98168-598-0	01	1	1601-		●
9	HARNESS; FRAME,RR WHEEL BASE 5300MM(53W)	8-98168-593-0	01	1	1601-		●
189	HARNESS; EXT	8-98131-066-0	01	1	1601-	●	●

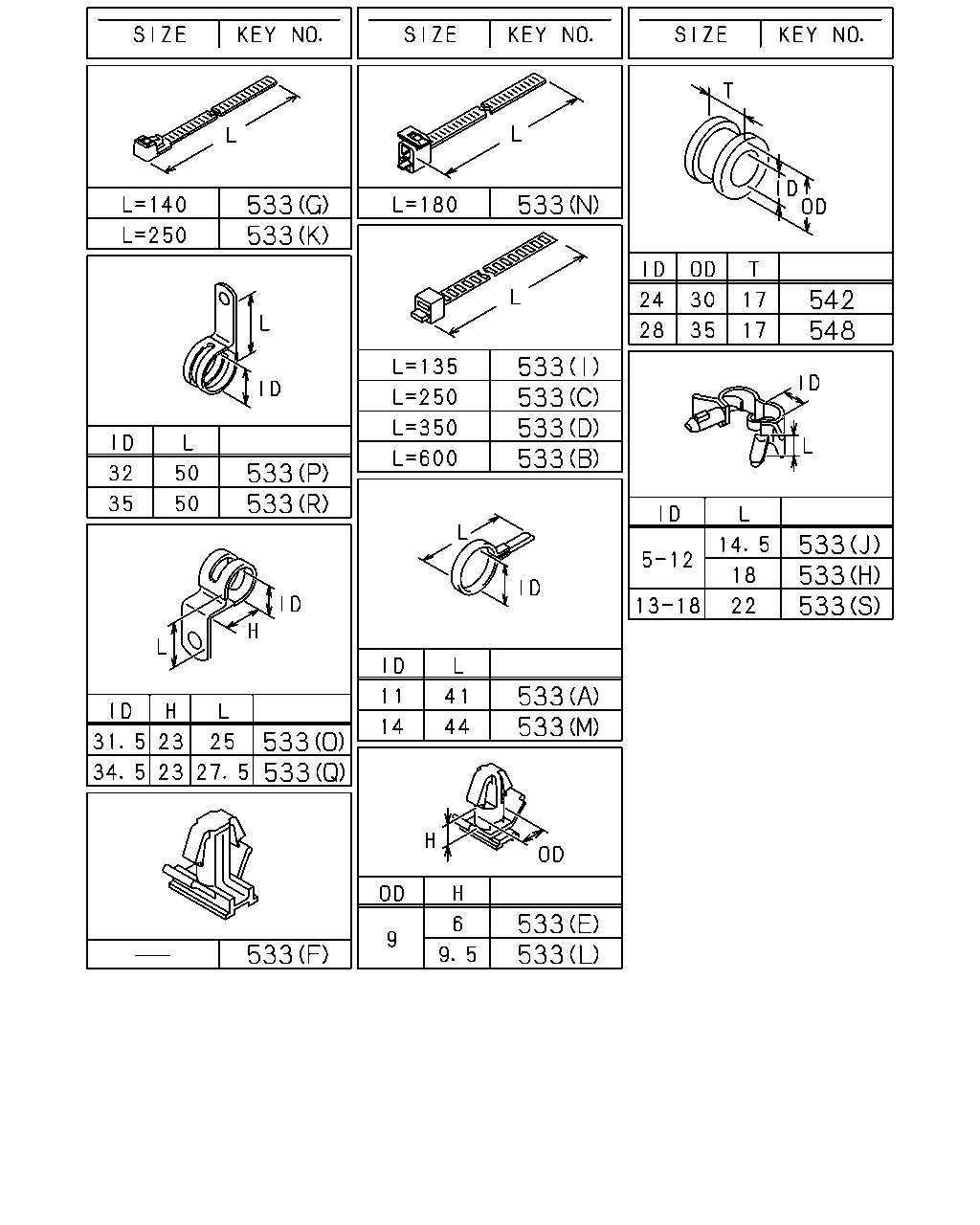

201 479 533

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
201	HARNESS; AIR TANK THROTTLE CONTROL SYSTEM(6XH)	8-98309-141-0	01	1	1601-	●	●
201	HARNESS; AIR TANK EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98309-142-0	01	1	1601-	●	●
479	CAP; CONNECTOR EXC. H.S.A SYSTEM<6EP>	1-82691-191-0	01	1	1601-	●	●
533	CLIP (T) L=112	8-94232-618-0	02	1	1601-	●	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1601-	●	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=32 L=50	1-09701-055-1	01	1	1601-	●	●
533	CLIP (E) OD=9 H=6	1-09709-178-0	01	1	1601-	●	●
533	CLIP (E) OD=9 H=6	1-09709-178-0	01	1	1601-	●	●
533	CLIP EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1601-	●	●
533	CLIP (C) L=250	1-09707-126-0	02	1	1601-	●	●
533	CLIP (D) L=350	1-09707-183-0	01	1	1601-	●	●
533	CLIP (H) ID=5-12 L=18	1-09709-287-0	01	1	1601-	●	●
533	CLIP (I) L=135	1-09987-143-1	01	1	1601-	●	●
533	CLIP (F) OD=8.95 H=6.25	8-97375-754-0	01	1	1601-	●	●
533	CLIP SMOOTHER-FX(TYPE2)(8NS) (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1601-	●	●
533	CLIP SMOOTHER-FX(TYPE2)(8NS) (R) ID=35 L=50	1-09701-214-0	01	1	1601-	●	●
533	CLIP (S) ID=13-18 L=22	1-09709-292-0	02	1	1601-	●
533	CLIP (M) ID=14 L=44	9-09917-427-0	19	1	1601-	●
533	CLIP (K) L=250	5-09707-030-1	01	1	1601-	●	●
533	CLIP (K) L=250	5-09707-030-1	01	1	1601-	●	●
533	CLIP (K) L=250	5-09707-030-1	01	1	1601-	●
533	CLIP (A) ID=11 L=41	1-09700-403-0	01	1	1601-	●	●
533	CLIP (K) L=250	5-09707-030-1	03	1	1601-	●	●
533	CLIP (B) L=600	1-09707-107-1	01	1	1601-	●	●
533	CLIP (N) L=180	1-09707-162-1	01	1	1601-	●	●
533	CLIP (L) OD=9 H=9.5	1-09709-179-0	01	1	1601-	●	●
533	CLIP (J) ID=5-12 L=14.5	1-09987-221-0	03	1	1601-	●	●
533	CLIP (K) L=250	5-09707-030-1	02	1	1601-	●	●
533	CLIP (K) L=250	5-09707-030-1	04	1	1601-	●	●
533	CLIP (G) L=140	5-09707-031-1	01	1	1601-	●	●
533	CLIP (M) ID=14 L=44	9-09917-427-0	02	1	1601-	●	●
533	CLIP WHEEL BASE 3700MM(37W) (M) ID=14 L=44	9-09917-427-0	10	1	1601-		●
533	CLIP WHEEL BASE 4000MM(40W) (M) ID=14 L=44	9-09917-427-0	11	1	1601-		●
533	CLIP WHEEL BASE 4600MM(46W) (M) ID=14 L=44	9-09917-427-0	14	1	1601-		●
533	CLIP WHEEL BASE 4900MM(49W) (M) ID=14 L=44	9-09917-427-0	16	1	1601-		●
533	CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (S) ID=13-18 L=22	1-09709-292-0	01	1	1601-		●
533	CLIP WHEEL BASE 5300MM(53W) (M) ID=14 L=44	9-09917-427-0	17	1	1601-		●

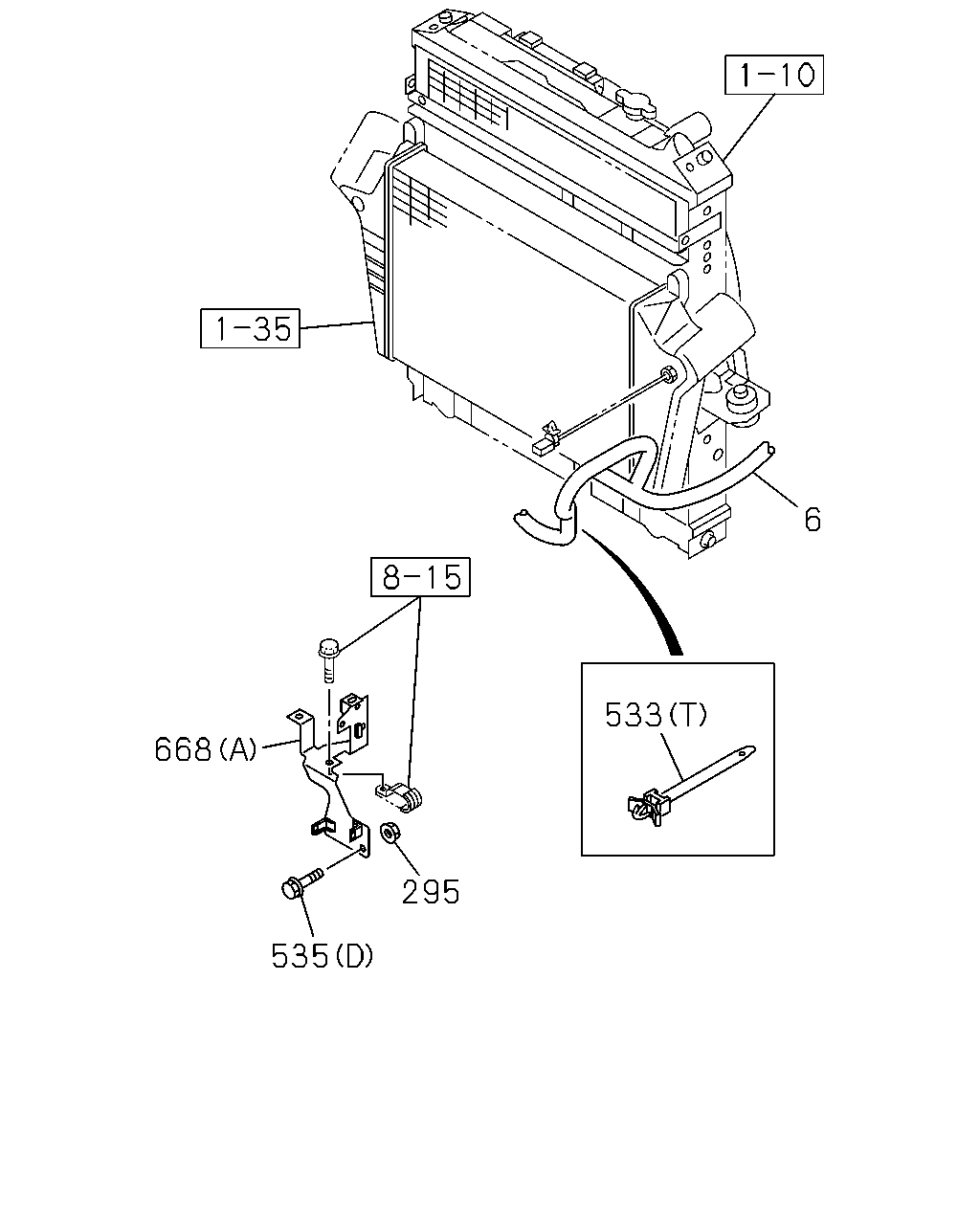

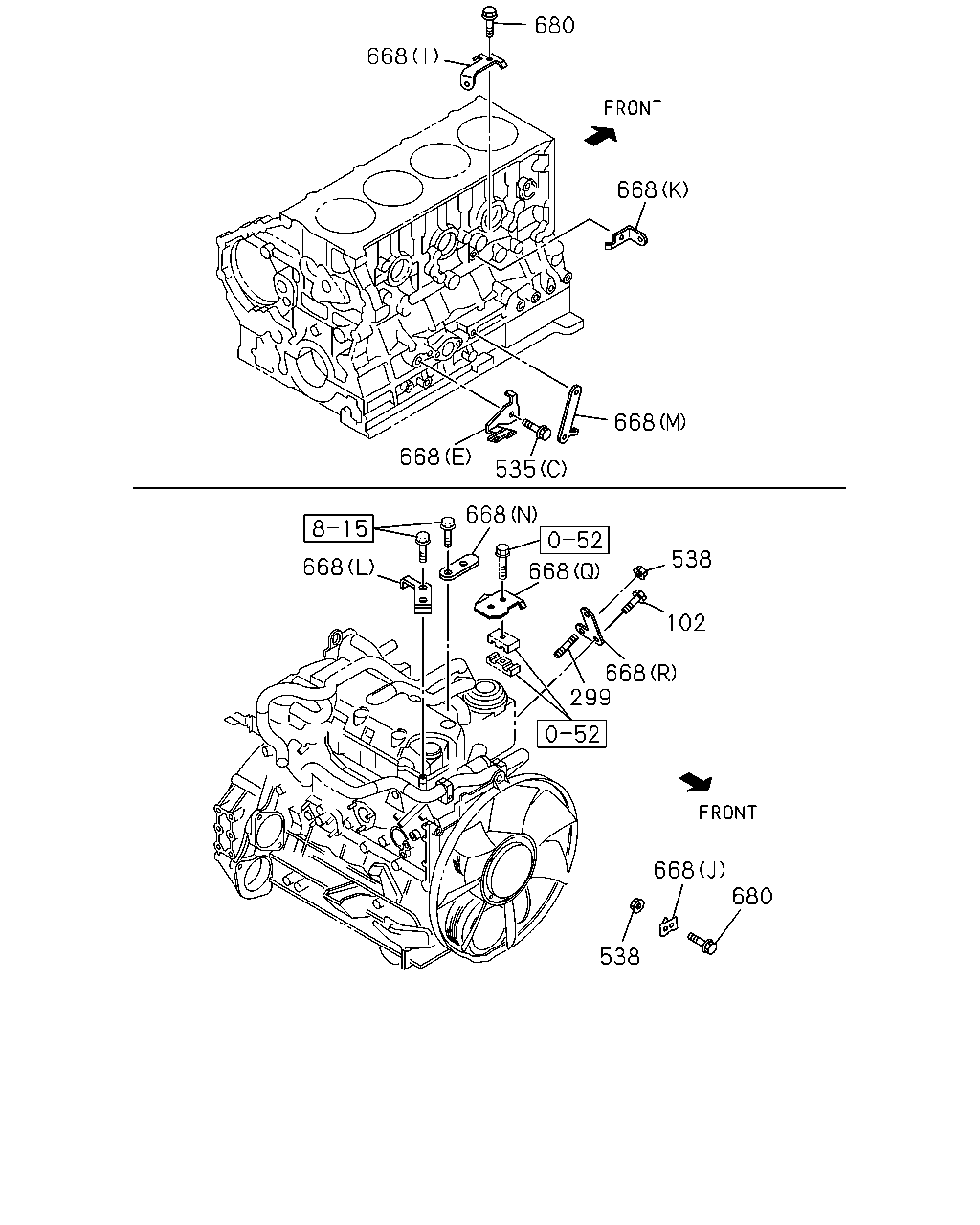

668 535 295 6 533

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98330-553-0	01	1	1601-	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98330-553-0	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) SMOOTHER-FX(TYPE2)(8NS)	8-98330-554-0	01	1	1601-	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) SMOOTHER-FX(TYPE2)(8NS)	8-98330-554-0	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-136-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 3700MM(37W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-134-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-132-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-130-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98330-551-0	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) SMOOTHER-FX(TYPE2)(8NS)	8-98330-552-0	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-135-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-133-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-131-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-129-1	01	1	1601-		●
295	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1601-	●	●
533	CLIP (T) L=112	8-94232-618-0	02	1	1601-	●	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1601-	●	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=32 L=50	1-09701-055-1	01	1	1601-	●	●
533	CLIP (E) OD=9 H=6	1-09709-178-0	01	1	1601-	●	●
533	CLIP (E) OD=9 H=6	1-09709-178-0	01	1	1601-	●	●
533	CLIP EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1601-	●	●
533	CLIP (C) L=250	1-09707-126-0	02	1	1601-	●	●
533	CLIP (D) L=350	1-09707-183-0	01	1	1601-	●	●
533	CLIP (H) ID=5-12 L=18	1-09709-287-0	01	1	1601-	●	●
533	CLIP (I) L=135	1-09987-143-1	01	1	1601-	●	●
533	CLIP (F) OD=8.95 H=6.25	8-97375-754-0	01	1	1601-	●	●
533	CLIP SMOOTHER-FX(TYPE2)(8NS) (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1601-	●	●
533	CLIP SMOOTHER-FX(TYPE2)(8NS) (R) ID=35 L=50	1-09701-214-0	01	1	1601-	●	●
533	CLIP (S) ID=13-18 L=22	1-09709-292-0	02	1	1601-	●
533	CLIP (M) ID=14 L=44	9-09917-427-0	19	1	1601-	●
533	CLIP (K) L=250	5-09707-030-1	01	1	1601-	●	●
533	CLIP (K) L=250	5-09707-030-1	01	1	1601-	●	●
533	CLIP (K) L=250	5-09707-030-1	01	1	1601-	●
533	CLIP (A) ID=11 L=41	1-09700-403-0	01	1	1601-	●	●
533	CLIP (K) L=250	5-09707-030-1	03	1	1601-	●	●
533	CLIP (B) L=600	1-09707-107-1	01	1	1601-	●	●
533	CLIP (N) L=180	1-09707-162-1	01	1	1601-	●	●
533	CLIP (L) OD=9 H=9.5	1-09709-179-0	01	1	1601-	●	●
533	CLIP (J) ID=5-12 L=14.5	1-09987-221-0	03	1	1601-	●	●
533	CLIP (K) L=250	5-09707-030-1	02	1	1601-	●	●
533	CLIP (K) L=250	5-09707-030-1	04	1	1601-	●	●
533	CLIP (G) L=140	5-09707-031-1	01	1	1601-	●	●
533	CLIP (M) ID=14 L=44	9-09917-427-0	02	1	1601-	●	●
533	CLIP WHEEL BASE 3700MM(37W) (M) ID=14 L=44	9-09917-427-0	10	1	1601-		●
533	CLIP WHEEL BASE 4000MM(40W) (M) ID=14 L=44	9-09917-427-0	11	1	1601-		●
533	CLIP WHEEL BASE 4600MM(46W) (M) ID=14 L=44	9-09917-427-0	14	1	1601-		●
533	CLIP WHEEL BASE 4900MM(49W) (M) ID=14 L=44	9-09917-427-0	16	1	1601-		●
533	CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (S) ID=13-18 L=22	1-09709-292-0	01	1	1601-		●
533	CLIP WHEEL BASE 5300MM(53W) (M) ID=14 L=44	9-09917-427-0	17	1	1601-		●
535	BOLT; BRKT FIX (C) M14X35 FLANGE	0-28851-435-0	01	1	1601-	●	●
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1601-	●
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1601-	●
535	BOLT; BRKT FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1601-		●
535	BOLT; BRKT FIX WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1601-		●
535	BOLT; BRKT FIX (D) M8X20 FLANGE	0-28650-820-0	02	1	1601-	●	●
535	BOLT; BRKT FIX (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1601-	●	●
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98095-653-2	01	1	1601-	●	●
668	BRACKET; HARNESS (C)	8-98126-634-2	01	1	1601-	●	●
668	BRACKET; HARNESS (D)	8-98126-635-2	01	1	1601-	●	●
668	BRACKET; HARNESS (E)	8-98164-831-0	01	1	1601-	●	●
668	BRACKET; HARNESS (V)	8-97619-097-1	01	1	1601-	●
668	BRACKET; HARNESS WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (V)	8-97619-097-1	01	1	1601-		●
668	BRACKET; HARNESS (F)	8-98126-636-1	01	1	1601-	●	●
668	BRACKET; HARNESS (G)	8-98126-637-2	01	1	1601-	●	●
668	BRACKET; HARNESS (O)	8-98126-638-2	01	1	1601-	●	●
668	BRACKET; HARNESS (I)	8-98147-490-0	01	1	1601-	●	●
668	BRACKET; HARNESS (J)	8-98147-491-2	01	1	1601-	●	●
668	BRACKET; HARNESS (K)	8-98150-334-0	01	1	1601-	●	●
668	BRACKET; HARNESS (L)	8-98150-855-1	01	1	1601-	●	●
668	BRACKET; HARNESS (N)	8-98161-100-0	02	1	1601-	●	●
668	BRACKET; HARNESS (M)	8-98219-133-0	01	1	1601-	●	●
668	BRACKET; HARNESS (H)	8-97619-533-0	01	1	1601-	●	●
668	BRACKET; HARNESS (S)	8-98151-455-3	01	1	1601-	●	●
668	BRACKET; HARNESS (T)	8-98221-079-1	01	1	1601-	●	●
668	BRACKET; HARNESS (P)	8-98254-592-0	01	1	1601-	●	●
668	BRACKET; HARNESS (U)	8-98268-411-0	01	1	1601-	●	●
668	BRACKET; HARNESS (A)	8-98309-152-1	01	1	1601-	●	●
668	BRACKET; HARNESS (W) L=170	1-47479-380-0	01	1	1601-	●
668	BRACKET; HARNESS WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (W) L=170	1-47479-380-0	01	1	1601-		●
668	BRACKET; HARNESS GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL<6SZ> (Q)	8-97625-412-0	01	1	1601-		●
668	BRACKET; HARNESS GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL<6SZ> (R)	8-98151-359-0	01	1	1601-		●

1 408 409 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-480-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-472-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-481-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-476-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-468-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-477-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-478-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-470-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-479-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-474-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-466-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-475-2	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-266-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-262-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-264-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-260-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-265-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-261-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-263-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-259-1	01	1	1601-	●	●

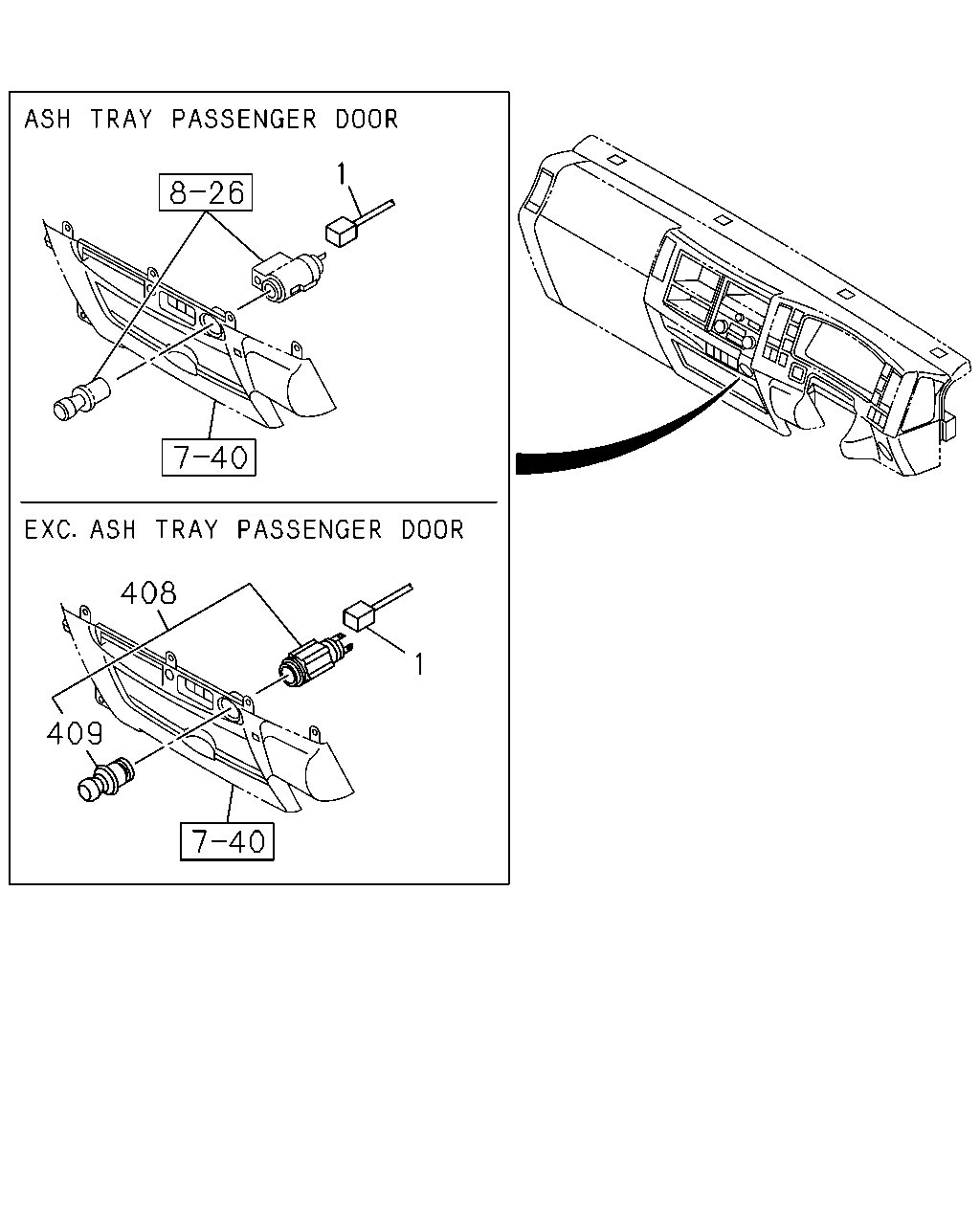

408	SOCKET ASM; ACCESSORY EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98169-757-0	01	1	1601-	●	●
409	CAP; ACCESSORY SOCKET EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98183-771-0	01	1	1601-	●	●

533 533 533 533 533 533 533 533 533 533 533 533 533 533 533 533 542 533 533 548 533

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
533	CLIP (T) L=112	8-94232-618-0	02	1	1601-	●	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1601-	●	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=32 L=50	1-09701-055-1	01	1	1601-	●	●
533	CLIP (E) OD=9 H=6	1-09709-178-0	01	1	1601-	●	●
533	CLIP (E) OD=9 H=6	1-09709-178-0	01	1	1601-	●	●
533	CLIP EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1601-	●	●
533	CLIP (C) L=250	1-09707-126-0	02	1	1601-	●	●
533	CLIP (D) L=350	1-09707-183-0	01	1	1601-	●	●
533	CLIP (H) ID=5-12 L=18	1-09709-287-0	01	1	1601-	●	●
533	CLIP (I) L=135	1-09987-143-1	01	1	1601-	●	●
533	CLIP (F) OD=8.95 H=6.25	8-97375-754-0	01	1	1601-	●	●
533	CLIP SMOOTHER-FX(TYPE2)(8NS) (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1601-	●	●
533	CLIP SMOOTHER-FX(TYPE2)(8NS) (R) ID=35 L=50	1-09701-214-0	01	1	1601-	●	●
533	CLIP (S) ID=13-18 L=22	1-09709-292-0	02	1	1601-	●
533	CLIP (M) ID=14 L=44	9-09917-427-0	19	1	1601-	●
533	CLIP (K) L=250	5-09707-030-1	01	1	1601-	●	●
533	CLIP (K) L=250	5-09707-030-1	01	1	1601-	●	●
533	CLIP (K) L=250	5-09707-030-1	01	1	1601-	●
533	CLIP (A) ID=11 L=41	1-09700-403-0	01	1	1601-	●	●
533	CLIP (K) L=250	5-09707-030-1	03	1	1601-	●	●
533	CLIP (B) L=600	1-09707-107-1	01	1	1601-	●	●
533	CLIP (N) L=180	1-09707-162-1	01	1	1601-	●	●
533	CLIP (L) OD=9 H=9.5	1-09709-179-0	01	1	1601-	●	●
533	CLIP (J) ID=5-12 L=14.5	1-09987-221-0	03	1	1601-	●	●
533	CLIP (K) L=250	5-09707-030-1	02	1	1601-	●	●
533	CLIP (K) L=250	5-09707-030-1	04	1	1601-	●	●
533	CLIP (G) L=140	5-09707-031-1	01	1	1601-	●	●
533	CLIP (M) ID=14 L=44	9-09917-427-0	02	1	1601-	●	●
533	CLIP WHEEL BASE 3700MM(37W) (M) ID=14 L=44	9-09917-427-0	10	1	1601-		●
533	CLIP WHEEL BASE 4000MM(40W) (M) ID=14 L=44	9-09917-427-0	11	1	1601-		●
533	CLIP WHEEL BASE 4600MM(46W) (M) ID=14 L=44	9-09917-427-0	14	1	1601-		●
533	CLIP WHEEL BASE 4900MM(49W) (M) ID=14 L=44	9-09917-427-0	16	1	1601-		●
533	CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (S) ID=13-18 L=22	1-09709-292-0	01	1	1601-		●
533	CLIP WHEEL BASE 5300MM(53W) (M) ID=14 L=44	9-09917-427-0	17	1	1601-		●
542	GROMMET; HARNESS ID=24 OD=30 T=17	9-09956-092-1	03	1	1601-	●	●
548	GROMMET ID=28 OD=35 T=17	9-09956-256-2	01	1	1601-	●	●

668 668 668 668 668 668 668 290 293 525 290 267 534 267 639 267 535

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
267	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	1601-	●	●
267	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1601-	●	●
267	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1601-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1601-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	05	1	1601-	●	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-	●	●
290	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10 FLANGE	0-91180-210-0	01	1	1601-	●	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1601-	●
290	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	01	1	1601-		●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1601-	●	●
293	NUT M8 FLANGE	0-91180-108-0	01	1	1601-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1601-	●	●
534	BOLT (C) M10X70 FLANGE	0-28151-070-0	03	1	1601-	●	●
534	BOLT (A) M8X25 FLANGE	0-28650-825-0	01	1	1601-	●	●
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1601-	●	●
535	BOLT; BRKT FIX (C) M14X35 FLANGE	0-28851-435-0	01	1	1601-	●	●
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1601-	●
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1601-	●
535	BOLT; BRKT FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1601-		●
535	BOLT; BRKT FIX WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1601-		●
535	BOLT; BRKT FIX (D) M8X20 FLANGE	0-28650-820-0	02	1	1601-	●	●
535	BOLT; BRKT FIX (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1601-	●	●
639	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	1601-	●	●
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98095-653-2	01	1	1601-	●	●
668	BRACKET; HARNESS (C)	8-98126-634-2	01	1	1601-	●	●
668	BRACKET; HARNESS (D)	8-98126-635-2	01	1	1601-	●	●
668	BRACKET; HARNESS (E)	8-98164-831-0	01	1	1601-	●	●
668	BRACKET; HARNESS (V)	8-97619-097-1	01	1	1601-	●
668	BRACKET; HARNESS WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (V)	8-97619-097-1	01	1	1601-		●
668	BRACKET; HARNESS (F)	8-98126-636-1	01	1	1601-	●	●
668	BRACKET; HARNESS (G)	8-98126-637-2	01	1	1601-	●	●
668	BRACKET; HARNESS (O)	8-98126-638-2	01	1	1601-	●	●
668	BRACKET; HARNESS (I)	8-98147-490-0	01	1	1601-	●	●
668	BRACKET; HARNESS (J)	8-98147-491-2	01	1	1601-	●	●
668	BRACKET; HARNESS (K)	8-98150-334-0	01	1	1601-	●	●
668	BRACKET; HARNESS (L)	8-98150-855-1	01	1	1601-	●	●
668	BRACKET; HARNESS (N)	8-98161-100-0	02	1	1601-	●	●
668	BRACKET; HARNESS (M)	8-98219-133-0	01	1	1601-	●	●
668	BRACKET; HARNESS (H)	8-97619-533-0	01	1	1601-	●	●
668	BRACKET; HARNESS (S)	8-98151-455-3	01	1	1601-	●	●
668	BRACKET; HARNESS (T)	8-98221-079-1	01	1	1601-	●	●
668	BRACKET; HARNESS (P)	8-98254-592-0	01	1	1601-	●	●
668	BRACKET; HARNESS (U)	8-98268-411-0	01	1	1601-	●	●
668	BRACKET; HARNESS (A)	8-98309-152-1	01	1	1601-	●	●
668	BRACKET; HARNESS (W) L=170	1-47479-380-0	01	1	1601-	●
668	BRACKET; HARNESS WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (W) L=170	1-47479-380-0	01	1	1601-		●
668	BRACKET; HARNESS GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL<6SZ> (Q)	8-97625-412-0	01	1	1601-		●
668	BRACKET; HARNESS GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL<6SZ> (R)	8-98151-359-0	01	1	1601-		●

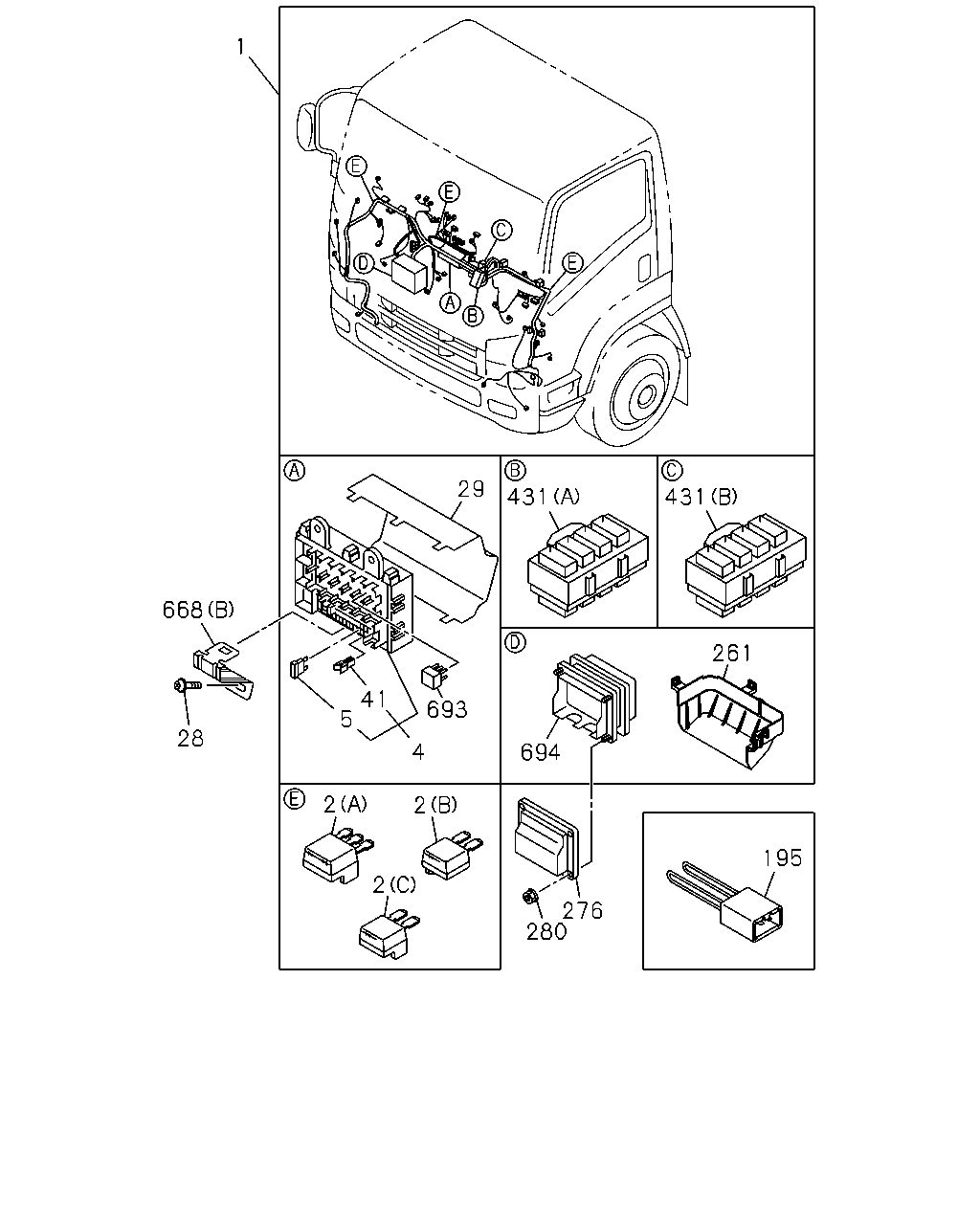

1 668 28 29 41 5 4 2 2 2 693 431 694 276 280 431 261 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-480-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-472-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-481-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-476-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-468-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-477-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-478-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-470-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-479-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-474-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-466-2	01	1	1601-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-475-2	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-266-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-262-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-264-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-260-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-265-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-261-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-263-1	01	1	1601-	●	●
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-259-1	01	1	1601-	●	●
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94416-438-1	AR	1	1601-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1601-	●	●
2	DIODE; CABLE HARNESS (C) 2P	8-98223-969-0	AR	1	1601-	●	●
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1601-	●	●
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1601-	●	●
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1601-	●	●
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1601-	●	●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	1601-	●	●
28	SCREW; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	1601-	●	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	1601-	●	●
41	PULLER; FUSE	8-98054-260-0	01	1	1601-	●	●
195	HARNESS; EXT IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98253-887-0	01	1	1601-	●	●
261	COVER; CONNECTOR BOX	8-98065-986-1	01	1	1601-	●	●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1601-	●	●
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1601-	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1601-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1601-	●	●
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98095-653-2	01	1	1601-	●	●
668	BRACKET; HARNESS (C)	8-98126-634-2	01	1	1601-	●	●
668	BRACKET; HARNESS (D)	8-98126-635-2	01	1	1601-	●	●
668	BRACKET; HARNESS (E)	8-98164-831-0	01	1	1601-	●	●
668	BRACKET; HARNESS (V)	8-97619-097-1	01	1	1601-	●
668	BRACKET; HARNESS WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (V)	8-97619-097-1	01	1	1601-		●
668	BRACKET; HARNESS (F)	8-98126-636-1	01	1	1601-	●	●
668	BRACKET; HARNESS (G)	8-98126-637-2	01	1	1601-	●	●
668	BRACKET; HARNESS (O)	8-98126-638-2	01	1	1601-	●	●
668	BRACKET; HARNESS (I)	8-98147-490-0	01	1	1601-	●	●
668	BRACKET; HARNESS (J)	8-98147-491-2	01	1	1601-	●	●
668	BRACKET; HARNESS (K)	8-98150-334-0	01	1	1601-	●	●
668	BRACKET; HARNESS (L)	8-98150-855-1	01	1	1601-	●	●
668	BRACKET; HARNESS (N)	8-98161-100-0	02	1	1601-	●	●
668	BRACKET; HARNESS (M)	8-98219-133-0	01	1	1601-	●	●
668	BRACKET; HARNESS (H)	8-97619-533-0	01	1	1601-	●	●
668	BRACKET; HARNESS (S)	8-98151-455-3	01	1	1601-	●	●
668	BRACKET; HARNESS (T)	8-98221-079-1	01	1	1601-	●	●
668	BRACKET; HARNESS (P)	8-98254-592-0	01	1	1601-	●	●
668	BRACKET; HARNESS (U)	8-98268-411-0	01	1	1601-	●	●
668	BRACKET; HARNESS (A)	8-98309-152-1	01	1	1601-	●	●
668	BRACKET; HARNESS (W) L=170	1-47479-380-0	01	1	1601-	●
668	BRACKET; HARNESS WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (W) L=170	1-47479-380-0	01	1	1601-		●
668	BRACKET; HARNESS GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL<6SZ> (Q)	8-97625-412-0	01	1	1601-		●
668	BRACKET; HARNESS GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL<6SZ> (R)	8-98151-359-0	01	1	1601-		●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1601-	●	●
694	BOX ASM; CONNECTOR	8-98057-771-0	01	1	1601-	●	●

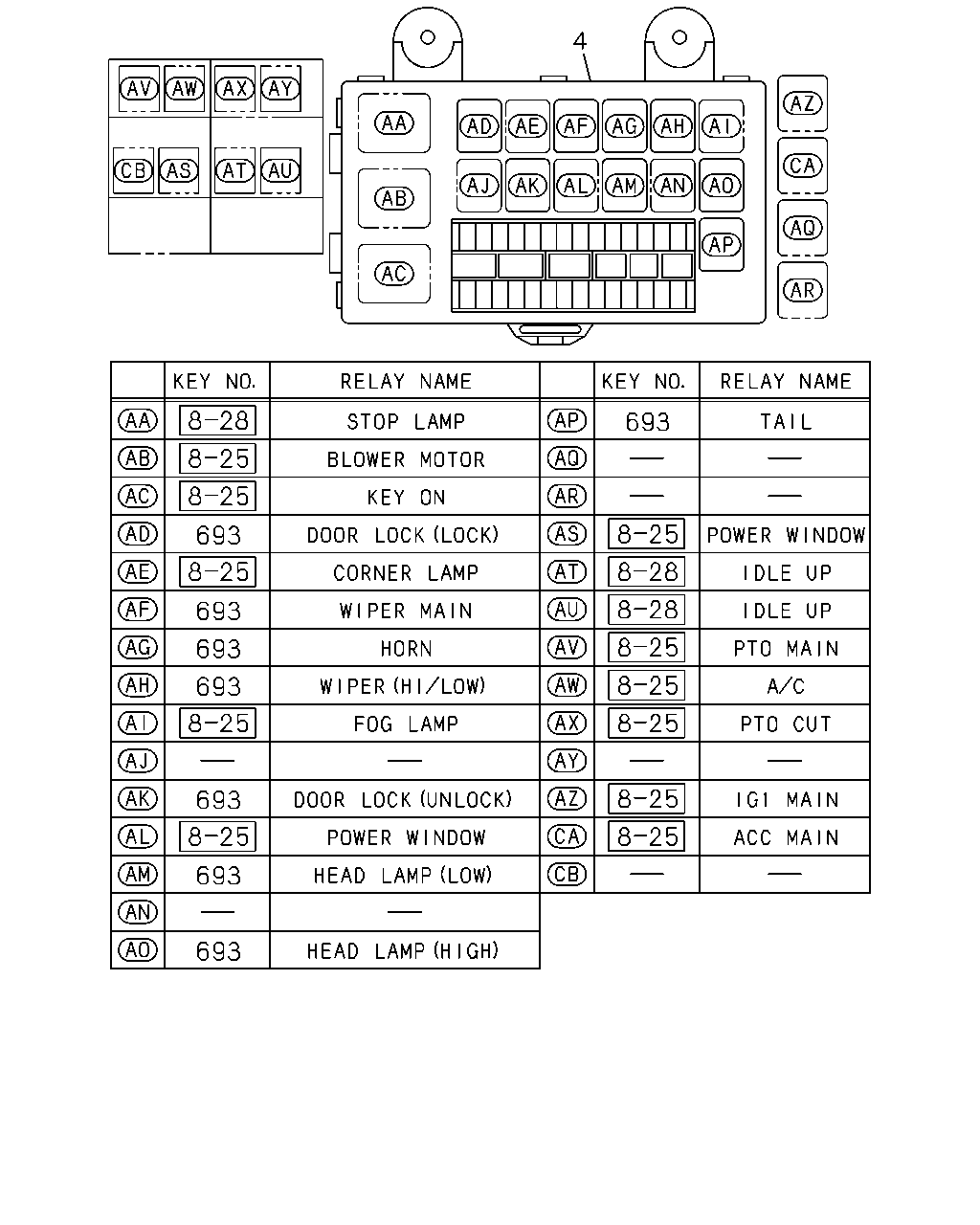

4 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1601-	●	●
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1601-	●	●

720 290 534 184 388 27 184 10 174 453 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98330-553-0	01	1	1601-	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98330-553-0	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 5300MM(53W) SMOOTHER-FX(TYPE2)(8NS)	8-98330-554-0	01	1	1601-	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) SMOOTHER-FX(TYPE2)(8NS)	8-98330-554-0	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-136-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 3700MM(37W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-134-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-132-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-130-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98330-551-0	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCH ENG(RDW) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) SMOOTHER-FX(TYPE2)(8NS)	8-98330-552-0	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-135-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-133-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-131-1	01	1	1601-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-129-1	01	1	1601-		●
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1601-	●	●
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	1601-	●	●
27	FUSE UNIT 15A BLUE	8-98054-258-0	01	1	1601-	●	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1601-	●	●
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	02	1	1601-	●	●
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	02	1	1601-	●	●
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	1601-	●	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	02	1	1601-	●	●
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1601-	●	●
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	1601-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1601-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	05	1	1601-	●	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-	●	●
290	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10 FLANGE	0-91180-210-0	01	1	1601-	●	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1601-	●
290	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	01	1	1601-		●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1601-	●	●
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	01	1	1601-	●	●
453	PROTECTOR; HARNESS	1-82699-709-0	02	1	1601-	●	●
534	BOLT (C) M10X70 FLANGE	0-28151-070-0	03	1	1601-	●	●
534	BOLT (A) M8X25 FLANGE	0-28650-825-0	01	1	1601-	●	●
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1601-	●	●
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1601-	●	●

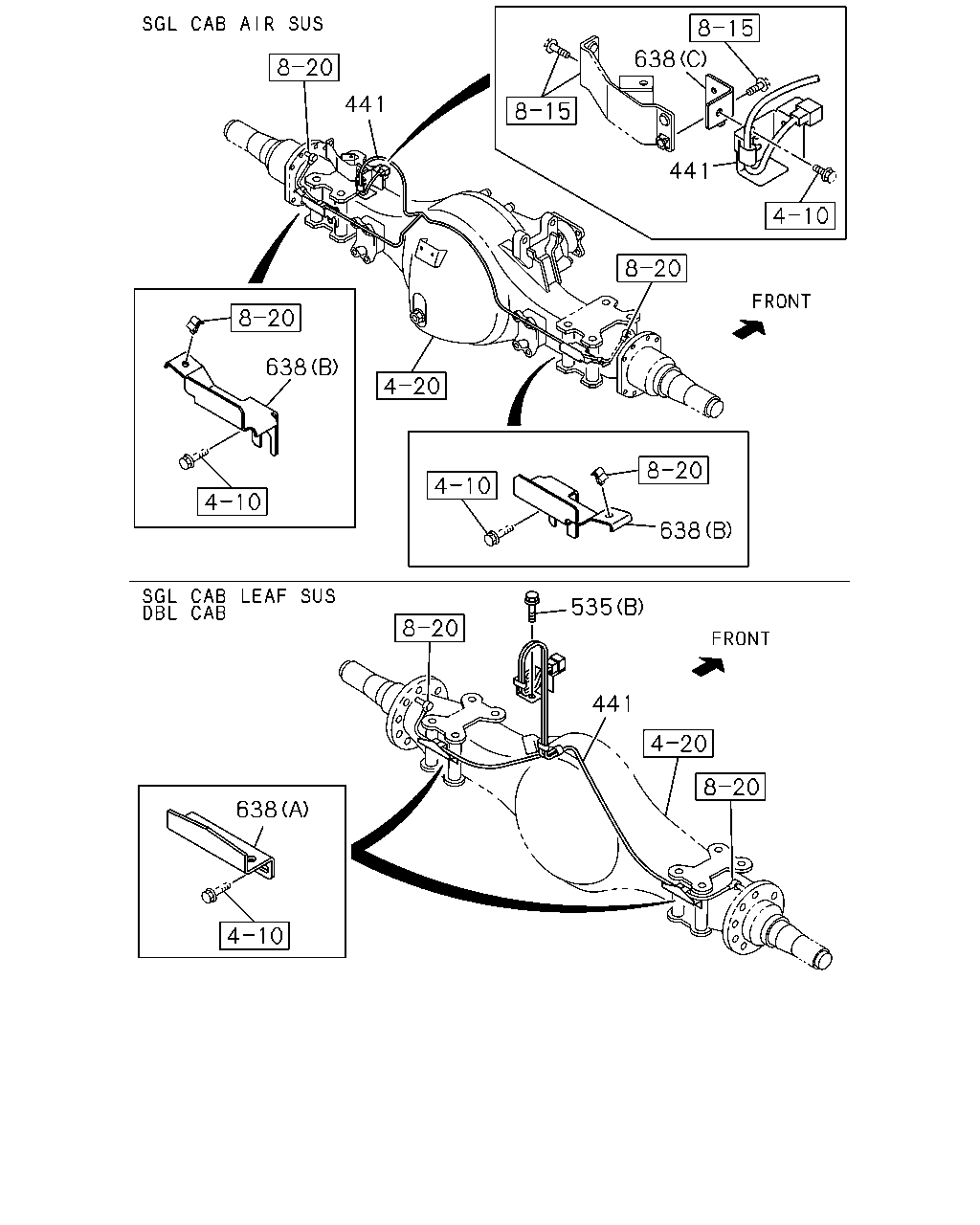

441 638 638 441 441 638 638 535

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
441	HARNESS; CABLE,SPEED SENSOR	8-98061-652-0	01	1	1601-	●	●
535	BOLT; BRKT FIX (C) M14X35 FLANGE	0-28851-435-0	01	1	1601-	●	●
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1601-	●
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1601-	●
535	BOLT; BRKT FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1601-		●
535	BOLT; BRKT FIX WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1601-		●
535	BOLT; BRKT FIX (D) M8X20 FLANGE	0-28650-820-0	02	1	1601-	●	●
535	BOLT; BRKT FIX (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1601-	●	●
638	BRACKET; SPD SENSOR (B)	8-98236-731-0	01	1	1601-	●
638	BRACKET; SPD SENSOR (B)	8-98236-732-0	01	1	1601-	●
638	BRACKET; SPD SENSOR (C)	8-98249-802-0	01	1	1601-	●
638	BRACKET; SPD SENSOR (A)	8-98012-580-1	02	1	1601-		●

534 13 13 668 668 668 102 668 102 668 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	HARNESS; ENG GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL<6SZ> (A)	8-98335-152-0	01	1	1601-		●
13	HARNESS; ENG (A)	8-98324-198-0	01	1	1601-	●
13	HARNESS; ENG GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A)	8-98324-198-0	01	1	1601-		●
13	HARNESS; ENG (B)	8-98120-924-0	01	1	1601-	●	●
13	HARNESS; ENG GENERATOR 24V60A(KG2) (A)	8-98324-197-0	01	1	1601-		●
102	BOLT; BRKT,HARNESS CONNECTOR M8X12 FLANGE	0-28050-812-0	01	1	1601-	●
102	BOLT; BRKT,HARNESS CONNECTOR EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M8X12 FLANGE	0-28050-812-0	01	1	1601-		●
102	BOLT; BRKT,HARNESS CONNECTOR M10X100 FLANGE	0-28151-000-0	01	1	1601-	●	●
102	BOLT; BRKT,HARNESS CONNECTOR M10X20 FLANGE	0-28151-020-0	02	1	1601-	●	●
102	BOLT; BRKT,HARNESS CONNECTOR GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL<6SZ> M8X12 FLANGE	0-28050-812-0	02	1	1601-		●
534	BOLT (C) M10X70 FLANGE	0-28151-070-0	03	1	1601-	●	●
534	BOLT (A) M8X25 FLANGE	0-28650-825-0	01	1	1601-	●	●
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1601-	●	●
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98095-653-2	01	1	1601-	●	●
668	BRACKET; HARNESS (C)	8-98126-634-2	01	1	1601-	●	●
668	BRACKET; HARNESS (D)	8-98126-635-2	01	1	1601-	●	●
668	BRACKET; HARNESS (E)	8-98164-831-0	01	1	1601-	●	●
668	BRACKET; HARNESS (V)	8-97619-097-1	01	1	1601-	●
668	BRACKET; HARNESS WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (V)	8-97619-097-1	01	1	1601-		●
668	BRACKET; HARNESS (F)	8-98126-636-1	01	1	1601-	●	●
668	BRACKET; HARNESS (G)	8-98126-637-2	01	1	1601-	●	●
668	BRACKET; HARNESS (O)	8-98126-638-2	01	1	1601-	●	●
668	BRACKET; HARNESS (I)	8-98147-490-0	01	1	1601-	●	●
668	BRACKET; HARNESS (J)	8-98147-491-2	01	1	1601-	●	●
668	BRACKET; HARNESS (K)	8-98150-334-0	01	1	1601-	●	●
668	BRACKET; HARNESS (L)	8-98150-855-1	01	1	1601-	●	●
668	BRACKET; HARNESS (N)	8-98161-100-0	02	1	1601-	●	●
668	BRACKET; HARNESS (M)	8-98219-133-0	01	1	1601-	●	●
668	BRACKET; HARNESS (H)	8-97619-533-0	01	1	1601-	●	●
668	BRACKET; HARNESS (S)	8-98151-455-3	01	1	1601-	●	●
668	BRACKET; HARNESS (T)	8-98221-079-1	01	1	1601-	●	●
668	BRACKET; HARNESS (P)	8-98254-592-0	01	1	1601-	●	●
668	BRACKET; HARNESS (U)	8-98268-411-0	01	1	1601-	●	●
668	BRACKET; HARNESS (A)	8-98309-152-1	01	1	1601-	●	●
668	BRACKET; HARNESS (W) L=170	1-47479-380-0	01	1	1601-	●
668	BRACKET; HARNESS WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (W) L=170	1-47479-380-0	01	1	1601-		●
668	BRACKET; HARNESS GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL<6SZ> (Q)	8-97625-412-0	01	1	1601-		●
668	BRACKET; HARNESS GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL<6SZ> (R)	8-98151-359-0	01	1	1601-		●

668 680 668 668 535 668 668 668 668 538 102 668 299 668 680 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
102	BOLT; BRKT,HARNESS CONNECTOR M8X12 FLANGE	0-28050-812-0	01	1	1601-	●
102	BOLT; BRKT,HARNESS CONNECTOR EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M8X12 FLANGE	0-28050-812-0	01	1	1601-		●
102	BOLT; BRKT,HARNESS CONNECTOR M10X100 FLANGE	0-28151-000-0	01	1	1601-	●	●
102	BOLT; BRKT,HARNESS CONNECTOR M10X20 FLANGE	0-28151-020-0	02	1	1601-	●	●
102	BOLT; BRKT,HARNESS CONNECTOR GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL<6SZ> M8X12 FLANGE	0-28050-812-0	02	1	1601-		●
299	STUD; BRKT GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL<6SZ> M8X16 L=28	0-41010-816-0	01	1	1601-		●
535	BOLT; BRKT FIX (C) M14X35 FLANGE	0-28851-435-0	01	1	1601-	●	●
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1601-	●
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1601-	●
535	BOLT; BRKT FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1601-		●
535	BOLT; BRKT FIX WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1601-		●
535	BOLT; BRKT FIX (D) M8X20 FLANGE	0-28650-820-0	02	1	1601-	●	●
535	BOLT; BRKT FIX (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1601-	●	●
538	NUT M8 FLANGE	0-91180-108-0	02	1	1601-	●
538	NUT EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M8 FLANGE	0-91180-108-0	02	1	1601-		●
538	NUT GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL<6SZ> M8 FLANGE	0-91180-108-0	03	1	1601-		●
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98095-653-2	01	1	1601-	●	●
668	BRACKET; HARNESS (C)	8-98126-634-2	01	1	1601-	●	●
668	BRACKET; HARNESS (D)	8-98126-635-2	01	1	1601-	●	●
668	BRACKET; HARNESS (E)	8-98164-831-0	01	1	1601-	●	●
668	BRACKET; HARNESS (V)	8-97619-097-1	01	1	1601-	●
668	BRACKET; HARNESS WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (V)	8-97619-097-1	01	1	1601-		●
668	BRACKET; HARNESS (F)	8-98126-636-1	01	1	1601-	●	●
668	BRACKET; HARNESS (G)	8-98126-637-2	01	1	1601-	●	●
668	BRACKET; HARNESS (O)	8-98126-638-2	01	1	1601-	●	●
668	BRACKET; HARNESS (I)	8-98147-490-0	01	1	1601-	●	●
668	BRACKET; HARNESS (J)	8-98147-491-2	01	1	1601-	●	●
668	BRACKET; HARNESS (K)	8-98150-334-0	01	1	1601-	●	●
668	BRACKET; HARNESS (L)	8-98150-855-1	01	1	1601-	●	●
668	BRACKET; HARNESS (N)	8-98161-100-0	02	1	1601-	●	●
668	BRACKET; HARNESS (M)	8-98219-133-0	01	1	1601-	●	●
668	BRACKET; HARNESS (H)	8-97619-533-0	01	1	1601-	●	●
668	BRACKET; HARNESS (S)	8-98151-455-3	01	1	1601-	●	●
668	BRACKET; HARNESS (T)	8-98221-079-1	01	1	1601-	●	●
668	BRACKET; HARNESS (P)	8-98254-592-0	01	1	1601-	●	●
668	BRACKET; HARNESS (U)	8-98268-411-0	01	1	1601-	●	●
668	BRACKET; HARNESS (A)	8-98309-152-1	01	1	1601-	●	●
668	BRACKET; HARNESS (W) L=170	1-47479-380-0	01	1	1601-	●
668	BRACKET; HARNESS WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (W) L=170	1-47479-380-0	01	1	1601-		●
668	BRACKET; HARNESS GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL<6SZ> (Q)	8-97625-412-0	01	1	1601-		●
668	BRACKET; HARNESS GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL<6SZ> (R)	8-98151-359-0	01	1	1601-		●
680	BOLT; ENG HARNESS M8X12 FLANGE	0-28050-812-0	01	1	1601-	●
680	BOLT; ENG HARNESS GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M8X12 FLANGE	0-28050-812-0	01	1	1601-		●
680	BOLT; ENG HARNESS M8X16 FLANGE	0-28050-816-0	01	1	1601-	●
680	BOLT; ENG HARNESS EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M8X16 FLANGE	0-28050-816-0	01	1	1601-		●
680	BOLT; ENG HARNESS GENERATOR 24V60A(KG2) M8X12 FLANGE	0-28050-812-0	02	1	1601-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
