◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11720 - FRR AUST/NZ JNLT09 SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#175570) — 109 parça

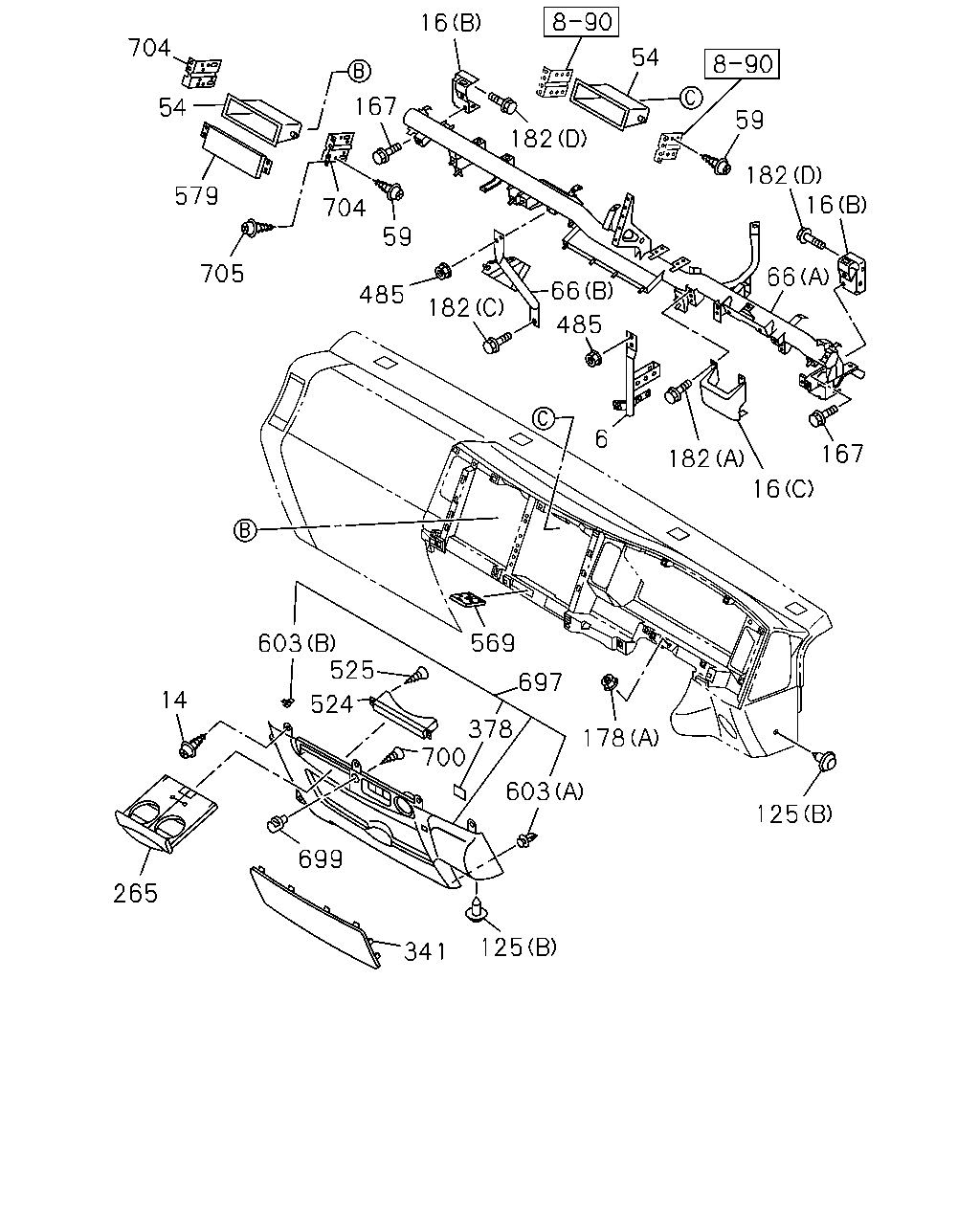

çizim 513493
704 54 579 705 704 16 167 59 485 182 54 59 182 66 16 167 182 66 182 485 16 569 697 178 125 603 378 700 125 341 699 265 603 525 524 6 14
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1601- ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1601- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1601- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98010-154-0 01 1 1601- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1601- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1601- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1601- ● ●
54 POCKET; CENTER CLUSTER
H=58.4 BLACK 		8-97408-864-3 01 1 1601- ● ●
54 POCKET; CENTER CLUSTER
H=58.4 BLACK 		8-97408-864-3 01 1 1601- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1601- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1601- ● ●
59 SCREW; CLUSTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1601- ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) EXC. H.S.A SYSTEM<6EP> (A) 		8-98240-604-0 01 1 1601- ● ●
66 REINFORCEMENT; INST PANEL
H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) (A) 		8-98248-345-1 01 1 1601- ● ●
66 REINFORCEMENT; INST PANEL
H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98248-347-1 01 1 1601- ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5),H.S.A SYSTEM<6EP> (A) 		8-98240-605-0 01 1 1601- ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 1601- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1601- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1601- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1601- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1601- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1601- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1601- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1601- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1601- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1601- ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1601- ● ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1601- ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1601- ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1601- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1601- ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1601- ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 1601- ● ●
579 COVER; INST PNL
BLACK 		8-97466-735-0 01 1 1601- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1601- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1601- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1601- ● ●
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1601- ● ●
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1601- ● ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1601- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1601- ● ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1601- ● ●
704 BRACKET; CENTER POCKET 8-97585-618-2 02 1 1601- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1601- ● ●

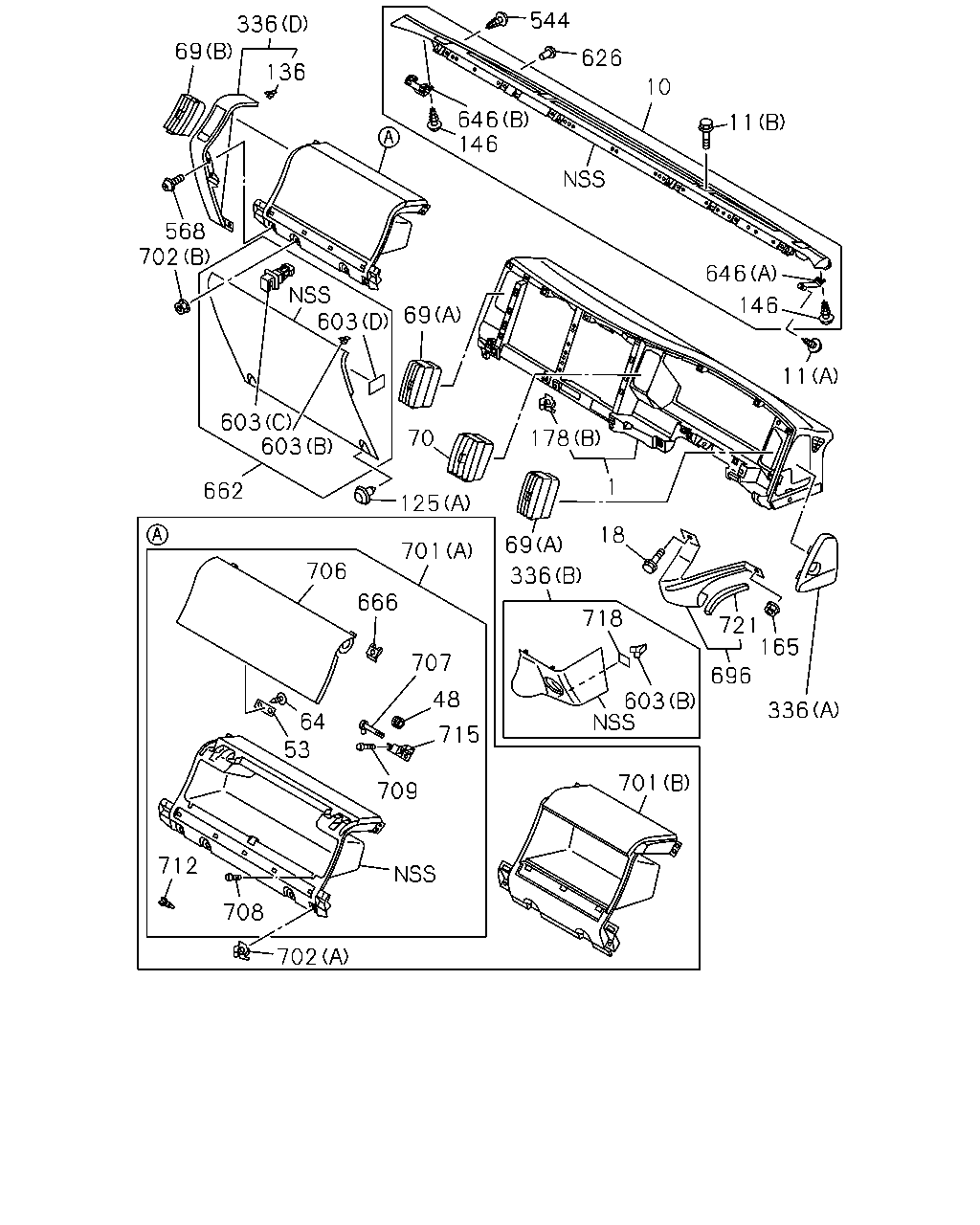

çizim 513729
336 136 69 568 702 603 69 603 125 662 603 70 178 146 10 626 544 11 646 11 165 336 696 18 69 701 666 706 707 48 715 603 701 336 718 64 709 702 708 712 646 146 721 53 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1601- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-095-1 01 1 1601- ● ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1601- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1601- ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1601- ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1601- ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1601- ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-765-0 01 1 1601- ● ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M4X85 		8-97926-404-0 02 1 1601- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1601- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1601- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1601- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1601- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1601- ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 1601- ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1601- ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1601- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1601- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1601- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1601- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1601- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1601- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1601- ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1601- ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1601- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1601- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1601- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1601- ● ●
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1601- ● ●
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1601- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1601- ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1601- ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1601- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97419-960-2 01 1 1601- ● ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5 		8-97926-400-0 04 1 1601- ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 1601- ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97429-703-1 01 1 1601- ● ●
701 TRAY; INST
EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) GRAY 		8-97417-196-2 01 1 1601- ● ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1601- ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1601- ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1601- ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1601- ● ●
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1601- ● ●
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1601- ● ●
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1601- ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1601- ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1601- ● ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1601- ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1601- ● ●

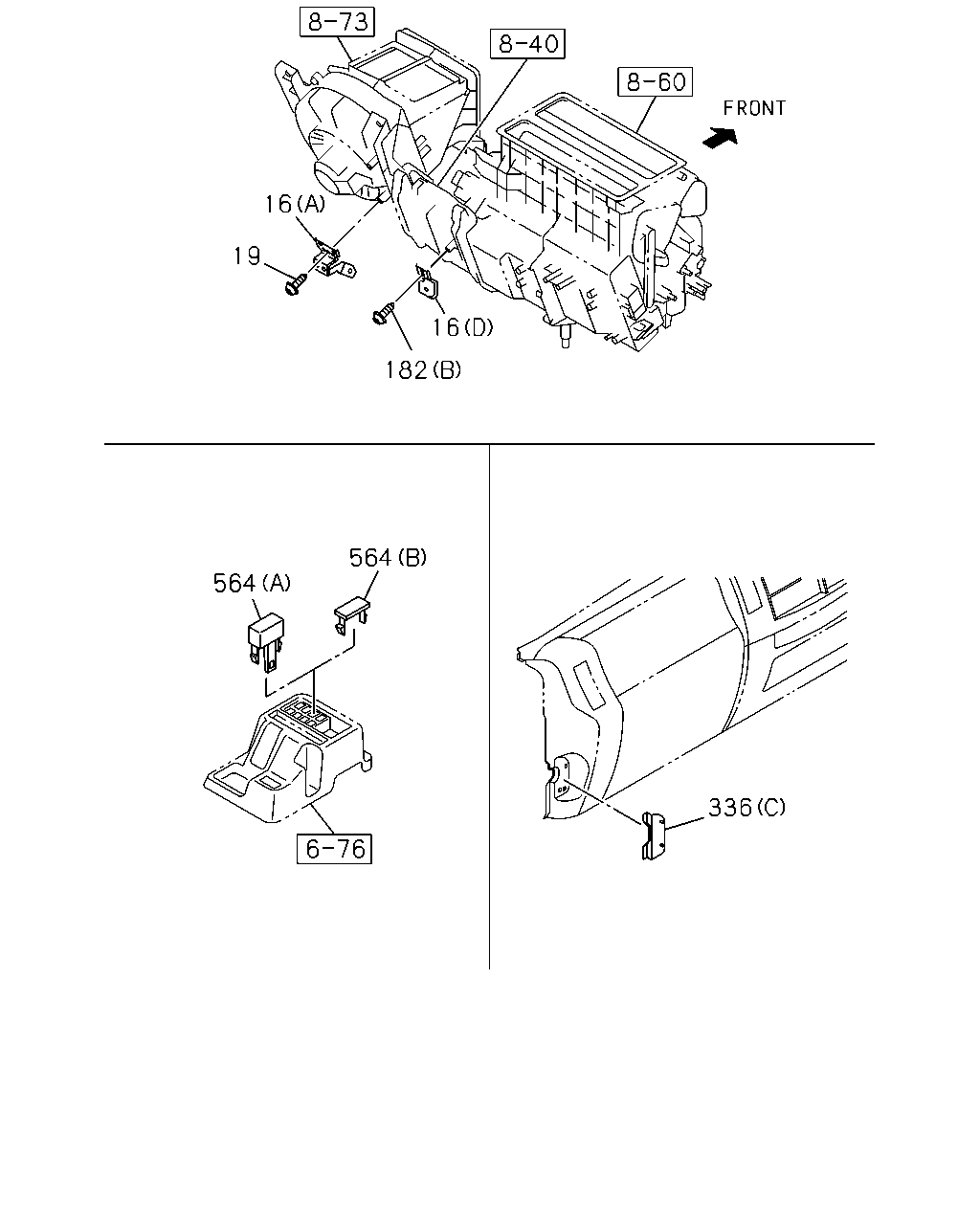

çizim 514629
16 19 182 16 336 564 564
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1601- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98010-154-0 01 1 1601- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1601- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1601- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1601- ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1601- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1601- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1601- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1601- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1601- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1601- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1601- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1601- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1601- ● ●
564 COVER; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-97043-732-1 02 1 1601- ● ●
564 COVER; SW
MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		1-82359-069-2 06 1 1601- ● ●
