Sayfa 7-10 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11720 - FRR AUST/NZ JNLT09 SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶

7-10 — CAUTION PLATE AND LABEL (#175567) — 9 parça

çizim 513851

35 49

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	35	PLATE; CAUTION,CAB	8-98065-363-0	01	1	1601-	●	●
	49	PLATE; CAUTION,FUSE BOX	8-98305-918-1	01	1	1601-	●	●

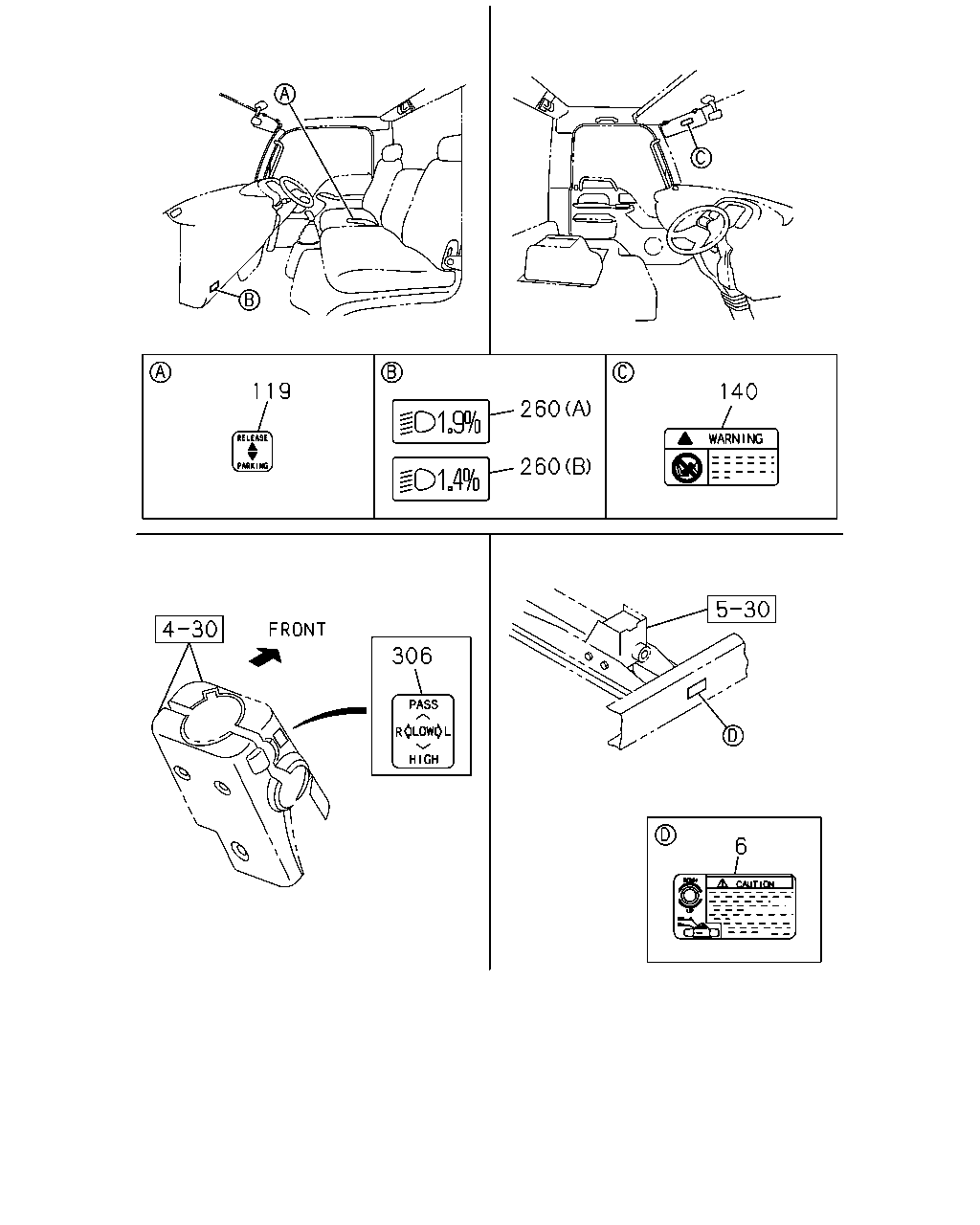

çizim 513984

119 260 260 140 306 6

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	8-98082-437-0	01	1	1601-	●	●
	119	PLATE; CAUTION,HAND BRK LEVER	1-85881-759-0	01	1	1601-	●	●
	140	PLATE; CAUTION,SRS AIR BAG DRIVER & PASSENGER(AK5)	8-98080-839-0	02	1	1601-	●	●
	260	PLATE; CAUTION,HEAD LAMP LEVELING (B)	8-98008-779-0	01	1	1601-	●
	260	PLATE; CAUTION,HEAD LAMP LEVELING 4HK1-TCS ENG(RJS) (B)	8-98008-779-0	01	1	1601-		●
	260	PLATE; CAUTION,HEAD LAMP LEVELING 4HK1-TCH ENG(RDW) (A)	1-85878-501-1	01	1	1601-		●
	306	LABEL; BEAM & PASS	8-98070-239-0	01	1	1601-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
