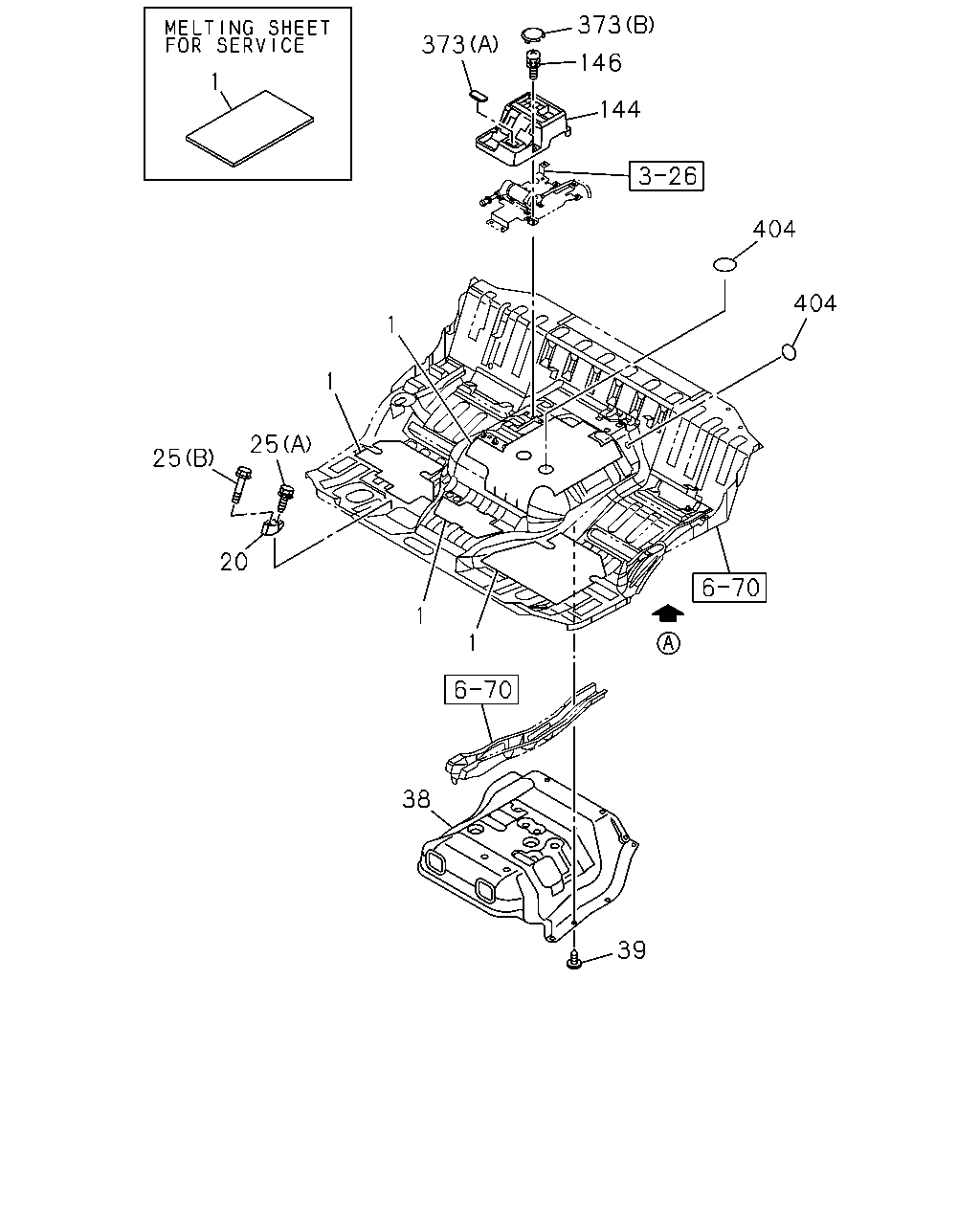

6-76 — FLOOR EQUIPMENT AND SEALING (#175560) — 18 parça

370 370 370

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	370	SEAL; LOCATION HOLE OD=30 T=0.8	8-98230-420-0	08	1	1601-	●	●

1 1 1 25 25 20 1 1 38 39 404 404 144 146 373 373

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	AR	1	1601-	●	●
20	REST; FOOT	1-73907-176-1	01	1	1601-	●	●
25	SCREW; FOOT REST (A) BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1601-	●	●
25	SCREW; FOOT REST (B) BOLT M6X47	8-94407-876-1	01	1	1601-	●	●
38	INSULATOR; ENG COVER	8-98240-136-1	01	1	1601-	●
38	INSULATOR; ENG COVER 4HK1-TCS ENG(RJS)	8-98240-136-1	01	1	1601-		●
38	INSULATOR; ENG COVER 4HK1-TCH ENG(RDW)	8-98248-305-0	01	1	1601-		●
39	CLIP; INSULATOR,COVER ID=6.2 L=11.4	8-97808-623-0	19	1	1601-	●
39	CLIP; INSULATOR,COVER 4HK1-TCS ENG(RJS) ID=6.2 L=11.4	8-97808-623-0	19	1	1601-		●
39	CLIP; INSULATOR,COVER 4HK1-TCH ENG(RDW) ID=6.2 L=11.4	8-97808-623-0	17	1	1601-		●
144	COVER; HAND BRK VLV O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY	8-97409-812-0	01	1	1601-	●	●
144	COVER; HAND BRK VLV MIRROR - O/SIDE RR VIEW,HEATED<7SV> GRAY	8-97407-974-0	01	1	1601-	●	●
146	BOLT; COVER BRKT SCREW M6X16	0-38050-616-0	04	1	1601-	●	●
373	COVER; HOLE (A) GRAY	8-97409-339-0	01	1	1601-	●	●
373	COVER; HOLE (B) GRAY	8-97407-951-0	04	1	1601-	●	●
404	SEAL; FLOOR,HOLE OD=25 BLACK	1-76798-019-0	12	1	1601-	●	●
404	SEAL; FLOOR,HOLE EXC. CENTER SEAT DELETE<SP9> OD=25 BLACK	1-76798-019-0	02	1	1601-	●	●
