Sayfa 6-75 - Isuzu EPC

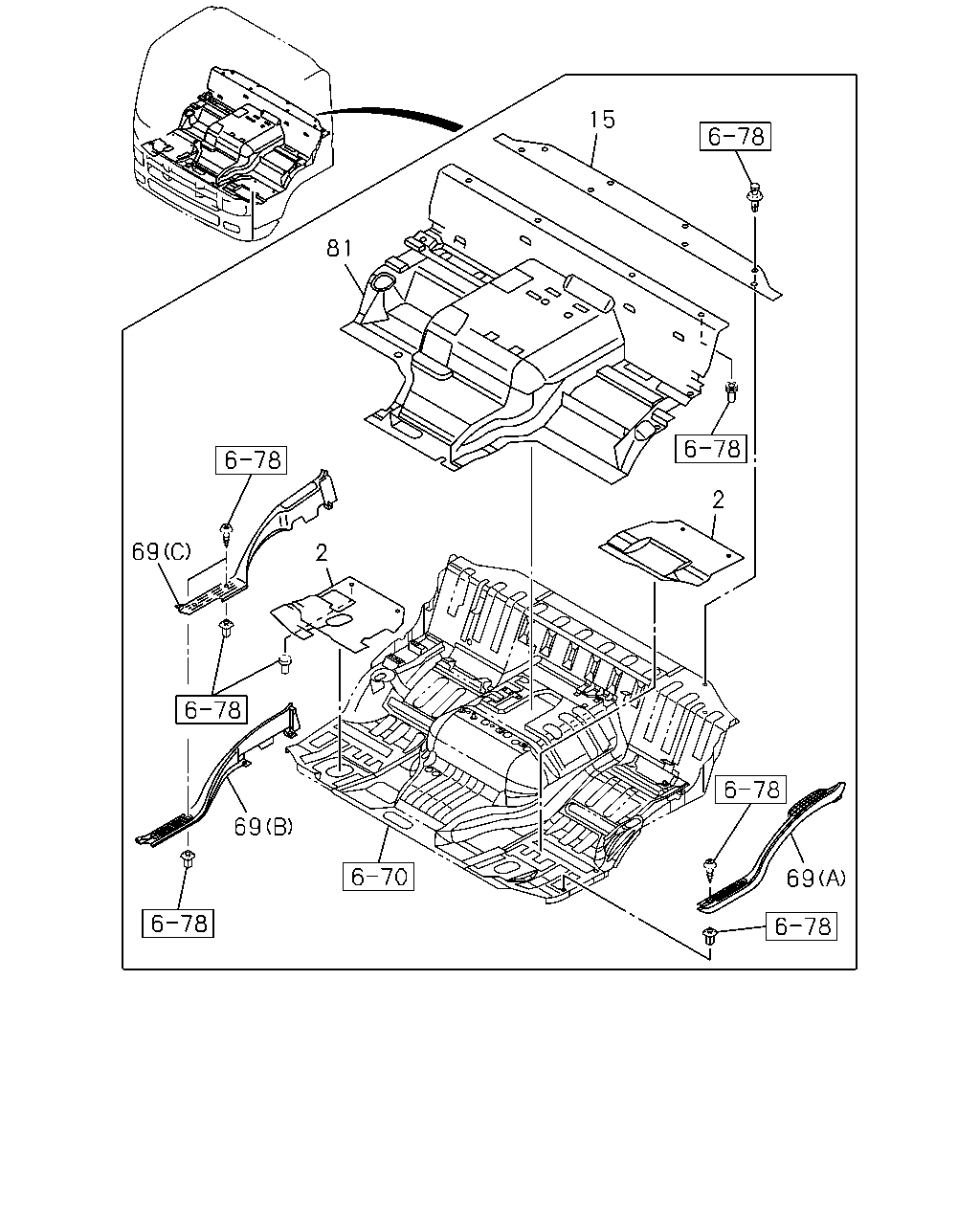

6-75 — MAT AND CARPET (#175559) — 7 parça

81 15 69 2 2 69 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-744-4	01	1	1601-	●	●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-745-2	01	1	1601-	●	●
15	MAT; FLOOR REAR FLOOR COVER<6WX> GRAY	8-97407-517-1	01	1	1601-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (B) GRAY	8-97465-138-0	01	1	1601-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (A) GRAY	8-97407-413-1	01	1	1601-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE EXC. DUMP CONTROL LEVER<RC4> (C) GRAY	8-97407-412-1	01	1	1601-	●	●
81	MAT; FLOOR,CENTER FLOOR COVER<6WX> GRAY	8-97411-791-3	01	1	1601-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
