◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11720 - FRR AUST/NZ JNLT09 SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#175558) — 58 parça

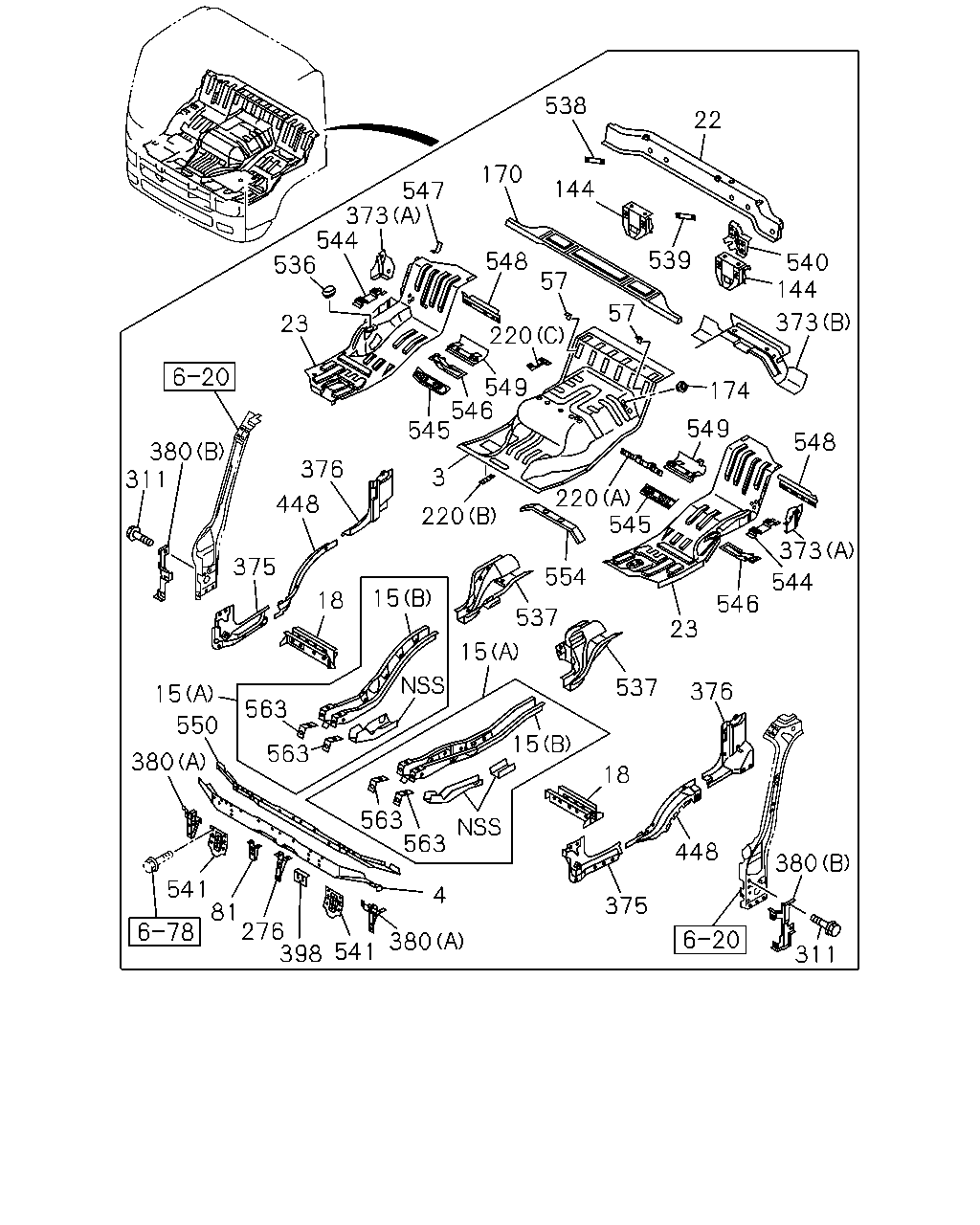

çizim 513507
538 22 170 539 540 547 373 544 536 548 220 57 57 144 23 549 546 545 220 554 380 311 375 18 15 15 15 144 373 548 174 549 373 544 546 23 537 376 448 563 550 380 563 563 537 220 541 276 380 15 563 18 448 380 541 398 376 375 545 81 4 311 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-356-4 01 1 1601- ● ●
3 HOOD ASM; ENG
SMOOTHER-FX(TYPE2)(8NS) 		8-98167-037-0 01 1 1601- ● ●
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1601- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1601- ● ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1601- ● ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1601- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1601- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-397-5 01 1 1601- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 1601- ● ●
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 1601- ● ●
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1601- ● ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1601- ● ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1601- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1601- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1601- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1601- ● ●
170 EXTENSION; RR FLOOR 8-97589-204-3 01 1 1601- ● ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1601- ● ●
220 PATCH
(A) 		8-97588-840-4 01 1 1601- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1601- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1601- ● ●
276 BRACKET; RAD GRILLE 8-98253-712-0 01 1 1601- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1601- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1601- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1601- ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98228-266-0 01 1 1601- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1601- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1601- ● ●
376 CLOSING; PILLAR,LWR 8-97589-553-1 01 1 1601- ● ●
376 CLOSING; PILLAR,LWR 8-97589-555-1 01 1 1601- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1601- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1601- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1601- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1601- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1601- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1601- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1601- ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1601- ● ●
537 SUPPORT ASM; MTG RR 8-97584-390-4 01 1 1601- ● ●
537 SUPPORT ASM; MTG RR 8-97584-416-4 01 1 1601- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1601- ● ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1601- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1601- ● ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1601- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1601- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1601- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1601- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1601- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1601- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1601- ● ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1601- ● ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1601- ● ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1601- ● ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1601- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1601- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1601- ●
554 REINFORCEMENT; FLOOR CENTER
4HK1-TCS ENG(RJS) 		8-97584-351-2 01 1 1601- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1601- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
