◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11720 - FRR AUST/NZ JNLT09 SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#175554) — 13 parça

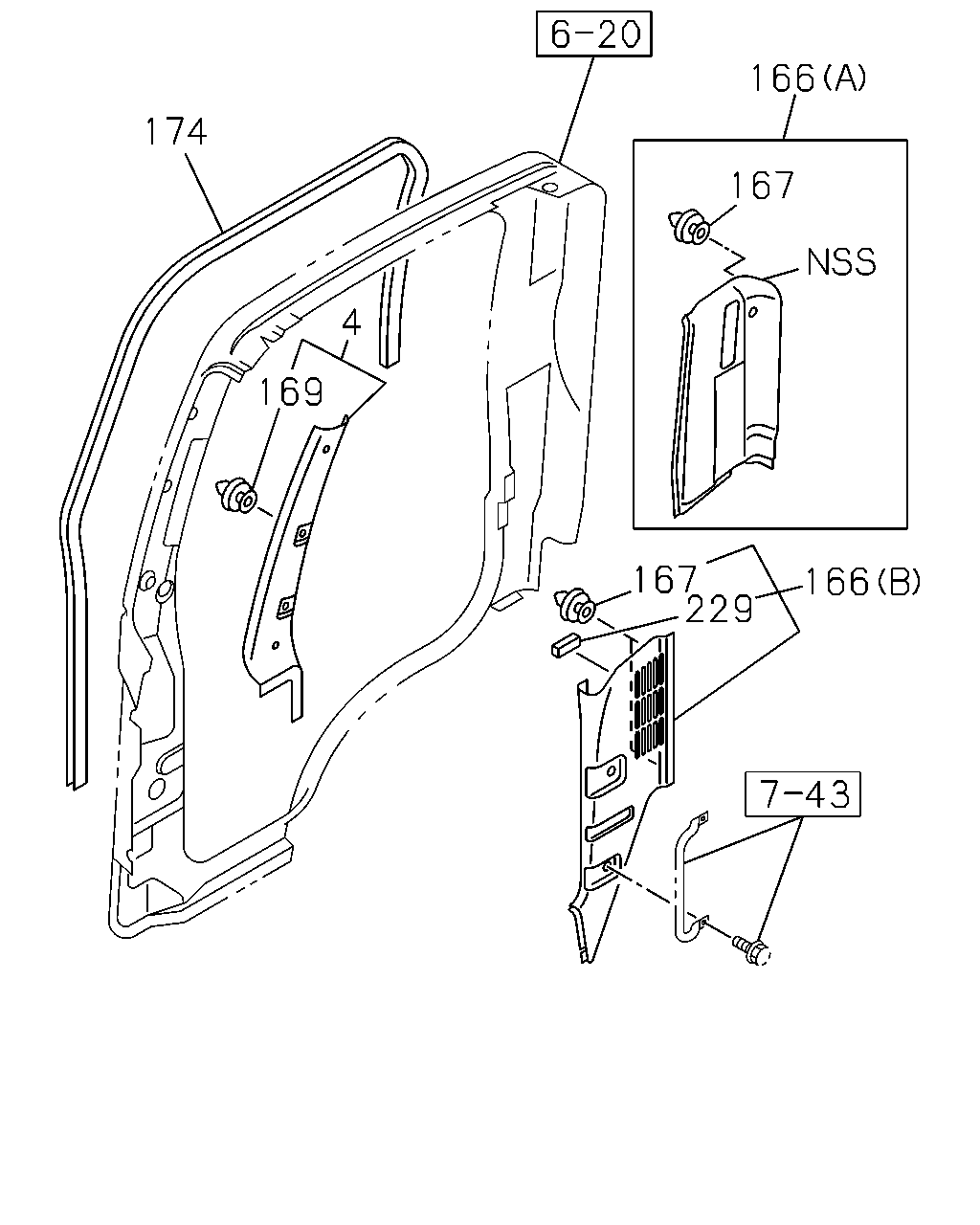

çizim 514407
174 4 169 167 166 229 167 166
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 1601- ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 1601- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97406-796-1 01 1 1601- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-540-0 01 1 1601- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97407-900-0 01 1 1601- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97414-301-0 01 1 1601- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 02 1 1601- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 02 1 1601- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 1601- ● ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 1601- ● ●
174 FINISHER; BODY SIDE 8-98249-513-0 01 1 1601- ● ●
174 FINISHER; BODY SIDE 8-98249-514-0 01 1 1601- ● ●
229 SEAL 8-98092-662-0 01 1 1601- ● ●
