◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11720 - FRR AUST/NZ JNLT09 SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#175547) — 229 parça

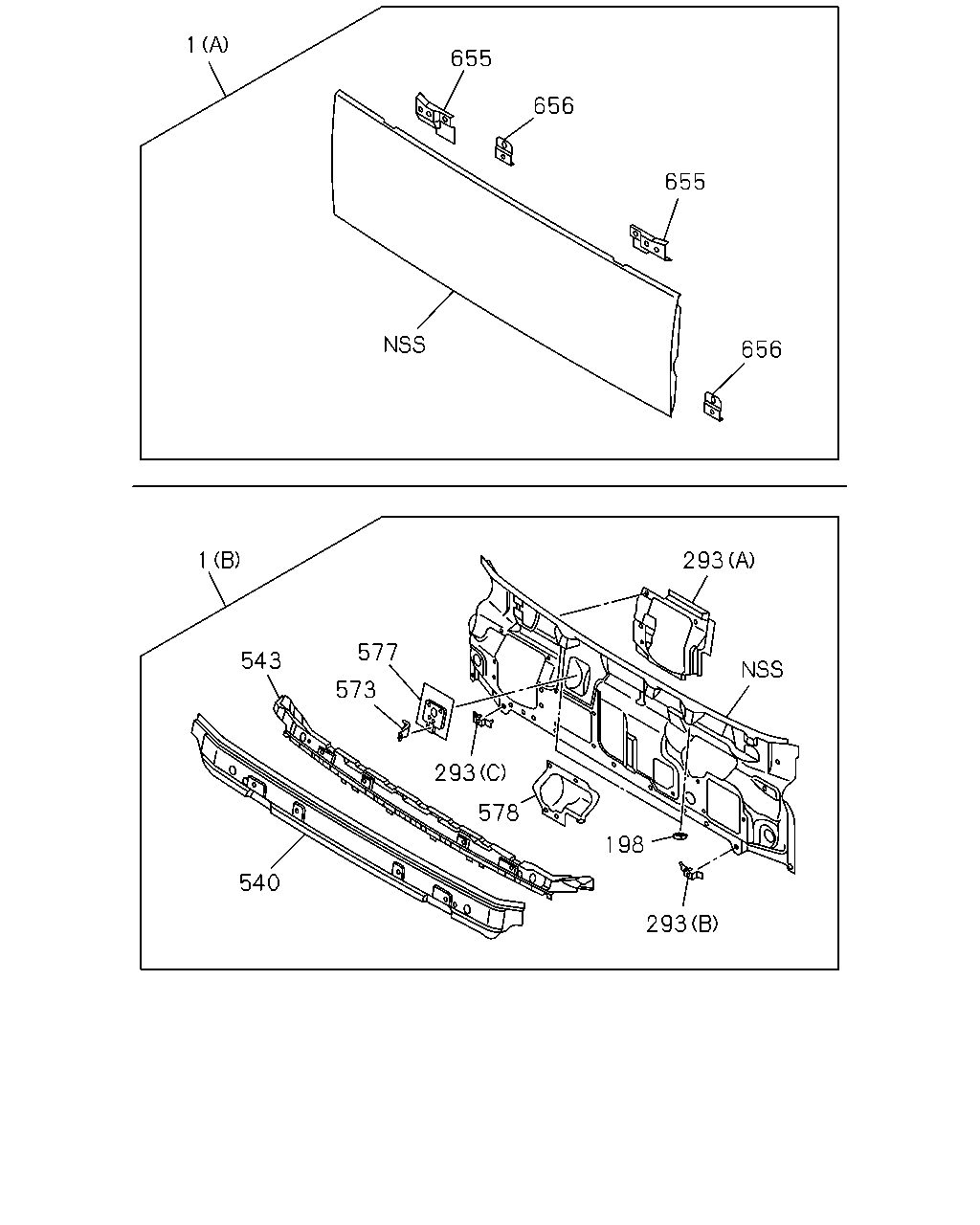

çizim 514226
655 656 655 656 1 543 577 293 578 198 293 293 540 573 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1601- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1601- ● ●
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1601- ● ●
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1601- ● ●
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1601- ● ●
293 BRACKET; PANEL
(C) 		8-98008-126-1 01 1 1601- ● ●
540 PANEL; FRONT,OUTER 8-97585-965-2 01 1 1601- ● ●
543 CLOSING; FRT MTG RAIL 8-97585-989-4 01 1 1601- ● ●
573 BRACKET; SUPPORT 8-98008-127-2 01 1 1601- ● ●
577 BRACKET; IDLER 8-97586-019-1 01 1 1601- ● ●
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1601- ● ●
655 PATCH; HINGE 8-98031-263-0 01 1 1601- ● ●
655 PATCH; HINGE 8-98031-264-0 01 1 1601- ● ●
656 PATCH; STRIKER 8-98031-265-0 02 1 1601- ● ●

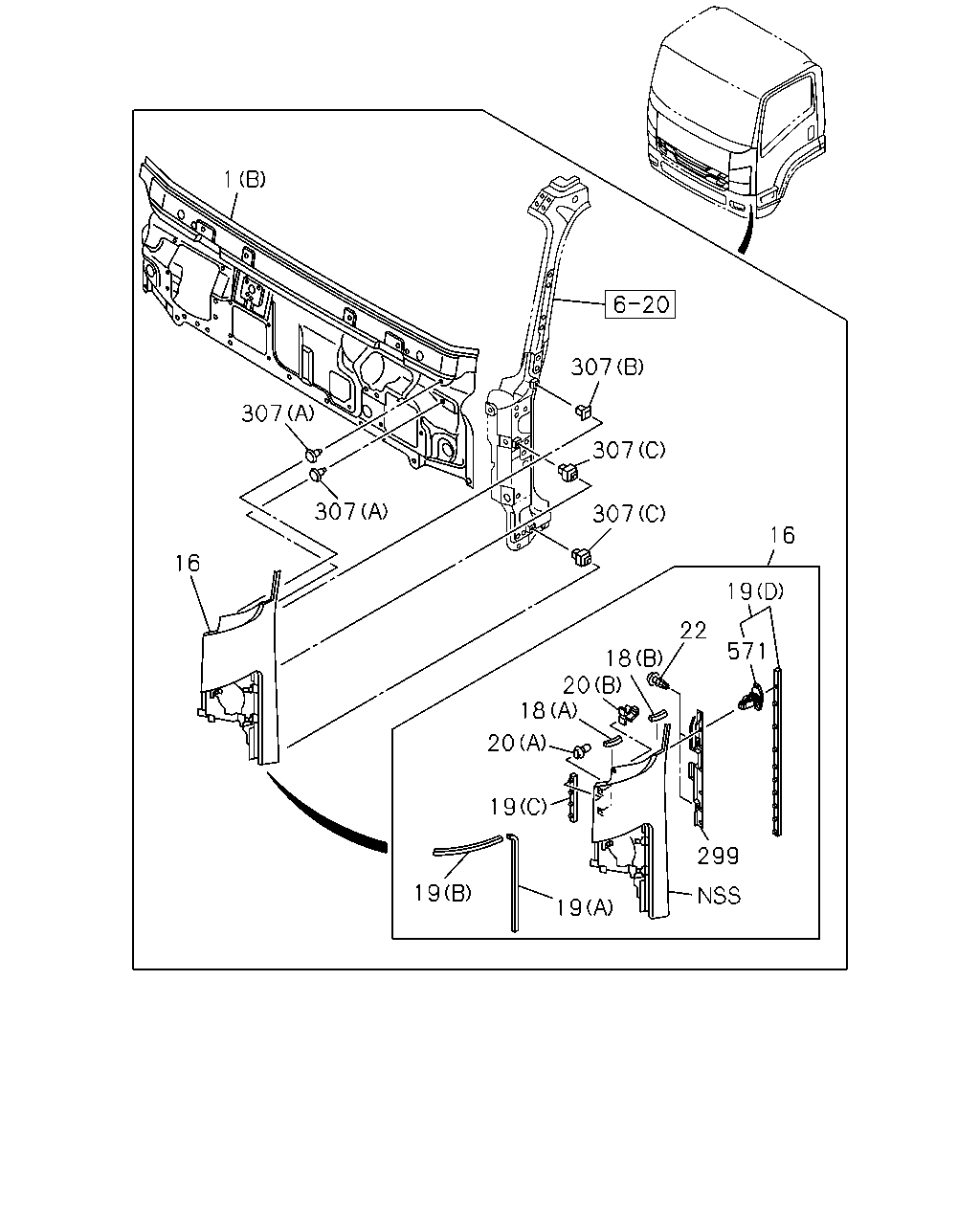

çizim 514263
1 307 16 307 307 307 307 16 19 22 18 20 18 20 19 19 19 299 571
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1601- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97417-654-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97413-576-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538) YELLOW 		8-97417-749-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538) YELLOW 		8-97417-748-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-798-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-797-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97429-593-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97429-592-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) BEIGE 		8-97411-300-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) BEIGE 		8-97411-294-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97417-655-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-577-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97417-656-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97413-578-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97415-030-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97413-579-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97409-901-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97407-509-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-298-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-292-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97415-031-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-580-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97415-032-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-581-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-299-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-293-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97417-657-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-582-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-302-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-296-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-301-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-295-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-658-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-583-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-659-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-653-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97417-660-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97413-585-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-303-4 01 1 1601- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-297-4 01 1 1601- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1601- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1601- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1601- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1601- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 01 1 1601- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 01 1 1601- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 01 1 1601- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 01 1 1601- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-580-0 01 1 1601- ● ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-358-2 01 1 1601- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-581-0 01 1 1601- ● ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-359-2 01 1 1601- ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1601- ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1601- ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1601- ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1601- ● ●
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1601- ● ●
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1601- ● ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1601- ● ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1601- ● ●
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1601- ● ●
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1601- ● ●
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1601- ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1601- ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1601- ● ●

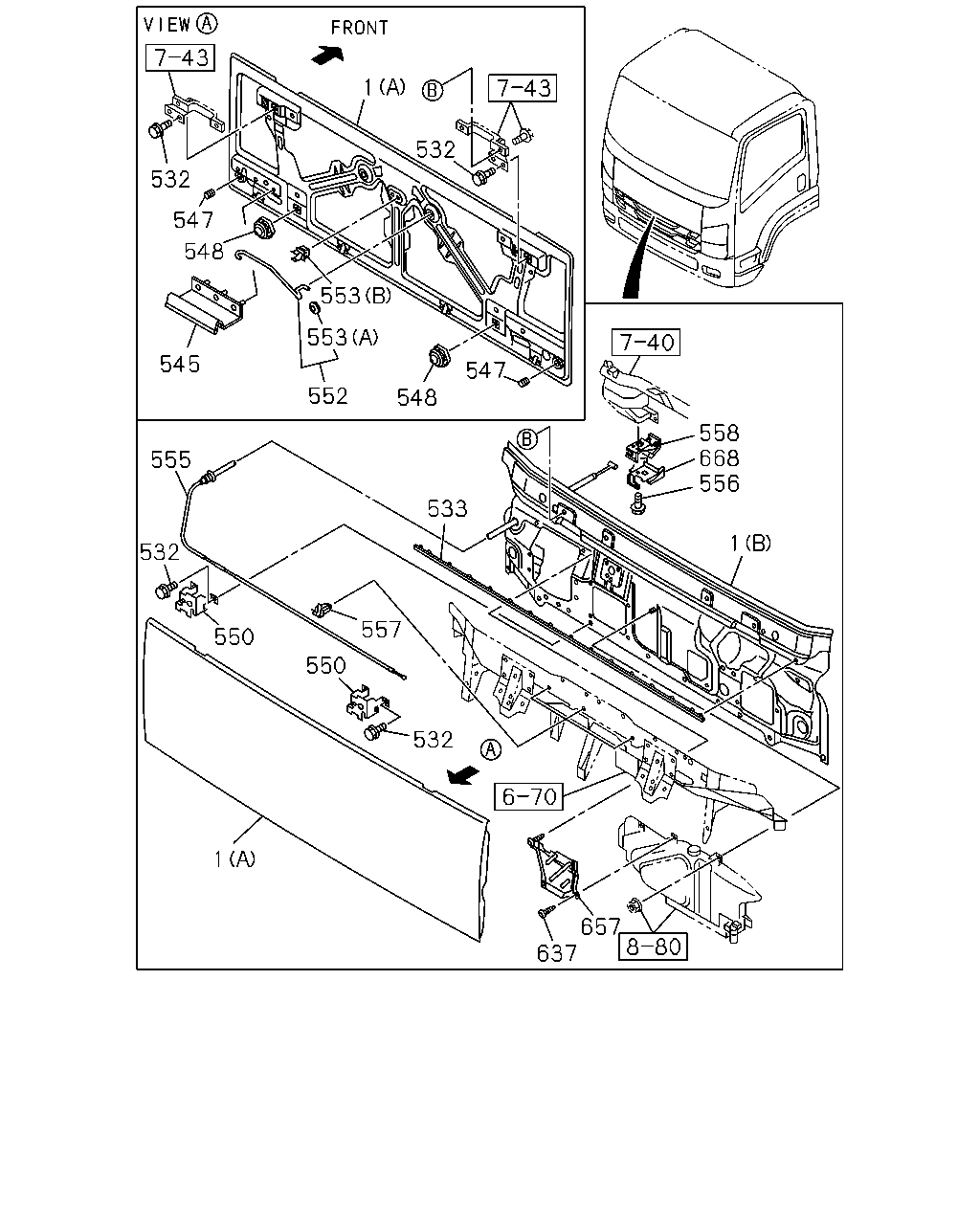

çizim 514267
532 1 532 547 545 552 548 547 553 553 548 555 532 550 550 532 1 533 558 556 668 1 657 637 557
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1601- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1601- ● ●
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 1601- ● ●
533 SEAL; FRT PANEL 8-98096-288-0 01 1 1601- ● ●
545 SEAL; FRT LID 8-98123-264-0 01 1 1601- ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1601- ● ●
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1601- ● ●
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1601- ● ●
552 STAY; FRT LID 8-98089-836-0 01 1 1601- ● ●
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1601- ● ●
553 CLIP; STAY
(A) 		8-98059-320-0 01 1 1601- ● ●
555 CABLE; FRT LID 8-98036-573-1 01 1 1601- ● ●
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1601- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1601- ● ●
558 LEVER; FRT LID 1-79338-007-1 01 1 1601- ● ●
637 CLIP; COVER
OD=16 L=11 		1-76378-155-0 02 1 1601- ● ●
657 COVER; WIPER IDLER 8-98060-908-0 01 1 1601- ● ●
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1601- ● ●

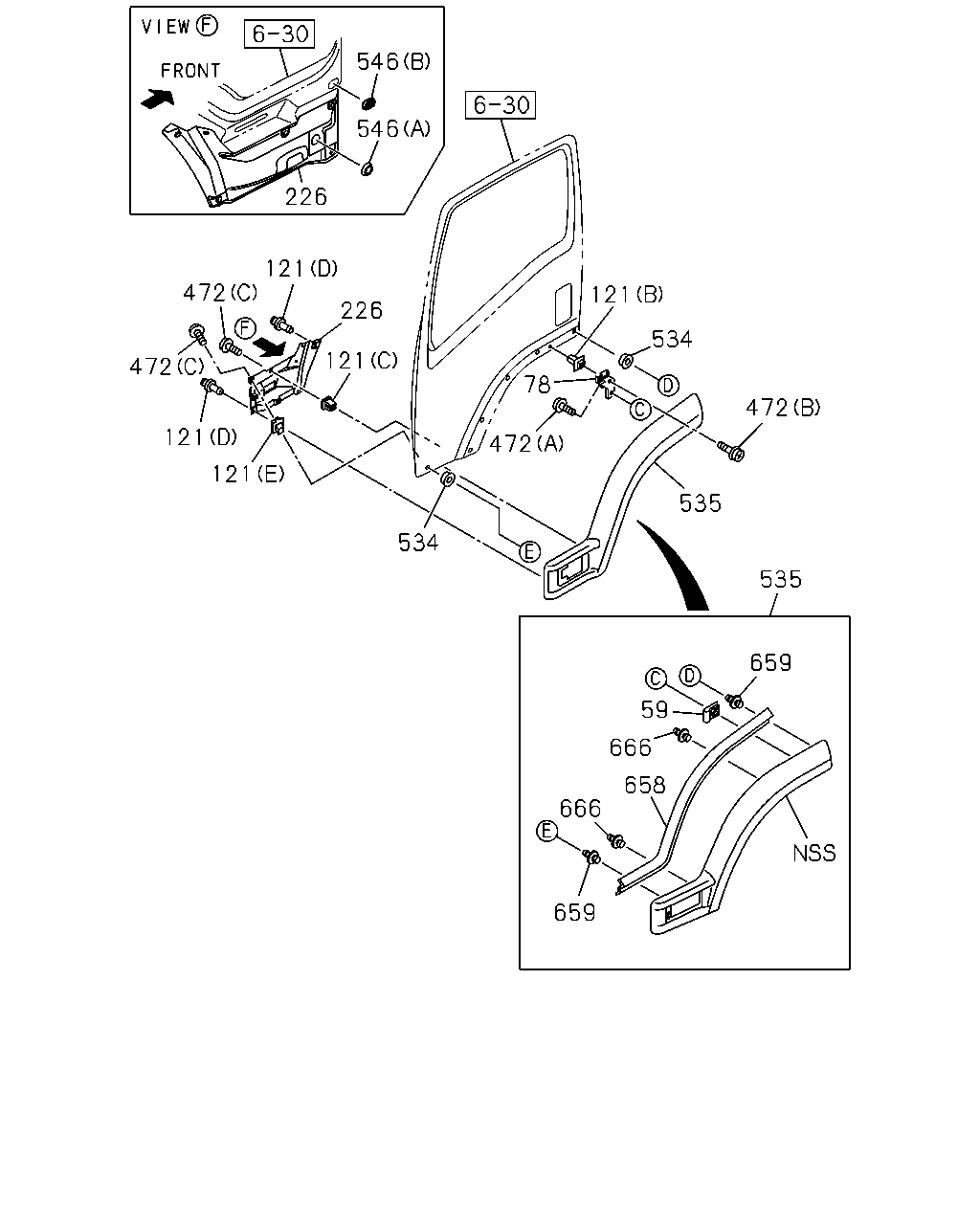

çizim 514288
546 546 226 121 472 226 472 121 121 121 121 78 472 534 534 472 535 535 659 59 666 658 666 659
BalonParca AdiParca NoAdetTipApplied Date A B
59 GROMMET; SCREW 8-94279-723-0 02 1 1601- ● ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1601- ● ●
78 BRACKET; FENDER 8-98041-165-1 01 1 1601- ● ●
78 BRACKET; FENDER 8-98041-166-1 01 1 1601- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 02 1 1601- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1601- ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1601- ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1601- ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1601- ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1601- ● ●
226 PROTECTOR; FRT 8-98037-712-2 01 1 1601- ● ●
226 PROTECTOR; FRT 8-98037-713-2 01 1 1601- ● ●
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1601- ● ●
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1601- ● ●
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1601- ● ●
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) GRAY 		8-97415-271-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) GRAY 		8-97415-296-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR BRIGHT YELLOW(538) YELLOW 		8-97417-778-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR BRIGHT YELLOW(538) YELLOW 		8-97417-780-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-832-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-833-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97429-596-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97429-597-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) BEIGE 		8-97424-805-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) BEIGE 		8-97424-806-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97415-263-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97415-288-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) RED 		8-97415-272-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) RED 		8-97415-297-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) BLUE 		8-97415-264-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) BLUE 		8-97415-289-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE 		8-97415-278-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE 		8-97415-303-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) RED 		8-97415-273-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) RED 		8-97415-298-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97415-270-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97415-295-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97415-285-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97415-310-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97415-286-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97415-311-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-287-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-312-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97415-282-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97415-307-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) RED 		8-97415-274-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) RED 		8-97415-299-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97415-284-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97415-309-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-779-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-781-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) GREEN 		8-97415-267-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) GREEN 		8-97415-292-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) BLUE 		8-97415-265-0 01 1 1601- ● ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) BLUE 		8-97415-290-0 01 1 1601- ● ●
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1601- ● ●
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1601- ● ●
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1601- ● ●
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1601- ● ●
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 1601- ● ●
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1601- ● ●

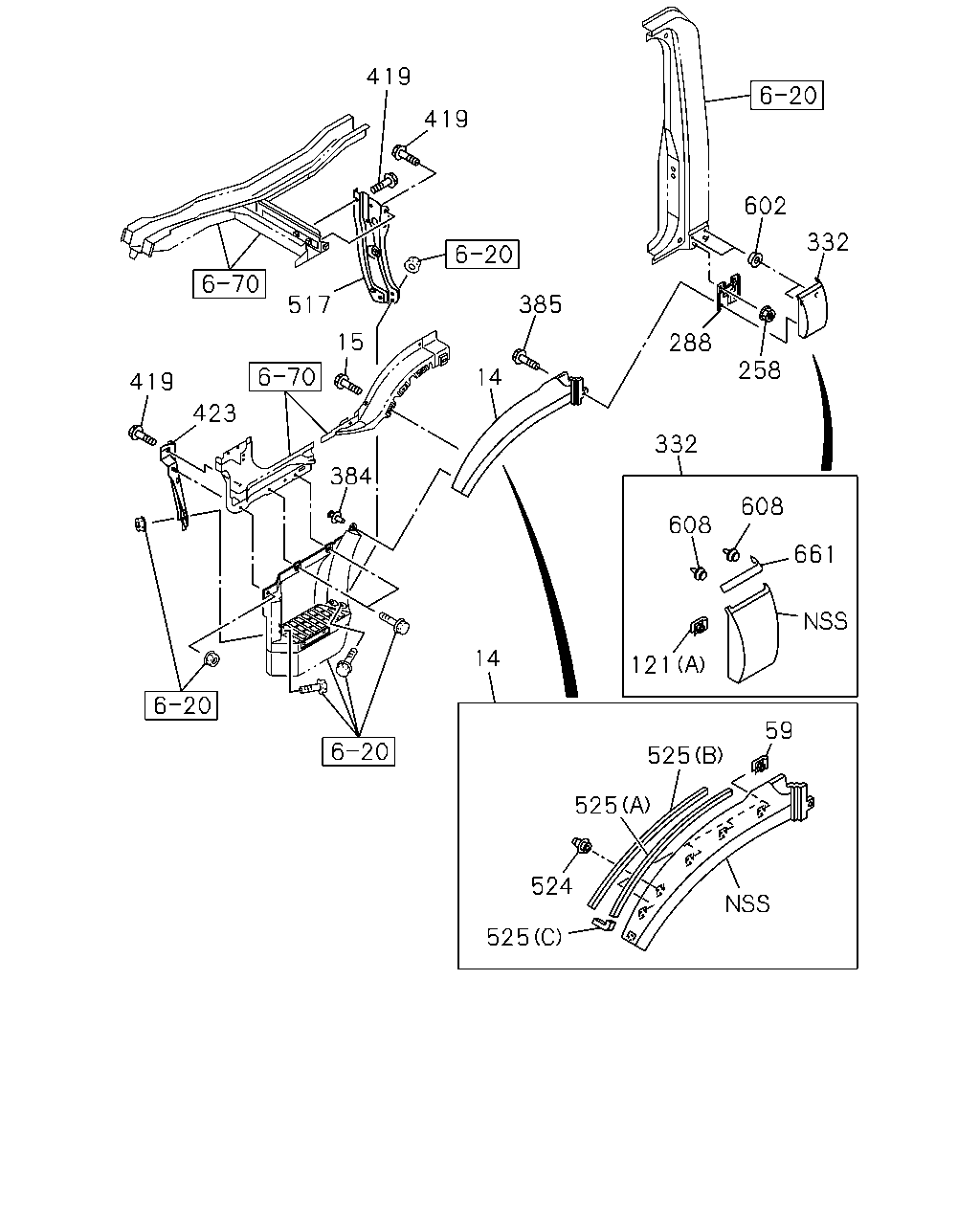

çizim 514302
419 419 517 385 419 423 384 15 14 14 332 258 288 602 332 608 608 661 121 525 525 524 525 59
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 1601- ● ●
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 1601- ● ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1601- ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1601- ● ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1601- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 02 1 1601- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1601- ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1601- ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1601- ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1601- ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1601- ● ●
258 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 1601- ● ●
288 BRACKET; FENDER SKIRT 8-98041-162-1 02 1 1601- ● ●
332 FENDER; RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-706-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-716-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR BRIGHT YELLOW(538) YELLOW 		8-97417-768-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR BRIGHT YELLOW(538) YELLOW 		8-97417-769-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-801-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-802-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97429-594-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97429-595-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR FT ORANGE(609) BEIGE 		8-97413-346-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR FT ORANGE(609) BEIGE 		8-97413-352-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-707-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-717-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-708-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-718-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-709-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-719-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) WHITE 		8-97413-313-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) WHITE 		8-97413-320-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) RED 		8-97413-341-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) RED 		8-97413-347-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-710-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-720-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-711-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-721-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97413-342-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97413-348-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-712-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-722-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97413-343-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97413-349-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR FIRE RED(915) RED 		8-97413-344-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR FIRE RED(915) RED 		8-97413-350-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-713-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-723-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-740-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-741-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR GREEN(989) GREEN 		8-97413-715-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR GREEN(989) GREEN 		8-97413-725-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97413-345-0 01 1 1601- ● ●
332 FENDER; RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97413-351-0 01 1 1601- ● ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1601- ● ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 02 1 1601- ● ●
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1601- ● ●
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1601- ● ●
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1601- ● ●
517 SUPPORT; STEP PANEL 8-98037-338-2 01 1 1601- ● ●
517 SUPPORT; STEP PANEL 8-98037-339-2 01 1 1601- ● ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1601- ● ●
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1601- ● ●
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1601- ● ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1601- ● ●
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 04 1 1601- ● ●
608 CLIP
D5.4X8 		1-09983-154-0 04 1 1601- ● ●
661 FINISHER; FENDER RR 8-98041-171-1 01 1 1601- ● ●
661 FINISHER; FENDER RR 8-98072-722-0 01 1 1601- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
