6-01 — FRONT BUMPER (#175544) — 90 parça

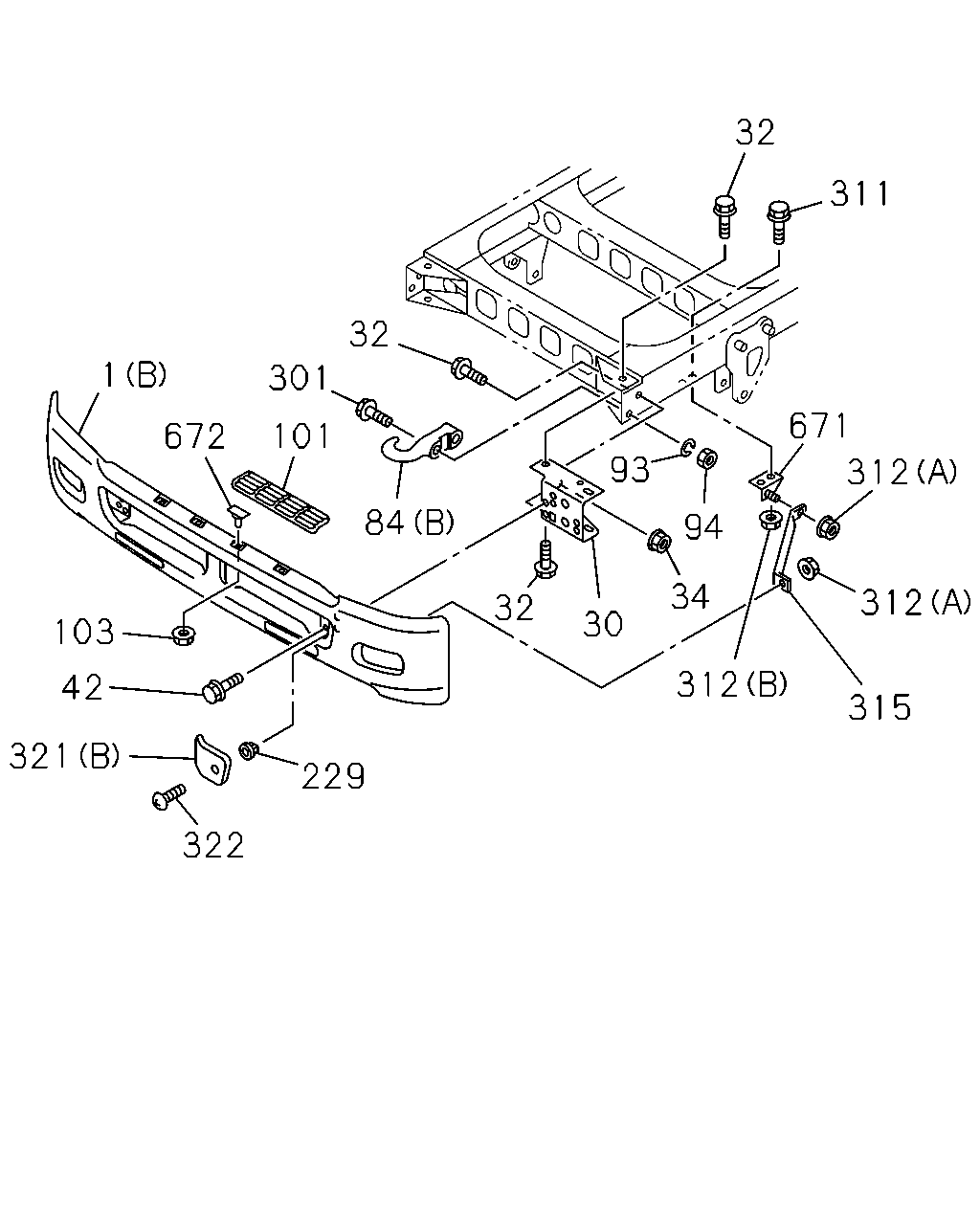

1 32 301 672 84 101 103 42 321 322 229 32 30 94 93 32 311 671 312 312 34 312 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT (B) WHITE	8-97425-839-0	01	1	1601-	●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (B) WHITE	8-97425-839-0	01	1	1601-		●
1	BUMPER ASM; FRT FRONT UNDER SPOILER DELETE<SGA> (A) WHITE	8-97407-725-3	01	1	1601-		●
30	BRACKET; FRT BUMPER	8-97611-515-4	01	1	1601-	●
30	BRACKET; FRT BUMPER 4HK1-TCS ENG(RJS)	8-97611-515-4	01	1	1601-		●
30	BRACKET; FRT BUMPER	8-97611-516-4	01	1	1601-	●
30	BRACKET; FRT BUMPER 4HK1-TCS ENG(RJS)	8-97611-516-4	01	1	1601-		●
30	BRACKET; FRT BUMPER 4HK1-TCH ENG(RDW) FRONT SPOILER<VP1>	8-97611-517-5	01	1	1601-		●
30	BRACKET; FRT BUMPER 4HK1-TCH ENG(RDW) FRONT SPOILER<VP1>	8-97611-518-4	01	1	1601-		●
32	BOLT; BRKT,BUMPER M10X35 FLANGE	0-28651-035-0	06	1	1601-	●	●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91180-210-0	02	1	1601-	●	●
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1601-	●
42	BOLT; BUMPER FRONT SPOILER<VP1> M10X30	8-94324-205-0	06	1	1601-		●
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> M10X30	8-94324-205-0	04	1	1601-		●
84	HOOK (B)	1-57181-003-5	01	1	1601-	●
84	HOOK FRONT SPOILER<VP1> (B)	1-57181-003-5	01	1	1601-		●
84	HOOK FRONT UNDER SPOILER DELETE<SGA> (A)	8-98035-644-1	01	1	1601-		●
93	WASHER; LK,HOOK ID=14.2	0-91510-814-0	02	1	1601-	●	●
94	NUT; HOOK M14	0-91110-514-0	02	1	1601-	●	●
101	STEP; BUMPER	8-97611-540-0	01	1	1601-	●	●
101	STEP; BUMPER	8-97611-541-0	01	1	1601-	●	●
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1601-	●	●
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1601-	●	●
301	BOLT; HOOK TO FRAME M14X60	0-10861-460-0	02	1	1601-	●	●
311	BOLT; BRKT M14X45 FLANGE	0-28851-445-0	04	1	1601-	●
311	BOLT; BRKT EXC. FRONT UNDER SPOILER DELETE<SGA> M14X45 FLANGE	0-28851-445-0	04	1	1601-		●
311	BOLT; BRKT FRONT UNDER SPOILER DELETE<SGA> M14X45 FLANGE	0-28851-445-0	02	1	1601-		●
312	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	1601-	●
312	NUT; BRKT EXC. FRONT UNDER SPOILER DELETE<SGA> (A) M10 FLANGE	0-91180-210-0	04	1	1601-		●
312	NUT; BRKT (B) M14 FLANGE	0-91180-214-0	04	1	1601-	●
312	NUT; BRKT EXC. FRONT UNDER SPOILER DELETE<SGA> (B) M14 FLANGE	0-91180-214-0	04	1	1601-		●
312	NUT; BRKT FRONT UNDER SPOILER DELETE<SGA> (B) M14 FLANGE	0-91180-214-0	02	1	1601-		●
315	STAY; BUMPER	8-97611-497-1	01	1	1601-	●
315	STAY; BUMPER 4HK1-TCS ENG(RJS) FRONT SPOILER<VP1>	8-97611-497-1	01	1	1601-		●
315	STAY; BUMPER	8-97611-498-1	01	1	1601-	●
315	STAY; BUMPER 4HK1-TCS ENG(RJS) FRONT SPOILER<VP1>	8-97611-498-1	01	1	1601-		●
315	STAY; BUMPER 4HK1-TCH ENG(RDW) FRONT SPOILER<VP1>	8-97611-499-2	01	1	1601-		●
315	STAY; BUMPER 4HK1-TCH ENG(RDW) FRONT SPOILER<VP1>	8-97611-500-2	01	1	1601-		●
321	COVER; BUMPER FRT SIDE (B)	8-97616-290-1	01	1	1601-	●
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (B)	8-97616-290-1	01	1	1601-		●
321	COVER; BUMPER FRT SIDE (B)	8-97616-291-1	01	1	1601-	●
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (B)	8-97616-291-1	01	1	1601-		●
321	COVER; BUMPER FRT SIDE FRONT UNDER SPOILER DELETE<SGA> (A)	8-97616-293-0	01	1	1601-		●
321	COVER; BUMPER FRT SIDE FRONT UNDER SPOILER DELETE<SGA> (A)	8-97616-294-0	01	1	1601-		●
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1601-	●	●
671	BRACKET; STAY	8-97614-062-0	01	1	1601-	●
671	BRACKET; STAY EXC. FRONT UNDER SPOILER DELETE<SGA>	8-97614-062-0	01	1	1601-		●
671	BRACKET; STAY	8-97614-063-0	01	1	1601-	●
671	BRACKET; STAY EXC. FRONT UNDER SPOILER DELETE<SGA>	8-97614-063-0	01	1	1601-		●
672	STUD; STEP M6X20	8-97611-666-0	04	1	1601-	●	●

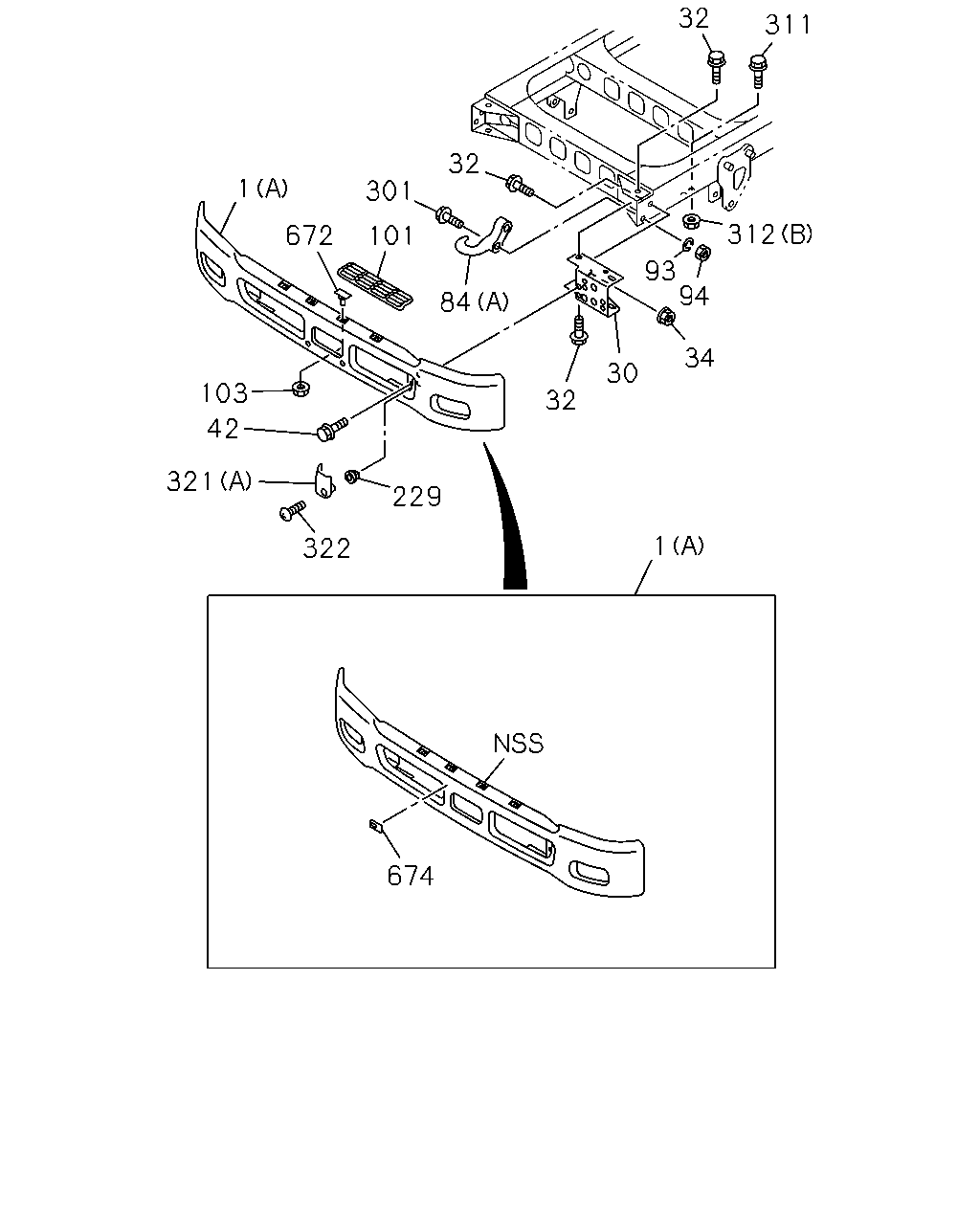

32 1 301 672 103 321 42 322 1 674 229 84 101 32 32 30 93 311 312 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT (B) WHITE	8-97425-839-0	01	1	1601-	●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (B) WHITE	8-97425-839-0	01	1	1601-		●
1	BUMPER ASM; FRT FRONT UNDER SPOILER DELETE<SGA> (A) WHITE	8-97407-725-3	01	1	1601-		●
30	BRACKET; FRT BUMPER	8-97611-515-4	01	1	1601-	●
30	BRACKET; FRT BUMPER 4HK1-TCS ENG(RJS)	8-97611-515-4	01	1	1601-		●
30	BRACKET; FRT BUMPER	8-97611-516-4	01	1	1601-	●
30	BRACKET; FRT BUMPER 4HK1-TCS ENG(RJS)	8-97611-516-4	01	1	1601-		●
30	BRACKET; FRT BUMPER 4HK1-TCH ENG(RDW) FRONT SPOILER<VP1>	8-97611-517-5	01	1	1601-		●
30	BRACKET; FRT BUMPER 4HK1-TCH ENG(RDW) FRONT SPOILER<VP1>	8-97611-518-4	01	1	1601-		●
32	BOLT; BRKT,BUMPER M10X35 FLANGE	0-28651-035-0	06	1	1601-	●	●
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1601-	●
42	BOLT; BUMPER FRONT SPOILER<VP1> M10X30	8-94324-205-0	06	1	1601-		●
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> M10X30	8-94324-205-0	04	1	1601-		●
84	HOOK (B)	1-57181-003-5	01	1	1601-	●
84	HOOK FRONT SPOILER<VP1> (B)	1-57181-003-5	01	1	1601-		●
84	HOOK FRONT UNDER SPOILER DELETE<SGA> (A)	8-98035-644-1	01	1	1601-		●
93	WASHER; LK,HOOK ID=14.2	0-91510-814-0	02	1	1601-	●	●
94	NUT; HOOK M14	0-91110-514-0	02	1	1601-	●	●
101	STEP; BUMPER	8-97611-540-0	01	1	1601-	●	●
101	STEP; BUMPER	8-97611-541-0	01	1	1601-	●	●
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1601-	●	●
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1601-	●	●
301	BOLT; HOOK TO FRAME M14X60	0-10861-460-0	02	1	1601-	●	●
311	BOLT; BRKT M14X45 FLANGE	0-28851-445-0	04	1	1601-	●
311	BOLT; BRKT EXC. FRONT UNDER SPOILER DELETE<SGA> M14X45 FLANGE	0-28851-445-0	04	1	1601-		●
311	BOLT; BRKT FRONT UNDER SPOILER DELETE<SGA> M14X45 FLANGE	0-28851-445-0	02	1	1601-		●
312	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	1601-	●
312	NUT; BRKT EXC. FRONT UNDER SPOILER DELETE<SGA> (A) M10 FLANGE	0-91180-210-0	04	1	1601-		●
312	NUT; BRKT (B) M14 FLANGE	0-91180-214-0	04	1	1601-	●
312	NUT; BRKT EXC. FRONT UNDER SPOILER DELETE<SGA> (B) M14 FLANGE	0-91180-214-0	04	1	1601-		●
312	NUT; BRKT FRONT UNDER SPOILER DELETE<SGA> (B) M14 FLANGE	0-91180-214-0	02	1	1601-		●
321	COVER; BUMPER FRT SIDE (B)	8-97616-290-1	01	1	1601-	●
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (B)	8-97616-290-1	01	1	1601-		●
321	COVER; BUMPER FRT SIDE (B)	8-97616-291-1	01	1	1601-	●
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (B)	8-97616-291-1	01	1	1601-		●
321	COVER; BUMPER FRT SIDE FRONT UNDER SPOILER DELETE<SGA> (A)	8-97616-293-0	01	1	1601-		●
321	COVER; BUMPER FRT SIDE FRONT UNDER SPOILER DELETE<SGA> (A)	8-97616-294-0	01	1	1601-		●
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1601-	●	●
672	STUD; STEP M6X20	8-97611-666-0	04	1	1601-	●	●
674	BRACKET; BUMPER,PLATE FRONT UNDER SPOILER DELETE<SGA>	8-97611-491-1	01	1	1601-		●
