Isuzu WW
▶
TRUCKS
▶
FRR
▶
11720 - FRR AUST/NZ JNLT09 SPACECAB
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

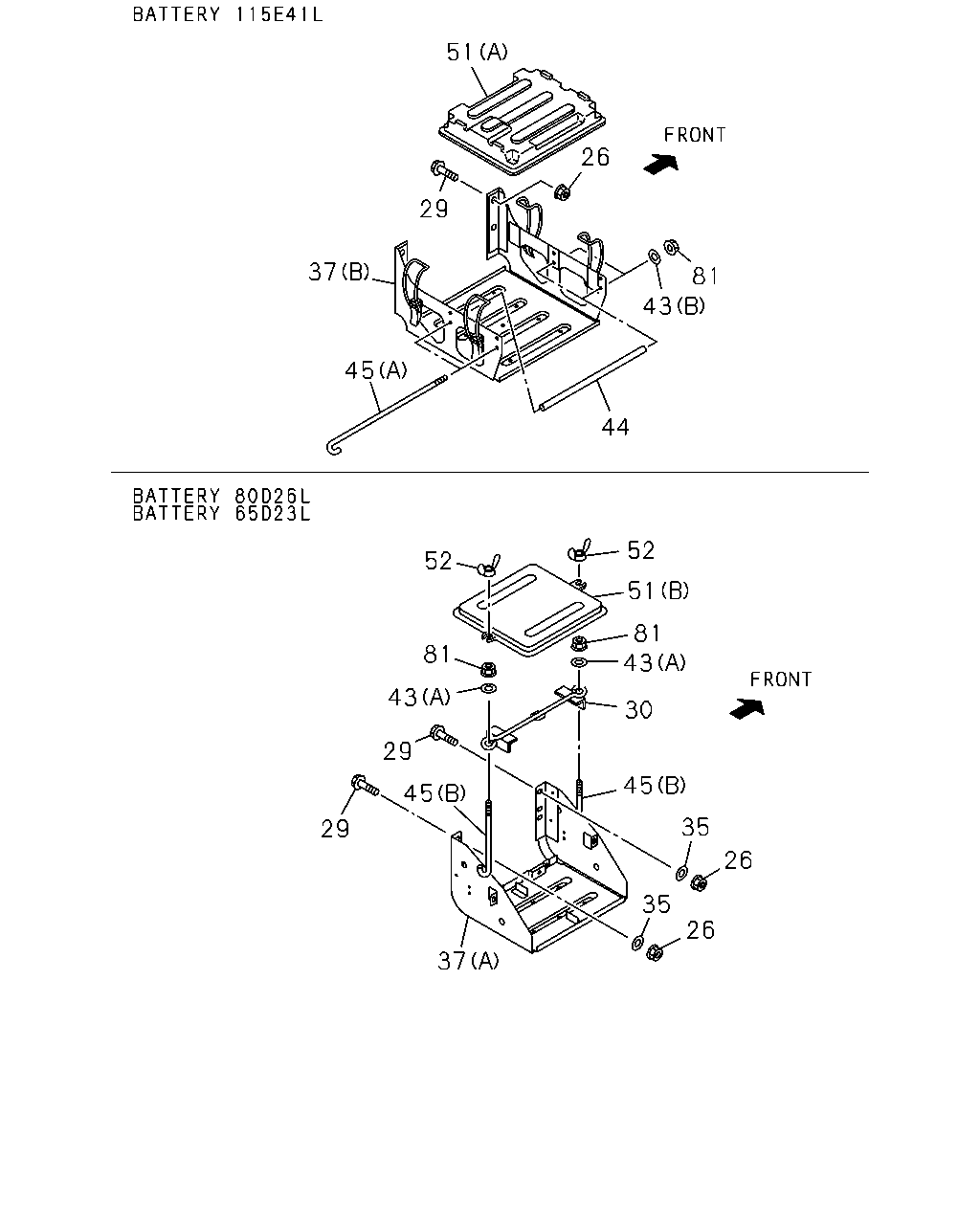

5-20 — BATTERY CARRIER
(#175542) — 16 parça
Tümü
A - FCD5CS
B - FCR5CS
37
26
35
26
35
45
30
43
81
51
52
52
44
43
81
45
37
29
26
51
29
45
29
43
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1601-
●
●
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28651-035-0
04
1
1601-
●
●
30
PLATE; BATTERY
EXC. BATTERY 115E41L<8MA>
5-53615-004-1
01
1
1601-
●
●
35
WASHER; PL,BATTERY CARRIER
EXC. BATTERY 115E41L<8MA> ID=10.5 OD=22
0-91614-610-0
04
1
1601-
●
●
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-98096-098-0
01
1
1601-
●
●
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A)
8-98096-097-0
01
1
1601-
●
●
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98261-636-0
01
1
1601-
●
●
43
WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (B) ID=8.4 OD=16
0-91610-508-0
02
1
1601-
●
●
43
WASHER; PL,CLAMP
EXC. BATTERY 115E41L<8MA> (A) ID=8.4 OD=22
0-91614-708-0
02
1
1601-
●
●
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1601-
●
●
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=430
8-97134-740-0
02
1
1601-
●
●
45
ROD; TENSION,BATTERY
EXC. BATTERY 115E41L<8MA> (B) L=120
9-53616-615-0
02
1
1601-
●
●
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
1601-
●
●
51
COVER; BATTERY
EXC. BATTERY 115E41L<8MA> (B)
8-97120-747-0
01
1
1601-
●
●
52
NUT; WING,COVER FIX
EXC. BATTERY 115E41L<8MA> M8 WING NUT
0-91118-408-0
02
1
1601-
●
●
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
1601-
●
●
