5-15 — CAB MOUNTING; CAB SIDE (#175541) — 54 parça

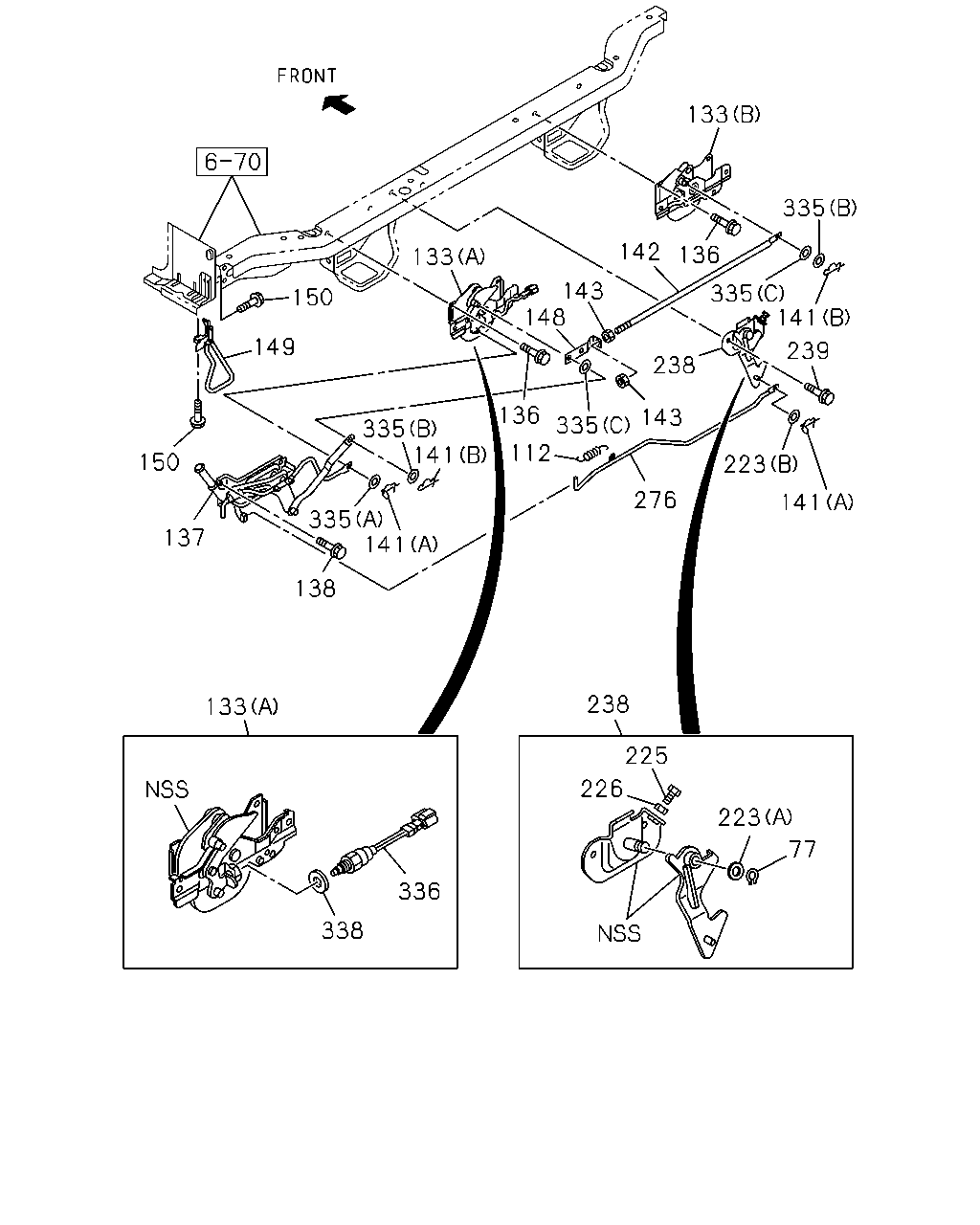

150 137 138 335 141 133 338 336 226 238 225 223 77 276 141 223 143 239 141 335 335 133 142 136 143 148 335 238 136 133 112 141 335 149 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
77	RING; SNAP ID=14.7	0-91800-616-0	01	1	1601-	●	●
112	SPRING; RETURN,SAFETY ROD	1-79718-655-0	01	1	1601-	●	●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1601-	●	●
133	LOCK ASM; CAB (A)	8-98094-285-2	01	1	1601-	●	●
136	BOLT; CAB LK M8X20 FLANGE	0-28650-820-0	08	1	1601-	●	●
137	CONTROL UNIT; CAB LOCK	8-97584-470-5	01	1	1601-	●	●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE	0-28650-820-0	04	1	1601-	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	02	1	1601-	●	●
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	1601-	●	●
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	1601-	●	●
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	1601-	●	●
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	1601-	●	●
149	HANDLE; TILT	8-98025-705-0	01	1	1601-	●	●
150	BOLT; TILT HANDLE M8X20 FLANGE	0-28650-820-0	03	1	1601-	●	●
223	WASHER; PL,SAFETY LK (B) ID=8.4 OD=16	0-91610-508-0	01	1	1601-	●	●
223	WASHER; PL,SAFETY LK (A) ID=17 OD=30	0-91610-516-0	01	1	1601-	●	●
225	BOLT; SAFETY LK M8X30 FLANGE	0-28050-830-0	01	1	1601-	●	●
226	NUT; SAFETY LK M8	0-91110-508-0	01	1	1601-	●	●
238	LOCK ASM; SAFETY,CAB TILT	8-98048-899-1	01	1	1601-	●	●
239	BOLT; SAFETY LK M8X20 FLANGE	0-28650-820-0	02	1	1601-	●	●
276	ROD ASM; CAB LOCK,HOOK TO HOOK	8-98048-830-1	01	1	1601-	●	●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16	0-91610-508-0	01	1	1601-	●	●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	1601-	●	●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	02	1	1601-	●	●
336	SWITCH; CAB LOCK	8-98091-155-1	01	1	1601-	●	●
338	WASHER; CAB LOCK ID=17 OD=30	0-91610-516-0	01	1	1601-	●	●

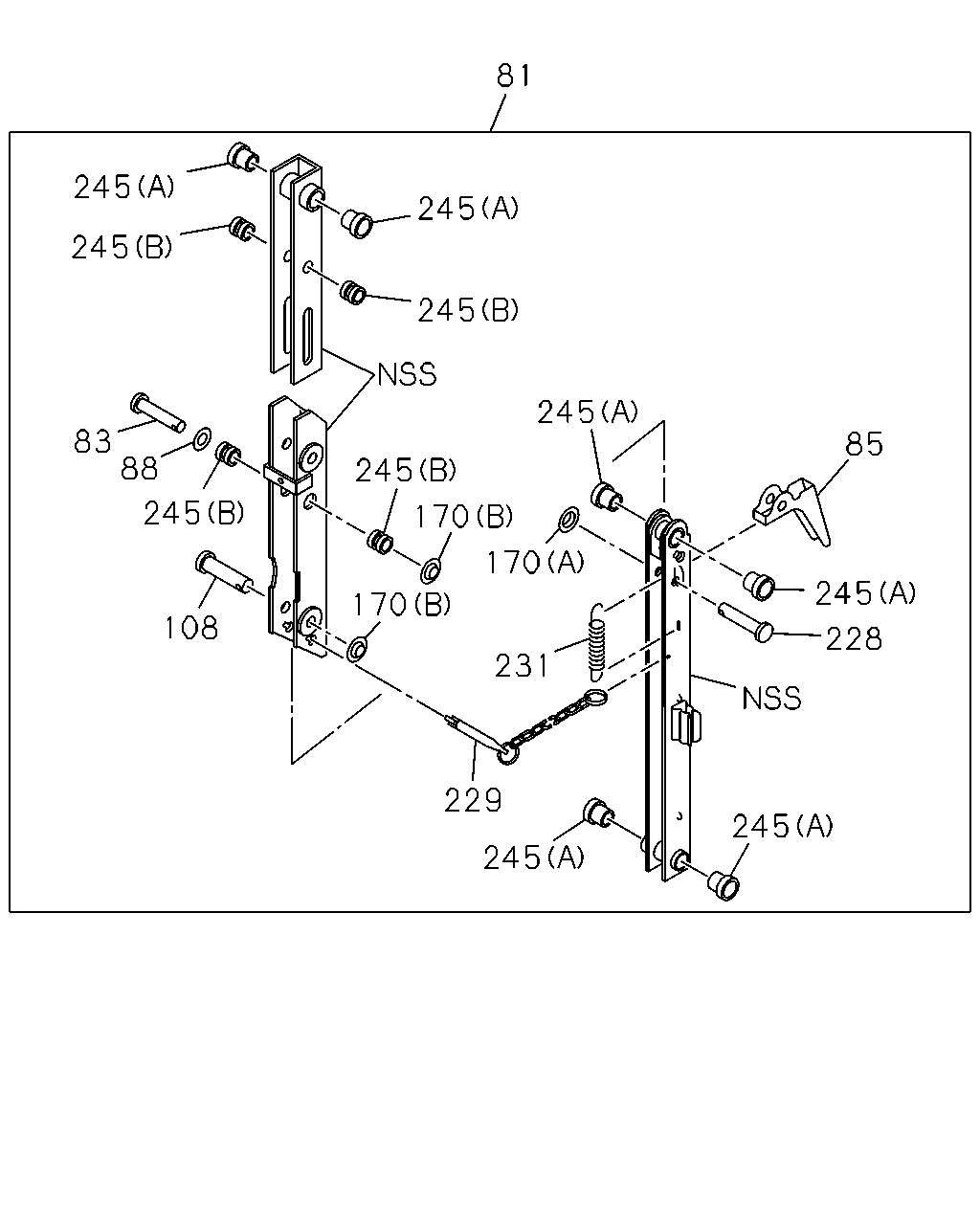

81 245 245 83 245 88 108 170 245 245 245 245 170 170 231 229 245 245 245 85 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	STAY ASM; CAB TILT	8-98278-114-0	01	1	1601-	●
81	STAY ASM; CAB TILT 4HK1-TCS ENG(RJS)	8-98278-114-0	01	1	1601-		●
81	STAY ASM; CAB TILT 4HK1-TCH ENG(RDW)	8-98278-111-0	01	1	1601-		●
83	PIN; JOINT,CAB STAY OD=10 L=42	1-09744-106-0	01	1	1601-	●	●
85	LEVER; LOCK,CAB STAY	1-62500-503-0	01	1	1601-	●	●
88	WASHER; PL,CAB STAY PIN ID=10.5 T=2.0	1-09985-183-0	01	1	1601-	●	●
108	PIN; ADJ,CAB STAY OD=10 L=42	1-09744-106-0	01	1	1601-	●	●
170	NUT (A) ID=7.9 PUSH NUT	8-97022-565-0	01	1	1601-	●	●
170	NUT (B) ID=9.9 PUSH NUT	8-97022-566-0	02	1	1601-	●	●
228	PIN; SAFETY LOCK SPRING,CAB STAY OD=8 L=27	1-09744-086-2	01	1	1601-	●	●
229	PIN ASM; SAFETY	1-62500-517-1	01	1	1601-	●	●
231	SPRING; RETURN,LOCK LEVER,CAB STAY	1-09583-244-0	01	1	1601-	●	●
245	BUSHING; CAB STAY (A)	1-62500-587-0	06	1	1601-	●	●
245	BUSHING; CAB STAY (B)	1-62500-588-0	04	1	1601-	●	●

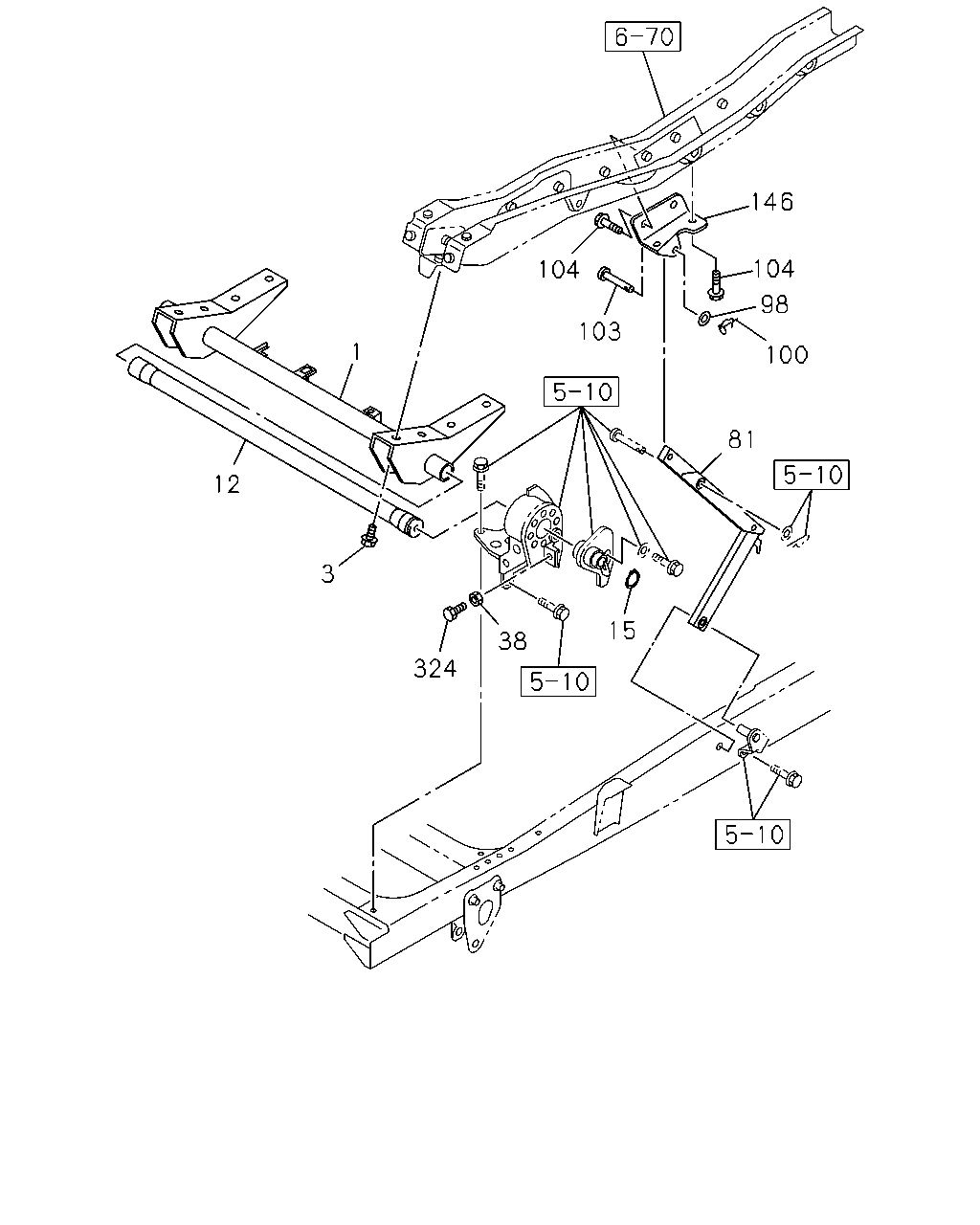

104 103 146 104 98 100 81 1 12 3 324 38 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER; TORSION BAR	8-98166-413-0	01	1	1601-	●	●
3	BOLT; LEVER M12X42 FLANGE	8-98090-287-1	08	1	1601-	●	●
12	BAR; TORSION,UPR	8-98010-945-1	01	1	1601-	●	●
15	RING; SNAP,TORSION BAR T=1.90 BLUE	8-97129-615-0	01	1	1601-	●	●
38	NUT; LK M14	0-91110-514-0	01	1	1601-	●	●
81	STAY ASM; CAB TILT	8-98278-114-0	01	1	1601-	●
81	STAY ASM; CAB TILT 4HK1-TCS ENG(RJS)	8-98278-114-0	01	1	1601-		●
81	STAY ASM; CAB TILT 4HK1-TCH ENG(RDW)	8-98278-111-0	01	1	1601-		●
98	WASHER; CAB STAY ID=10.5 T=2.0	1-09985-183-0	01	1	1601-	●	●
100	PIN; SNAP,CAB STAY TO CAB L=34	8-98039-426-1	01	1	1601-	●	●
103	PIN; JOINT,CAB STAY	1-09744-108-1	01	1	1601-	●	●
104	BOLT; CAB STAY BRKT M10X30 FLANGE	0-28661-030-0	04	1	1601-	●	●
146	BRACKET ASM; CAB STAY UPR	8-98019-506-0	01	1	1601-	●	●
324	BOLT; ADJUST M14X59	8-98330-402-0	01	1	1601-	●	●
