Isuzu WW
▶
TRUCKS
▶
FVM
▶
11168 - FVM(SOUTH AFRICA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-43 - SIDE TRIM
▶

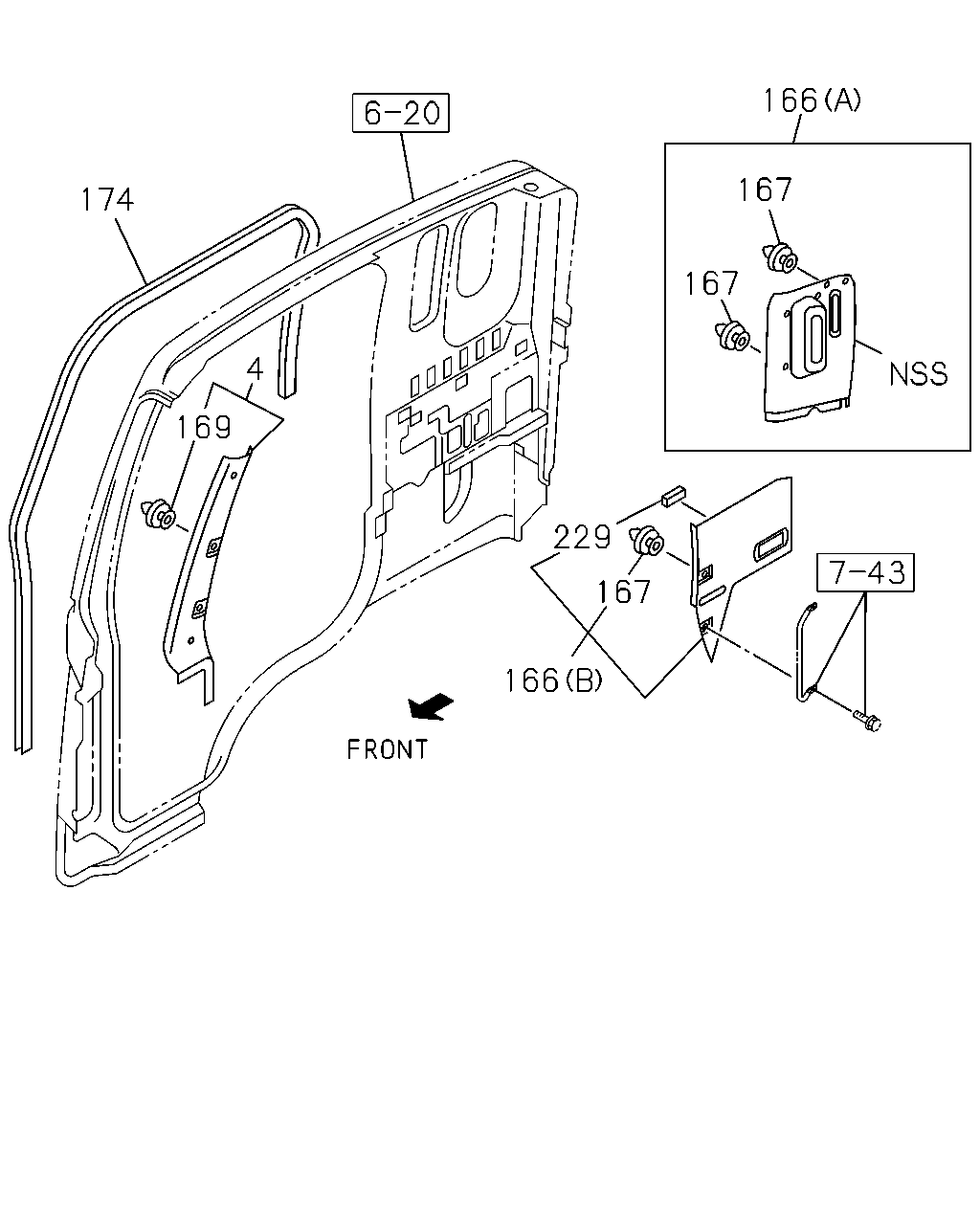

6-43 — SIDE TRIM
(#17554) — 17 parça
166
167
174
167
4
169
229
167
166
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
COVER; TRIM,FRT SIDE
DARK GRAY
8-97407-416-1
01
1
1001-
4
COVER; TRIM,FRT SIDE
DARK GRAY
8-97407-415-1
01
1
1001-
166
TRIM; RR PILLAR
(B) GRAY
8-97407-460-1
01
1
1001-
166
TRIM; RR PILLAR
(A) DARK GRAY
8-97415-651-0
01
1
1001-
166
TRIM; RR PILLAR
(A) DARK GRAY
8-97415-652-0
01
1
1001-
166
TRIM; RR PILLAR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) GRAY
8-97414-300-0
01
1
1001-
166
TRIM; RR PILLAR
EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) GRAY
8-97407-459-1
01
1
1001-
167
CLIP; TRIM,RR PILLAR
8-98059-610-0
08
1
1001-
167
CLIP; TRIM,RR PILLAR
8-98059-610-0
04
1
1001-
169
CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK SOU
8-94279-974-1
04
1
1001-
174
FINISHER; BODY SIDE
8-98155-183-0
01
1
1001-1509
174
FINISHER; BODY SIDE
8-98249-513-0
01
1
1510-
174
FINISHER; BODY SIDE
8-98155-184-0
01
1
1001-1509
174
FINISHER; BODY SIDE
8-98249-514-0
01
1
1510-
229
SEAL
8-98080-972-0
02
1
1001-
229
SEAL
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>
8-98092-662-0
01
1
1001-
229
SEAL
EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>
8-98080-972-0
02
1
1001-
