5-01 — FRAME AND OTHER PARTS (#175539) — 132 parça

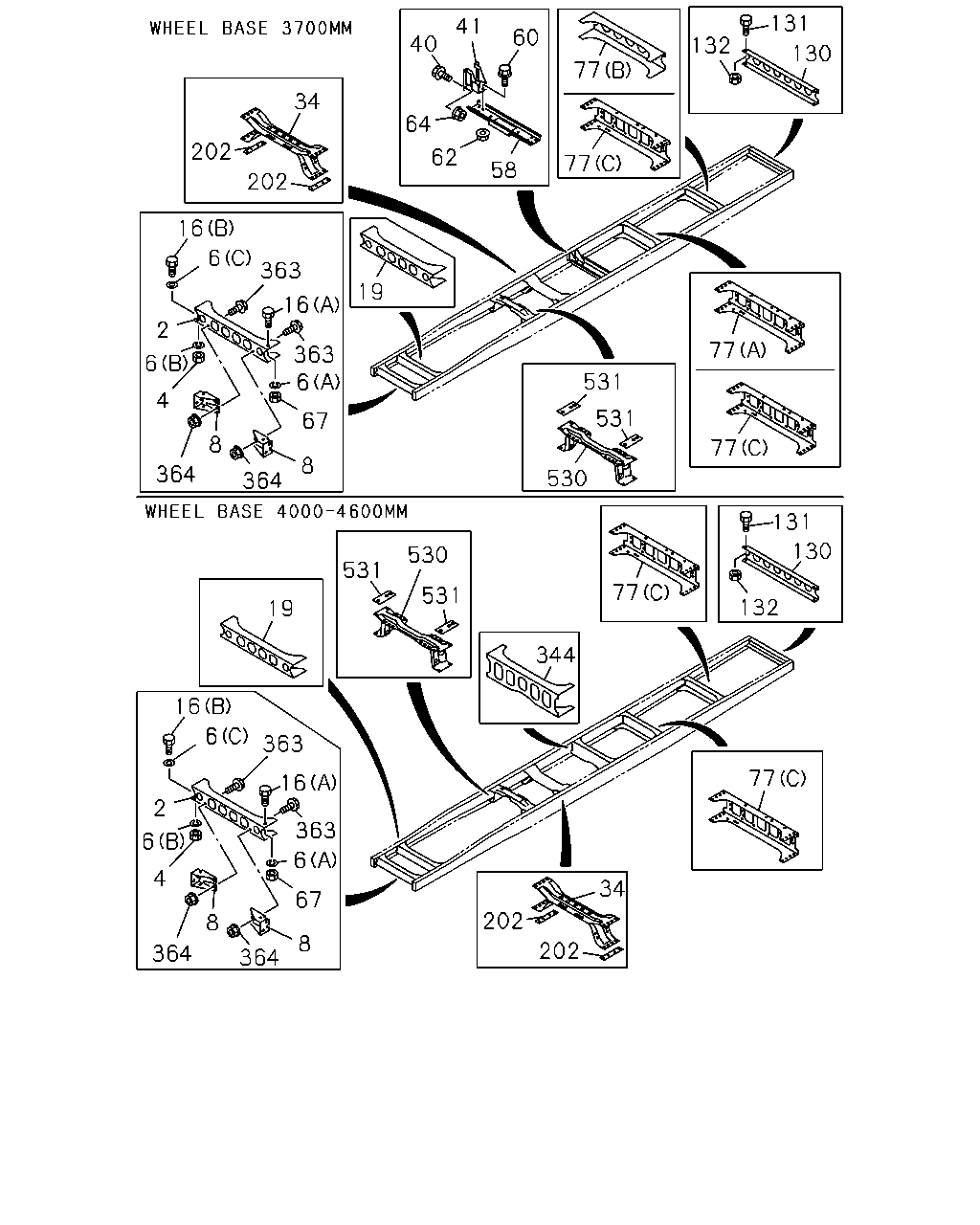

çizim 513777
41 60 40 64 62 58 77 77 132 131 130 34 202 202 16 6 363 2 6 16 363 6 4 364 8 364 8 67 19 16 6 363 16 363 6 67 8 364 364 8 4 6 2 531 530 531 344 19 531 531 530 77 77 77 131 132 130 77 202 202 34
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 MEMBER; CROSS,1ST 8-98312-669-0 01 1 1601- ● ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1601- ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1601- ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1601- ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1601- ● ● ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCH ENG(RDW) 		8-97609-759-2 01 1 1601- ● ●
8 GUSSET; 1ST C/MBR 8-97609-759-2 01 1 1601- ●
8 GUSSET; 1ST C/MBR
4HK1-TCH ENG(RDW) 		8-97609-760-3 01 1 1601- ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-3 01 1 1601- ●
8 GUSSET; 1ST C/MBR 8-97609-578-2 01 1 1601- ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) 		8-97609-578-2 01 1 1601- ● ●
8 GUSSET; 1ST C/MBR 8-97609-579-3 01 1 1601- ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) 		8-97609-579-3 01 1 1601- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1601- ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1601- ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-98312-670-0 01 1 1601- ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1601- ● ● ● ● ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 08 1 1601- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 1601- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 1601- ●
58 MEMBER; CENTER BRG 8-97638-924-0 01 1 1601- ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 1601- ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 1601- ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 1601- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1601- ● ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) (C) 		8-97609-481-4 02 1 1601- ●
77 MEMBER; CROSS,TRUNNION RR
POWER TAKE OFF-FLYWHEEL<6SZ> (C) 		8-97610-935-1 02 1 1601- ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-1 02 1 1601- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
LEAF SUS(FCR***) (C) 		8-97610-935-1 02 1 1601- ●
77 MEMBER; CROSS,TRUNNION RR
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (B) 		8-97609-475-2 01 1 1601- ●
77 MEMBER; CROSS,TRUNNION RR
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) 		8-97609-478-4 01 1 1601- ●
130 MEMBER; CROSS,END
POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97609-470-0 01 1 1601- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1601- ● ● ● ●
130 MEMBER; CROSS,END
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97609-469-0 01 1 1601- ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1601- ● ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1601- ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1601- ● ● ● ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1601- ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1601- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1601- ● ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1601- ● ● ● ● ●
530 MEMBER; CROSS,T/M
POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97615-671-2 01 1 1601- ●
530 MEMBER; CROSS,T/M
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97609-809-3 01 1 1601- ●
530 MEMBER; CROSS,T/M 8-97609-809-3 01 1 1601- ● ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 1601- ● ● ● ● ●

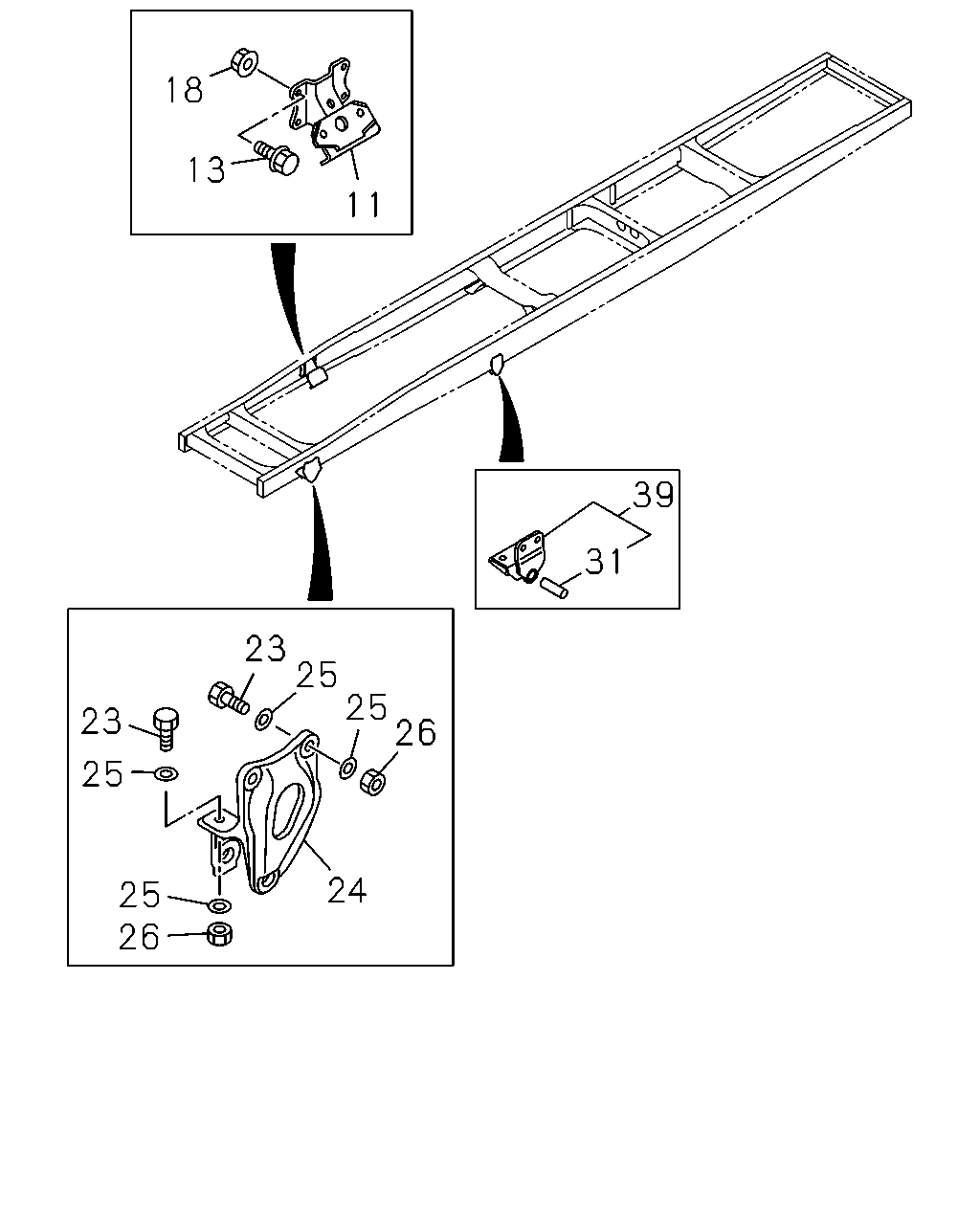

çizim 514188
18 13 11 31 39 23 23 25 25 25 26 24 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E
11 BRACKET; ENG MTG 8-98303-873-0 02 1 1601- ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1601- ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1601- ● ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1601- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 1601- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 1601- ● ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1601- ● ● ● ● ●
26 NUT; BRKT,SPR
AIR SUS(FCD***) M14 		0-91110-514-0 08 1 1601- ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1601- ● ● ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 1601- ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1601- ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1601- ● ● ● ● ●

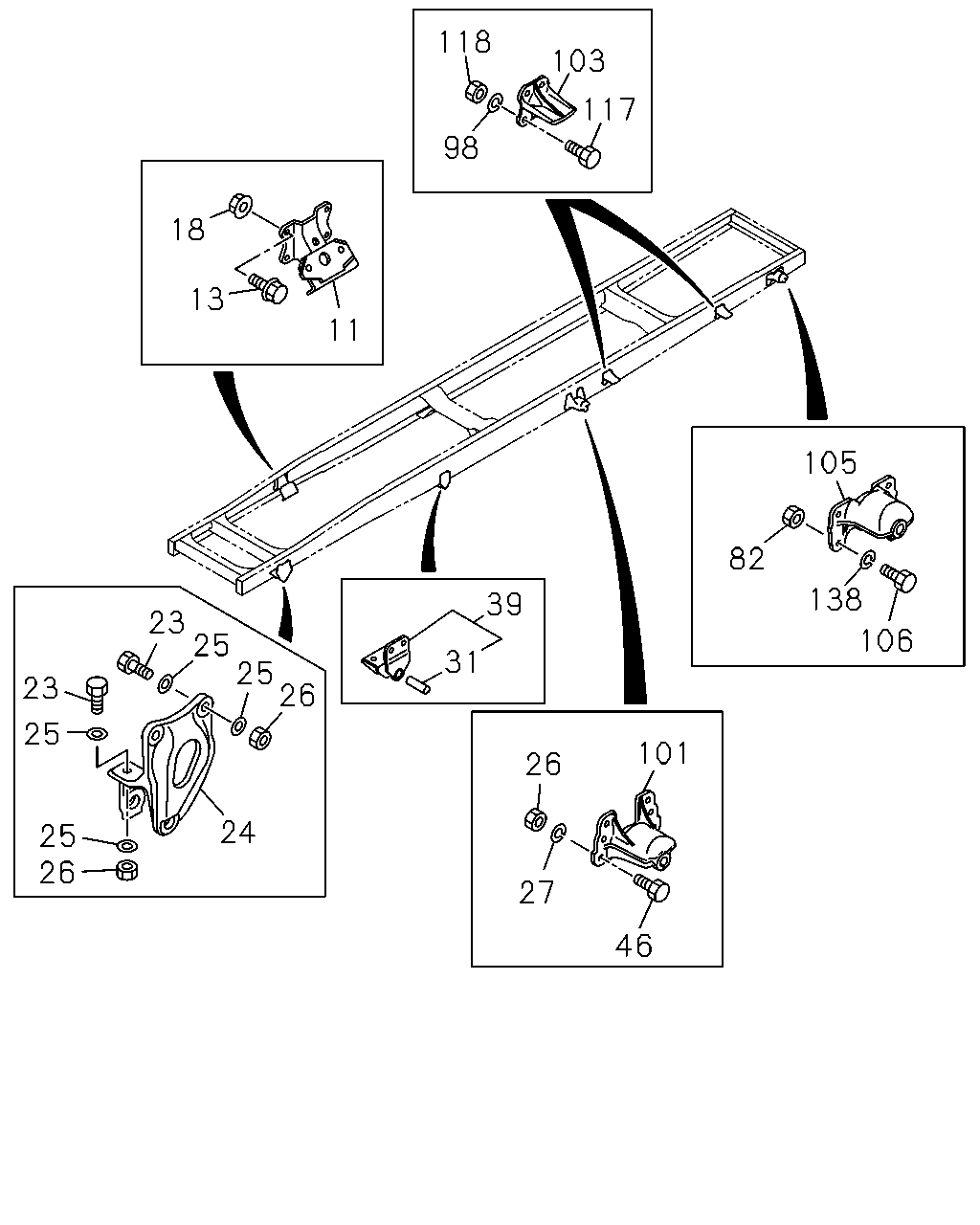

çizim 514332
18 13 11 118 103 98 117 105 82 106 138 101 26 27 46 31 39 24 26 25 25 23 23 25 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E
11 BRACKET; ENG MTG 8-98303-873-0 02 1 1601- ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1601- ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1601- ● ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1601- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 1601- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 1601- ● ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1601- ● ● ● ● ●
26 NUT; BRKT,SPR
AIR SUS(FCD***) M14 		0-91110-514-0 08 1 1601- ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1601- ● ● ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 1601- ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1601- ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 12 1 1601- ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1601- ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1601- ● ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1601- ● ● ● ●
46 BOLT; BRKT FIX
LEAF SUS(FCR***) M14X50 		0-20951-450-0 12 1 1601- ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 1601- ● ● ● ●
82 NUT; BRKT
LEAF SUS(FCR***) M14 		0-91110-514-0 10 1 1601- ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1601- ● ● ● ●
98 WASHER; LK,STOPPER
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 16 1 1601- ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1601- ● ● ● ●
101 BRACKET; RR SPR,FRT
LEAF SUS(FCR***) 		1-53353-090-4 02 1 1601- ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1601- ● ● ● ●
103 STOPPER; SUB SPR
LEAF SUS(FCR***) 		1-53356-059-1 04 1 1601- ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1601- ● ● ● ●
105 BRACKET; RR SPR,RR
LEAF SUS(FCR***) 		1-53354-074-0 02 1 1601- ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1601- ● ● ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) M14X50 		0-20951-450-0 10 1 1601- ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1601- ● ● ● ●
117 BOLT; STOPPER
LEAF SUS(FCR***) M14X50 		0-20951-450-0 16 1 1601- ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1601- ● ● ● ●
118 NUT; STOPPER
LEAF SUS(FCR***) M14 		0-91110-514-0 16 1 1601- ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1601- ● ● ● ●
138 WASHER; LK,BRKT
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 10 1 1601- ●

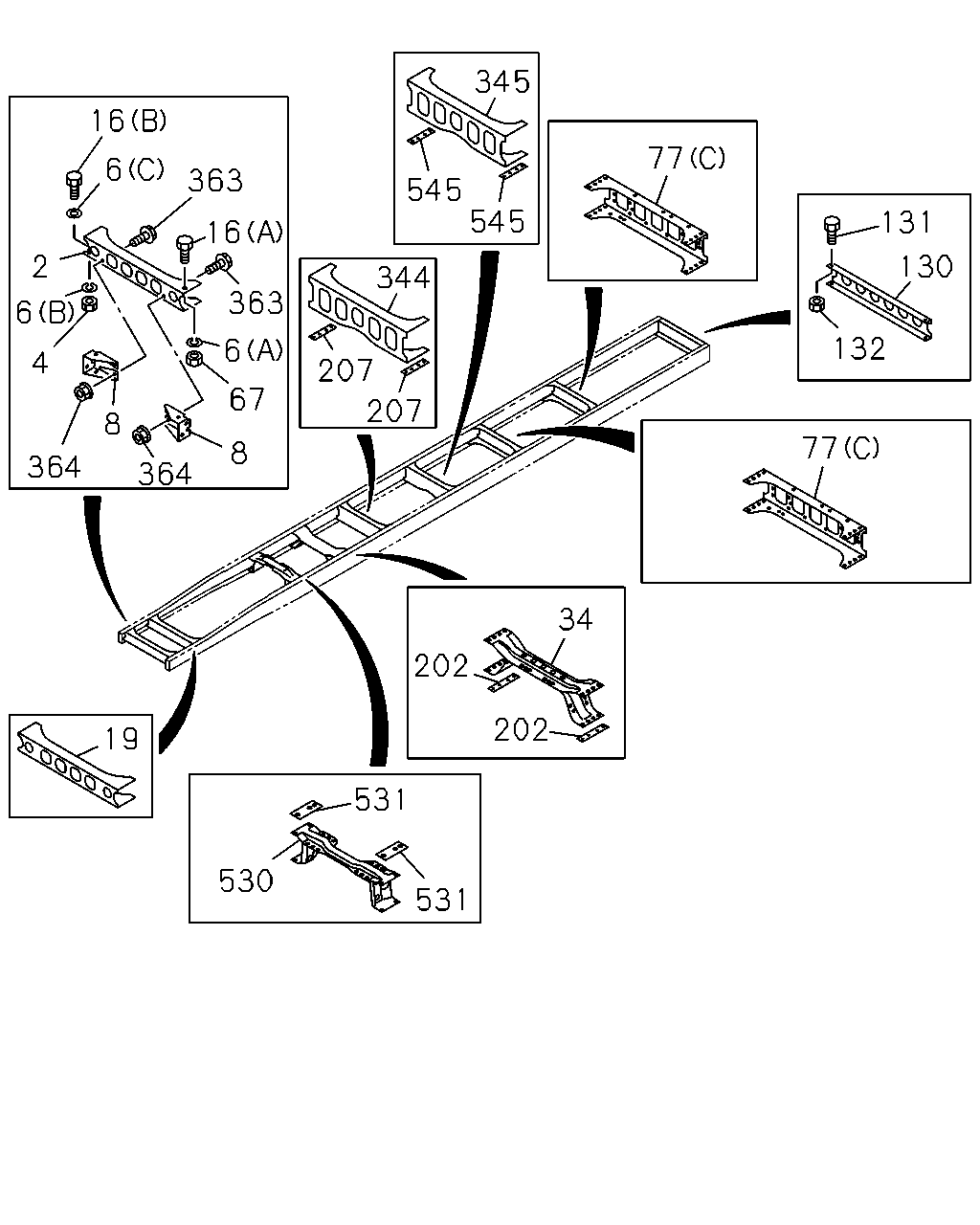

çizim 514347
16 6 363 2 6 364 8 4 363 16 6 67 8 364 207 207 344 545 545 345 77 131 130 132 77 34 202 202 531 530 531 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 MEMBER; CROSS,1ST 8-98312-669-0 01 1 1601- ● ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1601- ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1601- ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1601- ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1601- ● ● ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCH ENG(RDW) 		8-97609-759-2 01 1 1601- ● ●
8 GUSSET; 1ST C/MBR 8-97609-759-2 01 1 1601- ●
8 GUSSET; 1ST C/MBR
4HK1-TCH ENG(RDW) 		8-97609-760-3 01 1 1601- ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-3 01 1 1601- ●
8 GUSSET; 1ST C/MBR 8-97609-578-2 01 1 1601- ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) 		8-97609-578-2 01 1 1601- ● ●
8 GUSSET; 1ST C/MBR 8-97609-579-3 01 1 1601- ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) 		8-97609-579-3 01 1 1601- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1601- ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1601- ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-98312-670-0 01 1 1601- ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1601- ● ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1601- ● ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) (C) 		8-97609-481-4 02 1 1601- ●
77 MEMBER; CROSS,TRUNNION RR
POWER TAKE OFF-FLYWHEEL<6SZ> (C) 		8-97610-935-1 02 1 1601- ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-1 02 1 1601- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
LEAF SUS(FCR***) (C) 		8-97610-935-1 02 1 1601- ●
77 MEMBER; CROSS,TRUNNION RR
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (B) 		8-97609-475-2 01 1 1601- ●
77 MEMBER; CROSS,TRUNNION RR
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) 		8-97609-478-4 01 1 1601- ●
130 MEMBER; CROSS,END
POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97609-470-0 01 1 1601- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1601- ● ● ● ●
130 MEMBER; CROSS,END
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97609-469-0 01 1 1601- ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1601- ● ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1601- ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1601- ● ● ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1601- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1601- ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1601- ● ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 1601- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1601- ● ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1601- ● ● ● ● ●
530 MEMBER; CROSS,T/M
POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97615-671-2 01 1 1601- ●
530 MEMBER; CROSS,T/M
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97609-809-3 01 1 1601- ●
530 MEMBER; CROSS,T/M 8-97609-809-3 01 1 1601- ● ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 1601- ● ● ● ● ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 1601- ● ●
