◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11720 - FRR AUST/NZ JNLT09 SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#175538) — 25 parça

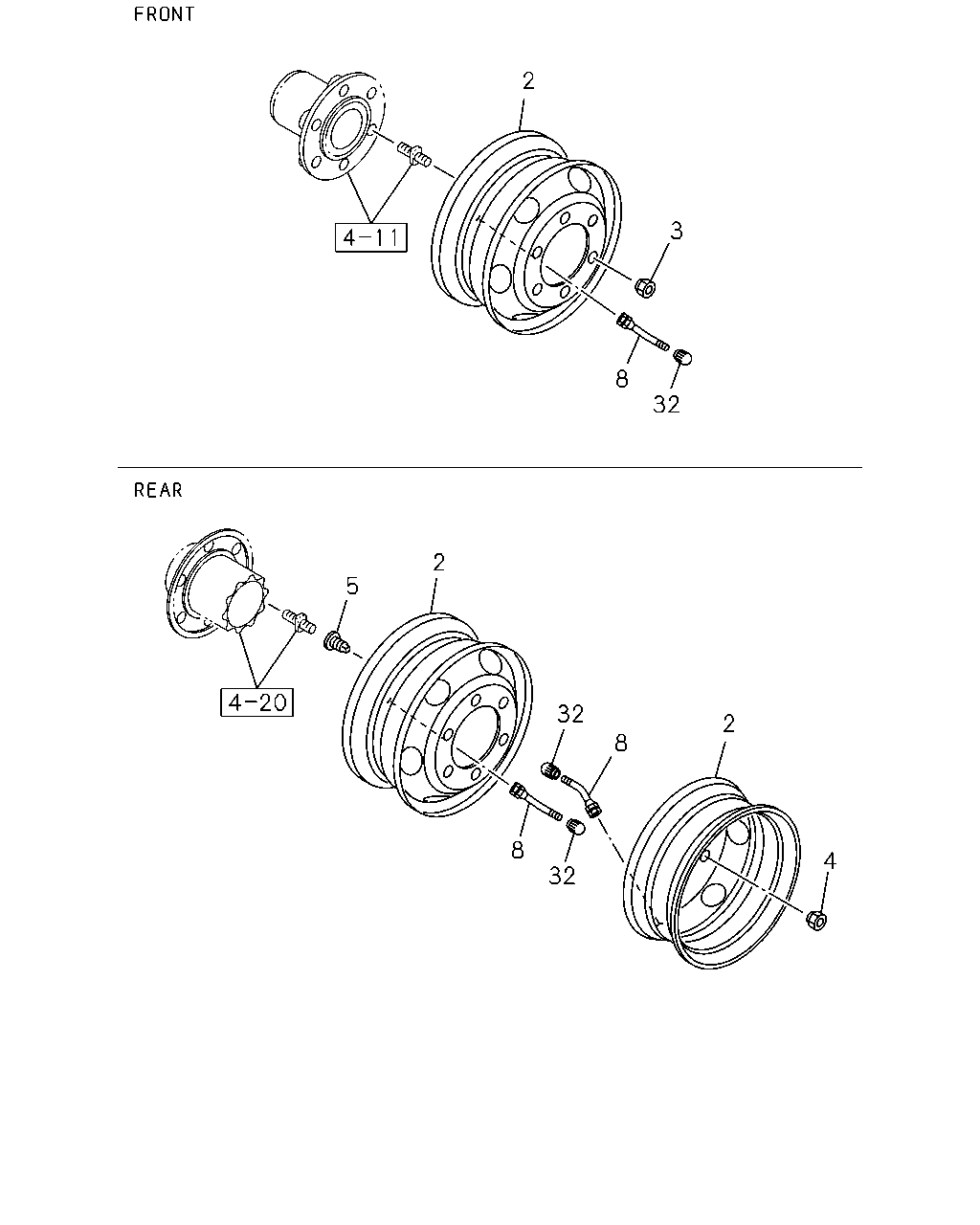

çizim 513864
2 3 32 8 2 5 32 8 2 4 32 8
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> SPARE 		1-42350-770-0 01 1 1601- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 6STUD 6.00X17.5 135-9(SBG) WHEEL PAINTED LIGHT ARGENT<SKD> SPARE 		1-42350-770-0 01 1 1601- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42350-771-0 01 1 1601- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 6STUD 6.00X17.5 135-9(SBG) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42350-771-0 01 1 1601- ●
2 WHEEL; DISC
WHEEL PAINTED LIGHT ARGENT<SKD> FRONT,REAR 		1-42350-770-0 06 1 1601- ●
2 WHEEL; DISC
WHEEL 6STUD 6.00X17.5 135-9(SBG) WHEEL PAINTED LIGHT ARGENT<SKD> FRONT,REAR 		1-42350-770-0 06 1 1601- ●
2 WHEEL; DISC
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT,REAR 		1-42350-771-0 06 1 1601- ●
2 WHEEL; DISC
WHEEL 6STUD 6.00X17.5 135-9(SBG) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT,REAR 		1-42350-771-0 06 1 1601- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) WHEEL PAINTED LIGHT ARGENT<SKD> SPARE 		1-42350-767-0 01 1 1601- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42350-768-0 01 1 1601- ●
2 WHEEL; DISC
DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) WHEEL PAINTED LIGHT ARGENT<SKD> FRONT,REAR 		1-42350-767-0 06 1 1601- ●
2 WHEEL; DISC
DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT,REAR 		1-42350-768-0 06 1 1601- ●
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 06 1 1601- ● ●
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 06 1 1601- ● ●
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 06 1 1601- ● ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 06 1 1601- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 1601- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 1601- ● ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-019-3 01 1 1601- ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 6STUD 6.00X17.5 135-9(SBG) SPARE 		1-42370-019-3 01 1 1601- ●
8 VALVE; TIRE
FRONT,REAR 		1-42370-019-3 06 1 1601- ●
8 VALVE; TIRE
WHEEL 6STUD 6.00X17.5 135-9(SBG) FRONT,REAR 		1-42370-019-3 06 1 1601- ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) SPARE 		1-42370-007-1 01 1 1601- ●
8 VALVE; TIRE
DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) FRONT,REAR 		1-42370-007-1 06 1 1601- ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 07 1 1601- ● ●
