4-71 — AIR SUSPENSION PIPING
(#175537) — 12 parça
◀
[471A] NO.2 (3 parça)

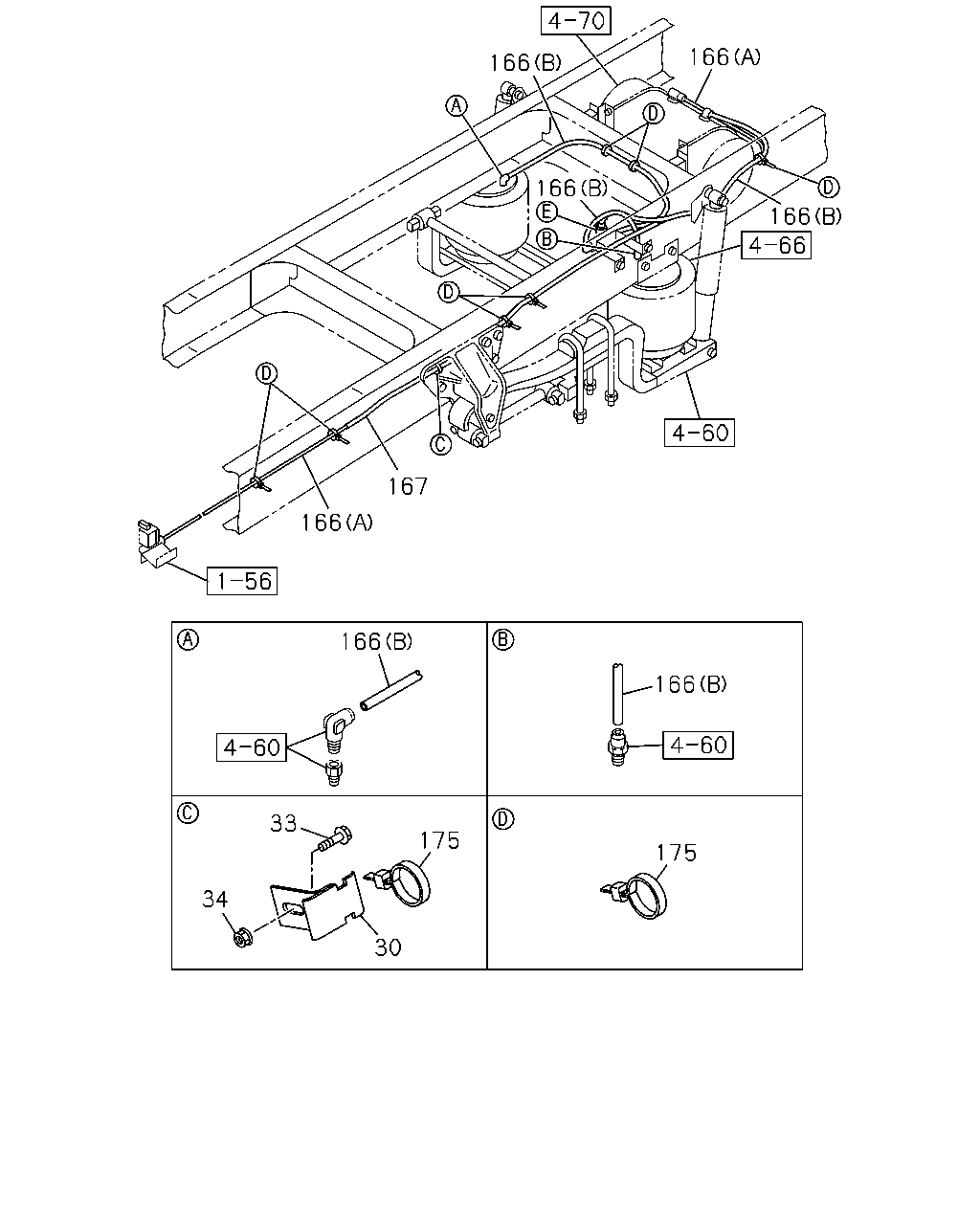

[471A] NO.1 (9 parça)
▶
162
162
162
162
162
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
162
UNION; TUBE
(A)
1-09661-289-0
01
1
1601-
162
UNION; TUBE
(B)
8-97633-775-0
02
1
1601-
162
UNION; TUBE
(C)
8-97633-779-0
02
1
1601-
166
166
166
166
167
166
166
33
34
30
175
175
166
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
BRACKET; CLIP
1-47479-693-0
01
1
1601-
33
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
1601-
34
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1601-
166
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1601-
166
TUBE; NYLON
(A) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1601-
166
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1601-
167
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1601-
167
TUBE; CORRUGATE
SERVICED BY L=6000 ID=10
1-87411-021-0
AR
1
1601-
175
CLIP
L=350
1-09707-183-0
07
1
1601-
