4-60 — REAR SUSPENSION (#175531) — 80 parça

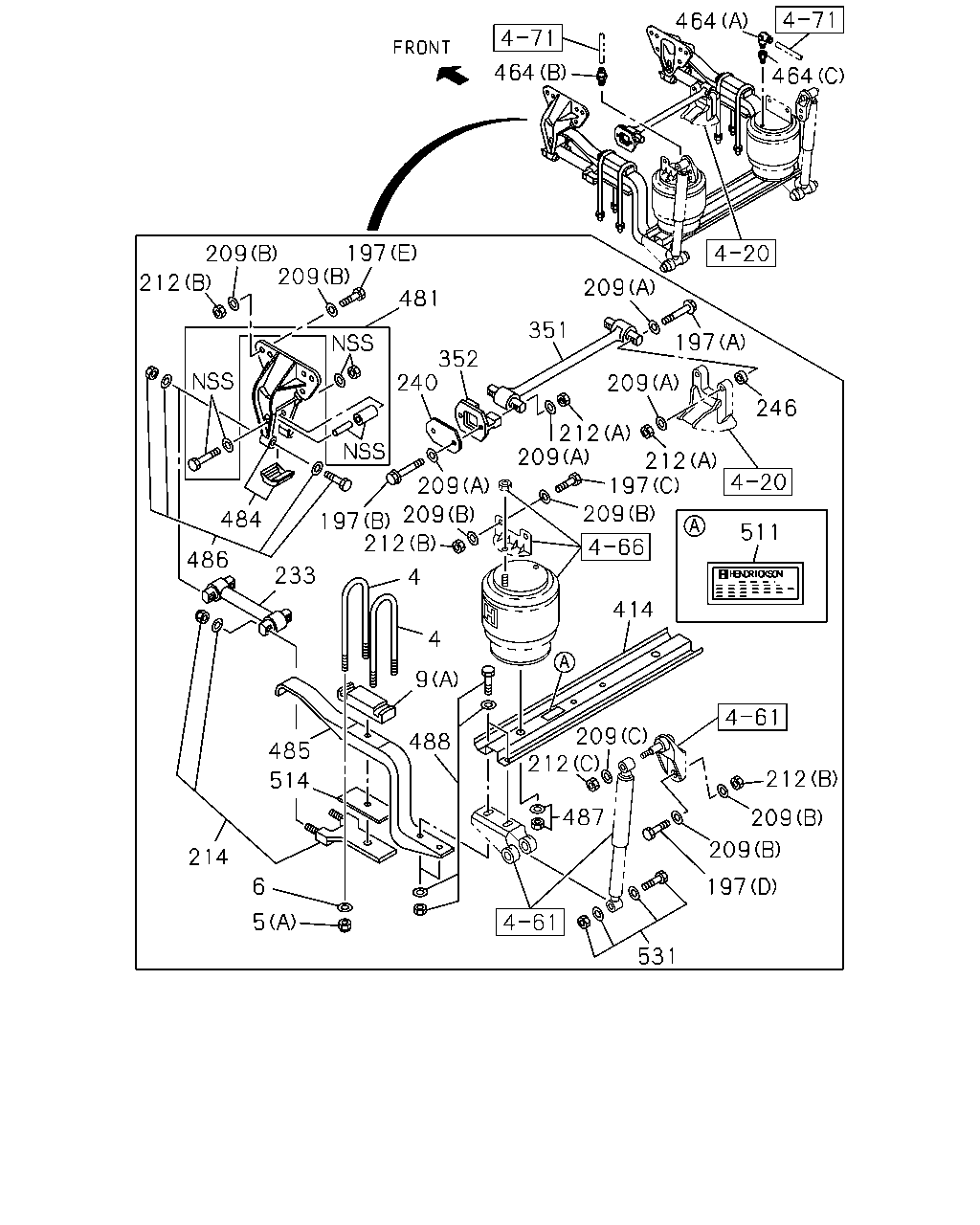

çizim 513798
464 487 197 209 212 209 209 212 488 6 5 514 485 214 233 197 209 209 209 212 209 197 246 209 351 352 240 197 481 209 209 212 484 212 486 197 212 464 464 9 4 4 414 511 209 531
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR(SAS) 15-LEAF 		8-98064-449-0 02 1 1601- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUS HELPER RR(SAU) 11-LEAF 		8-98079-006-0 02 1 1601- ●
4 U-BOLT; RR SPR 8-98241-681-0 04 1 1601- ●
5 NUT; U-BOLT,RR SPR
(A) 		8-98254-982-0 08 1 1601- ●
5 NUT; U-BOLT,RR SPR
(B) M18 FLANGE 		1-09440-039-1 08 1 1601- ●
6 WASHER; PL,U-BOLT 8-98254-983-0 08 1 1601- ●
9 PAD; U BOLT,RR SPR
(A) 		8-98241-664-0 02 1 1601- ●
9 PAD; U BOLT,RR SPR
(B) 		1-51372-059-0 02 1 1601- ●
197 BOLT
(A) 		1-09000-767-0 02 1 1601- ●
197 BOLT
(C) 		1-09000-771-0 04 1 1601- ●
197 BOLT
(B) 		8-98241-686-0 02 1 1601- ●
197 BOLT
(D) 		8-98271-231-0 04 1 1601- ●
197 BOLT
(E) 		1-09000-769-0 12 1 1601- ●
209 WASHER; PL
(C) 		1-09503-307-0 02 1 1601- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 08 1 1601- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 08 1 1601- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 24 1 1601- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 08 1 1601- ●
212 NUT
(C) 		1-09400-147-0 02 1 1601- ●
212 NUT
(A) M16 		1-09400-160-0 04 1 1601- ●
212 NUT
(B) M20 		1-09400-161-0 04 1 1601- ●
212 NUT
(B) M20 		1-09400-161-0 04 1 1601- ●
212 NUT
(B) M20 		1-09400-161-0 12 1 1601- ●
214 SEAT; SPR 8-98241-663-0 02 1 1601- ●
233 ROD ASM; TORQUE,RR SUSP
L=360 		8-98241-676-0 02 1 1601- ●
240 PLATE; END,TORQUE ROD 8-98255-198-1 01 1 1601- ●
246 WASHER; TORQUE ROD 8-97372-224-0 02 1 1601- ●
351 ROD ASM; RADIUS 8-98241-684-0 01 1 1601- ●
352 BRACKET; RADIUS ROD,FRAME 8-98261-308-0 01 1 1601- ●
414 BEAM; AIR SPR 8-98241-677-0 01 1 1601- ●
464 UNION; AIR
(A) DIN12 & R1/4 ELBOW 		1-09661-059-0 01 1 1601- ●
464 UNION; AIR
(B) DIN12 & R1/4 STRAIGHT 		1-09661-214-0 01 1 1601- ●
464 UNION; AIR
(C) 		8-98120-199-0 01 1 1601- ●
481 ROLLER; REBOUND 1-53357-043-0 01 1 1601- ●
484 BRACKET; REAR SPRING 1-53353-131-0 02 1 1601- ●
485 SPRING; LEAF 8-98241-662-0 02 1 1601- ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 01 1 1601- ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 01 1 1601- ●
488 FIXING KIT; BEAM 1-52000-164-0 01 1 1601- ●
511 LABEL 1-51399-034-0 01 1 1601- ●
514 SPACER; TORQUE ROD 8-98241-665-0 02 1 1601- ●
531 FIXING KIT; S/ABS 8-98241-680-0 02 1 1601- ●

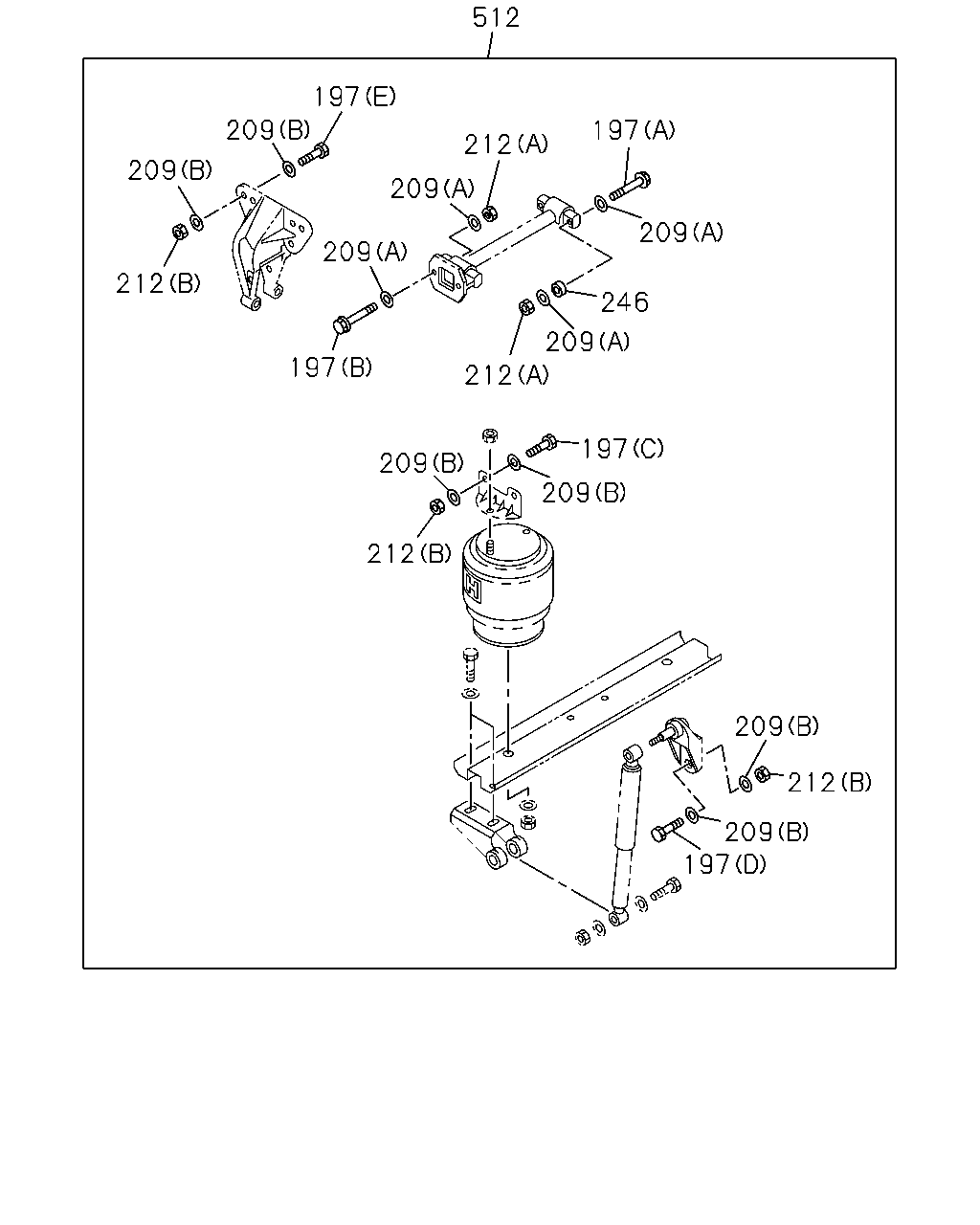

çizim 514202
197 212 209 209 209 246 209 212 209 197 209 212 209 197 197 212 209 209 197 209 212 512
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR(SAS) 15-LEAF 		8-98064-449-0 02 1 1601- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUS HELPER RR(SAU) 11-LEAF 		8-98079-006-0 02 1 1601- ●
197 BOLT
(A) 		1-09000-767-0 02 1 1601- ●
197 BOLT
(C) 		1-09000-771-0 04 1 1601- ●
197 BOLT
(B) 		8-98241-686-0 02 1 1601- ●
197 BOLT
(D) 		8-98271-231-0 04 1 1601- ●
197 BOLT
(E) 		1-09000-769-0 12 1 1601- ●
209 WASHER; PL
(C) 		1-09503-307-0 02 1 1601- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 08 1 1601- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 08 1 1601- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 24 1 1601- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 08 1 1601- ●
212 NUT
(C) 		1-09400-147-0 02 1 1601- ●
212 NUT
(A) M16 		1-09400-160-0 04 1 1601- ●
212 NUT
(B) M20 		1-09400-161-0 04 1 1601- ●
212 NUT
(B) M20 		1-09400-161-0 04 1 1601- ●
212 NUT
(B) M20 		1-09400-161-0 12 1 1601- ●
246 WASHER; TORQUE ROD 8-97372-224-0 02 1 1601- ●
512 FIXING KIT; BRKT TO FRAME 8-98271-262-0 01 1 1601- ●

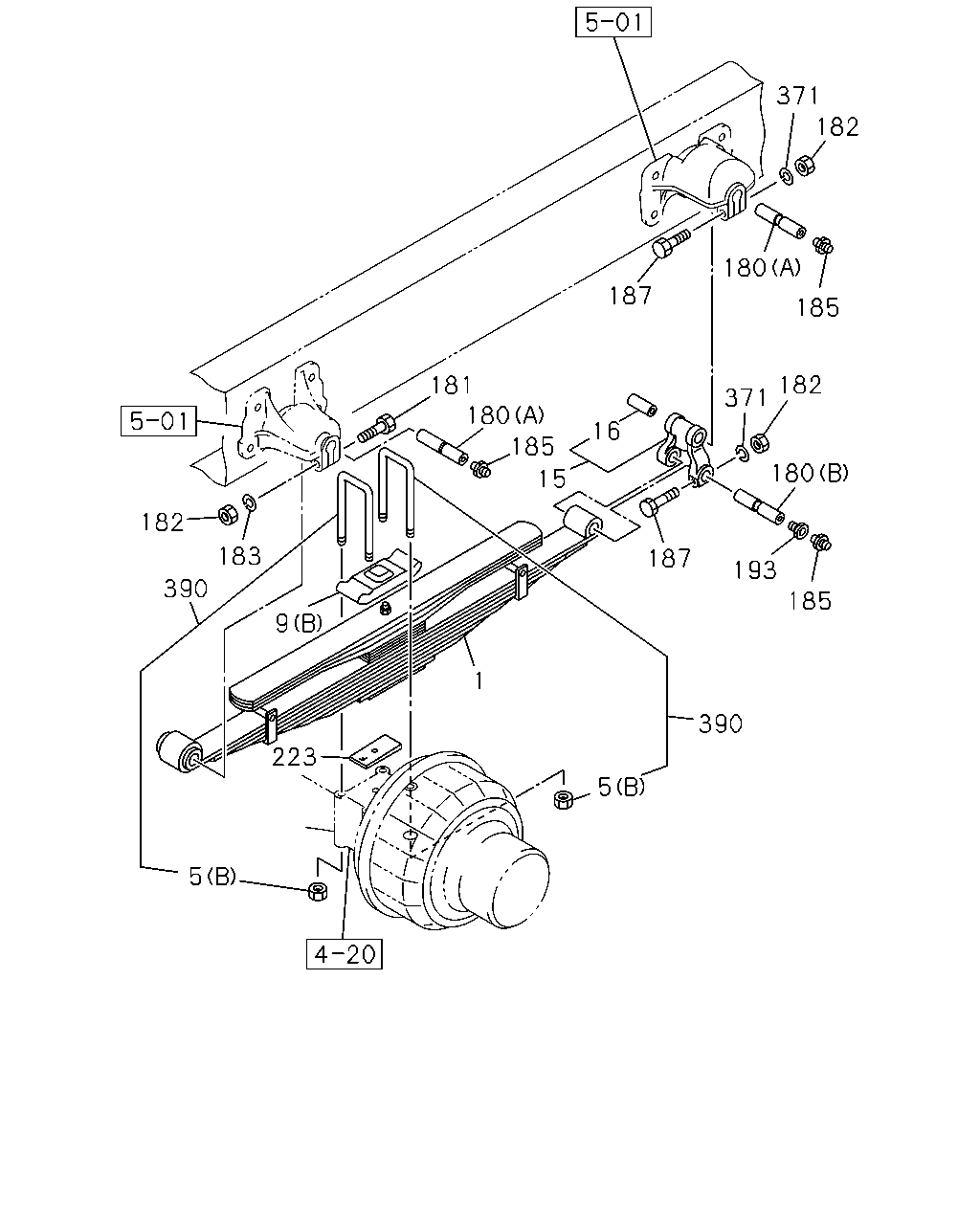

çizim 514230
371 182 180 185 182 371 180 193 185 187 390 5 5 223 9 183 390 182 181 180 15 185 16 187
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR(SAS) 15-LEAF 		8-98064-449-0 02 1 1601- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUS HELPER RR(SAU) 11-LEAF 		8-98079-006-0 02 1 1601- ●
5 NUT; U-BOLT,RR SPR
(A) 		8-98254-982-0 08 1 1601- ●
5 NUT; U-BOLT,RR SPR
(B) M18 FLANGE 		1-09440-039-1 08 1 1601- ●
9 PAD; U BOLT,RR SPR
(A) 		8-98241-664-0 02 1 1601- ●
9 PAD; U BOLT,RR SPR
(B) 		1-51372-059-0 02 1 1601- ●
15 SHACKLE; RR SPR 1-51362-038-2 02 1 1601- ●
16 BUSHING; SHACKLE,RR SPR
ID=25 		8-98082-176-0 02 1 1601- ●
180 PIN; RR SPR
(A) DO=25 L=115 PT1/8 		1-51361-016-0 04 1 1601- ●
180 PIN; RR SPR
(B) DO=25 L=115 M12 		1-51361-017-0 02 1 1601- ●
181 BOLT; SPR & SHACKLE
M12X70 		0-10961-270-0 02 1 1601- ●
182 NUT; PIN,RR SPR
M12 		0-91110-512-0 06 1 1601- ●
183 WASHER; LK,PIN,RR SPR
ID=12.2 		0-91510-612-0 02 1 1601- ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 06 1 1601- ●
187 BOLT; SPR & SHACKLE
M12X70 		0-10961-270-0 04 1 1601- ●
193 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 02 1 1601- ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) 		8-98043-891-0 02 1 1601- ●
371 WASHER; LK,SHACKLE
ID=12.2 		0-91510-612-0 04 1 1601- ●
390 U-BOLT SET; RR SPRING
L=390 		1-87870-399-0 04 1 1601- ●
