◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11720 - FRR AUST/NZ JNLT09 SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#175518) — 100 parça

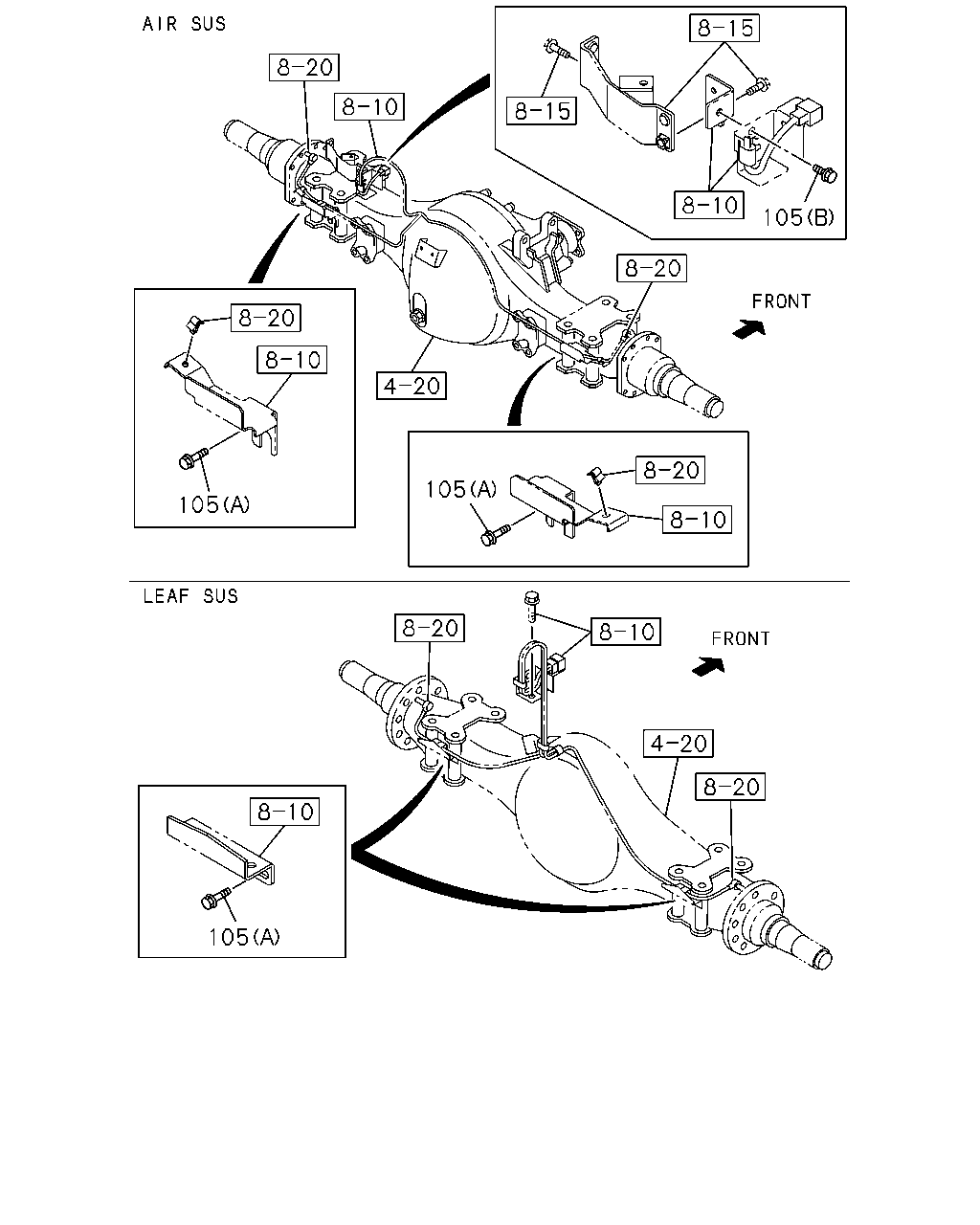

çizim 512829
105 105 105 105
BalonParca AdiParca NoAdetTipApplied Date A B
105 BOLT; BRKT FIX
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1601- ●
105 BOLT; BRKT FIX
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1601- ●
105 BOLT; BRKT FIX
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1601- ●

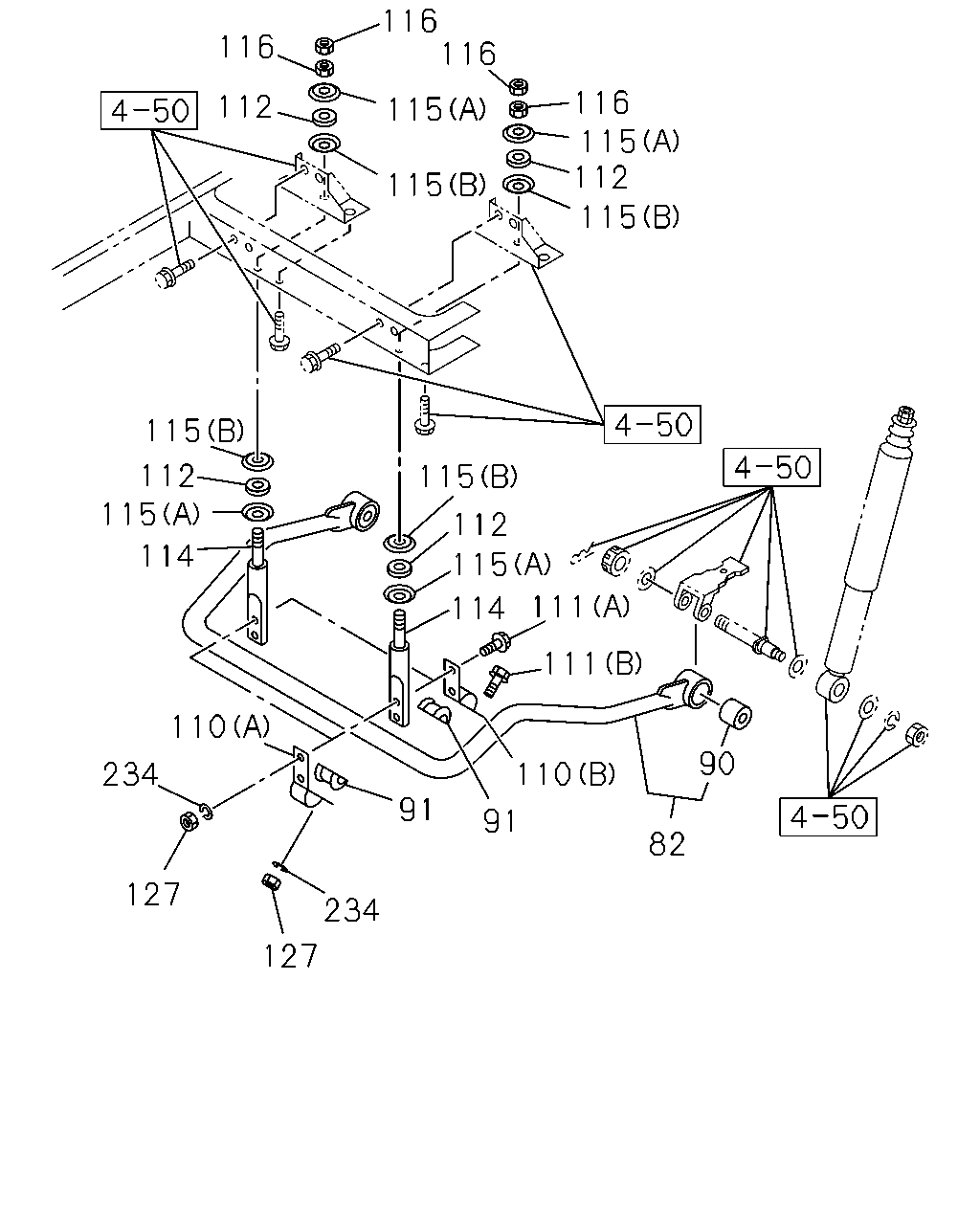

çizim 513073
82 90 110 111 111 114 91 91 234 127 127 234 110 114 115 112 115 115 115 112 115 112 115 116 115 115 116 116 116 112
BalonParca AdiParca NoAdetTipApplied Date A B
82 BAR; STAB,FRT SUSP 1-51770-114-0 01 1 1601- ● ●
90 BUSHING; RUBBER,STAB BAR 1-51779-066-0 02 1 1601- ● ●
91 BUSHING; RUBBER,STAB BAR 1-51779-079-1 04 1 1601- ● ●
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 1601- ● ●
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 1601- ● ●
111 BOLT; CLAMP TO ROD
(B) M12X30 FLANGE 		0-28051-230-0 02 1 1601- ● ●
111 BOLT; CLAMP TO ROD
(A) M12X50 FLANGE 		0-28051-250-0 04 1 1601- ● ●
112 BUSHING; ROD 9-51631-050-0 04 1 1601- ● ●
114 ROD; STAB BAR 1-51773-082-0 02 1 1601- ● ●
115 WASHER; CENTER,STAB TO FRAME
(B) ID=16.8 		1-51631-022-0 04 1 1601- ● ●
115 WASHER; CENTER,STAB TO FRAME
(A) ID=14.5 		9-51631-051-0 04 1 1601- ● ●
116 NUT; LK,STAB TO FRAME
M14 		0-91111-514-0 04 1 1601- ● ●
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 1601- ● ●
234 WASHER; STAB
ID=12.2 		0-91510-812-0 06 1 1601- ● ●

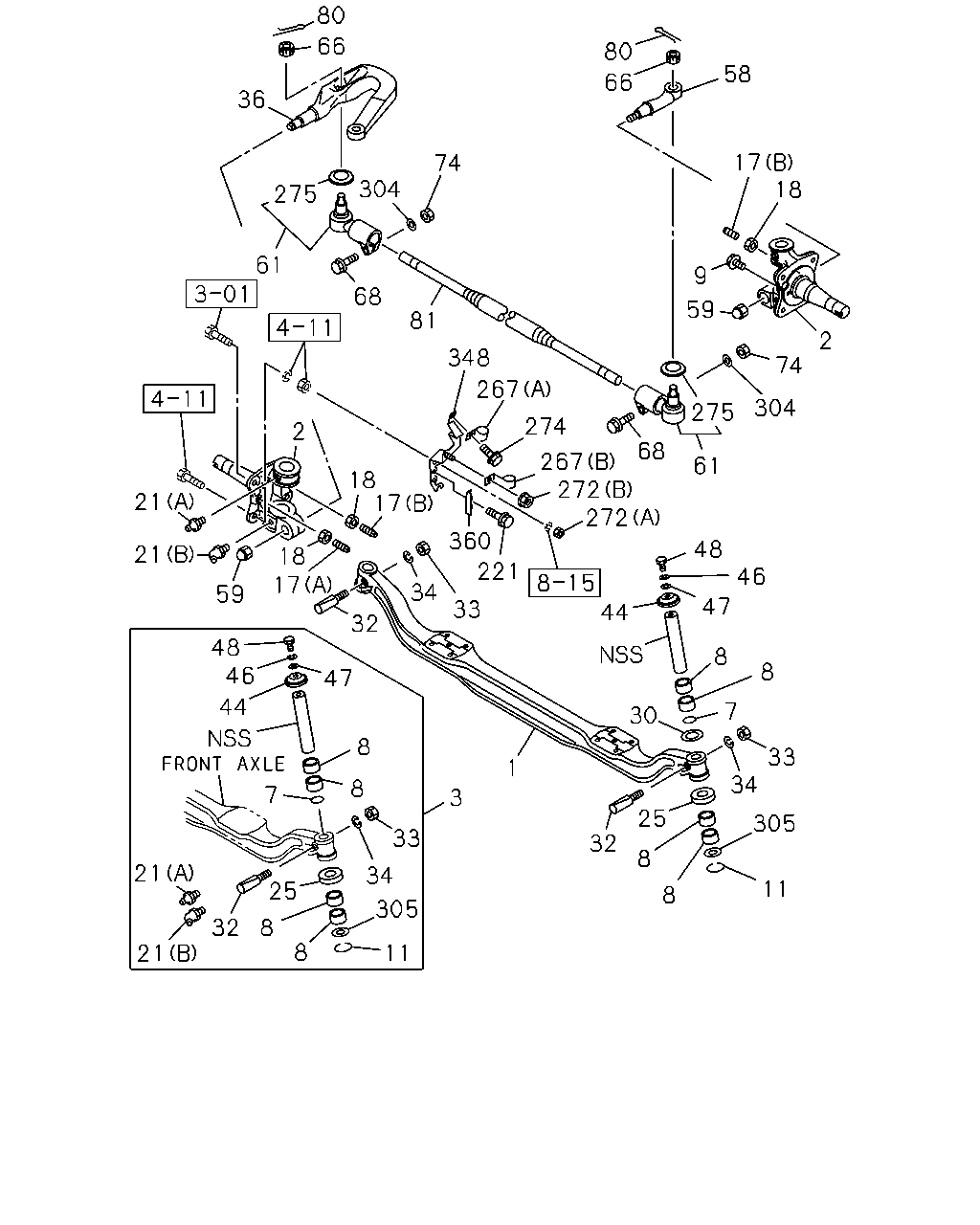

çizim 513842
11 305 33 34 8 8 7 47 48 46 272 272 267 274 267 348 81 68 61 36 275 74 66 80 58 80 66 17 18 74 2 59 9 304 61 68 275 30 44 221 360 17 18 2 21 21 59 48 46 44 8 47 8 33 34 3 305 11 8 8 21 21 25 7 1 25 32 8 8 33 34 32 17 18 304 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT 8-98057-479-2 01 1 1601- ● ●
2 KNUCKLE; FRT AXLE 1-43131-127-1 01 1 1601- ● ●
2 KNUCKLE; FRT AXLE 1-43132-127-1 01 1 1601- ● ●
3 KING PIN SET 1-87831-295-3 01 1 1601- ● ●
3 KING PIN SET 1-87831-296-3 01 1 1601- ● ●
7 SEAL; OIL,KING PIN 1-09625-005-1 02 1 1601- ● ●
8 BEARING; NEEDLE,KING PIN
NSK 		1-09811-339-0 08 1 1601- ● ●
9 PLUG; KNUCKLE
M14X14 		8-97329-621-0 01 1 1601- ● ●
11 RING; SNAP,KNUCKLE PLUG 1-09589-017-1 02 1 1601- ● ●
17 BOLT; STOPPER KNUCKLE
(A) M14X47 		1-09009-191-0 01 1 1601- ● ●
17 BOLT; STOPPER KNUCKLE
(B) M14X53 		8-98065-261-0 02 1 1601- ● ●
18 NUT; STOPPER BOLT,KNUCKLE
M14 		0-91112-814-0 03 1 1601- ● ●
21 NIPPLE; GREASE,KING PIN
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1601- ● ●
21 NIPPLE; GREASE,KING PIN
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1601- ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-031-0 01 1 1601- ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-033-1 01 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=3.900 		1-43171-261-1 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=3.912 		1-43171-262-1 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=3.925 		1-43171-263-1 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=3.937 		1-43171-264-1 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=3.950 		1-43171-265-1 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=3.962 		1-43171-266-1 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=3.975 		1-43171-267-1 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=3.987 		1-43171-268-1 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.000 		1-43171-269-1 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.012 		1-43171-270-1 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.025 		1-43171-271-1 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.037 		1-43171-272-1 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.050 		1-43171-273-1 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.062 		1-43171-274-1 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.075 		1-43171-275-1 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.087 		1-43171-276-1 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.100 		1-43171-277-1 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.112 		1-43171-278-1 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.125 		1-43171-279-1 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.137 		1-43171-280-1 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.150 		1-43171-281-1 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.162 		1-43171-311-0 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.175 		1-43171-312-0 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.187 		1-43171-313-0 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.200 		1-43171-314-0 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.212 		1-43171-315-0 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.225 		1-43171-316-0 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.237 		1-43171-317-0 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.250 		1-43171-318-0 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.262 		1-43171-319-0 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.275 		1-43171-320-0 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.287 		1-43171-321-0 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.300 		1-43171-322-0 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.312 		1-43171-323-0 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.325 		1-43171-324-0 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.337 		1-43171-325-0 AR 1 1601- ● ●
30 WASHER; THRUST,KING PIN
T=4.350 		1-43171-326-0 AR 1 1601- ● ●
32 BOLT; KEY,KING PIN 1-43116-013-1 02 1 1601- ● ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1601- ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1601- ● ●
36 ARM; KNUCKLE 8-98037-304-1 01 1 1601- ● ●
44 COVER; KING PIN 1-43175-031-0 02 1 1601- ● ●
46 WASHER; LK,COVER
ID=12.2 		0-91510-812-0 02 1 1601- ● ●
47 WASHER; PL,COVER,KING PIN
ID=12.5 OD=32 		0-91614-712-0 02 1 1601- ● ●
48 BOLT; COVER
M12X25 		1-09009-081-0 02 1 1601- ● ●
58 ARM; TIE ROD 8-98037-296-2 01 1 1601- ● ●
59 NUT; TIE ROD ARM
M27 FLANGE 		1-09449-082-0 02 1 1601- ● ●
61 ROD END; TIE ROD 1-43150-748-1 01 1 1601- ● ●
61 ROD END; TIE ROD 1-43150-749-1 01 1 1601- ● ●
66 NUT; TIE ROD END
M16 SLOTTED 		1-09442-031-0 02 1 1601- ● ●
68 BOLT; TIE ROD END
M12X45 FLANGE 		0-28061-245-0 02 1 1601- ● ●
74 NUT; TIE ROD END
M12 		0-91110-512-0 02 1 1601- ● ●
80 PIN; SPLIT,ROD END
OD=3.7 L=22 		0-81124-022-0 02 1 1601- ● ●
81 ROD; TIE 8-98038-703-1 01 1 1601- ● ●
221 BOLT; BRKT,SENSOR
M8X16 FLANGE 		0-28050-816-0 04 1 1601- ● ●
267 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 1601- ● ●
267 CLIP; HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 02 1 1601- ● ●
272 NUT; CLIP
(A) M14 		0-91110-514-0 02 1 1601- ● ●
272 NUT; CLIP
(B) M8 FLANGE 		0-91180-108-0 02 1 1601- ● ●
274 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 1601- ● ●
275 BOOT; ROD END,TIE 1-85574-046-0 02 1 1601- ● ●
304 WASHER; PL
ID=12.5 		0-91614-512-0 02 1 1601- ● ●
305 COVER; KNUCKLE 1-43175-030-0 02 1 1601- ● ●
348 BRACKET; CLIP 8-98055-137-1 01 1 1601- ● ●
348 BRACKET; CLIP 8-98055-138-1 01 1 1601- ● ●
360 COVER; SENSOR 8-98018-400-0 01 1 1601- ● ●
360 COVER; SENSOR 8-98018-401-0 01 1 1601- ● ●
