3-78 — FIXING PARTS; AIR PIPING (#175516) — 57 parça

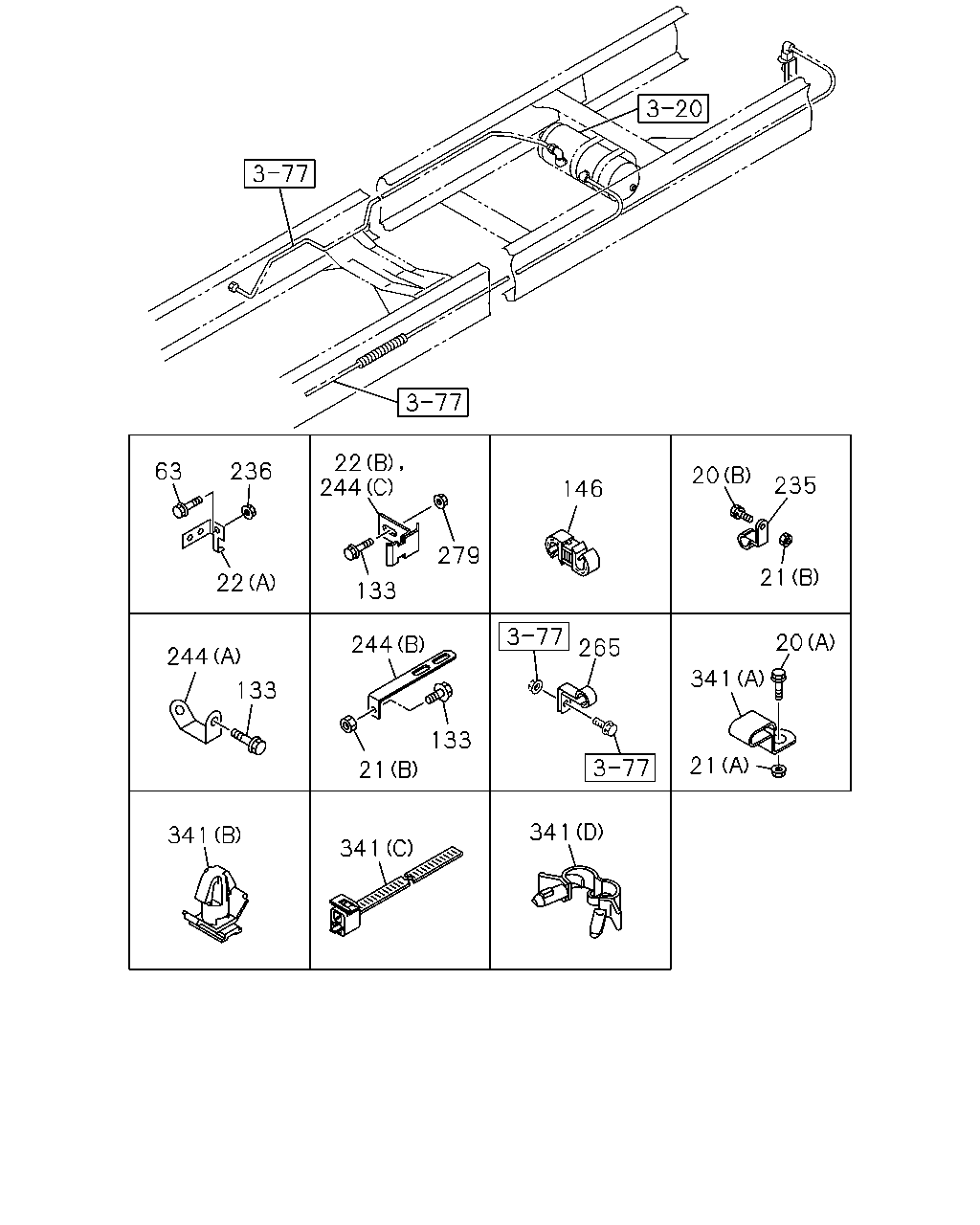

çizim 513088
63 22 244 133 341 341 21 244 133 133 244 22 279 265 146 341 341 20 235 21 20 21 236
BalonParca AdiParca NoAdetTipApplied Date A B
20 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 06 1 1601- ●
20 BOLT; CLIP
WHEEL BASE 5300MM(53W) (B) M8X25 FLANGE 		0-28650-825-0 06 1 1601- ●
20 BOLT; CLIP
(A) M10X30 FLANGE 		0-28651-030-0 01 1 1601- ● ●
20 BOLT; CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) (B) M8X25 FLANGE 		0-28650-825-0 05 1 1601- ●
20 BOLT; CLIP
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (B) M8X25 FLANGE 		0-28650-825-0 03 1 1601- ●
21 NUT; CLIP
(B) M8 FLANGE 		0-91180-108-0 06 1 1601- ●
21 NUT; CLIP
WHEEL BASE 5300MM(53W) (B) M8 FLANGE 		0-91180-108-0 06 1 1601- ●
21 NUT; CLIP
(A) M10 FLANGE 		0-91180-210-0 01 1 1601- ● ●
21 NUT; CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) (B) M8 FLANGE 		0-91180-108-0 05 1 1601- ●
21 NUT; CLIP
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (B) M8 FLANGE 		0-91180-108-0 03 1 1601- ●
22 BRACKET; CLIP
WHEEL BASE 3700MM(37W) (A) 		8-98100-216-1 02 1 1601- ●
22 BRACKET; CLIP
(B) 		1-47479-693-0 01 1 1601- ●
22 BRACKET; CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) 		1-47479-693-0 01 1 1601- ●
22 BRACKET; CLIP
(A) 		8-98100-216-1 03 1 1601- ●
22 BRACKET; CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) 		8-98100-216-1 03 1 1601- ●
63 BOLT; CLIP
WHEEL BASE 3700MM(37W) M10X30 FLANGE 		0-28651-030-0 02 1 1601- ●
63 BOLT; CLIP
M10X30 FLANGE 		0-28651-030-0 03 1 1601- ●
63 BOLT; CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10X30 FLANGE 		0-28651-030-0 03 1 1601- ●
63 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1601- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1601- ●
133 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 01 1 1601- ●
133 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M10X25 FLANGE 		0-28651-025-0 01 1 1601- ●
146 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 04 1 1601- ● ●
235 CLIP; AIR PIPE
ID=11 H=20 L=20 		8-98033-780-0 06 1 1601- ●
235 CLIP; AIR PIPE
WHEEL BASE 5300MM(53W) ID=11 H=20 L=20 		8-98033-780-0 06 1 1601- ●
235 CLIP; AIR PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) ID=11 H=20 L=20 		8-98033-780-0 05 1 1601- ●
235 CLIP; AIR PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) ID=11 H=20 L=20 		8-98033-780-0 03 1 1601- ●
236 NUT; CLIP
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 02 1 1601- ●
236 NUT; CLIP
M10 FLANGE 		0-91180-210-0 03 1 1601- ●
236 NUT; CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10 FLANGE 		0-91180-210-0 03 1 1601- ●
236 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
244 BRACKET; CLIP,AIR PIPE
(B) L=150 H=30 		1-47477-629-2 01 1 1601- ●
244 BRACKET; CLIP,AIR PIPE
(C) 		1-47479-693-0 01 1 1601- ●
244 BRACKET; CLIP,AIR PIPE
(A) 		8-98117-686-0 01 1 1601- ●
244 BRACKET; CLIP,AIR PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A) 		8-98117-686-0 01 1 1601- ●
265 CLIP; NYLON TUBE
ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1601- ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1601- ●
341 CLIP; HARNESS
(A) ID=17.5X2 L=25 		5-09700-358-0 01 1 1601- ● ●
341 CLIP; HARNESS
(C) L=180 		1-09707-162-1 01 1 1601- ● ●
341 CLIP; HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 1601- ● ●
341 CLIP; HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 04 1 1601- ● ●

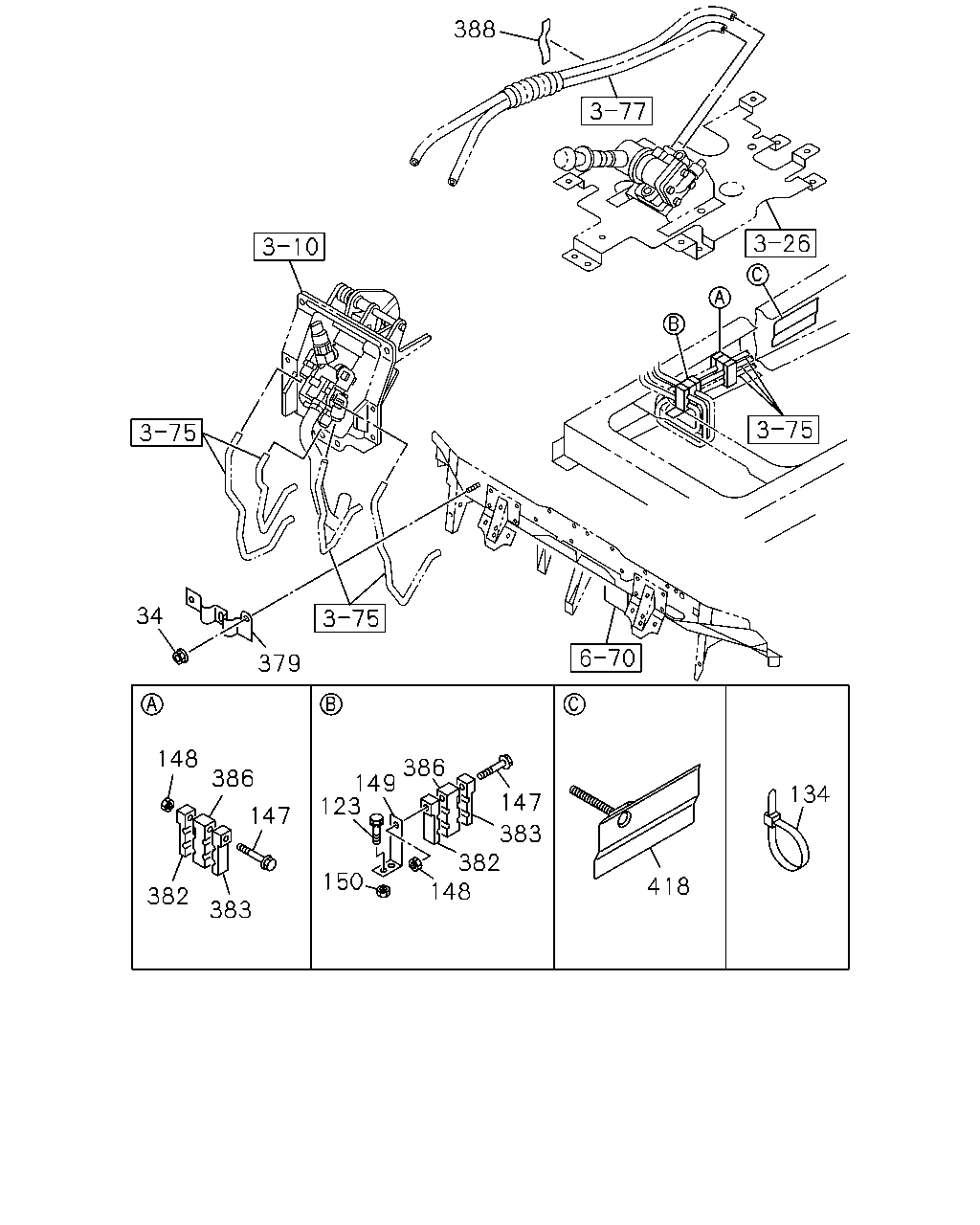

çizim 513093
388 379 34 148 386 147 383 382 150 123 149 148 383 147 386 418 134 382
BalonParca AdiParca NoAdetTipApplied Date A B
34 NUT; BRKT
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> M6 FLANGE 		0-91180-106-0 02 1 1601- ● ●
34 NUT; BRKT
IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> M6 FLANGE 		0-91180-106-0 02 1 1601- ● ●
123 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1601- ● ●
134 CLIP; AIR PIPE
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> L=350 		1-09707-183-0 01 1 1601- ● ●
134 CLIP; AIR PIPE
IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> L=350 		1-09707-183-0 01 1 1601- ● ●
147 BOLT; PIPE CLIP
M8X70 FLANGE 		0-28050-870-0 02 1 1601- ● ●
148 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1601- ● ●
149 BRACKET; PIPE CLIP 8-98296-534-0 01 1 1601- ● ●
150 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1601- ● ●
379 BRACKET; NYLON TUBE
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> 		8-98044-013-0 01 1 1601- ● ●
379 BRACKET; NYLON TUBE
IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98044-013-0 01 1 1601- ● ●
382 CLIP; UPR
ID=10 & 10 		1-09709-241-0 03 1 1601- ● ●
383 CLIP; LWR
ID=10 & 10 		1-09709-241-0 03 1 1601- ● ●
386 CLIP; CENTER
ID=10 		1-09709-242-0 03 1 1601- ● ●
388 SEAL
100X40 		1-72498-022-1 03 1 1601- ● ●
418 PROTECTOR; HEAT 8-98163-889-0 01 1 1601- ● ●
