◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11720 - FRR AUST/NZ JNLT09 SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#175515) — 79 parça

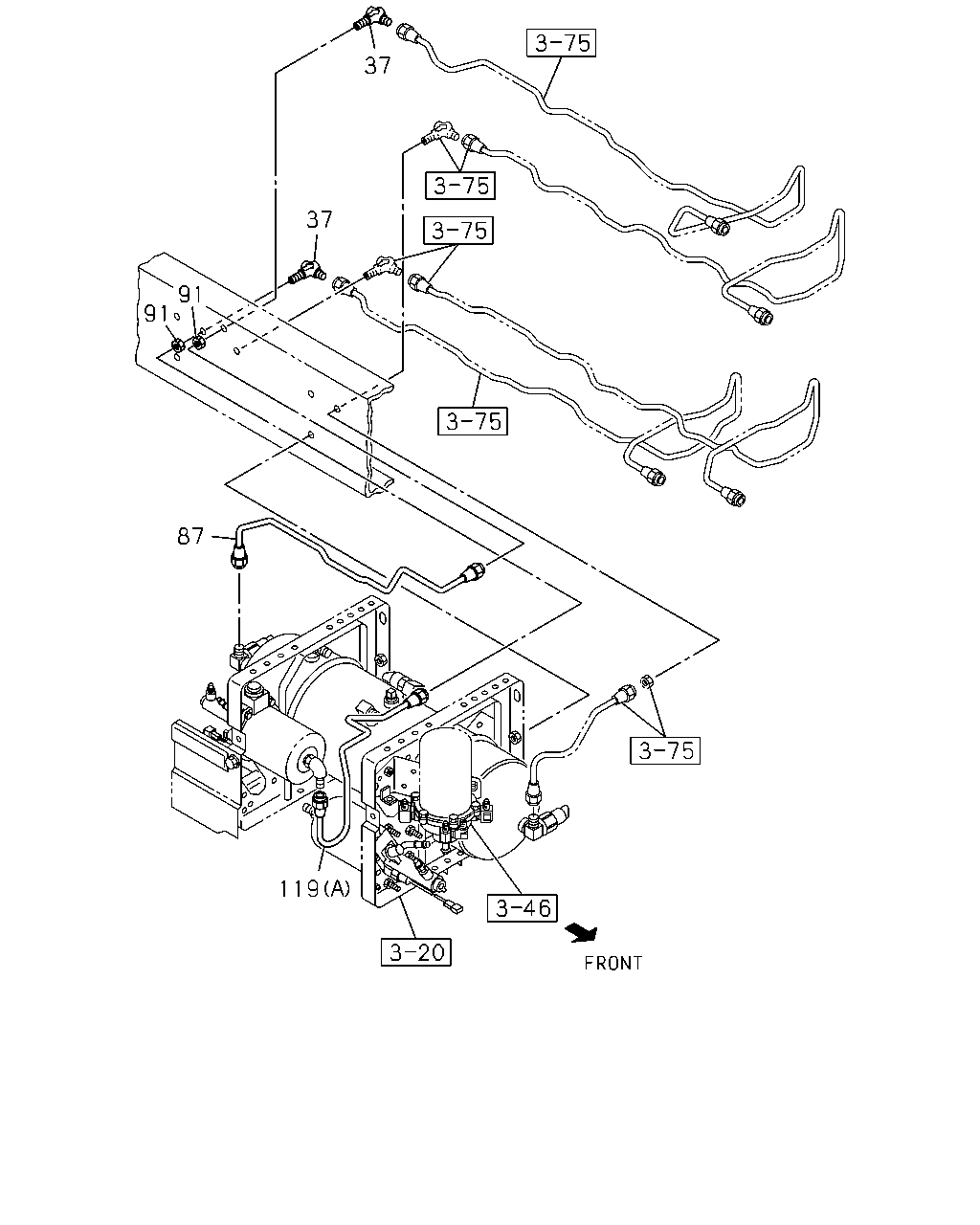

çizim 512726
37 37 91 91 87 119
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
M16 ELBOW 		0-92135-210-0 02 1 1601- ● ●
87 PIPE; AIR,AIR TANK TO UNION
L=670 SERVICED BY L=700 		1-47428-870-0 01 1 1601- ● ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1601- ● ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 1601- ● ●
119 PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (B) L=586 SERVICED BY L=600 		1-47428-868-0 01 1 1601- ● ●
119 PIPE; AIR,VLV TO AIR MASTER
THROTTLE CONTROL SYSTEM(6XH) (C) L=614 SERVICED BY L=660 		1-47428-869-0 01 1 1601- ● ●
119 PIPE; AIR,VLV TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> (A) L=745 SERVICED BY L=800 		1-47428-872-0 01 1 1601- ● ●

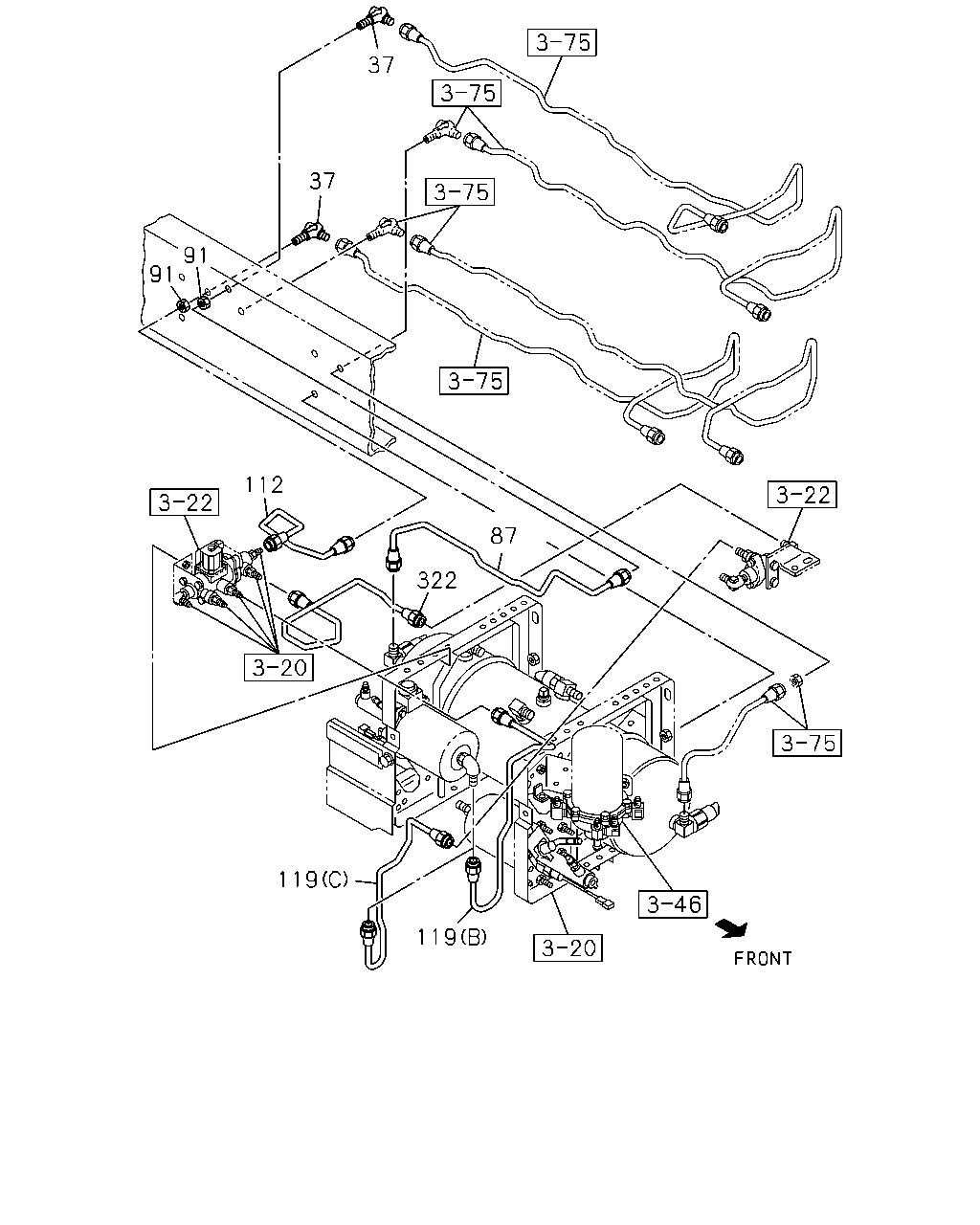

çizim 512737
37 37 91 91 112 119 119 87 322
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
M16 ELBOW 		0-92135-210-0 02 1 1601- ● ●
87 PIPE; AIR,AIR TANK TO UNION
L=670 SERVICED BY L=700 		1-47428-870-0 01 1 1601- ● ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1601- ● ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 1601- ● ●
112 PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> L=473 		8-98067-756-0 01 1 1601- ● ●
119 PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (B) L=586 SERVICED BY L=600 		1-47428-868-0 01 1 1601- ● ●
119 PIPE; AIR,VLV TO AIR MASTER
THROTTLE CONTROL SYSTEM(6XH) (C) L=614 SERVICED BY L=660 		1-47428-869-0 01 1 1601- ● ●
119 PIPE; AIR,VLV TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> (A) L=745 SERVICED BY L=800 		1-47428-872-0 01 1 1601- ● ●
322 PIPE; AIR,HSA VLV TO DBL CHK VLV
THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700 		1-47428-870-0 01 1 1601- ● ●
çizim 512775
97 91 317 97 318 192 223
BalonParca AdiParca NoAdetTipApplied Date A B
91 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1601- ● ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 1601- ● ●
97 UNION; AIR PIPE
(A) M16 STRAIGHT L=42 		0-92123-010-0 01 1 1601- ● ●
97 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 1601- ● ●
192 TUBE; NYLON
(A) 		8-98061-971-0 02 1 1601- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1601- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1601- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1601- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1601- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1601- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1601- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1601- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=6000 ID=15 		1-87411-037-0 AR 1 1601- ● ●
317 PIPE; AIR,UNION,AIR TANK
L=1204 SERVICED BY L=1250 		1-47428-876-0 01 1 1601- ●
317 PIPE; AIR,UNION,AIR TANK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=1204 SERVICED BY L=1250 		1-47428-876-0 01 1 1601- ●
317 PIPE; AIR,UNION,AIR TANK
WHEEL BASE 3700MM(37W) L=1214 SERVICED BY L=1250 		1-47428-876-0 01 1 1601- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 3700MM(37W) L=593 SERVICED BY L=600 		1-47428-868-0 01 1 1601- ●
318 PIPE; AIR,UNION TO AIR TANK
L=2211 SERVICED BY L=2500 		1-47428-883-0 01 1 1601- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4900MM(49W) SERVICED BY L=1783 		1-47428-881-0 01 1 1601- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4600MM(46W) L=1458 SERVICED BY L=1550 		1-47428-879-0 01 1 1601- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4000MM(40W) L=858 SERVICED BY L=900 		1-47428-873-0 01 1 1601- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 5300MM(53W) L=2118 SERVICED BY L=2500 		1-47428-883-0 01 1 1601- ●

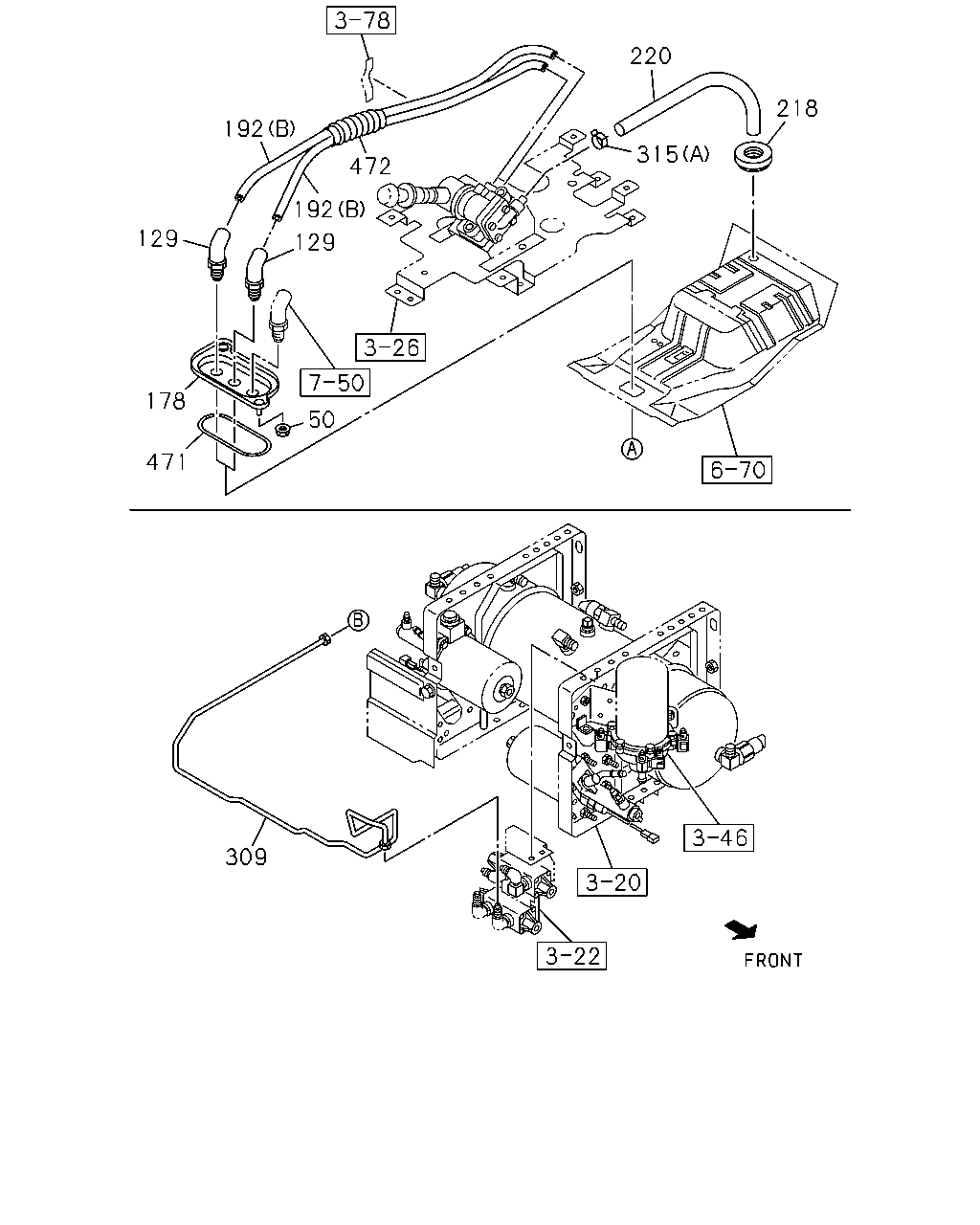

çizim 513064
129 178 471 309 50 129 192 192 472 315 218 220
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 1601- ● ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1601- ● ●
178 BRACKET; UNION 8-98017-054-1 01 1 1601- ● ●
192 TUBE; NYLON
(A) 		8-98061-971-0 02 1 1601- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1601- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1601- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1601- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1601- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1601- ● ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 1601- ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1601- ● ●
309 PIPE; AIR,MPV TO UNION
L=1336 SERVICED BY L=1400 		1-47428-878-0 01 1 1601- ● ●
315 CLIP
(B) L=250 		1-09707-126-0 05 1 1601- ● ●
315 CLIP
(A) ID=14 		8-94238-572-0 01 1 1601- ● ●
471 SEAL; BRKT 1-79738-832-0 01 1 1601- ● ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 1601- ● ●

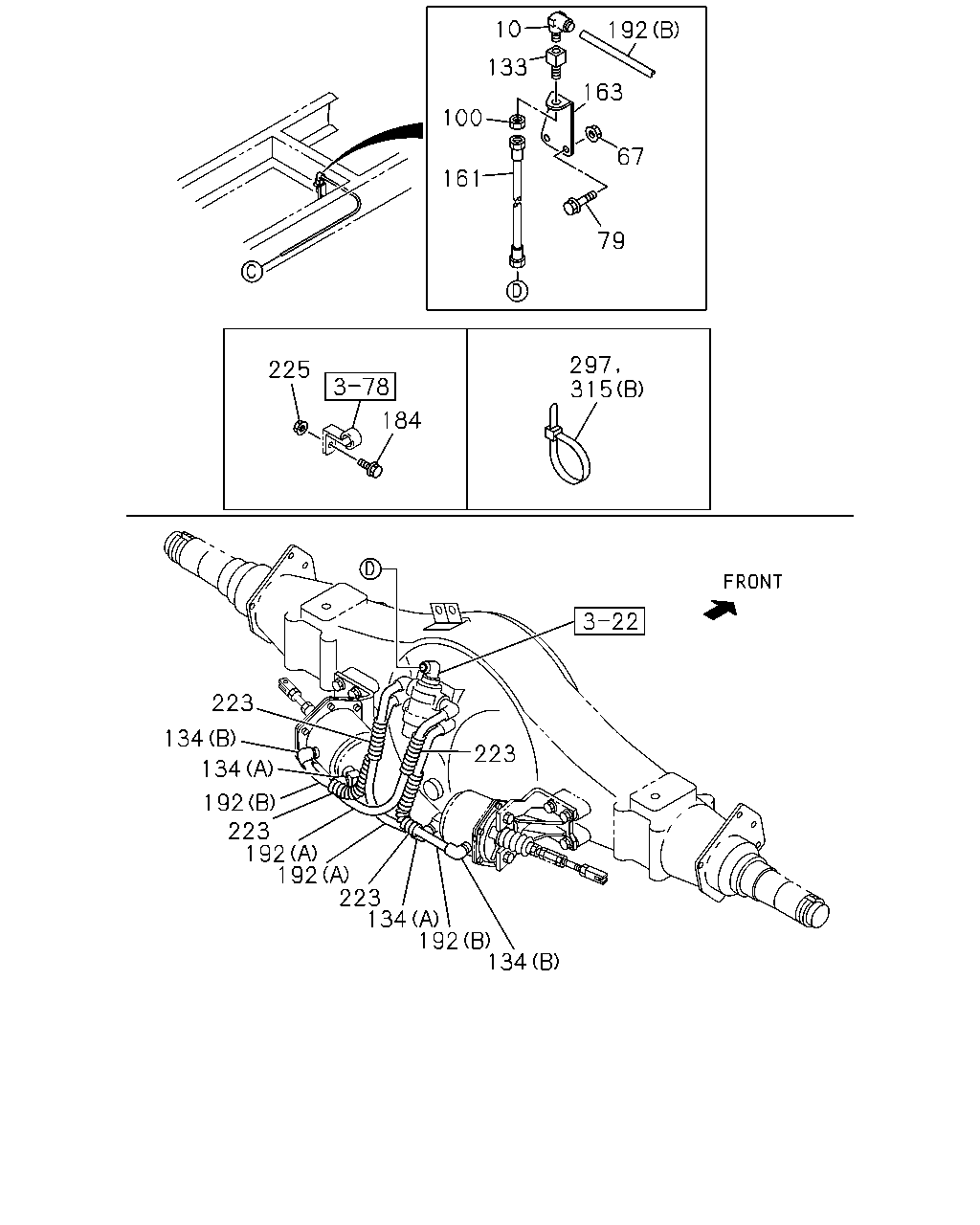

çizim 515206
192 10 133 100 161 79 67 163 297 315 184 225 223 134 134 192 223 192 192 223 134 192 134 223
BalonParca AdiParca NoAdetTipApplied Date A B
10 CONNECTOR; FLEX HOSE
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1601- ● ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 1601- ● ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1601- ● ●
100 NUT; UNION
M16 		0-91111-516-0 01 1 1601- ● ●
133 UNION; NIPPLE
PT3/8 & M16 STRAIGHT 		8-98202-001-0 01 1 1601- ● ●
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1601- ● ●
134 CONNECTOR
(B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 1601- ● ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=420 		1-09363-805-0 01 1 1601- ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=460 		1-09363-963-0 01 1 1601- ●
163 BRACKET; FLEX HOSE 8-98241-571-0 01 1 1601- ●
163 BRACKET; FLEX HOSE 8-98044-842-0 01 1 1601- ●
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1601- ● ●
192 TUBE; NYLON
(A) 		8-98061-971-0 02 1 1601- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1601- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1601- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1601- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1601- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1601- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1601- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1601- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=6000 ID=15 		1-87411-037-0 AR 1 1601- ● ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
297 CLIP; BAND
L=350 		1-09707-183-0 AR 1 1601- ● ●
315 CLIP
(B) L=250 		1-09707-126-0 05 1 1601- ● ●
315 CLIP
(A) ID=14 		8-94238-572-0 01 1 1601- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
