◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11720 - FRR AUST/NZ JNLT09 SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#175514) — 56 parça

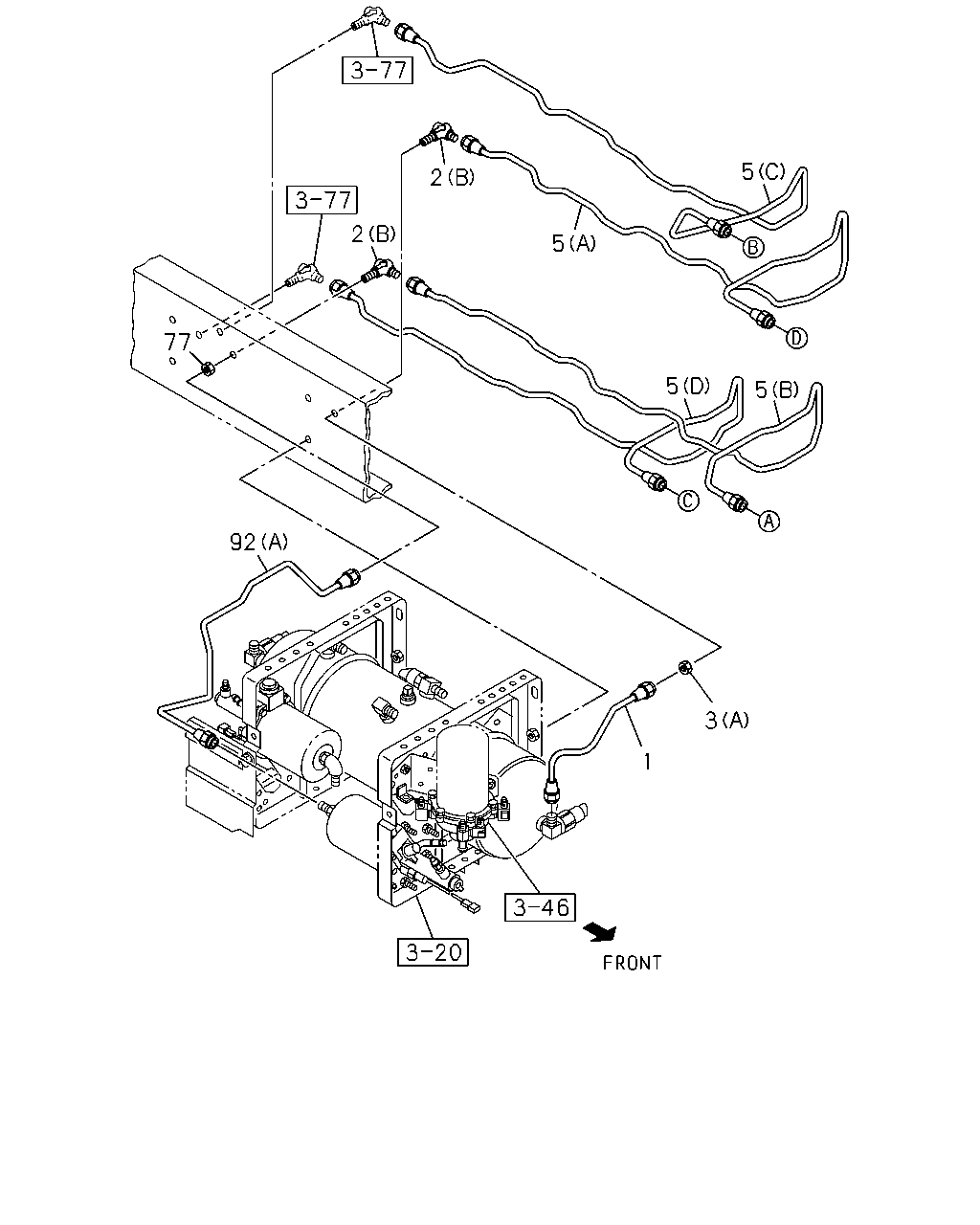

çizim 512720
5 5 5 3 1 92 2 2 5 77
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
L=279 		8-98213-359-0 01 1 1601- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1601- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1601- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1601- ● ●
3 NUT; PIPE UNION
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> (A) M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
3 NUT; PIPE UNION
IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (A) M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
5 PIPE; AIR,UNION TO UNION
(A) L=2206 SERVICED BY L=2500 		1-47428-883-0 01 1 1601- ● ●
5 PIPE; AIR,UNION TO UNION
(C) L=2497 		8-98169-184-1 01 1 1601- ● ●
5 PIPE; AIR,UNION TO UNION
(D) L=2609 SERVICED BY L=2900 		1-47428-885-0 01 1 1601- ● ●
5 PIPE; AIR,UNION TO UNION
(B) L=2693 SERVICED BY L=2900 		1-47428-885-0 01 1 1601- ● ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1601- ● ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> (B) L=476 		8-98212-632-0 01 1 1601- ● ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> (A) L=783 SERVICED BY L=800 		1-47428-872-0 01 1 1601- ● ●

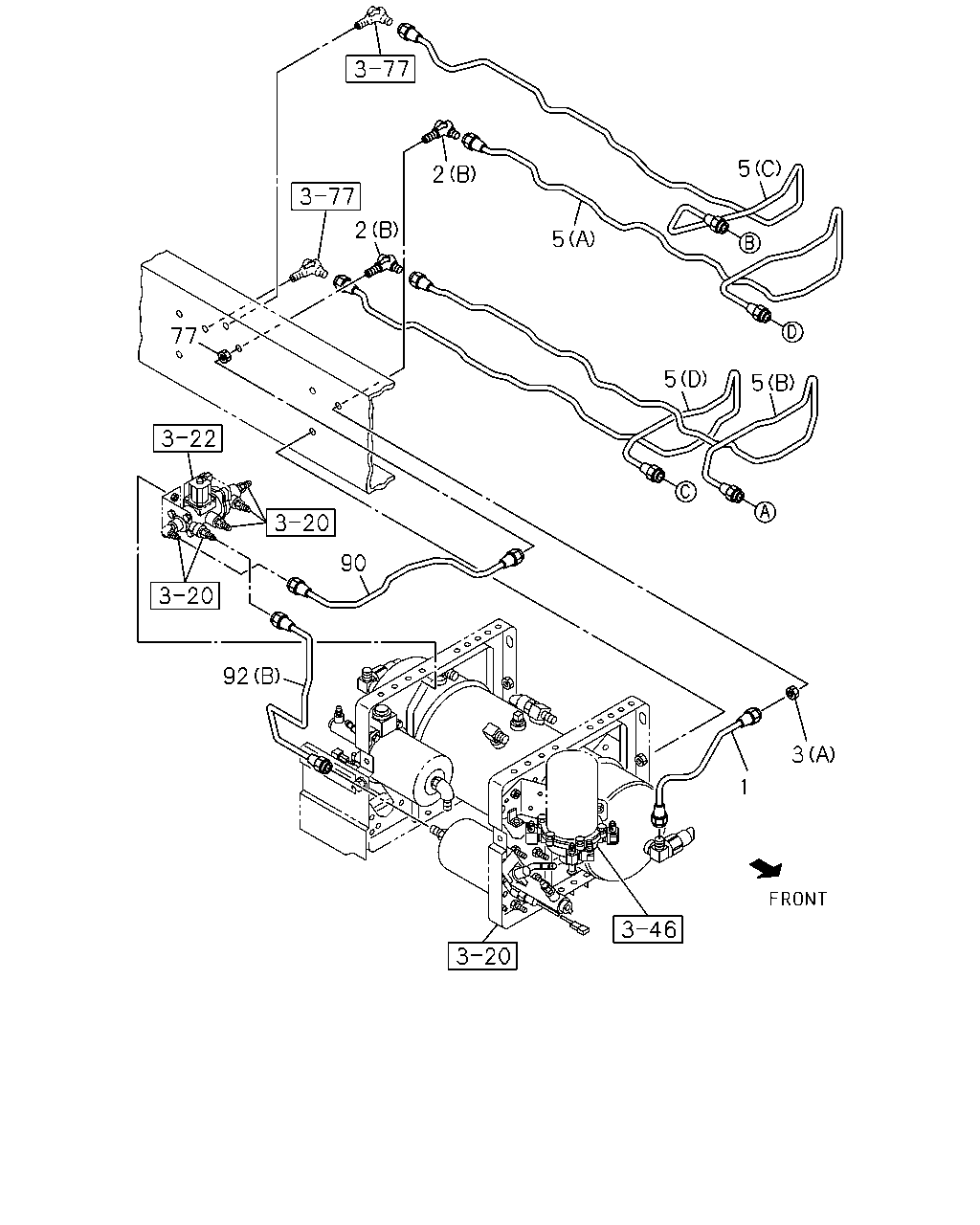

çizim 512724
5 5 5 5 2 2 92 90 1 3 77
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
L=279 		8-98213-359-0 01 1 1601- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1601- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1601- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1601- ● ●
3 NUT; PIPE UNION
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> (A) M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
3 NUT; PIPE UNION
IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (A) M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
5 PIPE; AIR,UNION TO UNION
(A) L=2206 SERVICED BY L=2500 		1-47428-883-0 01 1 1601- ● ●
5 PIPE; AIR,UNION TO UNION
(C) L=2497 		8-98169-184-1 01 1 1601- ● ●
5 PIPE; AIR,UNION TO UNION
(D) L=2609 SERVICED BY L=2900 		1-47428-885-0 01 1 1601- ● ●
5 PIPE; AIR,UNION TO UNION
(B) L=2693 SERVICED BY L=2900 		1-47428-885-0 01 1 1601- ● ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1601- ● ●
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> L=493 		8-98077-878-0 01 1 1601- ● ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> (B) L=476 		8-98212-632-0 01 1 1601- ● ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> (A) L=783 SERVICED BY L=800 		1-47428-872-0 01 1 1601- ● ●

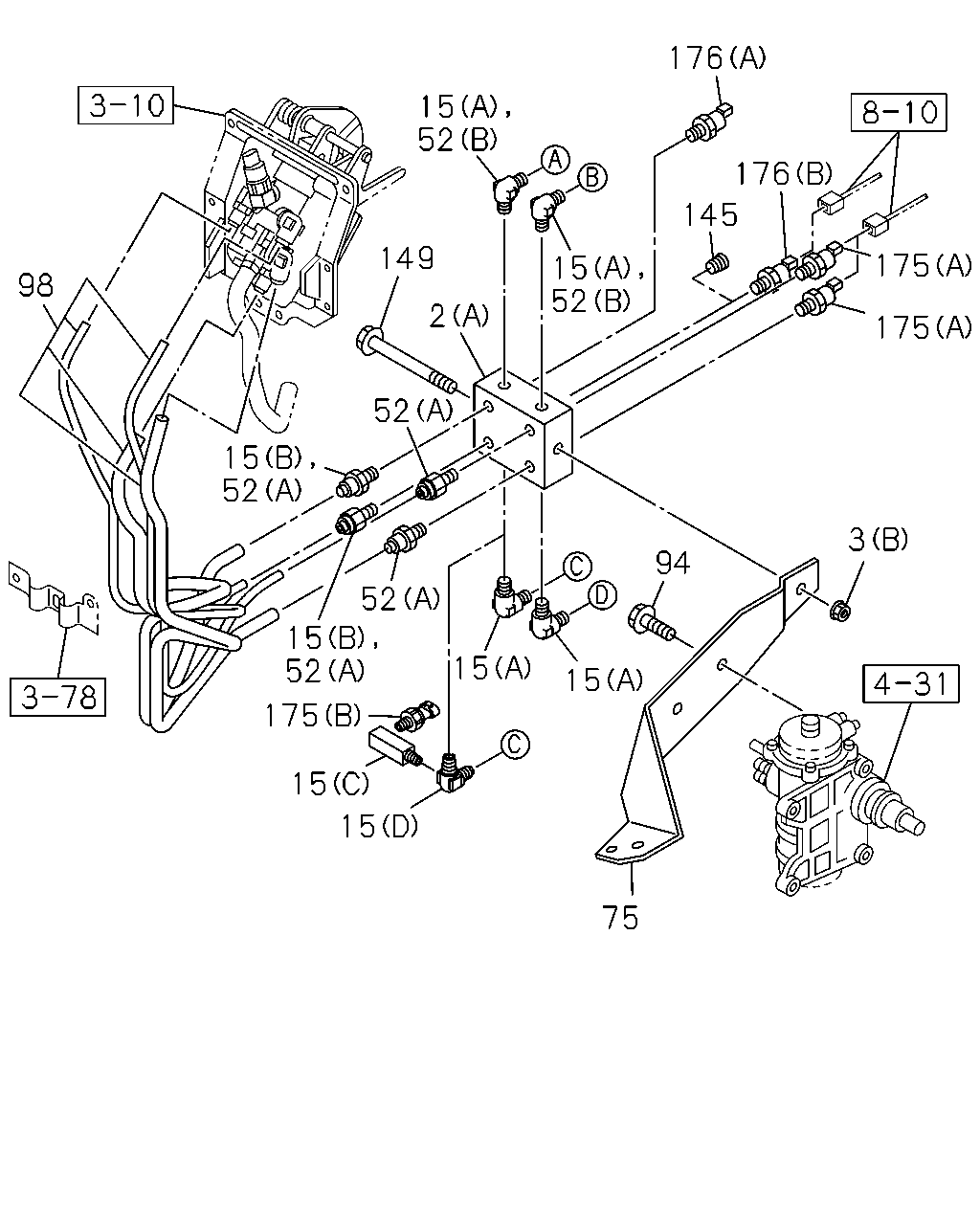

çizim 513030
98 15 52 149 15 52 15 52 2 52 52 15 52 175 15 15 75 15 15 94 3 175 175 176 145 176
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1601- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1601- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1601- ● ●
3 NUT; PIPE UNION
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> (A) M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
3 NUT; PIPE UNION
IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (A) M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
15 CONNECTOR; AIR PIPE
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM DELETE<Q3Q> SMOOTHER-FX(TYPE2)(8NS) (A) M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 1601- ● ●
15 CONNECTOR; AIR PIPE
IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 1601- ● ●
15 CONNECTOR; AIR PIPE
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS) (A) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 1601- ● ●
15 CONNECTOR; AIR PIPE
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS) (B) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 02 1 1601- ● ●
15 CONNECTOR; AIR PIPE
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS) (D) DIN8 & R1/4 & RC1/8 3WAY 		8-98245-262-0 01 1 1601- ● ●
15 CONNECTOR; AIR PIPE
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS) (C) R1/8 & RC1/8 ELBOW 		8-98245-264-0 01 1 1601- ● ●
52 CONNECTOR; NYLON TUBE
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM DELETE<Q3Q> SMOOTHER-FX(TYPE2)(8NS) (A) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1601- ● ●
52 CONNECTOR; NYLON TUBE
IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1601- ● ●
52 CONNECTOR; NYLON TUBE
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 1601- ● ●
52 CONNECTOR; NYLON TUBE
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS) (A) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 02 1 1601- ● ●
75 BRACKET; UNION
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> 		8-98257-652-0 01 1 1601- ● ●
75 BRACKET; UNION
IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98257-652-0 01 1 1601- ● ●
94 BOLT; BRKT
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> M10X20 FLANGE 		0-28151-020-0 02 1 1601- ● ●
94 BOLT; BRKT
IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> M10X20 FLANGE 		0-28151-020-0 02 1 1601- ● ●
98 TUBE; NYLON 8-98079-175-0 01 1 1601- ●
98 TUBE; NYLON
4HK1-TCS ENG(RJS) 		8-98079-175-0 01 1 1601- ●
98 TUBE; NYLON
4HK1-TCH ENG(RDW) 		8-98079-179-0 01 1 1601- ●
145 PLUG
IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PT1/4 		9-99204-513-0 01 1 1601- ● ●
149 BOLT; UNION
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> M8X100 FLANGE 		0-28050-800-0 01 1 1601- ● ●
149 BOLT; UNION
IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> M8X100 FLANGE 		0-28050-800-0 01 1 1601- ● ●
175 SENSOR; AIR PRESS
(A) THREAD R1/4 		1-80220-023-1 02 1 1601- ● ●
175 SENSOR; AIR PRESS
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS) (B) THREAD R1/8 		1-80220-025-0 01 1 1601- ● ●
176 SWITCH; AIR PRESS
(A) STAMP 0.7 		8-97622-710-0 01 1 1601- ● ●
176 SWITCH; AIR PRESS
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS) (B) STAMP 2.2 		8-98010-858-0 01 1 1601- ● ●
