◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11720 - FRR AUST/NZ JNLT09 SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#175513) — 97 parça

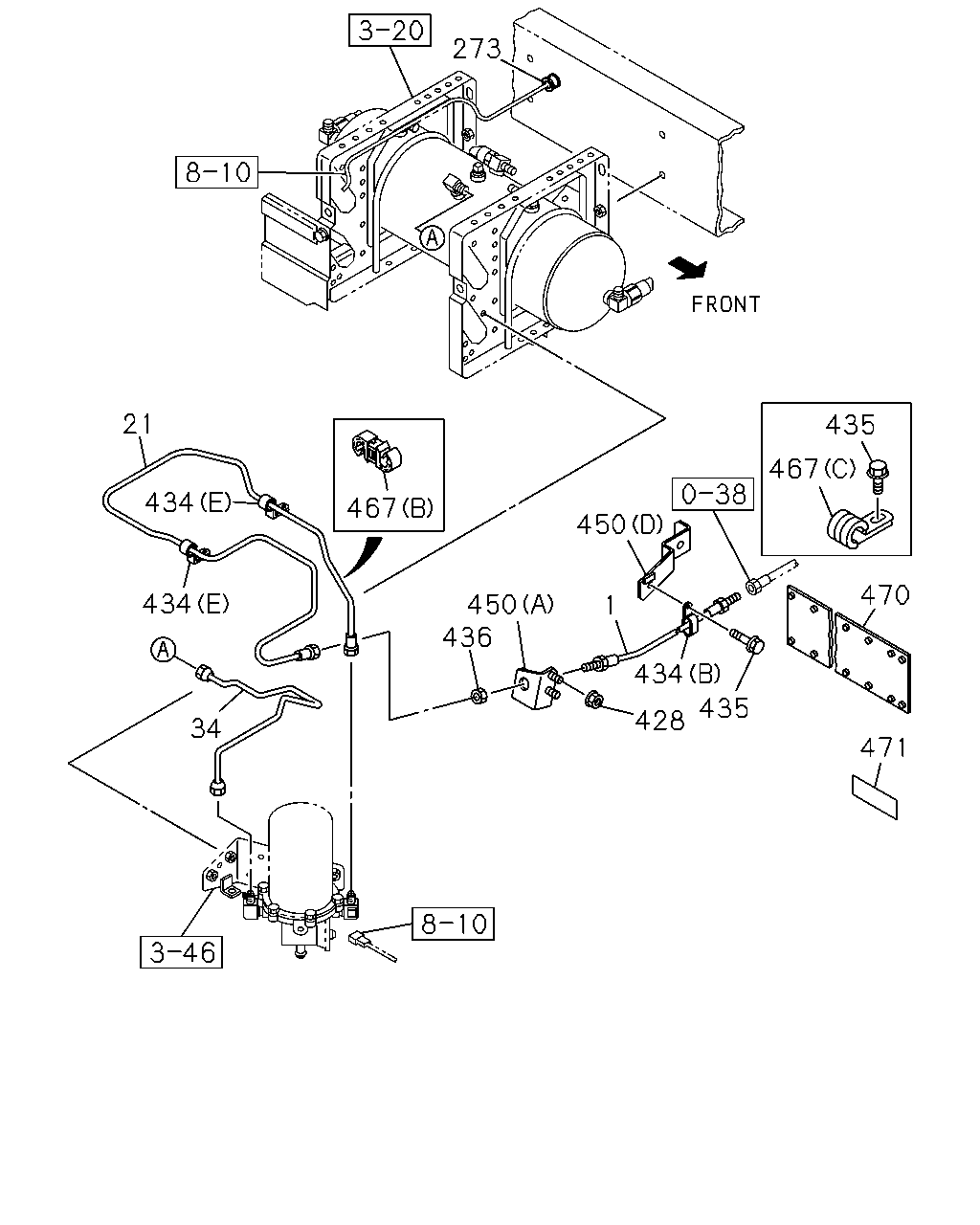

çizim 513016
21 434 434 34 428 436 434 1 450 467 450 435 471 470 467 435 273
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 8-98171-661-0 01 1 1601- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=1898 		8-98187-597-0 01 1 1601- ● ●
34 PIPE; AIR
L=676 SERVICED BY L=700 		1-49115-481-0 01 1 1601- ● ●
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1601- ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1601- ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
434 CLIP
(B) ID=16 L=20 		0-95235-536-0 02 1 1601- ● ●
434 CLIP
(E) ID=31 L=44 		8-98170-379-0 01 1 1601- ● ●
434 CLIP
(E) ID=31 L=33 		8-98190-830-1 02 1 1601- ●
434 CLIP
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (E) ID=31 L=33 		8-98190-830-1 02 1 1601- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1601- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 09 1 1601- ● ●
434 CLIP
(D) ID=18-24 L=14.5 		1-09709-298-0 02 1 1601- ● ●
434 CLIP
POWER TAKE OFF-FLYWHEEL<6SZ> (E) ID=31 L=33 		8-98190-830-1 01 1 1601- ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1601- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1601- ●
435 BOLT; CLIP
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M8X20 FLANGE 		0-28650-820-0 02 1 1601- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1601- ● ●
435 BOLT; CLIP
POWER TAKE OFF-FLYWHEEL<6SZ> M8X20 FLANGE 		0-28650-820-0 01 1 1601- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
436 NUT; CLIP
M22 		0-91111-522-0 01 1 1601- ● ●
450 BRACKET; CLIP
(D) 		8-98125-582-0 01 1 1601- ● ●
450 BRACKET; CLIP
(A) 		8-98162-110-0 01 1 1601- ● ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 1601- ● ●
450 BRACKET; CLIP
(C) 		8-98117-686-0 01 1 1601- ● ●
450 BRACKET; CLIP
(E) 		8-98157-748-0 01 1 1601- ● ●
467 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 04 1 1601- ●
467 CLIP; NYLON TUBE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 04 1 1601- ●
467 CLIP; NYLON TUBE
(B) ID=10 & 15 		1-09709-279-1 01 1 1601- ● ●
467 CLIP; NYLON TUBE
WHEEL BASE 3700MM(37W) (C) ID=22 L=32 		1-09700-126-1 01 1 1601- ●
467 CLIP; NYLON TUBE
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 02 1 1601- ●
470 INSULATOR; HOSE 8-98188-543-0 01 1 1601- ● ●
471 TAPE; COVER
18X185 		8-98190-442-0 04 1 1601- ● ●

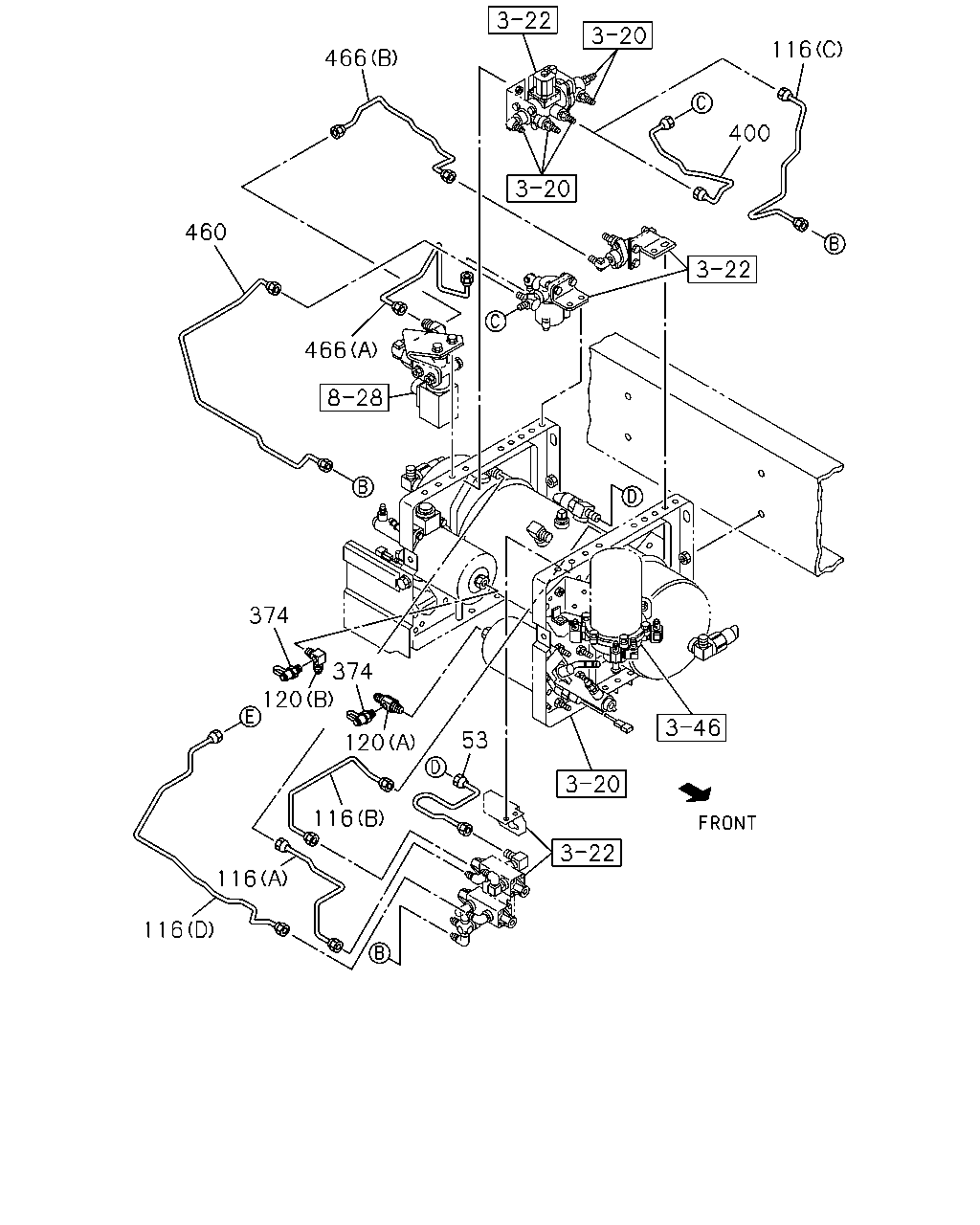

çizim 513023
466 460 466 116 400 116 116 116 53 120 120 374 374
BalonParca AdiParca NoAdetTipApplied Date A B
53 PIPE; AIR,AIR TANK TO VALVE 8-98276-838-0 01 1 1601- ● ●
116 PIPE; AIR,PROTECTION VLV
THROTTLE CONTROL SYSTEM(6XH) (A) L=480 		8-98213-332-0 01 1 1601- ● ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1601- ● ●
116 PIPE; AIR,PROTECTION VLV
(D) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 1601- ● ●
116 PIPE; AIR,PROTECTION VLV
EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=504 		8-98276-839-0 01 1 1601- ● ●
120 CONNECTOR; AIR PIPE
(A) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 1601- ● ●
120 CONNECTOR; AIR PIPE
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1601- ● ●
374 CONNECTOR
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1601- ● ●
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) L=585 SERVICED BY L=600 		1-47428-809-0 01 1 1601- ● ●
400 PIPE; AIR,HSA VLV
THROTTLE CONTROL SYSTEM(6XH) L=467 		8-98066-848-0 01 1 1601- ● ●
460 PIPE; AIR,PROTECTION VALVE
THROTTLE CONTROL SYSTEM(6XH) L=1036 		8-98225-793-0 01 1 1601- ● ●
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (A) L=492 		8-98077-879-0 01 1 1601- ● ●
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (B) L=682 SERVICED BY L=700 		1-47428-870-0 01 1 1601- ● ●

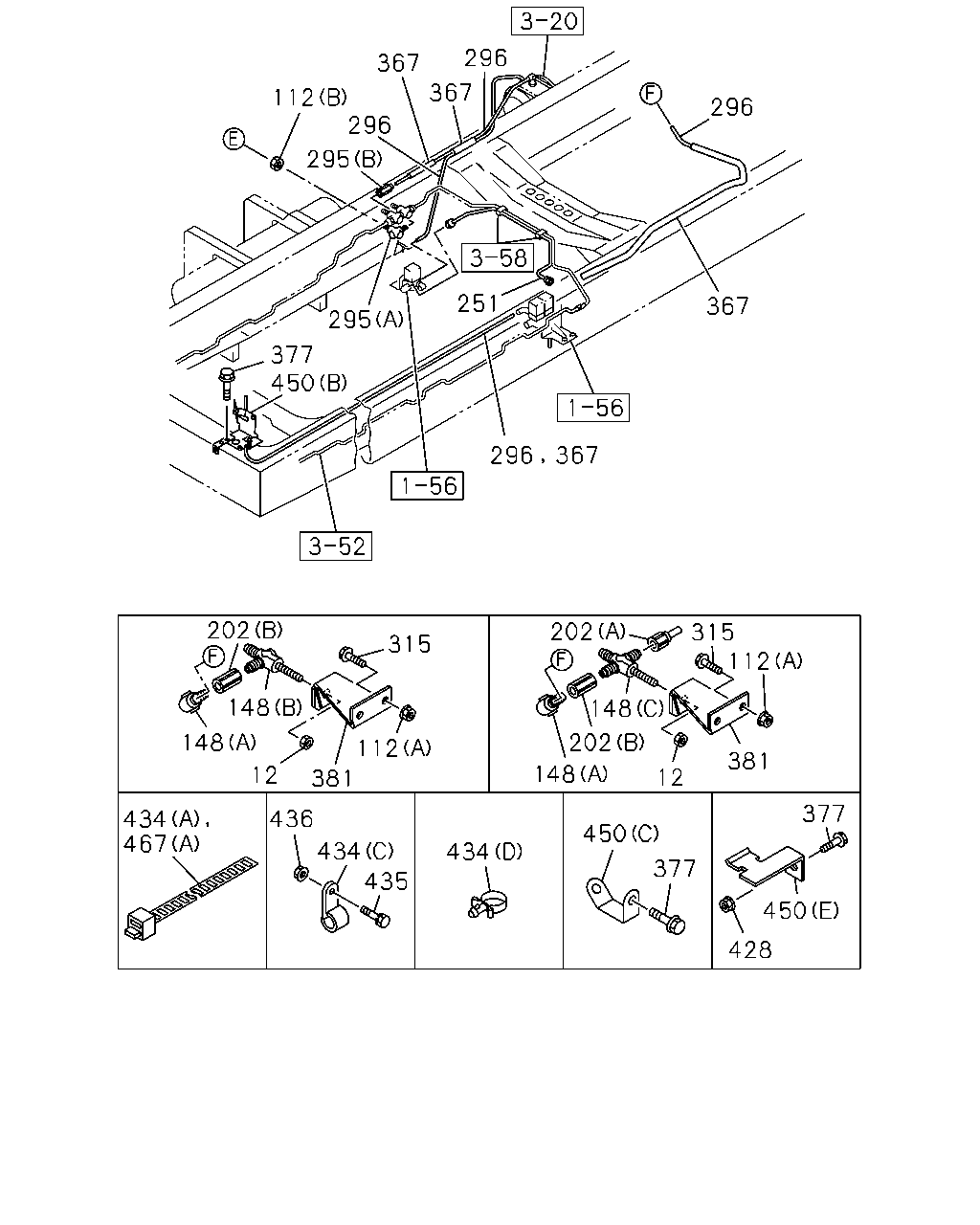

çizim 513698
296 367 367 112 296 295 295 377 450 251 296 367 367 296 202 315 148 112 381 12 148 434 467 436 434 435 434 450 377 202 315 112 381 12 148 202 148 377 450 428
BalonParca AdiParca NoAdetTipApplied Date A B
12 NUT; UNION
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		0-91111-512-0 01 1 1601- ● ●
112 NUT
(B) M12 		9-09840-280-0 01 1 1601- ● ●
112 NUT
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M10 FLANGE 		0-91180-210-0 02 1 1601- ● ●
148 CONNECTOR; UNION
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 		0-92138-306-0 01 1 1601- ●
148 CONNECTOR; UNION
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1601- ● ●
148 CONNECTOR; UNION
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 2WAY 		1-09654-059-2 01 1 1601- ●
202 ADAPTER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1601- ●
202 ADAPTER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1601- ● ●
251 PIPE; AIR,UNION TO MAG VLV
L=830 SERVICED BY L=900 		1-47428-813-0 01 1 1601- ● ●
295 CONNECTOR; NYLON TUBE
(A) M12 ELBOW 		0-92125-206-0 01 1 1601- ● ●
295 CONNECTOR; NYLON TUBE
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1601- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1601- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1601- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1601- ● ●
315 BOLT; CONNECTOR
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE 		0-28651-030-0 02 1 1601- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87411-017-0 AR 1 1601- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1601- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1601- ● ●
377 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1601- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 03 1 1601- ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 01 1 1601- ● ●
381 BRACKET
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98128-396-0 01 1 1601- ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1601- ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
434 CLIP
(B) ID=16 L=20 		0-95235-536-0 02 1 1601- ● ●
434 CLIP
(E) ID=31 L=44 		8-98170-379-0 01 1 1601- ● ●
434 CLIP
(E) ID=31 L=33 		8-98190-830-1 02 1 1601- ●
434 CLIP
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (E) ID=31 L=33 		8-98190-830-1 02 1 1601- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1601- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 09 1 1601- ● ●
434 CLIP
(D) ID=18-24 L=14.5 		1-09709-298-0 02 1 1601- ● ●
434 CLIP
POWER TAKE OFF-FLYWHEEL<6SZ> (E) ID=31 L=33 		8-98190-830-1 01 1 1601- ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1601- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1601- ●
435 BOLT; CLIP
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M8X20 FLANGE 		0-28650-820-0 02 1 1601- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1601- ● ●
435 BOLT; CLIP
POWER TAKE OFF-FLYWHEEL<6SZ> M8X20 FLANGE 		0-28650-820-0 01 1 1601- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
436 NUT; CLIP
M22 		0-91111-522-0 01 1 1601- ● ●
450 BRACKET; CLIP
(D) 		8-98125-582-0 01 1 1601- ● ●
450 BRACKET; CLIP
(A) 		8-98162-110-0 01 1 1601- ● ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 1601- ● ●
450 BRACKET; CLIP
(C) 		8-98117-686-0 01 1 1601- ● ●
450 BRACKET; CLIP
(E) 		8-98157-748-0 01 1 1601- ● ●
467 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 04 1 1601- ●
467 CLIP; NYLON TUBE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 04 1 1601- ●
467 CLIP; NYLON TUBE
(B) ID=10 & 15 		1-09709-279-1 01 1 1601- ● ●
467 CLIP; NYLON TUBE
WHEEL BASE 3700MM(37W) (C) ID=22 L=32 		1-09700-126-1 01 1 1601- ●
467 CLIP; NYLON TUBE
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 02 1 1601- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
