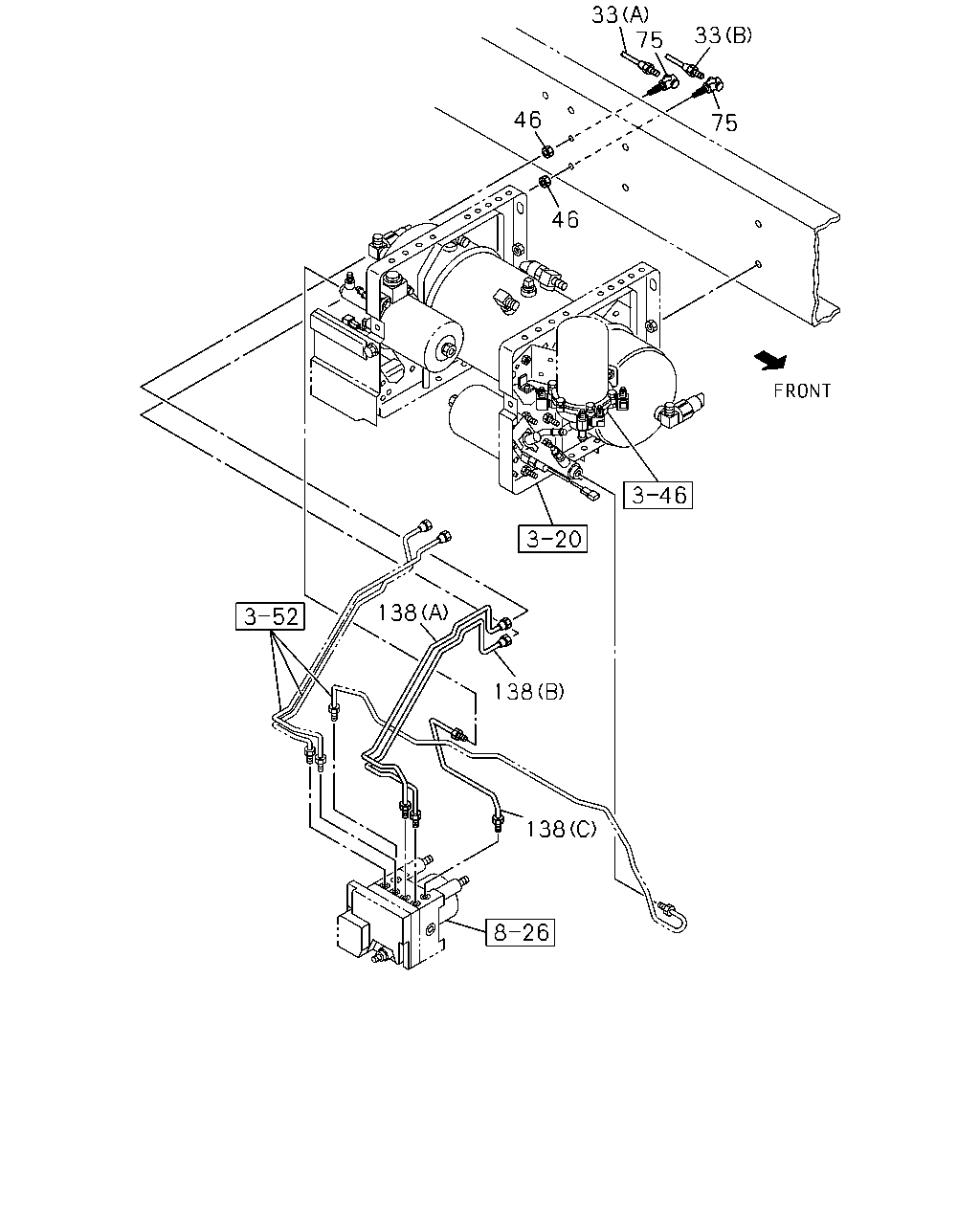

3-55 — BRAKE PIPING; OIL,REAR (#175511) — 51 parça

33 33 75 75 46 46 138 138 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	PIPE; OIL,UNION TO UNION (A) LH LINE L=2923	8-98183-304-0	01	1	1601-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (A) LH LINE L=2923	8-98183-304-0	01	1	1601-		●
33	PIPE; OIL,UNION TO UNION (B) RH LINE L=2863	8-98183-305-0	01	1	1601-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (B) RH LINE L=2863	8-98183-305-0	01	1	1601-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (A) LH LINE L=1366	8-98183-306-0	01	1	1601-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (B) RH LINE L=1324	8-98183-307-0	01	1	1601-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4000MM(40W) (A) LH LINE L=1665	8-98183-296-0	01	1	1601-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4000MM(40W) (B) RH LINE L=1605	8-98183-297-0	01	1	1601-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) (A) LH LINE L=2263	8-98183-300-0	01	1	1601-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) (B) RH LINE L=2203	8-98183-301-0	01	1	1601-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) (A) LH LINE L=2593	8-98183-302-0	01	1	1601-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) (B) RH LINE L=2533	8-98183-303-0	01	1	1601-		●
46	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	02	1	1601-	●	●
75	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	02	1	1601-	●	●
138	PIPE; HYDRAULIC UNIT (A) L=657	8-98012-129-0	01	1	1601-	●	●
138	PIPE; HYDRAULIC UNIT (B) L=703	8-98012-146-0	01	1	1601-	●	●
138	PIPE; HYDRAULIC UNIT (C) L=296	8-98066-107-0	01	1	1601-	●	●

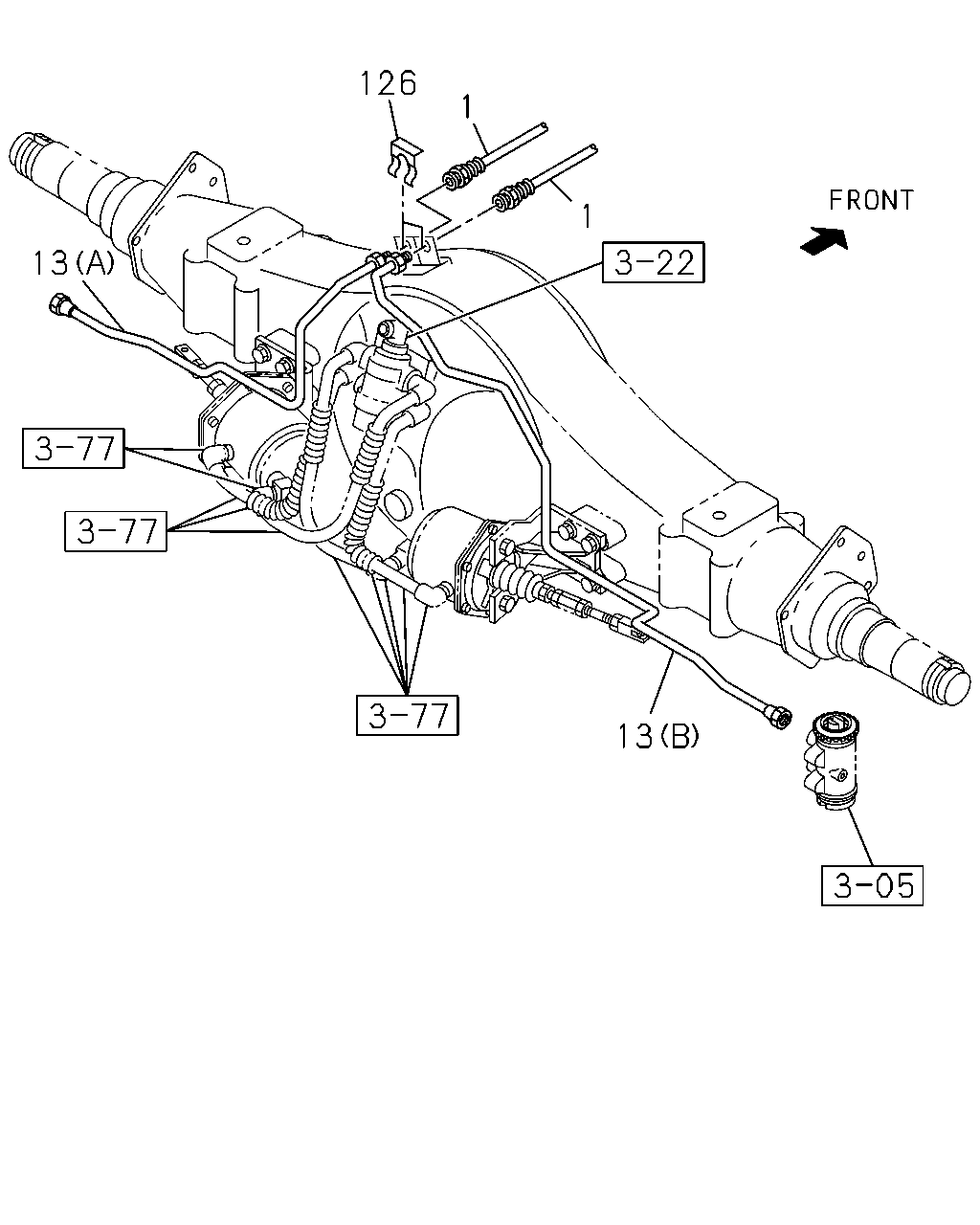

126 13 13 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK L=310	8-98023-168-0	02	1	1601-	●
1	HOSE; FLEX,RR BRK POWER TAKE OFF-FLYWHEEL<6SZ> L=350	8-97138-885-0	02	1	1601-		●
1	HOSE; FLEX,RR BRK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=350	8-97138-885-0	02	1	1601-		●
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=320	8-98067-397-0	02	1	1601-		●
13	PIPE; BRK,RR AXLE (B)	8-98281-557-0	01	1	1601-	●	●
13	PIPE; BRK,RR AXLE (A)	8-98281-558-0	01	1	1601-	●	●
126	CLIP; FLEX HOSE	8-97360-054-0	04	1	1601-	●	●

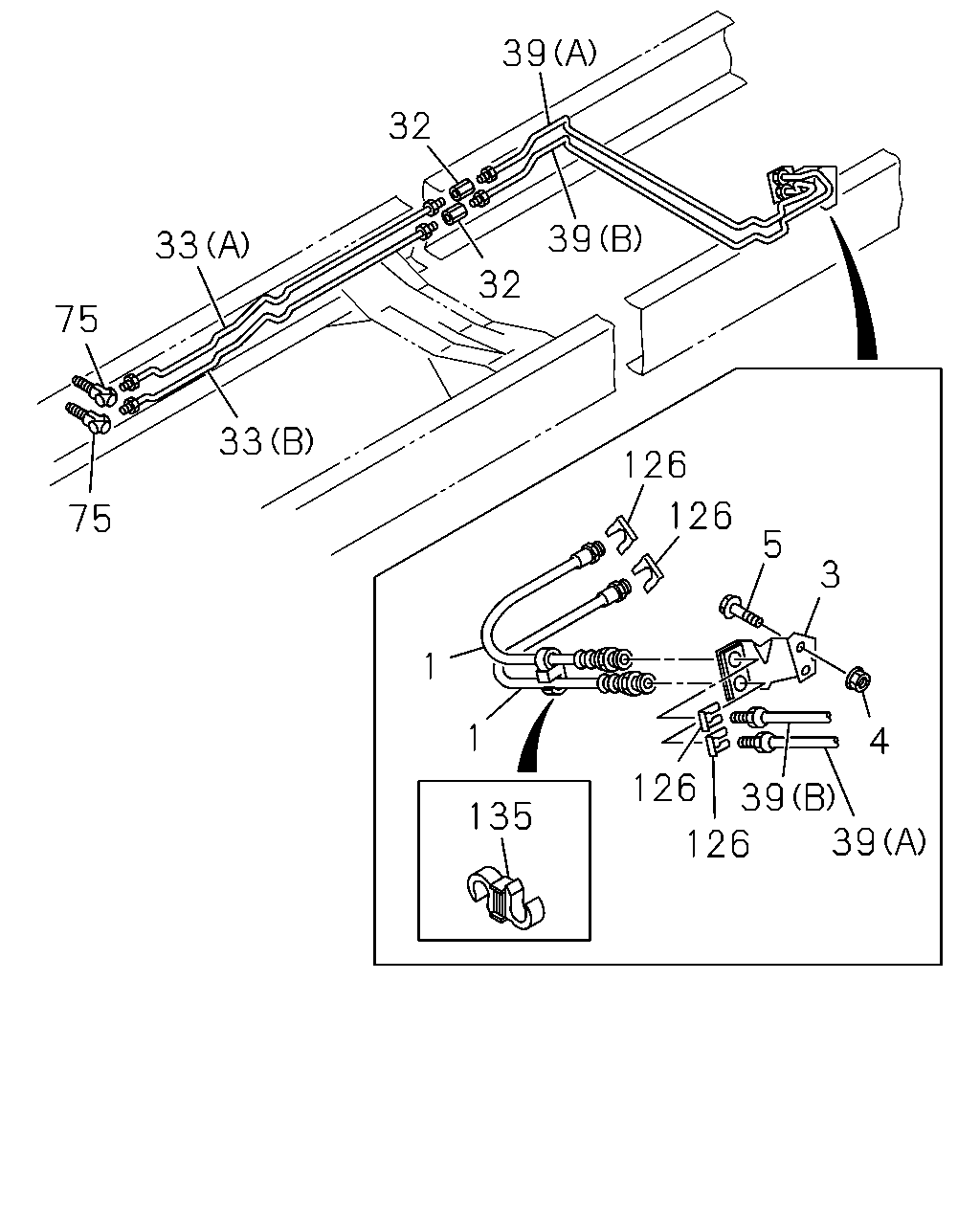

75 75 33 33 32 32 39 39 126 5 126 4 3 126 126 39 39 135 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK L=310	8-98023-168-0	02	1	1601-	●
1	HOSE; FLEX,RR BRK POWER TAKE OFF-FLYWHEEL<6SZ> L=350	8-97138-885-0	02	1	1601-		●
1	HOSE; FLEX,RR BRK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=350	8-97138-885-0	02	1	1601-		●
1	HOSE; FLEX,RR BRK WHEEL BASE 3700MM(37W) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=320	8-98067-397-0	02	1	1601-		●
3	BRACKET; FLEX HOSE,RR BRK	8-98065-999-2	01	1	1601-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91180-108-0	02	1	1601-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1601-	●	●
32	UNION; OIL PIPE M10 STRAIGHT	0-92107-005-0	02	1	1601-	●	●
33	PIPE; OIL,UNION TO UNION (A) LH LINE L=2923	8-98183-304-0	01	1	1601-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (A) LH LINE L=2923	8-98183-304-0	01	1	1601-		●
33	PIPE; OIL,UNION TO UNION (B) RH LINE L=2863	8-98183-305-0	01	1	1601-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5300MM(53W) (B) RH LINE L=2863	8-98183-305-0	01	1	1601-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (A) LH LINE L=1366	8-98183-306-0	01	1	1601-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (B) RH LINE L=1324	8-98183-307-0	01	1	1601-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4000MM(40W) (A) LH LINE L=1665	8-98183-296-0	01	1	1601-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4000MM(40W) (B) RH LINE L=1605	8-98183-297-0	01	1	1601-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) (A) LH LINE L=2263	8-98183-300-0	01	1	1601-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) (B) RH LINE L=2203	8-98183-301-0	01	1	1601-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) (A) LH LINE L=2593	8-98183-302-0	01	1	1601-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4900MM(49W) (B) RH LINE L=2533	8-98183-303-0	01	1	1601-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) LH LINE L=1612	8-98241-576-0	01	1	1601-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (B) RH LINE L=1676	8-98241-577-0	01	1	1601-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) LH LINE L=1710	8-98106-485-0	01	1	1601-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE (B) RH LINE L=1772	8-98106-486-0	01	1	1601-		●
75	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	02	1	1601-	●	●
126	CLIP; FLEX HOSE	8-97360-054-0	04	1	1601-	●	●
135	CLIP; FLEX HOSE ID=10 & 10	1-09709-277-1	01	1	1601-	●	●
