Isuzu WW
▶
TRUCKS
▶
FRR
▶
11720 - FRR AUST/NZ JNLT09 SPACECAB
▶
3 - Brakes, Brake System
▶
3-41 - REAR BRAKE POWER CHAMBER
▶
3-41 — REAR BRAKE POWER CHAMBER
(#175508) — 21 parça
Tümü
A - FCD5CS
B - FCR5CS
◀

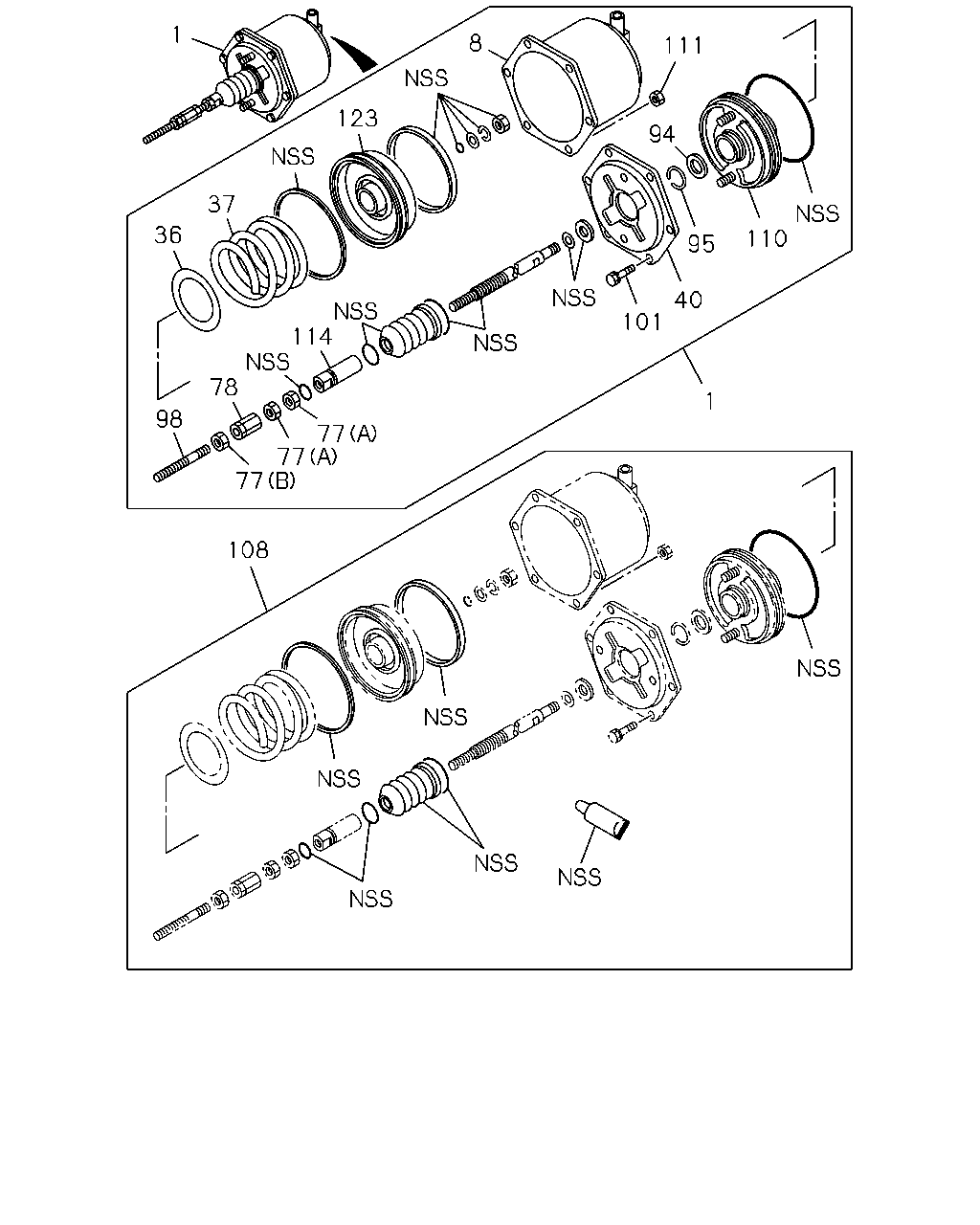

[341A] COMPONENT AND REPAIR KIT (18 parça)

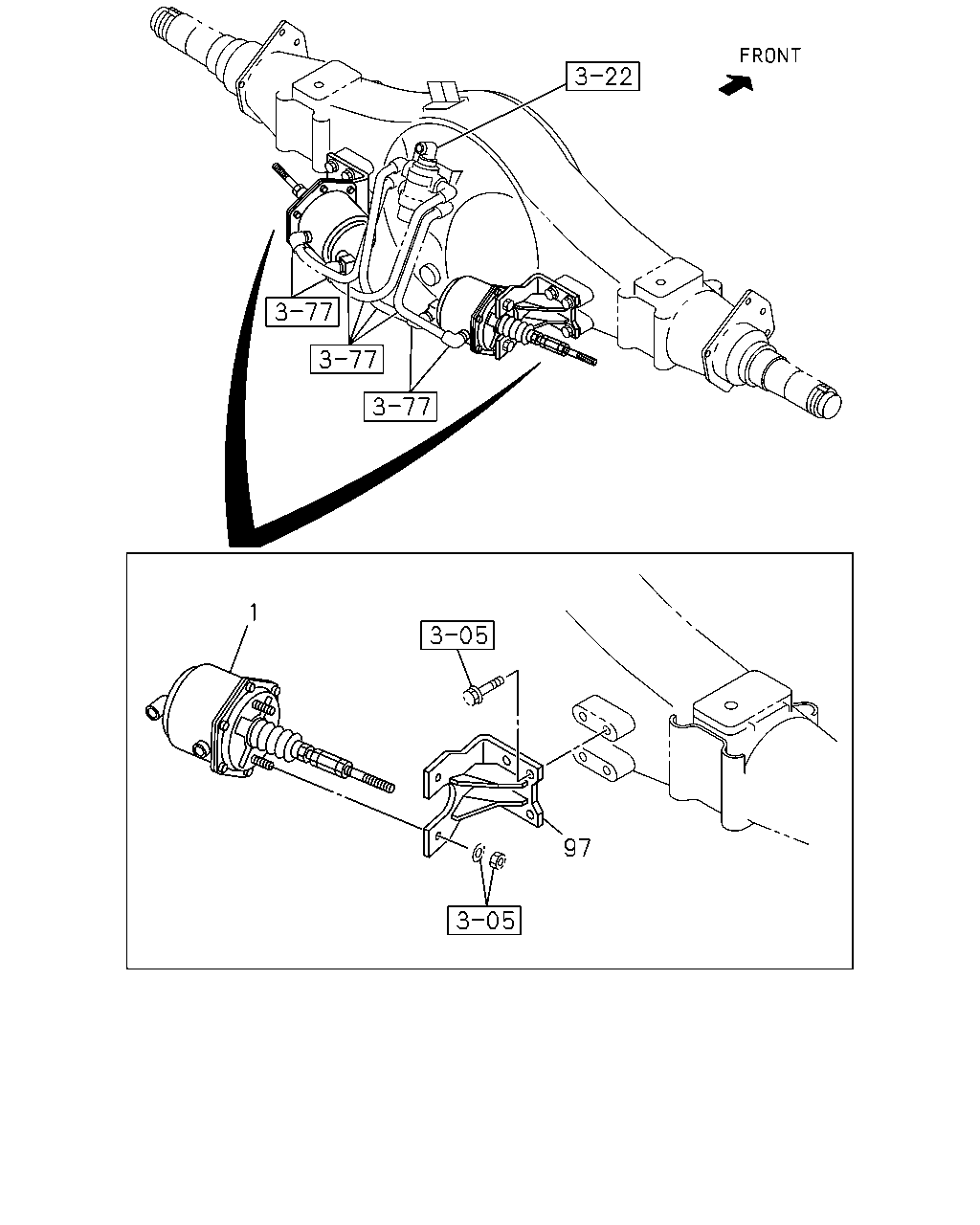

[341A] FIXING (3 parça)
▶
1
111
101
40
95
110
77
77
77
108
98
78
114
94
8
123
37
36
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CHAMBER ASM; SPRING
1-48250-920-1
01
1
1601-
●
●
1
CHAMBER ASM; SPRING
1-48250-921-1
01
1
1601-
●
●
8
SHELL; CYL,SPR CHAMBER
1-48251-190-1
02
1
1601-
●
●
36
RETAINER; SPR CHAMBER
1-48269-099-0
02
1
1601-
●
●
37
SPRING; LWR,SPR CHAMBER
1-48265-009-0
02
1
1601-
●
●
40
COVER ASM; LWR,SPR CHAMBER
1-48266-013-1
02
1
1601-
●
●
77
NUT; SPR CHAMBER BRK
(A)
1-48269-105-0
04
1
1601-
●
●
77
NUT; SPR CHAMBER BRK
(B)
1-48269-114-0
02
1
1601-
●
●
78
TURNBACKLE; SPR CHAMBER BRK
1-48269-113-0
02
1
1601-
●
●
94
PLATE; RELEASE,SPR CHAMBER
1-48269-097-1
02
1
1601-
●
●
95
RING; RELEASE,SPR CHAMBER
1-48269-098-0
02
1
1601-
●
●
98
ROD; CHAMBER
1-48263-038-0
02
1
1601-
●
●
101
BOLT; SPR CHAMBER
1-48269-102-0
12
1
1601-
●
●
108
REPAIR KIT; SPR CHAMBER
W/GREASE
1-85576-442-0
02
1
1601-
●
●
110
PLATE; MOUNTING,SPR CHAMBER
1-48251-189-0
02
1
1601-
●
●
111
NUT; SPR CHAMBER
1-48269-101-0
12
1
1601-
●
●
114
HOLDER; ROD,SPR CHAMBER
1-48269-250-0
02
1
1601-
●
●
123
PISTON ASM; SPR CHAMBER
1-48262-024-2
02
1
1601-
●
●
97
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CHAMBER ASM; SPRING
1-48250-920-1
01
1
1601-
●
●
1
CHAMBER ASM; SPRING
1-48250-921-1
01
1
1601-
●
●
97
BRACKET; CHAMBER
1-48258-242-0
02
1
1601-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
