◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11720 - FRR AUST/NZ JNLT09 SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-34 - BRAKE VALVE; AIR ▶
3-34 — BRAKE VALVE; AIR (#175507) — 19 parça

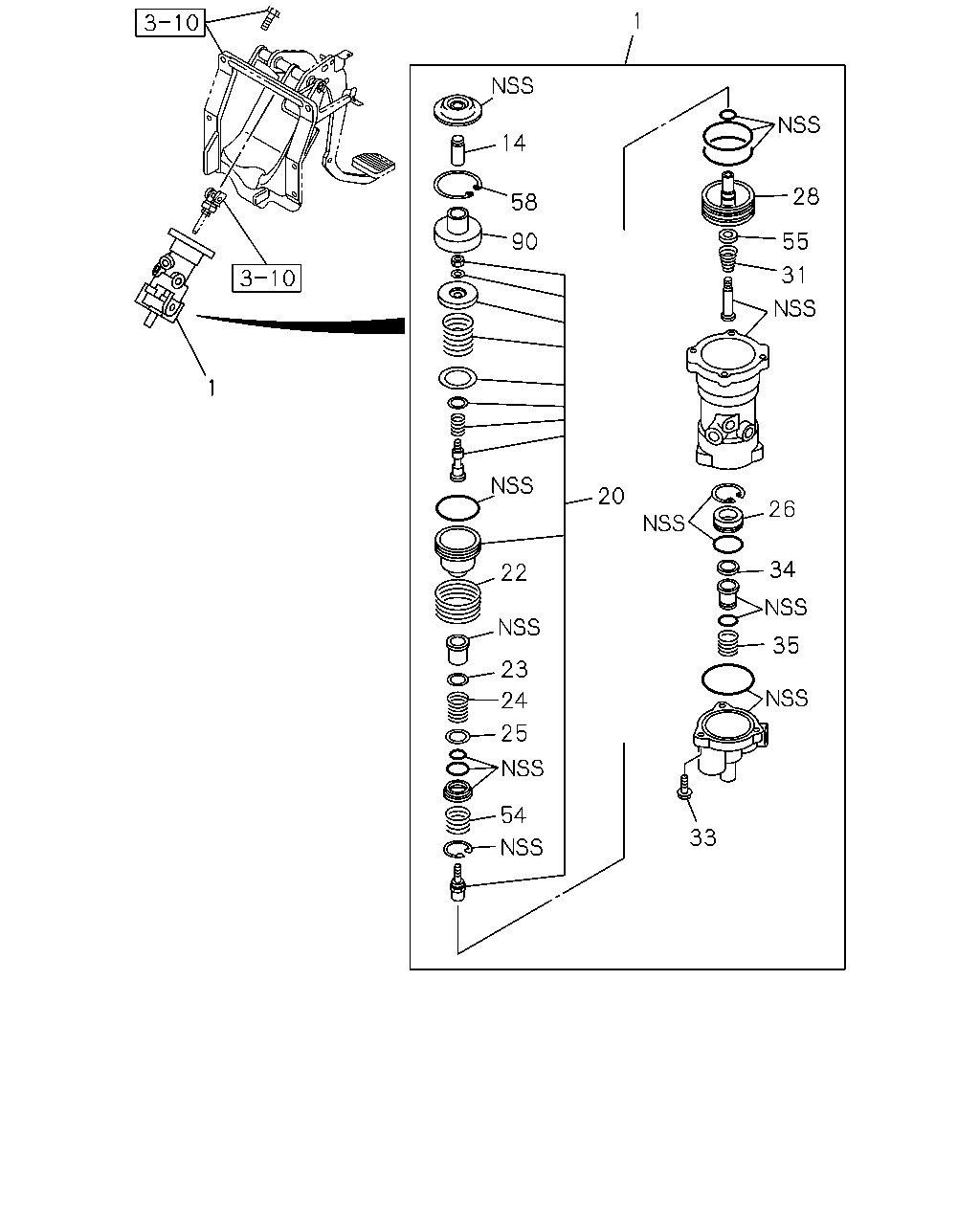

çizim 512939
1 14 58 90 22 23 24 25 54 1 28 55 31 26 34 35 33 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; BRK 8-98222-789-0 01 1 1601- ● ●
14 PLUNGER; BRK VLV 1-48119-641-0 01 1 1601- ● ●
20 PISTON; UPR,BRK VLV 1-48119-644-0 01 1 1601- ● ●
22 SPRING; PISTON,LWR,BRK VLV 1-48123-076-0 01 1 1601- ● ●
23 WASHER; UPR,BRK VLV 1-48129-299-0 01 1 1601- ● ●
24 SPRING; UPR,BRK VLV 1-48123-077-0 01 1 1601- ● ●
25 WASHER; PISTON,BRK VLV 1-48129-300-0 01 1 1601- ● ●
26 RETAINER; VLV,BRK VLV 1-48129-308-0 01 1 1601- ● ●
28 PISTON; LWR,BRK VLV 1-48129-302-0 01 1 1601- ● ●
31 SPRING; VLV,BRK VLV 1-48123-079-0 01 1 1601- ● ●
33 BOLT; BODY,BRK VLV 1-48119-213-0 03 1 1601- ● ●
34 RETAINER; VLV,BRK VLV 1-48129-307-0 01 1 1601- ● ●
35 SPRING; VLV,BRK VLV 1-48123-078-0 01 1 1601- ● ●
54 SPRING; PISTON,UPR,BRK VLV 1-48123-075-0 01 1 1601- ● ●
55 RETAINER; PLATE,BRK VLV 1-48129-305-0 01 1 1601- ● ●
58 RING; RET,EXH,BRK VLV 1-48219-198-0 01 1 1601- ● ●
90 GUIDE; PLUNGER 1-48119-642-0 01 1 1601- ● ●
çizim 513136
2 58
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; BRK VLV 8-98222-820-0 01 1 1601- ● ●
58 RING; RET,EXH,BRK VLV 1-48219-198-0 01 1 1601- ● ●
