Isuzu WW
▶
TRUCKS
▶
FRR
▶
11720 - FRR AUST/NZ JNLT09 SPACECAB
▶
3 - Brakes, Brake System
▶
3-20 - AIR TANK
▶
3-20 — AIR TANK
(#175503) — 87 parça
Tümü
A - FCD5CS
B - FCR5CS
◀
[320A] COMPONENT (29 parça)
[320A] FRAME SIDE (30 parça)
[320A] CAB SIDE (1 parça)
[320A] FIXING (27 parça)
▶

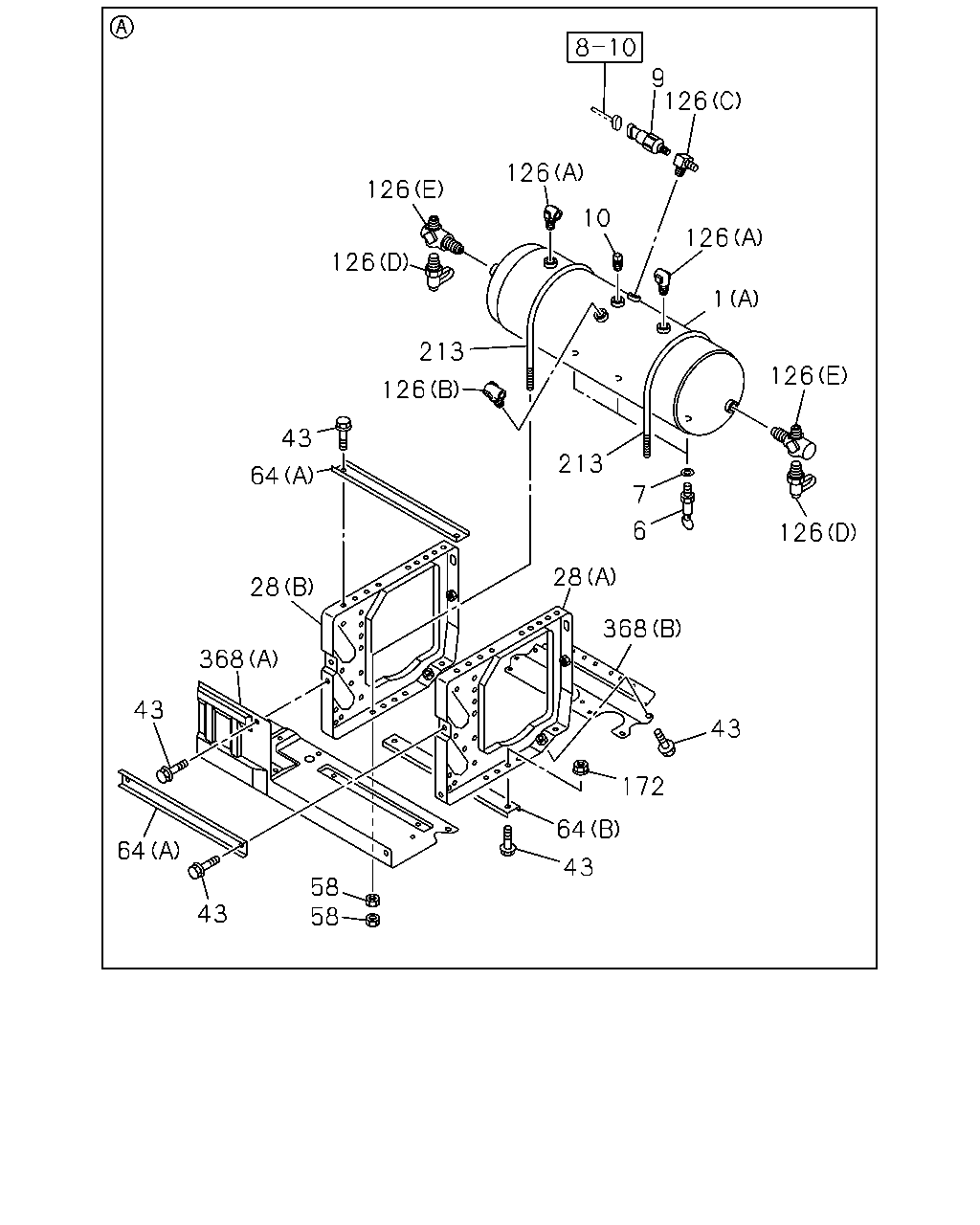

9
126
126
1
126
126
10
126
126
213
126
43
64
28
368
43
64
43
58
58
64
43
172
43
368
28
6
7
213
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK ASM; AIR
(A)
8-98018-795-2
01
1
1601-
●
●
1
TANK ASM; AIR
(C)
8-98081-870-1
01
1
1601-
●
●
1
TANK ASM; AIR
(B)
8-98166-972-0
01
1
1601-
●
●
6
COCK; DRAIN,AIR TANK
1-48312-015-0
01
1
1601-
●
●
6
COCK; DRAIN,AIR TANK
1-48312-015-0
01
1
1601-
●
●
6
COCK; DRAIN,AIR TANK
1-48312-015-0
03
1
1601-
●
●
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
1601-
●
●
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
1601-
●
●
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
03
1
1601-
●
●
9
SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 6.0
8-97615-622-0
01
1
1601-
●
●
10
PLUG; AIR TANK
PT3/8
9-09204-517-0
01
1
1601-
●
●
10
PLUG; AIR TANK
PT3/8
9-09204-517-0
01
1
1601-
●
●
10
PLUG; AIR TANK
PT3/8
9-09204-517-0
02
1
1601-
●
●
28
BRACKET; AIR TANK
(A)
8-98021-918-5
01
1
1601-
●
●
28
BRACKET; AIR TANK
(B)
8-98044-509-5
01
1
1601-
●
●
28
BRACKET; AIR TANK
(C)
8-98100-165-3
01
1
1601-
●
●
43
BOLT; STAY,AIR TANK,MAIN
M8X16 FLANGE
0-28050-816-0
14
1
1601-
●
●
58
NUT; BAND,AIR TANK
M8
0-91110-508-0
08
1
1601-
●
●
64
STAY; AIR TANK,MAIN
(A)
8-98044-510-3
02
1
1601-
●
●
64
STAY; AIR TANK,MAIN
(B)
8-98044-511-2
01
1
1601-
●
●
126
CONNECTOR; ELBOW
(B) M20 & PT3/8 ELBOW
0-92134-312-0
01
1
1601-
●
●
126
CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW
1-09650-438-0
02
1
1601-
●
●
126
CONNECTOR; ELBOW
(E) M16 & PT3/8 ELBOW
1-09656-724-0
02
1
1601-
●
●
126
CONNECTOR; ELBOW
(C) DIN8X2 & PT1/4 3WAY
1-09656-759-0
01
1
1601-
●
●
126
CONNECTOR; ELBOW
(D) R1/4 & M16 TEST CONNECTOR
1-47459-013-1
02
1
1601-
●
●
172
NUT; STAY,AIR TANK,MAIN
M8 FLANGE
0-91180-108-0
02
1
1601-
●
●
213
BOLT; U AIR TANK
8-98022-041-0
02
1
1601-
●
●
368
COVER; AIR TANK
(A)
8-98061-625-3
01
1
1601-
●
●
368
COVER; AIR TANK
(B)
8-98111-401-0
01
1
1601-
●
●

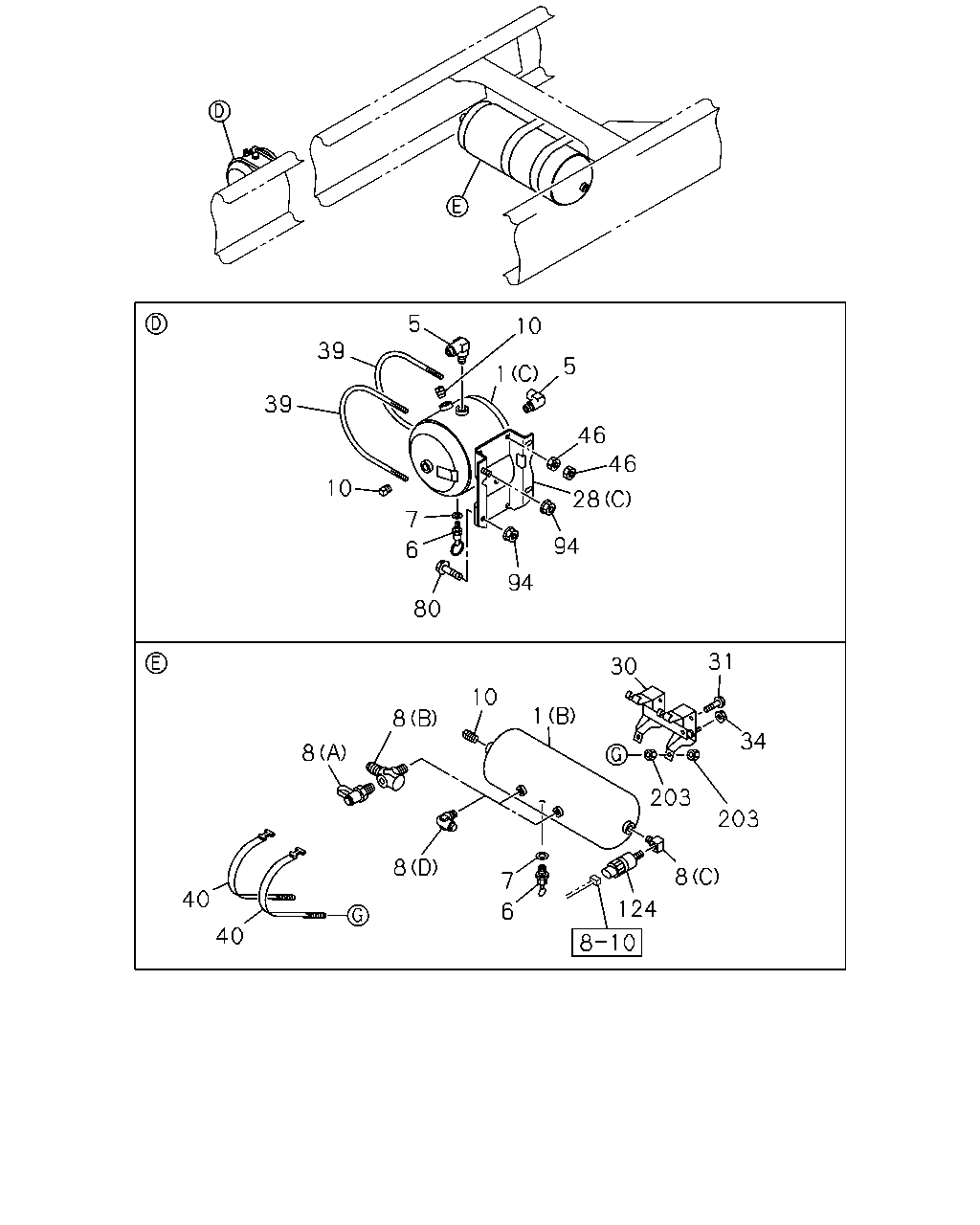

39
39
10
5
10
1
5
46
46
28
94
94
80
6
7
8
8
10
1
30
31
34
203
203
8
7
6
124
8
40
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK ASM; AIR
(A)
8-98018-795-2
01
1
1601-
●
●
1
TANK ASM; AIR
(C)
8-98081-870-1
01
1
1601-
●
●
1
TANK ASM; AIR
(B)
8-98166-972-0
01
1
1601-
●
●
5
UNION; AIR TANK
DIN8 & R3/8 ELBOW
1-09660-957-0
02
1
1601-
●
●
6
COCK; DRAIN,AIR TANK
1-48312-015-0
01
1
1601-
●
●
6
COCK; DRAIN,AIR TANK
1-48312-015-0
01
1
1601-
●
●
6
COCK; DRAIN,AIR TANK
1-48312-015-0
03
1
1601-
●
●
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
1601-
●
●
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
1601-
●
●
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
03
1
1601-
●
●
8
CONNECTOR; AIR TANK
(B) DIN1/8 & M16X2 3WAY
1-09656-462-1
01
1
1601-
●
●
8
CONNECTOR; AIR TANK
(C) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
1601-
●
●
8
CONNECTOR; AIR TANK
(D) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1601-
●
●
8
CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR
1-47459-013-1
01
1
1601-
●
●
10
PLUG; AIR TANK
PT3/8
9-09204-517-0
01
1
1601-
●
●
10
PLUG; AIR TANK
PT3/8
9-09204-517-0
01
1
1601-
●
●
10
PLUG; AIR TANK
PT3/8
9-09204-517-0
02
1
1601-
●
●
28
BRACKET; AIR TANK
(A)
8-98021-918-5
01
1
1601-
●
●
28
BRACKET; AIR TANK
(B)
8-98044-509-5
01
1
1601-
●
●
28
BRACKET; AIR TANK
(C)
8-98100-165-3
01
1
1601-
●
●
30
BRACKET; AIR TANK,SUB
1-48317-894-1
01
1
1601-
●
●
31
BOLT; BRKT TO FRAME
M10X30 FLANGE
0-28651-030-0
02
1
1601-
●
●
34
NUT; BRKT,AIR TANK
M10 FLANGE
0-91180-210-0
02
1
1601-
●
●
39
U-BOLT; AIR TANK
L=210
1-48317-458-1
02
1
1601-
●
●
40
BAND ASM; AIR TANK
1-48317-893-1
02
1
1601-
●
●
46
NUT; U-BOLT
M8
0-91110-508-0
08
1
1601-
●
●
80
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
03
1
1601-
●
●
94
NUT; BRKT FIX
M10 FLANGE
0-91180-210-0
04
1
1601-
●
●
124
SWITCH; AIR PRESSURE
STAMP 6.0
8-97615-622-0
01
1
1601-
●
●
203
NUT
M8
0-91110-508-0
04
1
1601-
●
●

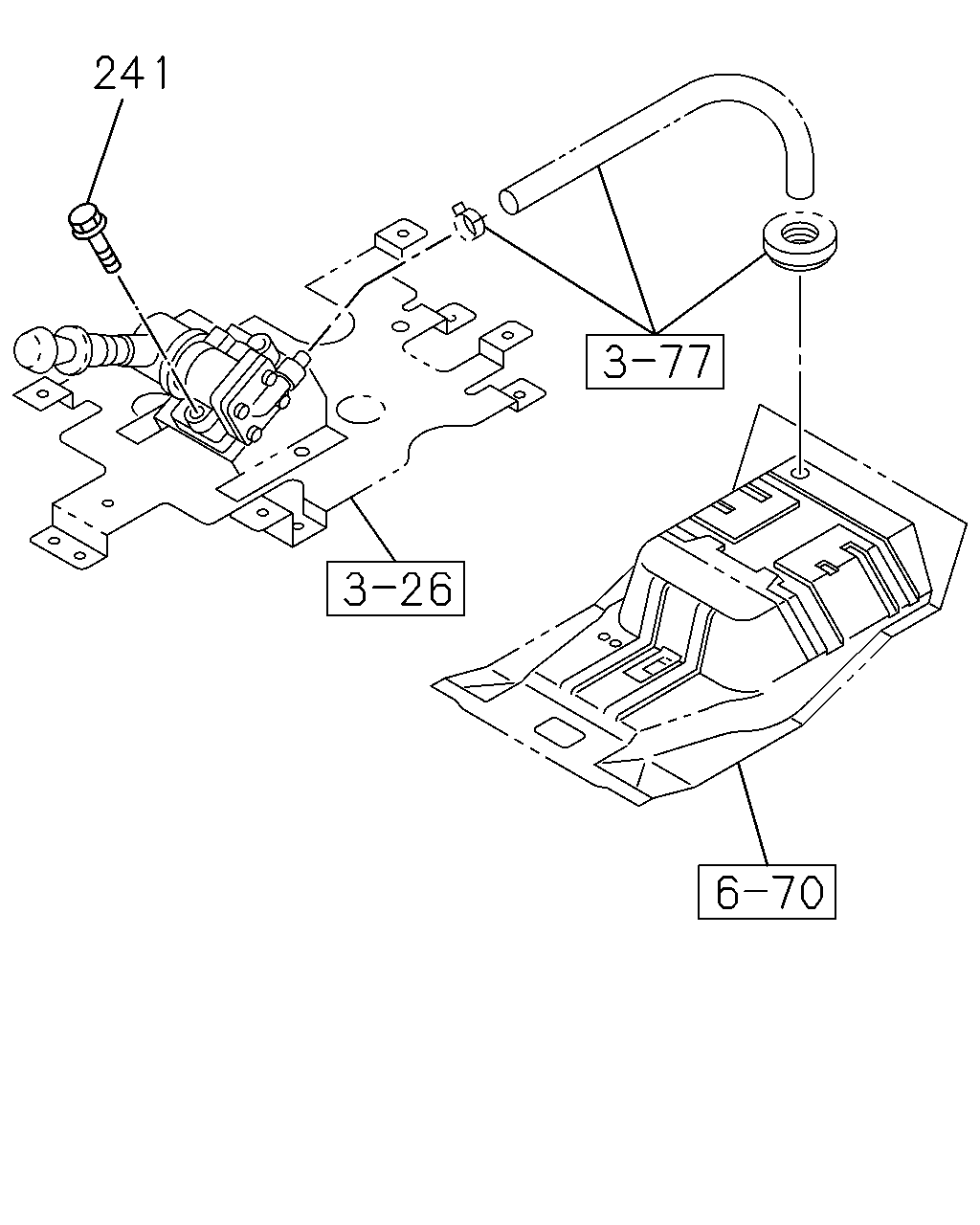

241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
241
BOLT; SET,CONT VLV
M8X70 FLANGE
0-28050-870-0
02
1
1601-
●
●

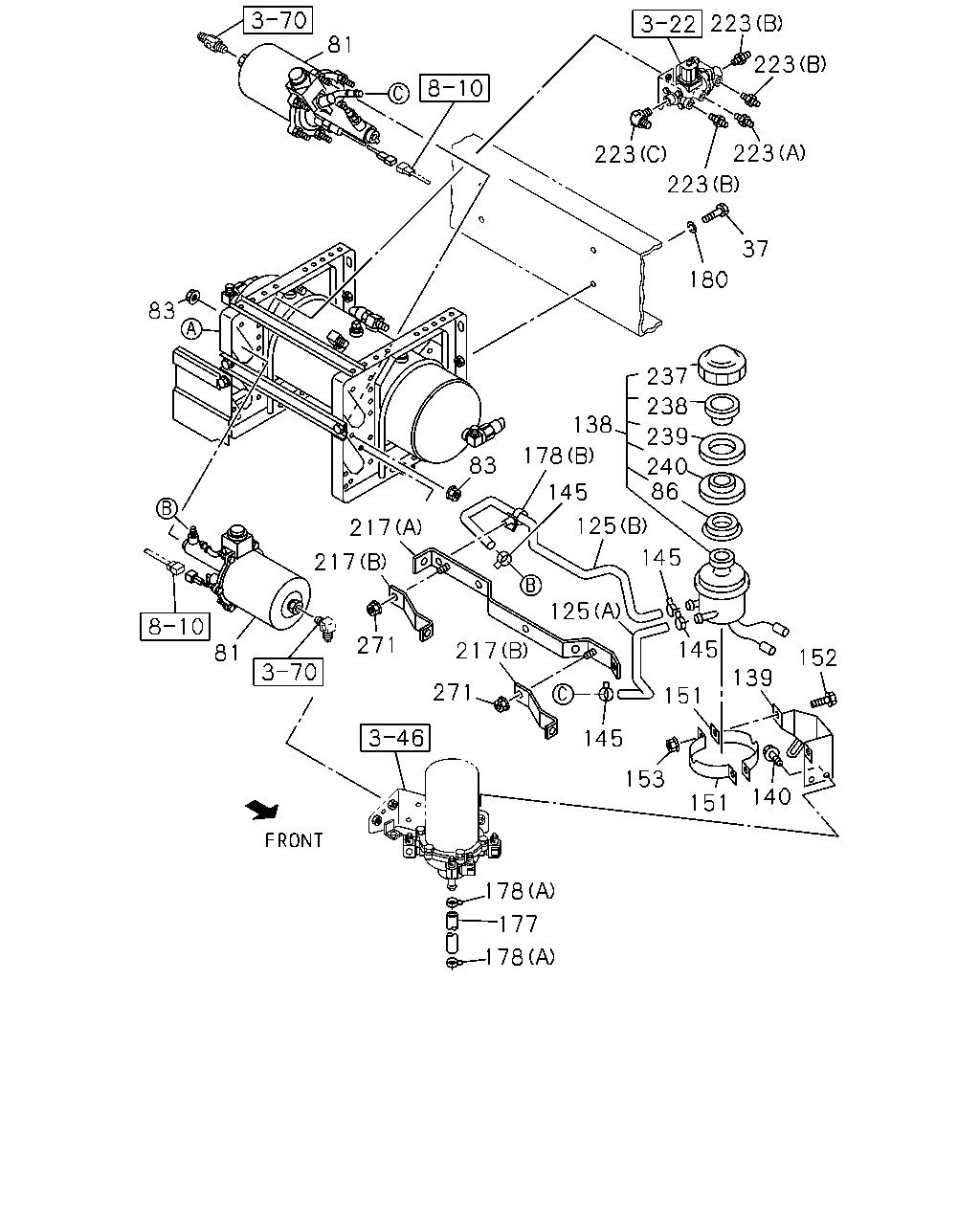

81
223
223
223
223
223
180
37
237
238
239
240
86
138
178
145
145
125
152
139
140
151
153
145
151
145
125
217
271
178
177
271
217
217
81
83
83
178
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
37
BOLT; AIR TANK
M12X40 FLANGE
0-28651-240-0
04
1
1601-
●
●
81
AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT.
1-47800-826-0
02
1
1601-
●
●
83
NUT; AIR MASTER
M8 FLANGE
0-91180-108-0
09
1
1601-
●
●
86
SEAL; DUST
1-47529-019-0
01
1
1601-
●
●
125
HOSE; OIL TANK TO AIR MASTER
(A)
8-98051-217-0
01
1
1601-
●
●
125
HOSE; OIL TANK TO AIR MASTER
(B)
8-98051-218-1
01
1
1601-
●
●
138
TANK ASM; OIL,AIR MASTER
1-47530-185-1
01
1
1601-
●
●
139
BRACKET; OIL TANK
8-98051-105-0
01
1
1601-
●
●
140
BOLT; OIL TANK TO BRKT
M8X20 FLANGE
0-28650-820-0
02
1
1601-
●
●
145
CLIP; OIL TANK TO AIR MASTER HOSE
ID=14
1-09704-102-0
04
1
1601-
●
●
151
BAND; OIL TANK,AIR MASTER
1-47537-056-2
02
1
1601-
●
●
152
BOLT; OIL TANK TO BAND
M8X20 FLANGE
0-28650-820-0
02
1
1601-
●
●
153
NUT; OIL TANK TO BAND
M8 FLANGE
0-91180-108-0
02
1
1601-
●
●
177
HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000
0-03566-300-0
01
1
1601-
●
●
178
CLIP; HOSE
(A) ID=21
8-94242-034-0
02
1
1601-
●
●
178
CLIP; HOSE
(B) ID=13-18 L=14.5
1-09709-290-0
08
1
1601-
●
●
180
WASHER; LK
ID=12.5 OD=32
0-91614-712-0
04
1
1601-
●
●
217
BRACKET; RUBBER HOSE
(A)
8-98082-871-0
01
1
1601-
●
●
217
BRACKET; RUBBER HOSE
(B)
8-98085-273-1
02
1
1601-
●
●
223
UNION
H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
1601-
●
●
223
UNION
H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT
1-09650-179-1
03
1
1601-
●
●
223
UNION
H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW
1-09650-438-0
01
1
1601-
●
●
237
CAP; OIL TANK
1-47525-030-0
01
1
1601-
●
●
238
PLATE; BAFFLE
1-47529-022-0
01
1
1601-
●
●
239
FILTER; DUST
1-47529-017-0
01
1
1601-
●
●
240
HOLDER; FILTER
1-47529-018-0
01
1
1601-
●
●
271
NUT; BRKT,HOSE
M8 FLANGE
0-91180-108-0
02
1
1601-
●
●
