Isuzu WW
▶
TRUCKS
▶
FRR
▶
11720 - FRR AUST/NZ JNLT09 SPACECAB
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶
3-05 — REAR WHEEL BRAKE
(#175500) — 81 parça
Tümü
A - FCD5CS
B - FCR5CS
◀

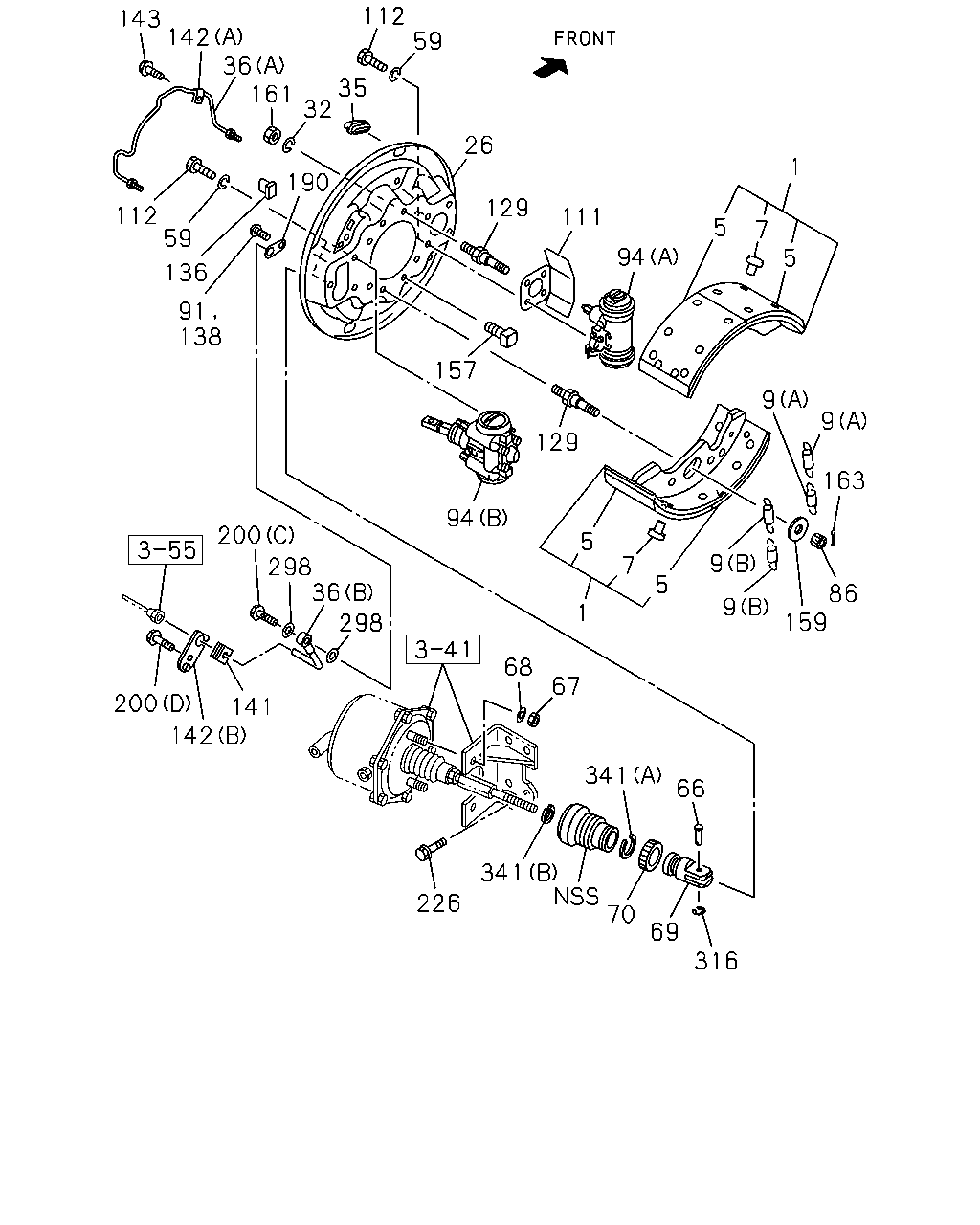

[305A] NO.1 (46 parça)

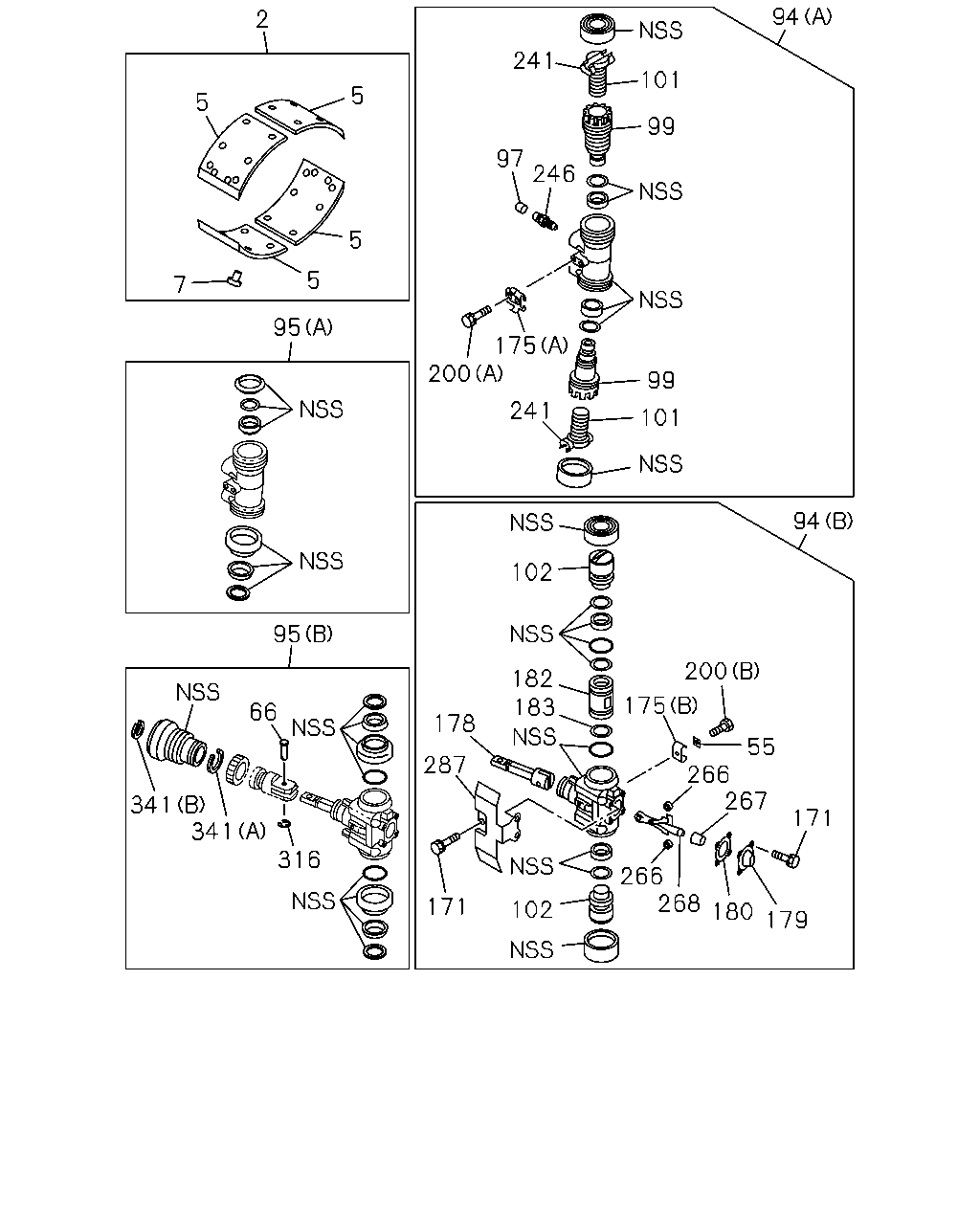

[305A] NO.2 (35 parça)
▶
143
161
36
142
32
35
112
26
59
129
190
59
112
136
138
91
157
94
129
5
1
7
5
9
9
159
163
86
9
9
5
7
5
94
1
111
68
67
341
66
316
69
70
341
226
298
36
298
200
142
200
141
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SHOE; BRK,RR
1-47170-485-1
04
1
1601-
●
●
5
LINING; RR BRK SHOE,STANDARD
1-47126-802-0
08
1
1601-
●
●
7
RIVET; LINING,RR BRK
D6X11.5
1-09732-019-0
96
1
1601-
●
●
9
SPRING; RETURN,BRK SHOE
(A)
1-09583-381-1
04
1
1601-
●
●
9
SPRING; RETURN,BRK SHOE
(B)
1-09583-382-0
04
1
1601-
●
●
26
PLATE; BACK,RR BRK
1-47150-712-2
01
1
1601-
●
●
26
PLATE; BACK,RR BRK
1-47150-713-2
01
1
1601-
●
●
32
WASHER; LK
1-47159-110-0
04
1
1601-
●
●
35
GROMMET; CHECK HOLE
1-09333-139-0
04
1
1601-
●
●
36
PIPE; OIL,RR BRK
(A)
1-49167-857-0
01
1
1601-
●
●
36
PIPE; OIL,RR BRK
(A)
1-49167-858-0
01
1
1601-
●
●
36
PIPE; OIL,RR BRK
(B)
1-49167-905-0
02
1
1601-
●
●
59
WASHER; LK,RR WHEEL CYL
ID=12.2
0-91510-612-0
14
1
1601-
●
●
66
PIN; JAW JOINT
1-09744-129-0
02
1
1601-
●
●
67
NUT; POWER CHAMBER FIX
M16
0-91110-516-0
04
1
1601-
●
●
68
WASHER; LK,CHAMBER
ID=16.2
0-91510-816-0
04
1
1601-
●
●
69
JOINT; JAW
1-09768-106-1
02
1
1601-
●
●
70
NUT; LK,JAW JOINT
M18
0-91111-518-0
02
1
1601-
●
●
86
NUT; FLANGE
1-09440-101-0
04
1
1601-
●
●
91
BOLT; CHAMBER
M5X10 W/LK WASHER
0-36220-510-0
02
1
1601-
●
●
94
CYLINDER; WHEEL,RR BRK
(A) FORWARD
1-47601-166-1
02
1
1601-
●
●
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
1-47601-218-0
01
1
1601-
●
●
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
1-47601-219-0
01
1
1601-
●
●
111
COVER; WHEEL CYL
1-47159-230-0
02
1
1601-
●
●
112
BOLT; WHEEL CYL SETTING
1-47159-112-0
14
1
1601-
●
●
129
PIN; SHOE HOLD
1-47162-044-0
04
1
1601-
●
●
136
GROMMET
1-09333-138-0
04
1
1601-
●
●
138
SCREW; LOCK PLATE
M5X10 W/LK WASHER
0-36220-510-0
02
1
1601-
●
●
141
PROTECTOR; RR BRK PIPE
1-09332-133-0
02
1
1601-
●
●
142
CLAMP; OIL PIPE
(A)
1-09701-322-0
02
1
1601-
●
●
142
CLAMP; OIL PIPE
(B)
1-47619-189-0
02
1
1601-
●
●
143
BOLT; CLAMP,OIL PIPE
M6X10
9-01900-610-0
02
1
1601-
●
●
157
BOLT; RR BRK SET
M14X43
1-09060-003-0
12
1
1601-
●
●
159
WASHER; SHOE HOLD
1-47169-037-0
04
1
1601-
●
●
161
NUT; SHOE HOLD LOCK
1-47159-111-0
04
1
1601-
●
●
163
PIN; SPLIT,SHOE HOLD
OD=1.8 L=20
0-81122-020-0
04
1
1601-
●
●
190
PLATE; LK,CONNECTOR
1-47619-032-0
04
1
1601-
●
●
200
BOLT
(C)
1-47159-240-0
02
1
1601-
●
●
200
BOLT
(D)
1-47159-241-0
02
1
1601-
●
●
200
BOLT
(A)
1-47622-071-0
04
1
1601-
●
●
200
BOLT
(B)
1-47622-072-0
02
1
1601-
●
●
226
BOLT; BRKT
M14X35 FLANGE
0-28651-435-0
08
1
1601-
●
●
298
GASKET
1-47616-115-0
04
1
1601-
●
●
316
RING; SNAP
ID=9
0-91805-509-0
02
1
1601-
●
●
341
SPRING; ASSIST,BOOT
(A)
1-47616-110-0
02
1
1601-
●
●
341
SPRING; ASSIST,BOOT
(B)
1-47619-184-0
02
1
1601-
●
●
2
5
5
5
5
7
95
95
66
341
341
316
241
97
246
200
175
241
101
99
99
101
94
102
182
183
178
287
171
102
266
268
180
179
171
267
266
175
200
94
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
LINING SET; RR BRK,STANDARD
1-88311-387-0
02
1
1601-
●
●
5
LINING; RR BRK SHOE,STANDARD
1-47126-802-0
08
1
1601-
●
●
7
RIVET; LINING,RR BRK
D6X11.5
1-09732-019-0
96
1
1601-
●
●
55
PLATE; LK,RR WHEEL CYL
1-47622-073-0
02
1
1601-
●
●
66
PIN; JAW JOINT
1-09744-129-0
02
1
1601-
●
●
94
CYLINDER; WHEEL,RR BRK
(A) FORWARD
1-47601-166-1
02
1
1601-
●
●
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
1-47601-218-0
01
1
1601-
●
●
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
1-47601-219-0
01
1
1601-
●
●
95
CUP SET; RR WHEEL CYL
(A) FORWARD
1-87831-324-0
02
1
1601-
●
●
95
CUP SET; RR WHEEL CYL
(B) BACKWARD
1-87831-325-0
02
1
1601-
●
●
97
CAP; BLEEDER,RR WHEEL CYL
OD=12
1-47619-011-0
02
1
1601-
●
●
99
PISTON; RR WHEEL CYL
1-47620-240-0
04
1
1601-
●
●
101
SCREW; ADJ,RR WHEEL CYL
1-47622-070-0
04
1
1601-
●
●
102
PISTON; REAR WHEEL CYL
1-47620-241-0
02
1
1601-
●
●
171
BOLT; RR WHEEL CYL
1-47622-071-0
10
1
1601-
●
●
175
HANGER; RR WHEEL BRK
(A)
1-47619-187-0
02
1
1601-
●
●
175
HANGER; RR WHEEL BRK
(B)
1-47619-188-0
02
1
1601-
●
●
178
WEDGE; RR WHEEL CYL
1-47640-013-0
02
1
1601-
●
●
179
COVER; WEDGE,RR WHEEL CYL
1-47649-045-0
02
1
1601-
●
●
180
GASKET; COVER,RR WHEEL CYL
1-47619-013-0
02
1
1601-
●
●
182
TAPPET; RR WHEEL CYL
1-47629-280-0
04
1
1601-
●
●
183
GASKET; TAPPET,WHEEL CYL
1-09623-690-0
02
1
1601-
●
●
200
BOLT
(C)
1-47159-240-0
02
1
1601-
●
●
200
BOLT
(D)
1-47159-241-0
02
1
1601-
●
●
200
BOLT
(A)
1-47622-071-0
04
1
1601-
●
●
200
BOLT
(B)
1-47622-072-0
02
1
1601-
●
●
241
HOLDER
1-47619-097-0
04
1
1601-
●
●
246
BLEEDER
1-47615-009-0
02
1
1601-
●
●
266
ROLLER; WEDGE
1-47643-003-0
04
1
1601-
●
●
267
CAGE; WEDGE
1-47649-004-0
02
1
1601-
●
●
268
RETAINER; WEDGE
1-47649-003-0
02
1
1601-
●
●
287
COVER
1-47619-186-0
02
1
1601-
●
●
316
RING; SNAP
ID=9
0-91805-509-0
02
1
1601-
●
●
341
SPRING; ASSIST,BOOT
(A)
1-47616-110-0
02
1
1601-
●
●
341
SPRING; ASSIST,BOOT
(B)
1-47619-184-0
02
1
1601-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
