Isuzu WW
▶
TRUCKS
▶
FRR
▶
11720 - FRR AUST/NZ JNLT09 SPACECAB
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶
2-53 — TRANSMISSION OIL COOLER SYSTEM
(#175496) — 41 parça
Tümü
A - FCD5CS
B - FCR5CS
◀
[253A] NO.2 (19 parça)
[253A] NO.1 (20 parça)
[253A] NO.3 (2 parça)
▶

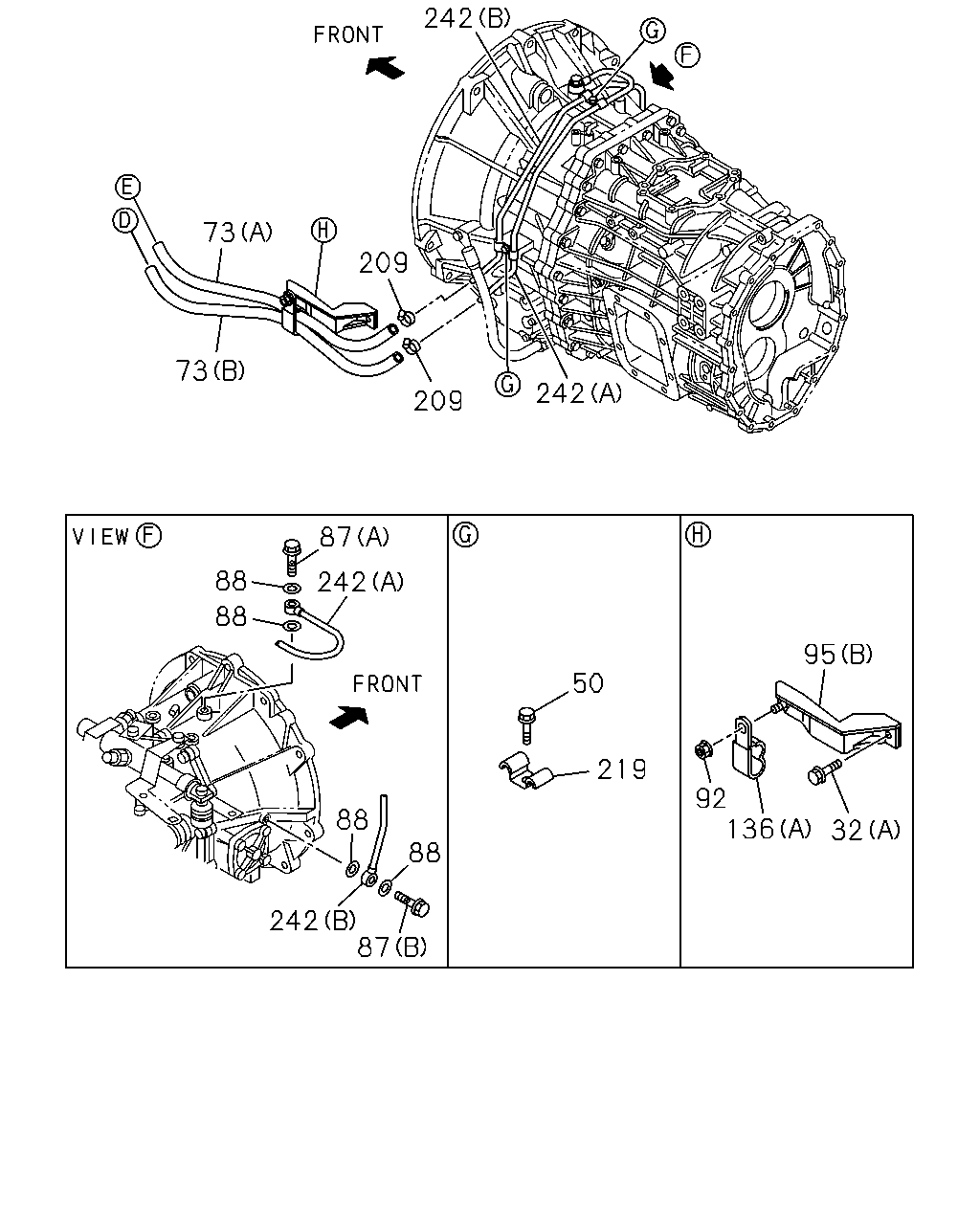

242
242
209
209
73
73
95
32
136
92
219
50
242
88
88
87
88
88
242
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
32
BOLT; BRKT
SMOOTHER-FX(TYPE2)(8NS) (A) M8X20 FLANGE
0-28650-820-0
01
1
1601-
●
●
32
BOLT; BRKT
SMOOTHER-FX(TYPE2)(8NS) (B) M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
1601-
●
●
50
BOLT; CLIP
SMOOTHER-FX(TYPE2)(8NS) M8X20 FLANGE
0-28650-820-0
01
1
1601-
●
●
50
BOLT; CLIP
SMOOTHER-FX(TYPE2)(8NS) M8X20 FLANGE
0-28650-820-0
02
1
1601-
●
●
73
HOSE; FLEX,TRANS
SMOOTHER-FX(TYPE2)(8NS) (A) L=380
8-98128-215-0
01
1
1601-
●
●
73
HOSE; FLEX,TRANS
SMOOTHER-FX(TYPE2)(8NS) (B) L=440
8-98128-216-0
01
1
1601-
●
●
87
BOLT; EYE
SMOOTHER-FX(TYPE2)(8NS) (B) M14X30 EYE-BOLT
8-98037-827-0
01
1
1601-
●
●
87
BOLT; EYE
SMOOTHER-FX(TYPE2)(8NS) (A) M14X35.5 FLANGE
8-98060-612-0
01
1
1601-
●
●
88
GASKET; EYE BOLT
SMOOTHER-FX(TYPE2)(8NS) ID=14.2 OD=20.0
9-09571-414-0
04
1
1601-
●
●
92
NUT; CLIP
SMOOTHER-FX(TYPE2)(8NS) M8 FLANGE
0-91180-108-0
02
1
1601-
●
●
95
BRACKET; CLIP
SMOOTHER-FX(TYPE2)(8NS) (A)
8-98045-564-0
01
1
1601-
●
●
95
BRACKET; CLIP
SMOOTHER-FX(TYPE2)(8NS) (C)
8-98065-886-0
01
1
1601-
●
●
95
BRACKET; CLIP
SMOOTHER-FX(TYPE2)(8NS) (B)
8-98072-008-0
01
1
1601-
●
●
136
CLIP; FLEX HOSE
SMOOTHER-FX(TYPE2)(8NS) (B)
8-98009-406-0
01
1
1601-
●
●
136
CLIP; FLEX HOSE
SMOOTHER-FX(TYPE2)(8NS) (A)
8-98084-148-0
01
1
1601-
●
●
209
CLIP; HOSE
SMOOTHER-FX(TYPE2)(8NS)
8-98192-447-0
08
1
1601-
●
●
219
CLIP; ATF PIPE
SMOOTHER-FX(TYPE2)(8NS) ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
02
1
1601-
●
●
242
PIPE; COOLER
SMOOTHER-FX(TYPE2)(8NS) (A)
8-98303-637-0
01
1
1601-
●
●
242
PIPE; COOLER
SMOOTHER-FX(TYPE2)(8NS) (B)
8-98303-638-0
01
1
1601-
●
●

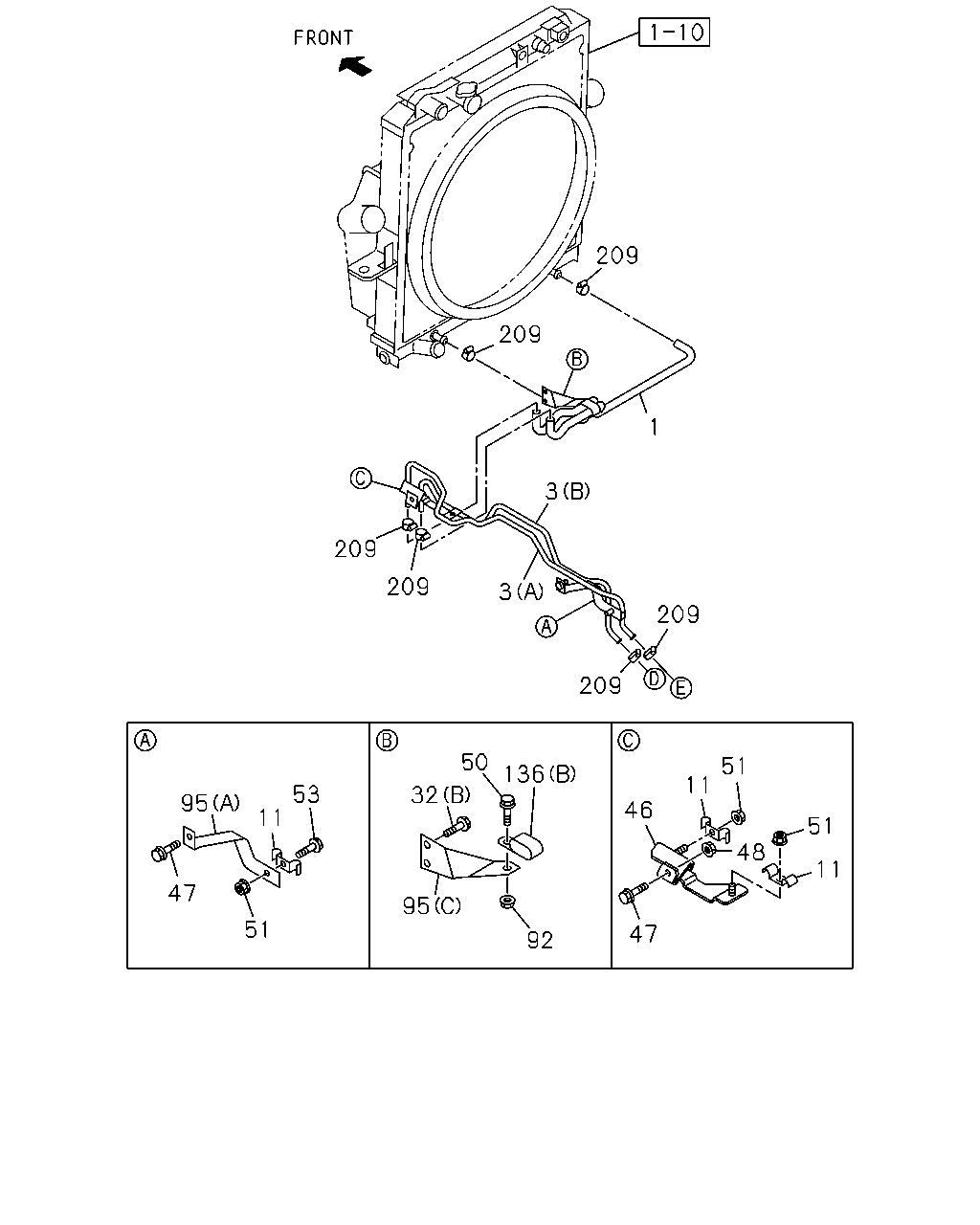

209
209
3
1
3
209
209
209
209
51
11
51
11
48
46
47
136
50
92
32
95
53
11
51
47
95
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HOSE; ATF
SMOOTHER-FX(TYPE2)(8NS)
8-98239-350-0
01
1
1601-
●
●
3
PIPE; OIL,A/T TO OIL COOLER
SMOOTHER-FX(TYPE2)(8NS) (A) L=997
8-98160-443-0
01
1
1601-
●
●
3
PIPE; OIL,A/T TO OIL COOLER
SMOOTHER-FX(TYPE2)(8NS) (B) L=924
8-98165-917-0
01
1
1601-
●
●
11
CLIP; PIPE
SMOOTHER-FX(TYPE2)(8NS) ID=11 & 11 L=21.5 & 21.5
1-09700-660-0
03
1
1601-
●
●
32
BOLT; BRKT
SMOOTHER-FX(TYPE2)(8NS) (A) M8X20 FLANGE
0-28650-820-0
01
1
1601-
●
●
32
BOLT; BRKT
SMOOTHER-FX(TYPE2)(8NS) (B) M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
1601-
●
●
46
BRACKET; OIL PIPE
SMOOTHER-FX(TYPE2)(8NS)
8-98125-906-0
01
1
1601-
●
●
47
BOLT; BRKT TO FRAME
SMOOTHER-FX(TYPE2)(8NS) M8X30 FLANGE
0-28650-830-0
02
1
1601-
●
●
48
NUT; BRKT
SMOOTHER-FX(TYPE2)(8NS) M8 FLANGE
0-91180-108-0
01
1
1601-
●
●
50
BOLT; CLIP
SMOOTHER-FX(TYPE2)(8NS) M8X20 FLANGE
0-28650-820-0
01
1
1601-
●
●
50
BOLT; CLIP
SMOOTHER-FX(TYPE2)(8NS) M8X20 FLANGE
0-28650-820-0
02
1
1601-
●
●
51
NUT; CLIP TO BRKT
SMOOTHER-FX(TYPE2)(8NS) M8 FLANGE
0-91180-108-0
03
1
1601-
●
●
53
BOLT; CLIP,FLEX HOSE,A/T
SMOOTHER-FX(TYPE2)(8NS) M8X20 FLANGE
0-28650-820-0
01
1
1601-
●
●
92
NUT; CLIP
SMOOTHER-FX(TYPE2)(8NS) M8 FLANGE
0-91180-108-0
02
1
1601-
●
●
95
BRACKET; CLIP
SMOOTHER-FX(TYPE2)(8NS) (A)
8-98045-564-0
01
1
1601-
●
●
95
BRACKET; CLIP
SMOOTHER-FX(TYPE2)(8NS) (C)
8-98065-886-0
01
1
1601-
●
●
95
BRACKET; CLIP
SMOOTHER-FX(TYPE2)(8NS) (B)
8-98072-008-0
01
1
1601-
●
●
136
CLIP; FLEX HOSE
SMOOTHER-FX(TYPE2)(8NS) (B)
8-98009-406-0
01
1
1601-
●
●
136
CLIP; FLEX HOSE
SMOOTHER-FX(TYPE2)(8NS) (A)
8-98084-148-0
01
1
1601-
●
●
209
CLIP; HOSE
SMOOTHER-FX(TYPE2)(8NS)
8-98192-447-0
08
1
1601-
●
●

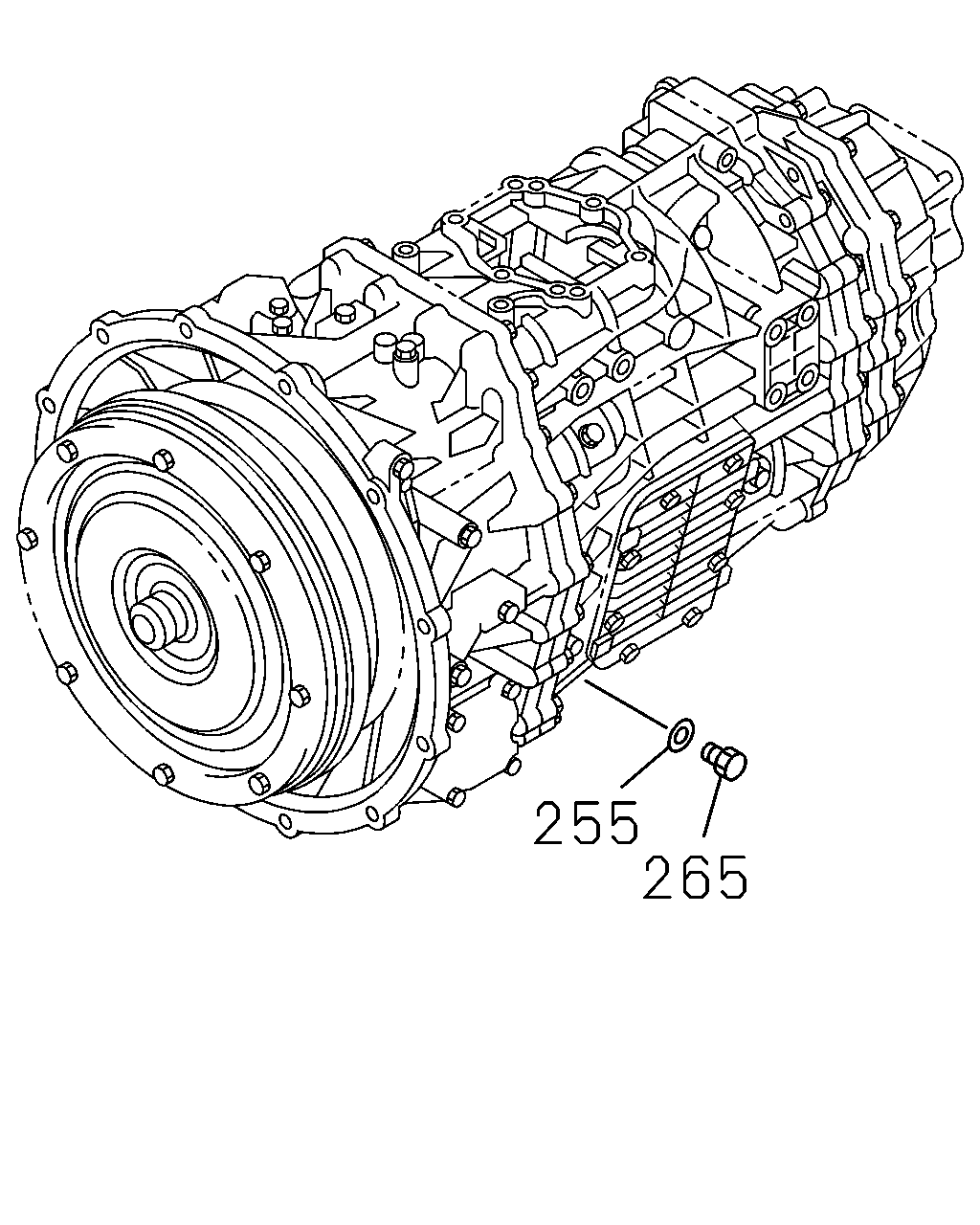

265
255
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
255
GASKET; SENSOR
ID=12.2
9-09571-412-0
01
1
1601-
●
●
265
PLUG; HOLE
M12X9
0-92002-412-0
01
1
1601-
●
●
