◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11720 - FRR AUST/NZ JNLT09 SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#175493) — 20 parça

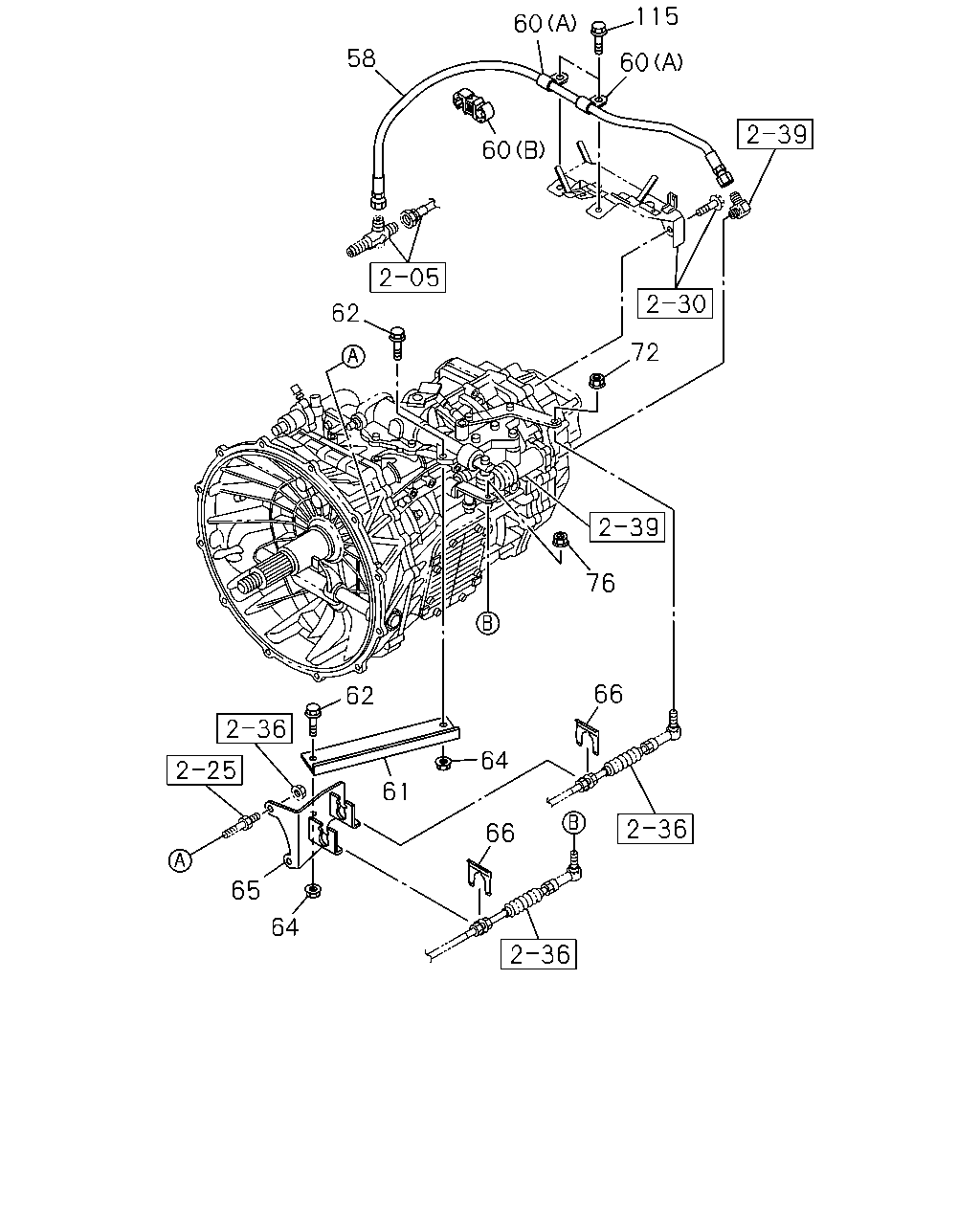

çizim 512816
58 62 60 60 115 60 72 76 66 64 66 61 62 64 65
BalonParca AdiParca NoAdetTipApplied Date A B
58 HOSE; FLEX,POWER ASSISTOR
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> L=640 		1-09363-626-1 01 1 1601- ●
58 HOSE; FLEX,POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> L=640 		1-09363-626-1 01 1 1601- ●
60 CLIP; FLEX HOSE
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20 		0-95235-235-0 02 1 1601- ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20 		0-95235-235-0 02 1 1601- ●
60 CLIP; FLEX HOSE
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10 		1-09709-277-1 01 1 1601- ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10 		1-09709-277-1 01 1 1601- ●
61 STAY; BRKT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 1601- ● ●
62 BOLT; STAY
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 02 1 1601- ●
62 BOLT; STAY
ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 02 1 1601- ●
64 NUT; STAY
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-210-0 02 1 1601- ●
64 NUT; STAY
ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-210-0 02 1 1601- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> 		8-98123-495-1 01 1 1601- ● ●
66 CLIP; SELECT BRKT
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> ID=22.2 		1-09701-209-1 02 1 1601- ●
66 CLIP; SELECT BRKT
ASSISTOR SHIFT CONTROL<WX8> ID=22.2 		1-09701-209-1 02 1 1601- ●
72 NUT; TRANS CONT,SELECT
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-049-0 01 1 1601- ●
72 NUT; TRANS CONT,SELECT
ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-049-0 01 1 1601- ●
76 NUT; BALL JOINT,SELECT WIRE
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-049-0 01 1 1601- ●
76 NUT; BALL JOINT,SELECT WIRE
ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-049-0 01 1 1601- ●
115 BOLT; CLIP
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 02 1 1601- ●
115 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 02 1 1601- ●
