2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#175492) — 49 parça

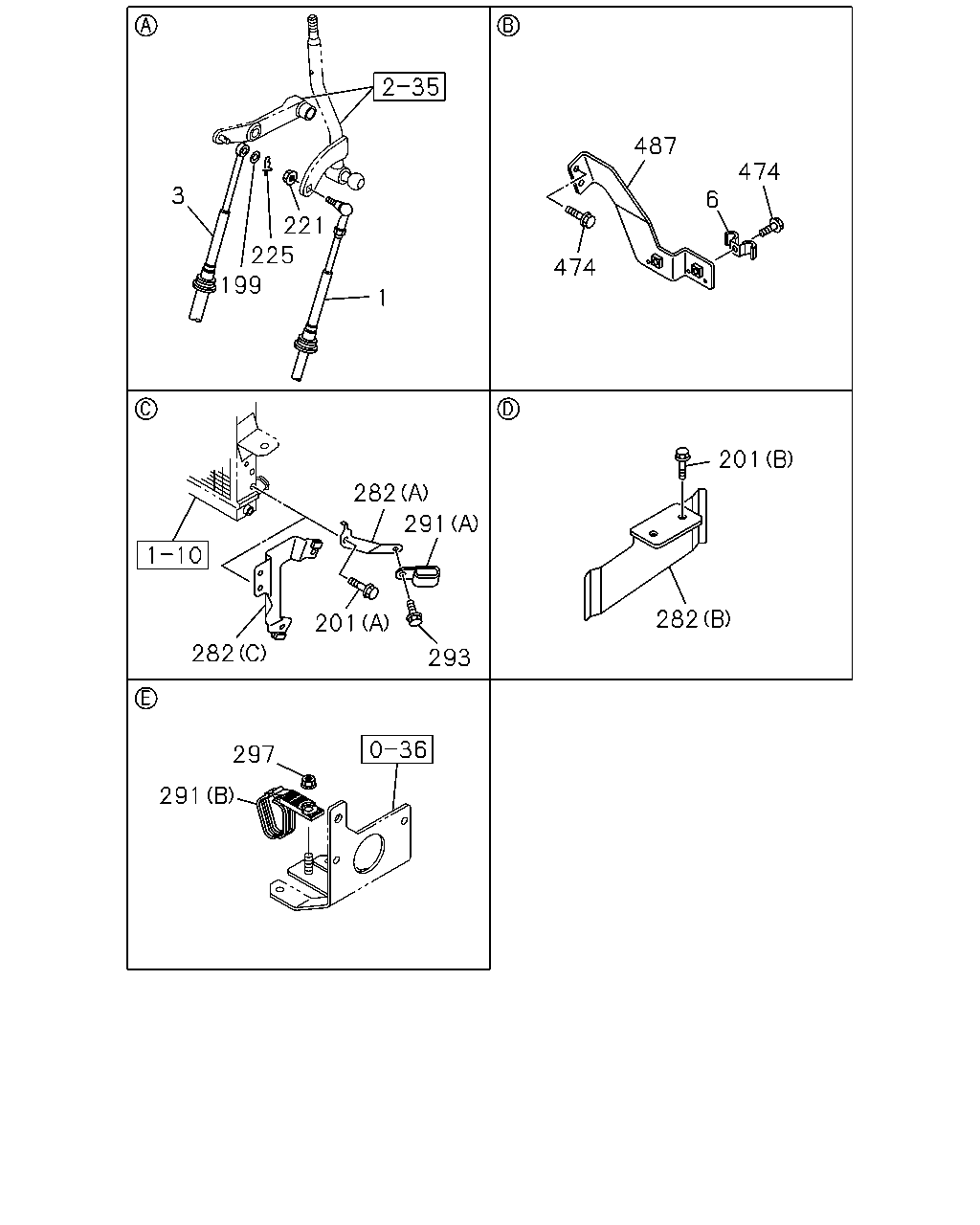

221 1 225 199 3 474 487 6 474 201 282 282 291 293 201 282 297 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> L=3310	8-98123-487-3	01	1	1601-	●
1	CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3310	8-98123-487-3	01	1	1601-		●
1	CABLE; SHIFT,TRANS CONT 4HK1-TCH ENG(RDW) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3195	8-98214-941-1	01	1	1601-		●
1	CABLE; SHIFT,TRANS CONT POWER TAKE OFF-FLYWHEEL<6SZ> L=3140	8-98123-490-3	01	1	1601-		●
3	CABLE; SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> L=3085	8-98123-489-1	01	1	1601-	●
3	CABLE; SELECT,TRANS CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3085	8-98123-489-1	01	1	1601-		●
3	CABLE; SELECT,TRANS CONT 4HK1-TCH ENG(RDW) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3420	8-98214-942-1	01	1	1601-		●
3	CABLE; SELECT,TRANS CONT POWER TAKE OFF-FLYWHEEL<6SZ> L=3365	8-98123-491-1	01	1	1601-		●
6	CLIP; CABLE 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1601-	●
6	CLIP; CABLE ASSISTOR SHIFT CONTROL<WX8> ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1601-		●
199	WASHER; PL,SELECT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=16	0-91614-508-0	01	1	1601-	●
199	WASHER; PL,SELECT ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=16	0-91614-508-0	01	1	1601-		●
201	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> (B) M8X20 FLANGE	0-28050-820-0	02	1	1601-	●	●
201	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE	0-28050-816-0	01	1	1601-	●
201	BOLT; BRKT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE	0-28050-816-0	01	1	1601-		●
201	BOLT; BRKT 4HK1-TCH ENG(RDW) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) M8X16 FLANGE	0-28050-816-0	02	1	1601-		●
221	NUT; SHIFT WIRE TO LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-062-1	01	1	1601-	●
221	NUT; SHIFT WIRE TO LEVER ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-062-1	01	1	1601-		●
225	PIN; SELECT CABLE 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> L=27.7	8-94111-137-0	01	1	1601-	●
225	PIN; SELECT CABLE ASSISTOR SHIFT CONTROL<WX8> L=27.7	8-94111-137-0	01	1	1601-		●
282	BRACKET; TRANS SIDE ASSISTOR SHIFT CONTROL<WX8> (B)	8-98148-173-3	01	1	1601-	●	●
282	BRACKET; TRANS SIDE ASSISTOR SHIFT CONTROL<WX8> (A)	8-98127-809-0	01	1	1601-	●
282	BRACKET; TRANS SIDE 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98127-809-0	01	1	1601-		●
282	BRACKET; TRANS SIDE 4HK1-TCH ENG(RDW) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (C)	8-98332-426-0	01	1	1601-		●
291	CLIP; SHIFT TO SELECT,FRAME ASSISTOR SHIFT CONTROL<WX8> (B)	8-98148-478-1	01	1	1601-	●	●
291	CLIP; SHIFT TO SELECT,FRAME ASSISTOR SHIFT CONTROL<WX8> (A) ID=11X2 L=16	0-95325-026-0	01	1	1601-	●
291	CLIP; SHIFT TO SELECT,FRAME 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (A) ID=11X2 L=16	0-95325-026-0	01	1	1601-		●
291	CLIP; SHIFT TO SELECT,FRAME 4HK1-TCH ENG(RDW) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) ID=11X2 L=16	0-95325-026-0	02	1	1601-		●
293	BOLT; CLIP,SHIFT TO SELECT ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	1601-	●
293	BOLT; CLIP,SHIFT TO SELECT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	1601-		●
293	BOLT; CLIP,SHIFT TO SELECT 4HK1-TCH ENG(RDW) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M8X16 FLANGE	0-28050-816-0	02	1	1601-		●
297	NUT; CLIP 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	01	1	1601-	●
297	NUT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	01	1	1601-		●
474	BOLT; BRKT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WASHER	0-51640-825-0	03	1	1601-	●
474	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WASHER	0-51640-825-0	03	1	1601-		●
487	BRACKET; CONT CABLE 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98183-009-0	01	1	1601-	●
487	BRACKET; CONT CABLE ASSISTOR SHIFT CONTROL<WX8>	8-98183-009-0	01	1	1601-		●

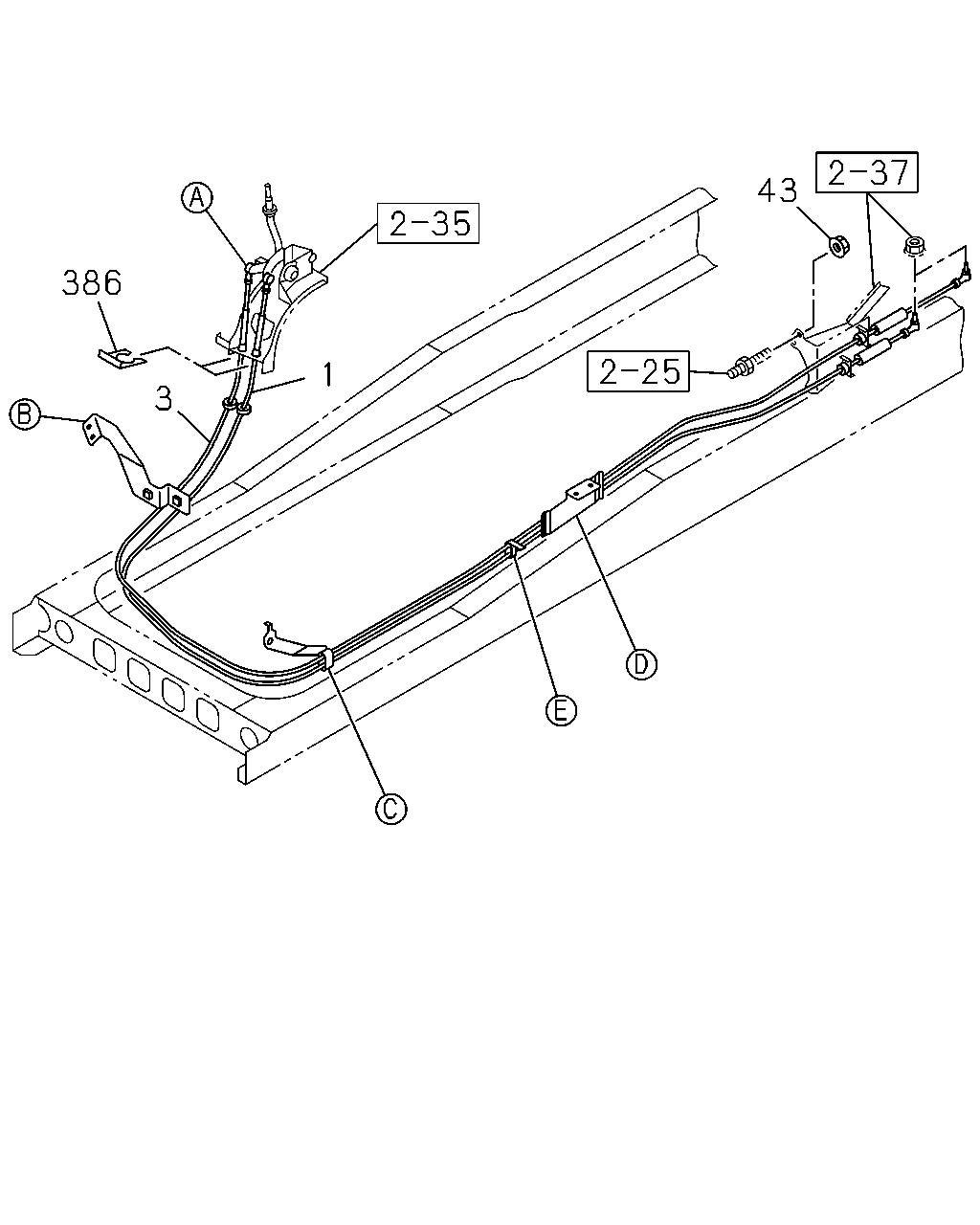

386 3 1 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> L=3310	8-98123-487-3	01	1	1601-	●
1	CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3310	8-98123-487-3	01	1	1601-		●
1	CABLE; SHIFT,TRANS CONT 4HK1-TCH ENG(RDW) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3195	8-98214-941-1	01	1	1601-		●
1	CABLE; SHIFT,TRANS CONT POWER TAKE OFF-FLYWHEEL<6SZ> L=3140	8-98123-490-3	01	1	1601-		●
3	CABLE; SELECT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> L=3085	8-98123-489-1	01	1	1601-	●
3	CABLE; SELECT,TRANS CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3085	8-98123-489-1	01	1	1601-		●
3	CABLE; SELECT,TRANS CONT 4HK1-TCH ENG(RDW) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3420	8-98214-942-1	01	1	1601-		●
3	CABLE; SELECT,TRANS CONT POWER TAKE OFF-FLYWHEEL<6SZ> L=3365	8-98123-491-1	01	1	1601-		●
43	NUT; BRKT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	02	1	1601-	●
43	NUT; BRKT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	02	1	1601-		●
386	CLIP; CONT CABLE & TUBE 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	1-09700-966-1	02	1	1601-	●
386	CLIP; CONT CABLE & TUBE ASSISTOR SHIFT CONTROL<WX8>	1-09700-966-1	02	1	1601-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
