2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#175491) — 58 parça

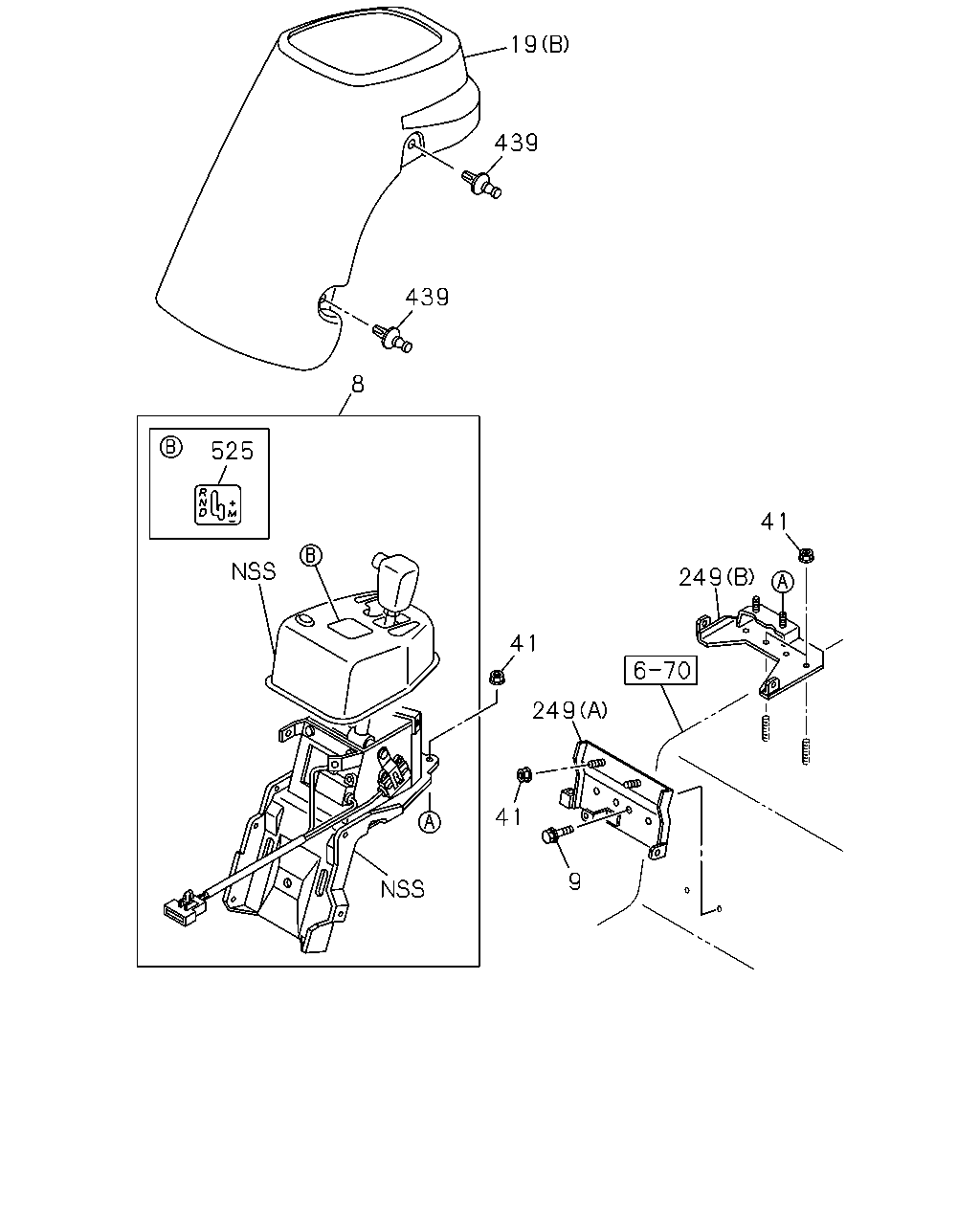

19 439 439 8 525 41 249 41 9 249 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	LEVER; CHANGE 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98071-282-0	01	1	1601-	●
8	LEVER; CHANGE ASSISTOR SHIFT CONTROL<WX8>	8-98071-282-0	01	1	1601-		●
8	LEVER; CHANGE SMOOTHER-FX(TYPE2)(8NS) DARK GRAY	8-97465-737-1	01	1	1601-	●	●
9	BOLT; CHANGE LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	1601-	●
9	BOLT; CHANGE LEVER ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	1601-		●
9	BOLT; CHANGE LEVER SMOOTHER-FX(TYPE2)(8NS) M8X20 FLANGE	0-28650-820-0	02	1	1601-	●	●
19	COVER; CHANGE LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) GRAY	8-97407-953-0	01	1	1601-	●	●
19	COVER; CHANGE LEVER SMOOTHER-FX(TYPE2)(8NS) (B) GRAY	8-97407-501-0	01	1	1601-	●	●
41	NUT; CHANGE LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> M8 W/DISHED WASHER	8-97329-625-0	02	1	1601-	●
41	NUT; CHANGE LEVER ASSISTOR SHIFT CONTROL<WX8> M8 W/DISHED WASHER	8-97329-625-0	02	1	1601-		●
41	NUT; CHANGE LEVER SMOOTHER-FX(TYPE2)(8NS) M8 W/DISHED WASHER	8-97329-625-0	06	1	1601-	●	●
249	BRACKET; COVER SMOOTHER-FX(TYPE2)(8NS) (A)	8-98016-951-3	01	1	1601-	●	●
249	BRACKET; COVER SMOOTHER-FX(TYPE2)(8NS) (B)	8-98016-952-3	01	1	1601-	●	●
439	FASTENER; COVER GRAY	8-97407-955-0	04	1	1601-	●	●
525	LABEL; SHIFT POSITION SMOOTHER-FX(TYPE2)(8NS)	8-98048-480-1	01	1	1601-	●	●

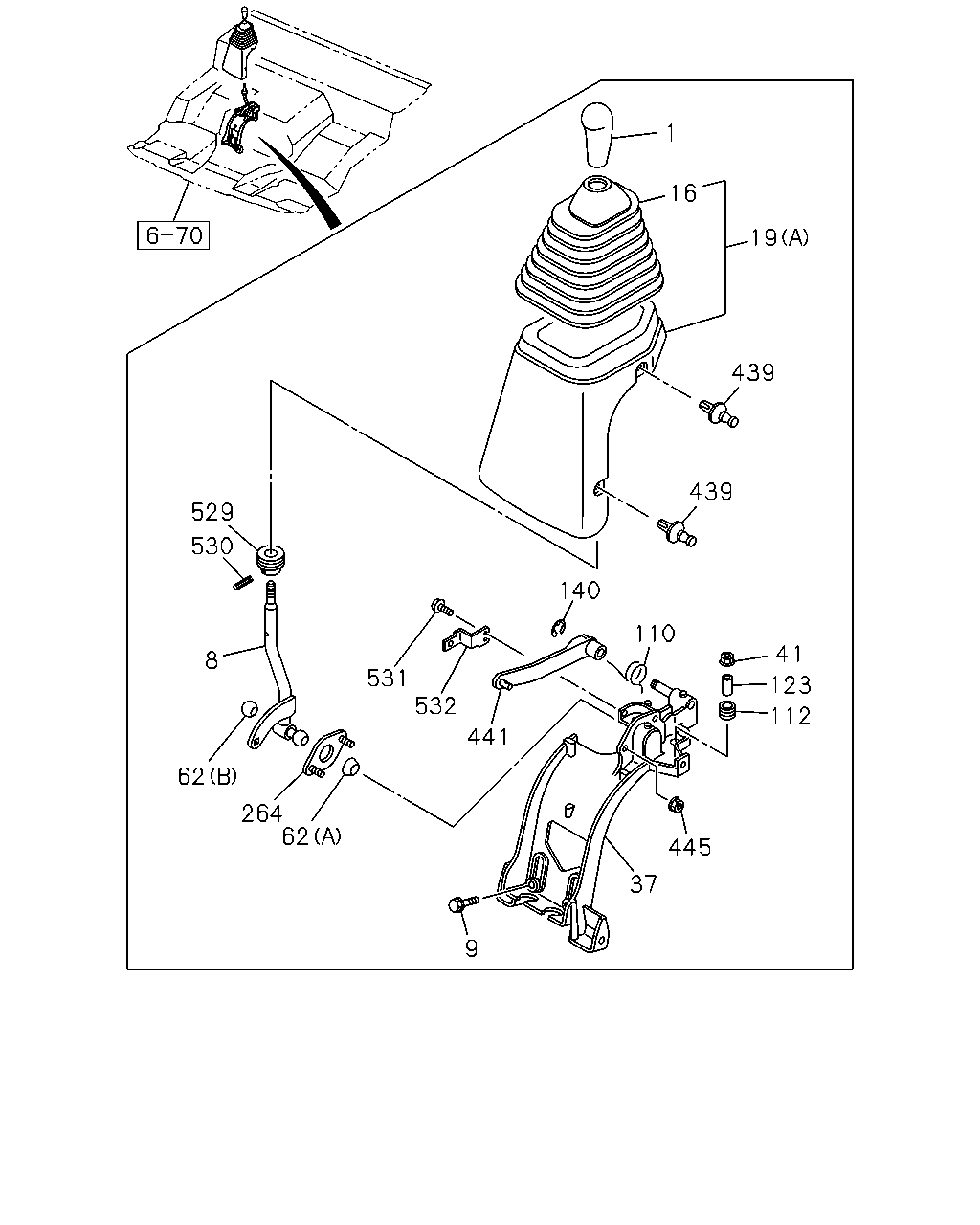

529 530 8 62 264 62 9 37 445 112 123 41 110 140 441 532 531 439 439 19 16 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	KNOB; CHANGE LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	1-33611-070-1	01	1	1601-	●
1	KNOB; CHANGE LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33611-070-1	01	1	1601-		●
8	LEVER; CHANGE 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98071-282-0	01	1	1601-	●
8	LEVER; CHANGE ASSISTOR SHIFT CONTROL<WX8>	8-98071-282-0	01	1	1601-		●
8	LEVER; CHANGE SMOOTHER-FX(TYPE2)(8NS) DARK GRAY	8-97465-737-1	01	1	1601-	●	●
9	BOLT; CHANGE LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	1601-	●
9	BOLT; CHANGE LEVER ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	1601-		●
9	BOLT; CHANGE LEVER SMOOTHER-FX(TYPE2)(8NS) M8X20 FLANGE	0-28650-820-0	02	1	1601-	●	●
16	BOOT; CHANGE LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-79998-751-4	01	1	1601-	●	●
19	COVER; CHANGE LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) GRAY	8-97407-953-0	01	1	1601-	●	●
19	COVER; CHANGE LEVER SMOOTHER-FX(TYPE2)(8NS) (B) GRAY	8-97407-501-0	01	1	1601-	●	●
37	BRACKET; CHANGE LEVER SUPPORT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98071-281-0	01	1	1601-	●
37	BRACKET; CHANGE LEVER SUPPORT ASSISTOR SHIFT CONTROL<WX8>	8-98071-281-0	01	1	1601-		●
41	NUT; CHANGE LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> M8 W/DISHED WASHER	8-97329-625-0	02	1	1601-	●
41	NUT; CHANGE LEVER ASSISTOR SHIFT CONTROL<WX8> M8 W/DISHED WASHER	8-97329-625-0	02	1	1601-		●
41	NUT; CHANGE LEVER SMOOTHER-FX(TYPE2)(8NS) M8 W/DISHED WASHER	8-97329-625-0	06	1	1601-	●	●
62	SEAT; BALL,CHANGE LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33619-427-0	01	1	1601-	●
62	SEAT; BALL,CHANGE LEVER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33619-427-0	01	1	1601-		●
62	SEAT; BALL,CHANGE LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (B)	8-97049-147-0	01	1	1601-	●
62	SEAT; BALL,CHANGE LEVER ASSISTOR SHIFT CONTROL<WX8> (B)	8-97049-147-0	01	1	1601-		●
110	SPRING; RETURN,CHANGE LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	1-33619-586-0	01	1	1601-	●
110	SPRING; RETURN,CHANGE LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33619-586-0	01	1	1601-		●
112	RUBBER; CUSHION 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-97091-426-0	04	1	1601-	●
112	RUBBER; CUSHION ASSISTOR SHIFT CONTROL<WX8>	8-97091-426-0	04	1	1601-		●
123	COLLAR; DIST,CHANGE LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-97091-427-0	04	1	1601-	●
123	COLLAR; DIST,CHANGE LEVER ASSISTOR SHIFT CONTROL<WX8>	8-97091-427-0	04	1	1601-		●
140	RING; SNAP 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> ID=10	0-91805-510-0	01	1	1601-	●
140	RING; SNAP ASSISTOR SHIFT CONTROL<WX8> ID=10	0-91805-510-0	01	1	1601-		●
264	PLATE; COVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	1-33619-430-0	01	1	1601-	●
264	PLATE; COVER ASSISTOR SHIFT CONTROL<WX8>	1-33619-430-0	01	1	1601-		●
439	FASTENER; COVER GRAY	8-97407-955-0	04	1	1601-	●	●
441	LEVER; SELECT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98071-283-0	01	1	1601-	●
441	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	8-98071-283-0	01	1	1601-		●
445	NUT; PLATE 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> M6 FLANGE	0-91180-106-0	02	1	1601-	●
445	NUT; PLATE ASSISTOR SHIFT CONTROL<WX8> M6 FLANGE	0-91180-106-0	02	1	1601-		●
529	RING; BOOT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	1-33619-504-0	01	1	1601-	●
529	RING; BOOT ASSISTOR SHIFT CONTROL<WX8>	1-33619-504-0	01	1	1601-		●
530	PIN; SPRING 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	1-33619-505-0	01	1	1601-	●
530	PIN; SPRING ASSISTOR SHIFT CONTROL<WX8>	1-33619-505-0	01	1	1601-		●
531	SCREW; STAY 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> M5X10 W/PL WASHER	9-03900-510-0	01	1	1601-	●
531	SCREW; STAY ASSISTOR SHIFT CONTROL<WX8> M5X10 W/PL WASHER	9-03900-510-0	01	1	1601-		●
532	STAY 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98071-284-0	01	1	1601-	●
532	STAY ASSISTOR SHIFT CONTROL<WX8>	8-98071-284-0	01	1	1601-		●
