2-30 — GEAR SHIFTER AND QUADRANT BOX (#175490) — 169 parça

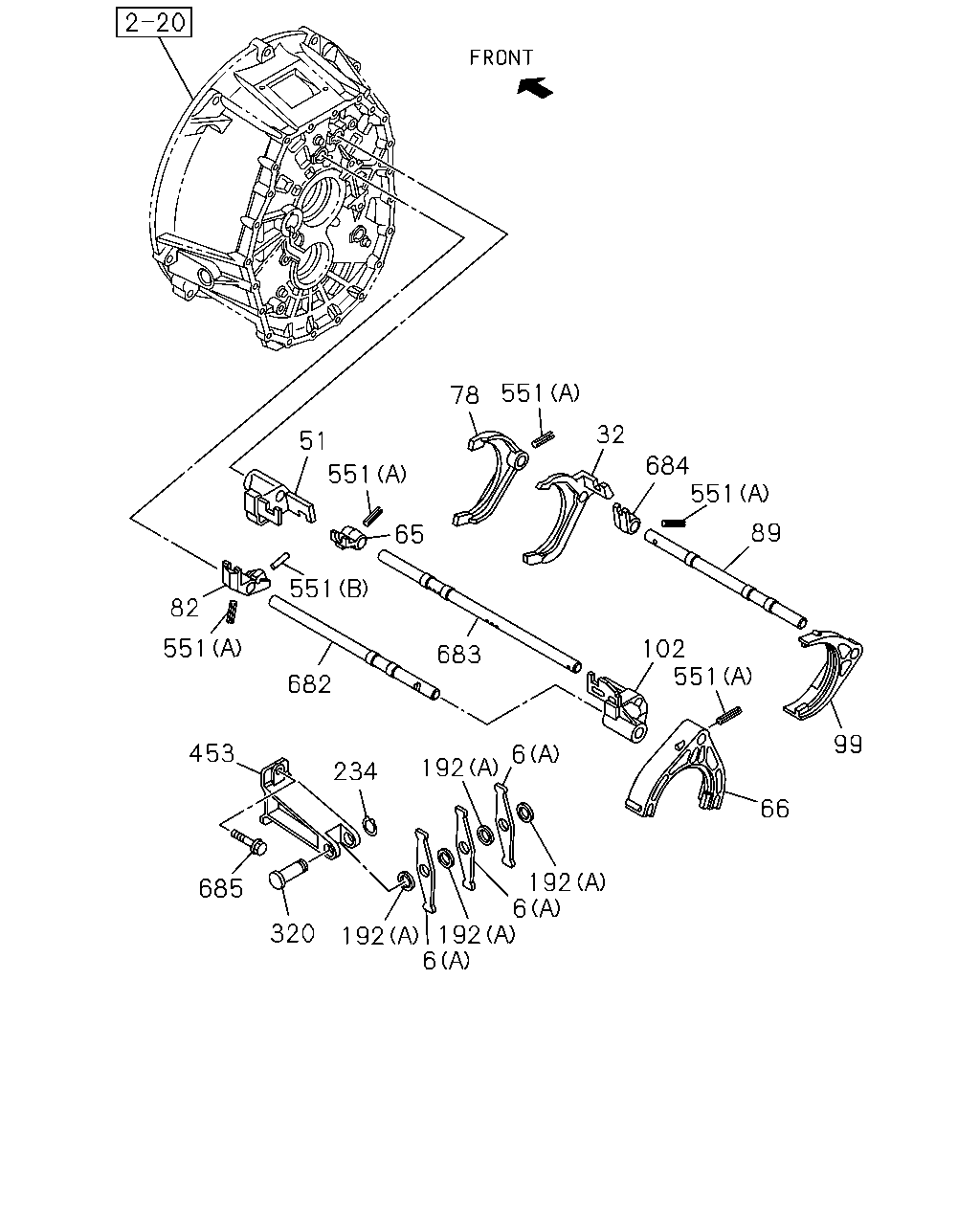

6 192 320 685 453 551 82 551 51 551 65 682 234 192 192 192 6 551 102 66 99 89 551 684 32 551 78 683 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1601-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98022-855-0	01	1	1601-
6	LEVER; RELAY SMOOTHER-FX(TYPE2)(8NS) (B)	8-97379-995-0	01	1	1601-
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1601-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1601-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1601-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1601-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1601-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1601-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1601-
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1601-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1601-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1601-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	1601-
192	WASHER; PL SMOOTHER-FX(TYPE2)(8NS) (C)	1-09503-280-0	01	1	1601-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1601-
320	SHAFT; LEVER	8-97377-928-0	01	1	1601-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1601-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=25 OD=5	1-09748-032-0	01	1	1601-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1601-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1601-
551	PIN; SPRING SMOOTHER-FX(TYPE2)(8NS) (D) L=30 OD=4	1-09748-031-0	02	1	1601-
551	PIN; SPRING SMOOTHER-FX(TYPE2)(8NS) (E) OD=5	8-97184-905-0	03	1	1601-
551	PIN; SPRING SMOOTHER-FX(TYPE2)(8NS) (F)	8-97379-991-0	01	1	1601-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1601-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1601-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1601-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1601-

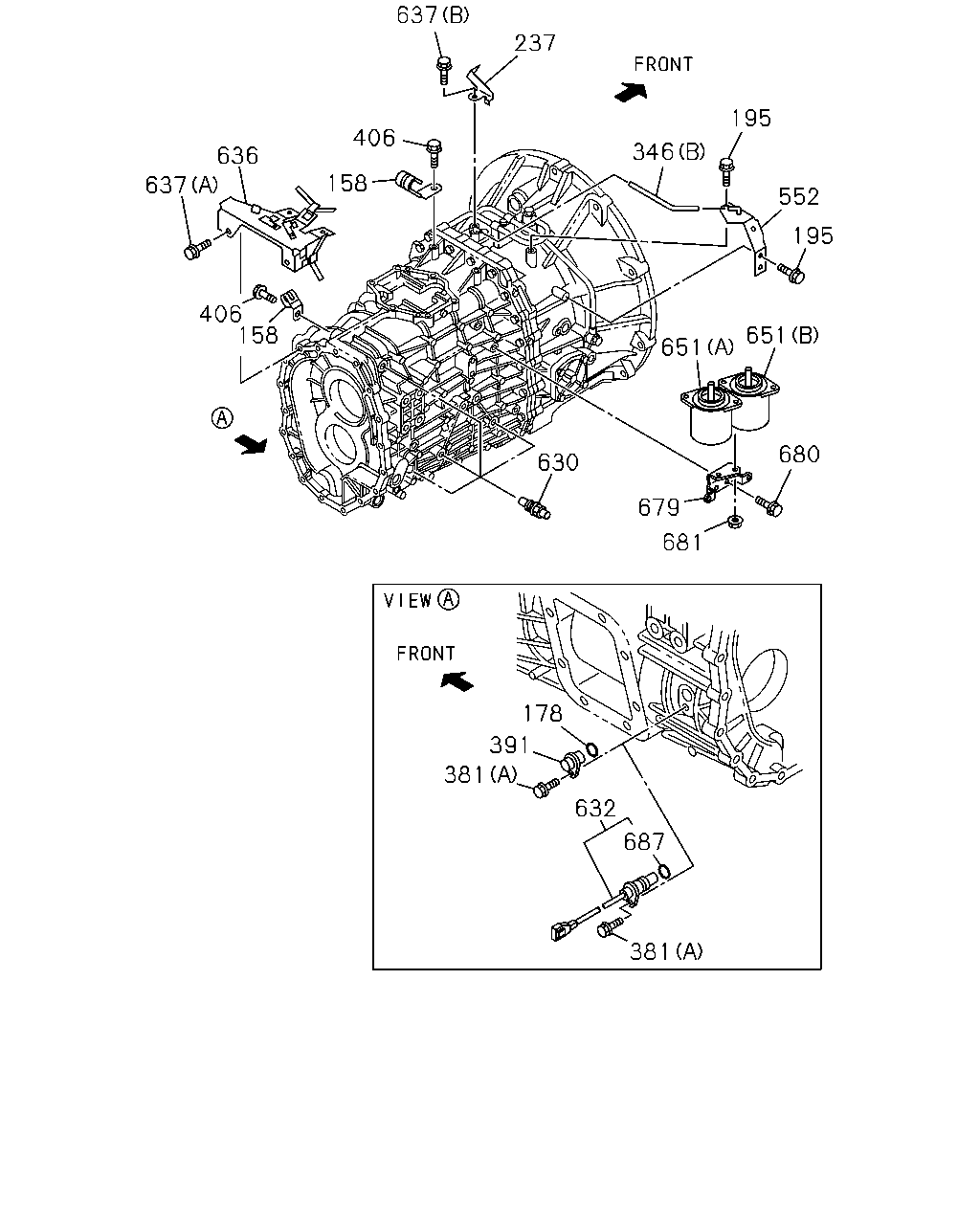

636 637 406 637 237 158 406 158 630 651 651 552 195 195 346 679 681 680 178 391 381 632 687 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1601-
158	CLIP; HARNESS SMOOTHER-FX(TYPE2)(8NS) ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1601-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-09567-113-0	01	1	1601-
195	BOLT SMOOTHER-FX(TYPE2)(8NS) M8X20 FLANGE	0-28650-820-0	02	1	1601-
237	BRACKET; CABLE,TRANS SMOOTHER-FX(TYPE2)(8NS)	8-98009-307-1	01	1	1601-
346	HOSE; AIR (A)	8-97309-855-0	01	1	1601-
346	HOSE; AIR SMOOTHER-FX(TYPE2)(8NS) (B)	8-97373-381-0	01	1	1601-
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	1601-
381	BOLT SMOOTHER-FX(TYPE2)(8NS) (B) M6X12 FLANGE	1-33739-842-0	04	1	1601-
391	PLUG; SW HOLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97300-273-1	01	1	1601-
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	1601-
406	BOLT; HARNESS CLIP SMOOTHER-FX(TYPE2)(8NS) M8X16 FLANGE	0-28050-816-0	02	1	1601-
552	BRACKET SMOOTHER-FX(TYPE2)(8NS)	8-98005-329-1	01	1	1601-
630	DETENT ASM	8-98019-536-0	04	1	1601-
632	SENSOR; TRANS,REV SMOOTHER-FX(TYPE2)(8NS)	8-97315-604-1	01	1	1601-
636	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98114-843-0	01	1	1601-
637	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE	0-28050-816-0	02	1	1601-
637	BOLT; BRACKET SMOOTHER-FX(TYPE2)(8NS) (B) M8X20 FLANGE	0-28650-820-0	01	1	1601-
651	SOLENOID ASM; SHIFT SMOOTHER-FX(TYPE2)(8NS) (A)	8-98048-497-1	01	1	1601-
651	SOLENOID ASM; SHIFT SMOOTHER-FX(TYPE2)(8NS) (B)	8-98048-498-1	01	1	1601-
679	BRACKET; HEAT PROTECTOR SMOOTHER-FX(TYPE2)(8NS)	8-98005-332-0	01	1	1601-
680	BOLT; FLANGE SMOOTHER-FX(TYPE2)(8NS) M10X20 FLANGE	0-28761-020-0	02	1	1601-
681	NUT; FLANGE SMOOTHER-FX(TYPE2)(8NS) M10 FLANGE	0-91180-210-0	02	1	1601-
687	GASKET; SENSOR SMOOTHER-FX(TYPE2)(8NS)	9-09567-113-0	01	1	1601-

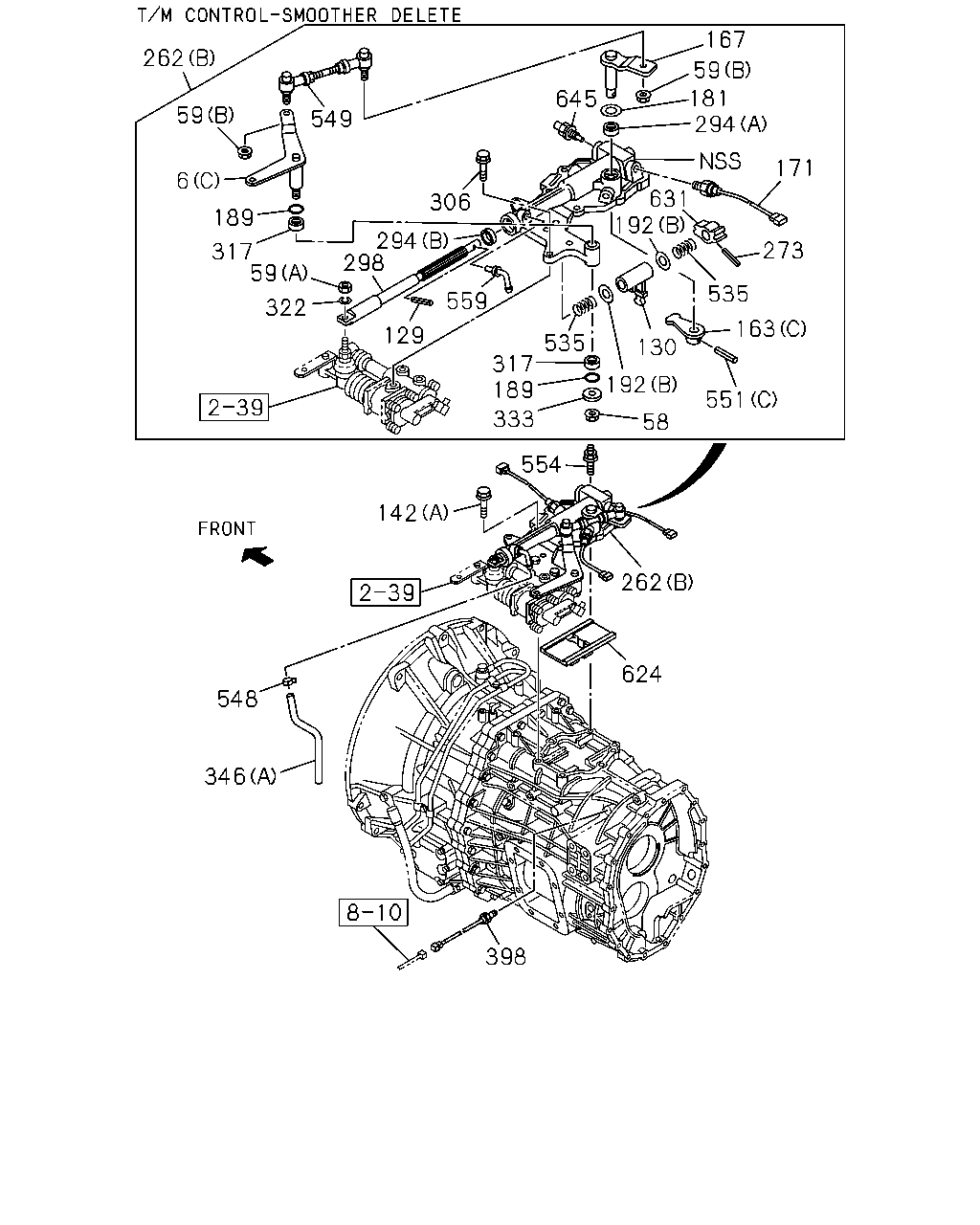

346 548 142 262 624 554 398 58 551 163 535 273 171 294 181 59 167 333 192 130 535 317 189 559 645 306 294 298 322 59 317 189 6 59 262 549 631 192 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1601-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98022-855-0	01	1	1601-
6	LEVER; RELAY SMOOTHER-FX(TYPE2)(8NS) (B)	8-97379-995-0	01	1	1601-
58	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-110-0	01	1	1601-
59	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12	0-91110-512-0	01	1	1601-
59	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE	0-91180-108-0	02	1	1601-
129	PIN; SPR,SHIFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4	1-09748-031-0	01	1	1601-
130	LEVER; SHIFT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97306-647-0	01	1	1601-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE	8-97365-376-0	04	1	1601-
142	BOLT; QUAD BOX SMOOTHER-FX(TYPE2)(8NS) (B) M8X35 FLANGE	8-98020-384-0	03	1	1601-
142	BOLT; QUAD BOX SMOOTHER-FX(TYPE2)(8NS) (C) M8X75 FLANGE	8-98020-385-0	03	1	1601-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-97305-663-0	01	1	1601-
163	LEVER; SELECT,INTERNAL SMOOTHER-FX(TYPE2)(8NS) (A)	8-97379-979-0	01	1	1601-
163	LEVER; SELECT,INTERNAL SMOOTHER-FX(TYPE2)(8NS) (B)	8-97379-990-0	01	1	1601-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98022-857-0	01	1	1601-
167	LEVER; SELECT,EXTERNAL SMOOTHER-FX(TYPE2)(8NS)	8-97379-994-0	01	1	1601-
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1601-
181	WASHER; PL,SELECT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97367-327-0	01	1	1601-
189	GASKET; SELECT LEVER,CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09623-594-0	02	1	1601-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1601-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	1601-
192	WASHER; PL SMOOTHER-FX(TYPE2)(8NS) (C)	1-09503-280-0	01	1	1601-
262	BOX ASM; SHIFT CONT SMOOTHER-FX(TYPE2)(8NS) (A)	8-98331-686-0	01	1	1601-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98305-335-1	01	1	1601-
273	PIN; SPR,STOPPER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) D=4.2 L=25	8-97103-142-0	01	1	1601-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-662-0	01	1	1601-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97363-225-0	01	1	1601-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-FX(TYPE2)(8NS) (C)	1-09625-600-0	01	1	1601-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-342-0	01	1	1601-
298	SHAFT; SHIFT LEVER SMOOTHER-FX(TYPE2)(8NS)	8-97379-978-0	01	1	1601-
306	BOLT; SHIFT ASSISTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X50 FLANGE	0-28051-050-0	03	1	1601-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09330-119-0	02	1	1601-
317	BUSHING; LEVER SMOOTHER-FX(TYPE2)(8NS)	8-97379-997-0	02	1	1601-
322	WASHER; LK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98031-750-0	01	1	1601-
333	WASHER; PL,LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.5	0-91610-710-0	01	1	1601-
346	HOSE; AIR (A)	8-97309-855-0	01	1	1601-
346	HOSE; AIR SMOOTHER-FX(TYPE2)(8NS) (B)	8-97373-381-0	01	1	1601-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1601-
535	SPRING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97385-713-0	02	1	1601-
548	CLIP; HOSE	8-97031-674-0	01	1	1601-
549	ROD; LINK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98022-841-0	01	1	1601-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=25 OD=5	1-09748-032-0	01	1	1601-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1601-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1601-
551	PIN; SPRING SMOOTHER-FX(TYPE2)(8NS) (D) L=30 OD=4	1-09748-031-0	02	1	1601-
551	PIN; SPRING SMOOTHER-FX(TYPE2)(8NS) (E) OD=5	8-97184-905-0	03	1	1601-
551	PIN; SPRING SMOOTHER-FX(TYPE2)(8NS) (F)	8-97379-991-0	01	1	1601-
554	STUD; CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49	8-97365-378-0	02	1	1601-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-318-0	01	1	1601-
559	PIPE; BREATHER SMOOTHER-FX(TYPE2)(8NS)	8-98020-710-0	01	1	1601-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1601-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-666-0	01	1	1601-
631	STOPPER; SPRING SMOOTHER-FX(TYPE2)(8NS)	8-97379-984-0	01	1	1601-
645	DETENT ASM TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98019-536-0	01	1	1601-

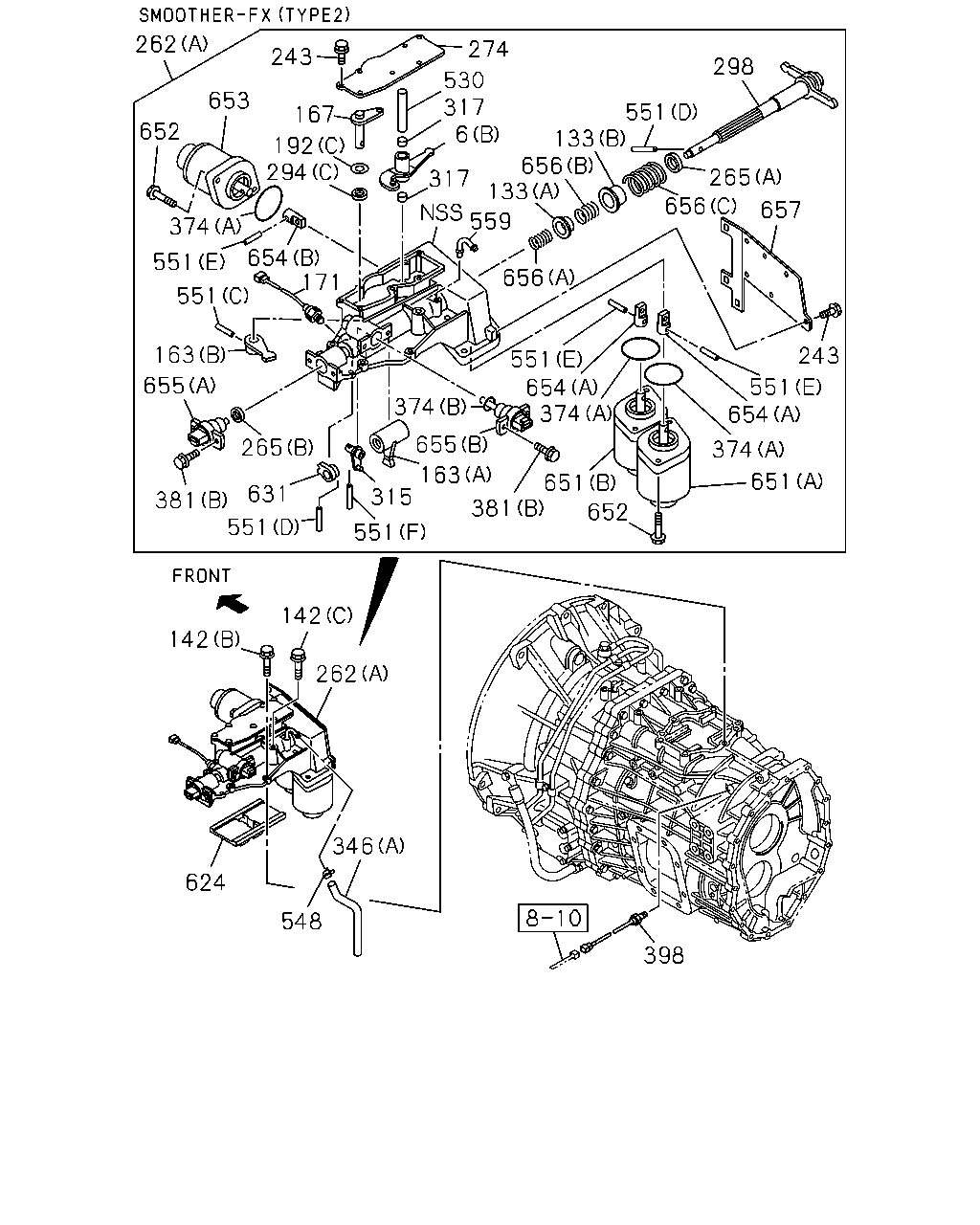

262 243 652 653 374 551 654 551 163 655 171 167 192 294 274 530 317 6 551 298 133 656 133 559 265 656 657 656 551 243 551 654 651 374 652 651 374 654 374 163 655 315 551 551 631 381 265 317 381 142 142 262 624 548 398 346

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1601-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98022-855-0	01	1	1601-
6	LEVER; RELAY SMOOTHER-FX(TYPE2)(8NS) (B)	8-97379-995-0	01	1	1601-
133	SEAT; SPR SMOOTHER-FX(TYPE2)(8NS) (A)	8-97379-988-0	01	1	1601-
133	SEAT; SPR SMOOTHER-FX(TYPE2)(8NS) (B)	8-97379-989-0	01	1	1601-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE	8-97365-376-0	04	1	1601-
142	BOLT; QUAD BOX SMOOTHER-FX(TYPE2)(8NS) (B) M8X35 FLANGE	8-98020-384-0	03	1	1601-
142	BOLT; QUAD BOX SMOOTHER-FX(TYPE2)(8NS) (C) M8X75 FLANGE	8-98020-385-0	03	1	1601-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-97305-663-0	01	1	1601-
163	LEVER; SELECT,INTERNAL SMOOTHER-FX(TYPE2)(8NS) (A)	8-97379-979-0	01	1	1601-
163	LEVER; SELECT,INTERNAL SMOOTHER-FX(TYPE2)(8NS) (B)	8-97379-990-0	01	1	1601-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98022-857-0	01	1	1601-
167	LEVER; SELECT,EXTERNAL SMOOTHER-FX(TYPE2)(8NS)	8-97379-994-0	01	1	1601-
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1601-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1601-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	1601-
192	WASHER; PL SMOOTHER-FX(TYPE2)(8NS) (C)	1-09503-280-0	01	1	1601-
243	BOLT; COVER SMOOTHER-FX(TYPE2)(8NS) M6X12 FLANGE	1-33739-842-0	11	1	1601-
262	BOX ASM; SHIFT CONT SMOOTHER-FX(TYPE2)(8NS) (A)	8-98331-686-0	01	1	1601-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98305-335-1	01	1	1601-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-FX(TYPE2)(8NS) (A)	8-97363-225-0	01	1	1601-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-FX(TYPE2)(8NS) (B)	8-97379-981-0	01	1	1601-
274	COVER; SHAFT,QUAD BOX SMOOTHER-FX(TYPE2)(8NS)	8-98020-711-0	01	1	1601-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-662-0	01	1	1601-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97363-225-0	01	1	1601-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-FX(TYPE2)(8NS) (C)	1-09625-600-0	01	1	1601-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-342-0	01	1	1601-
298	SHAFT; SHIFT LEVER SMOOTHER-FX(TYPE2)(8NS)	8-97379-978-0	01	1	1601-
315	LEVER; SELECT SMOOTHER-FX(TYPE2)(8NS)	8-98296-526-0	01	1	1601-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09330-119-0	02	1	1601-
317	BUSHING; LEVER SMOOTHER-FX(TYPE2)(8NS)	8-97379-997-0	02	1	1601-
346	HOSE; AIR (A)	8-97309-855-0	01	1	1601-
346	HOSE; AIR SMOOTHER-FX(TYPE2)(8NS) (B)	8-97373-381-0	01	1	1601-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-FX(TYPE2)(8NS) (A)	8-97349-571-0	03	1	1601-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-FX(TYPE2)(8NS) (B)	8-97349-573-0	01	1	1601-
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	1601-
381	BOLT SMOOTHER-FX(TYPE2)(8NS) (B) M6X12 FLANGE	1-33739-842-0	04	1	1601-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1601-
530	SHAFT; SELECT SMOOTHER-FX(TYPE2)(8NS)	8-97379-996-0	01	1	1601-
548	CLIP; HOSE	8-97031-674-0	01	1	1601-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=25 OD=5	1-09748-032-0	01	1	1601-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1601-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1601-
551	PIN; SPRING SMOOTHER-FX(TYPE2)(8NS) (D) L=30 OD=4	1-09748-031-0	02	1	1601-
551	PIN; SPRING SMOOTHER-FX(TYPE2)(8NS) (E) OD=5	8-97184-905-0	03	1	1601-
551	PIN; SPRING SMOOTHER-FX(TYPE2)(8NS) (F)	8-97379-991-0	01	1	1601-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-318-0	01	1	1601-
559	PIPE; BREATHER SMOOTHER-FX(TYPE2)(8NS)	8-98020-710-0	01	1	1601-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1601-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-666-0	01	1	1601-
631	STOPPER; SPRING SMOOTHER-FX(TYPE2)(8NS)	8-97379-984-0	01	1	1601-
651	SOLENOID ASM; SHIFT SMOOTHER-FX(TYPE2)(8NS) (A)	8-98048-497-1	01	1	1601-
651	SOLENOID ASM; SHIFT SMOOTHER-FX(TYPE2)(8NS) (B)	8-98048-498-1	01	1	1601-
652	BOLT; SORENOID SMOOTHER-FX(TYPE2)(8NS) M10X25 FLANGE	0-28151-025-0	06	1	1601-
653	SOLENOID ASM; SELECT SMOOTHER-FX(TYPE2)(8NS)	8-98002-761-0	01	1	1601-
654	JOINT; SOLENOID,CASE SMOOTHER-FX(TYPE2)(8NS) (A)	8-97349-473-0	02	1	1601-
654	JOINT; SOLENOID,CASE SMOOTHER-FX(TYPE2)(8NS) (B)	8-97380-419-0	01	1	1601-
655	SENSOR; STROKE SMOOTHER-FX(TYPE2)(8NS) (A)	8-98107-823-0	01	1	1601-
655	SENSOR; STROKE SMOOTHER-FX(TYPE2)(8NS) (B)	8-98107-824-0	01	1	1601-
656	SPRING; SHAFT SMOOTHER-FX(TYPE2)(8NS) (A)	8-97379-985-0	01	1	1601-
656	SPRING; SHAFT SMOOTHER-FX(TYPE2)(8NS) (B)	8-97379-986-0	01	1	1601-
656	SPRING; SHAFT SMOOTHER-FX(TYPE2)(8NS) (C)	8-97379-987-0	01	1	1601-
657	PLATE; SIDE SMOOTHER-FX(TYPE2)(8NS)	8-98020-712-0	01	1	1601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
