◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11720 - FRR AUST/NZ JNLT09 SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#175480) — 9 parça

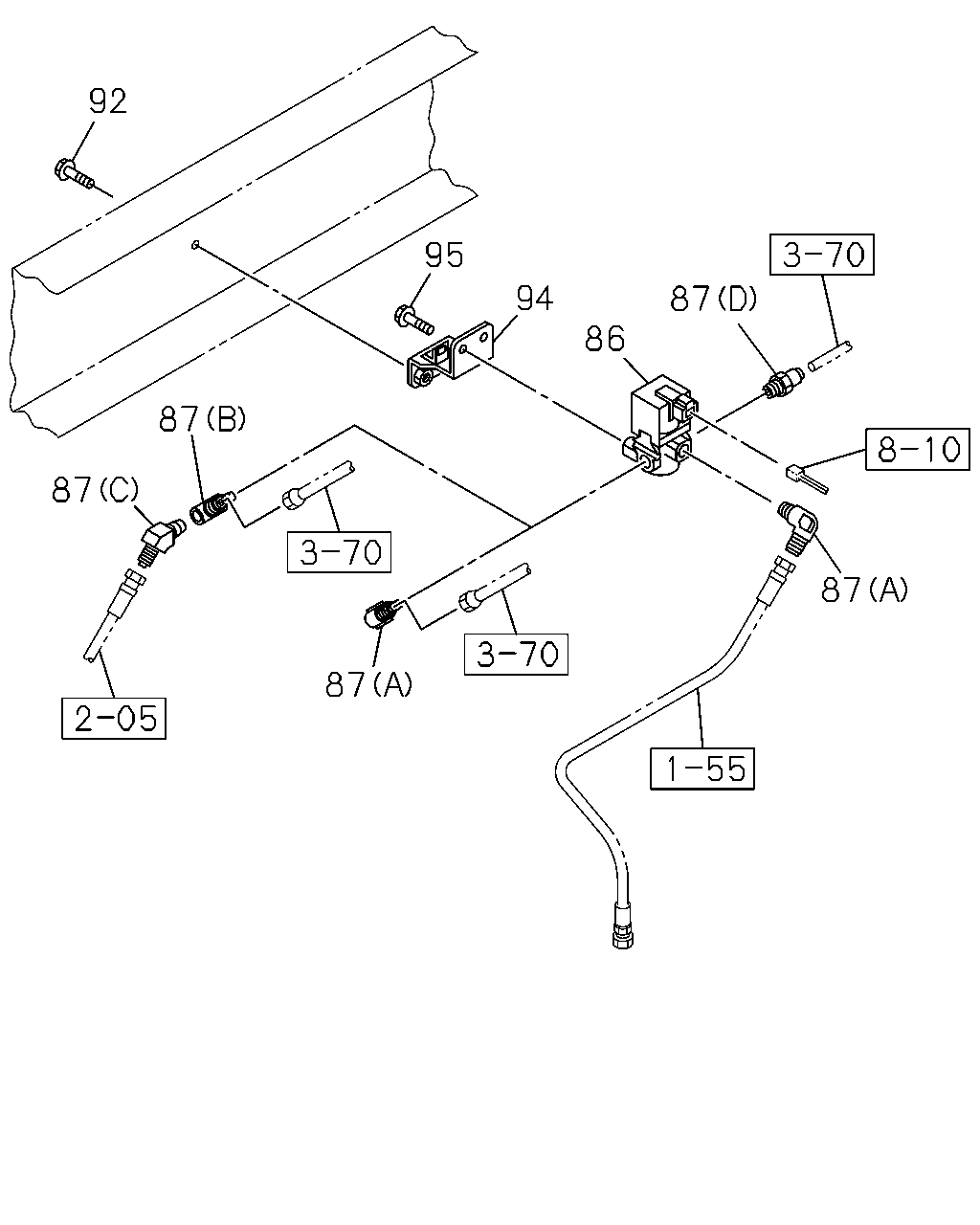

çizim 512514
92 87 87 87 87 87 86 94 95
BalonParca AdiParca NoAdetTipApplied Date
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 1601-
87 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1601-
87 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1601-
87 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M12 & PT1/4 ELBOW 		8-98299-777-0 01 1 1601-
87 CONNECTOR
(D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1601-
87 CONNECTOR
SMOOTHER-FX(TYPE2)(8NS) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1601-
92 BOLT; MAG VLV
M10X30 FLANGE 		0-28651-030-0 02 1 1601-
94 BRACKET; MAG VLV,EXH BRAKE 8-98078-098-0 01 1 1601-
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 1601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
