◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11720 - FRR AUST/NZ JNLT09 SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45 - WATER SEDIMENTER; FUEL ▶

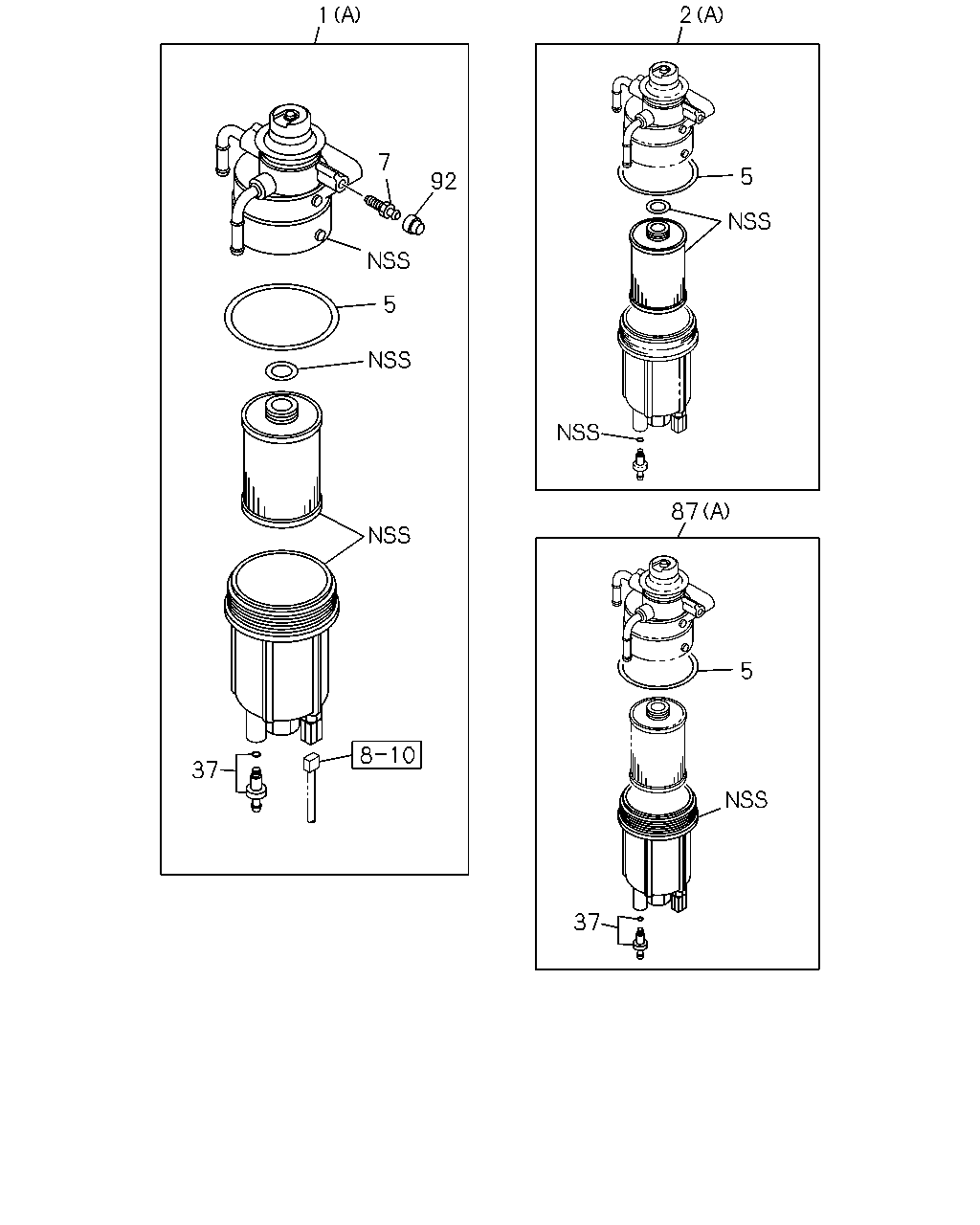

1-45 — WATER SEDIMENTER; FUEL (#175477) — 18 parça

1 2 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SEDIMENTER; FUEL (A)	8-98223-977-1	01	1	1601-	●	●
1	SEDIMENTER; FUEL (B)	8-98086-193-1	01	1	1601-	●	●
2	ELEMENT; FUEL FILTER (B)	8-98092-481-1	01	1	1601-	●	●
2	ELEMENT; FUEL FILTER (A)	8-98165-375-0	01	1	1601-	●	●
2	ELEMENT; FUEL FILTER (B) BEST VALUE PARTS	1-87610-094-1	01	1	1601-	●	●
87	CASE ASM; SEDIMENTER (B)	8-98092-482-1	01	1	1601-	●	●
87	CASE ASM; SEDIMENTER (A)	8-98158-458-1	01	1	1601-	●	●

1 2 7 5 92 37 37 5 87 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SEDIMENTER; FUEL (A)	8-98223-977-1	01	1	1601-	●	●
1	SEDIMENTER; FUEL (B)	8-98086-193-1	01	1	1601-	●	●
2	ELEMENT; FUEL FILTER (B)	8-98092-481-1	01	1	1601-	●	●
2	ELEMENT; FUEL FILTER (A)	8-98165-375-0	01	1	1601-	●	●
2	ELEMENT; FUEL FILTER (B) BEST VALUE PARTS	1-87610-094-1	01	1	1601-	●	●
5	GASKET; UPR COVER,SEDIMENTER	8-98158-460-0	01	1	1601-	●	●
7	PLUG; DRAIN,SEDIMENTER M8X10	8-98034-312-0	01	1	1601-	●	●
37	PLUG; SENSOR M8	8-98158-459-0	01	1	1601-	●	●
87	CASE ASM; SEDIMENTER (B)	8-98092-482-1	01	1	1601-	●	●
87	CASE ASM; SEDIMENTER (A)	8-98158-458-1	01	1	1601-	●	●
92	CAP; DRAIN	8-98034-314-0	01	1	1601-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
