Sayfa 1-41 - Isuzu EPC

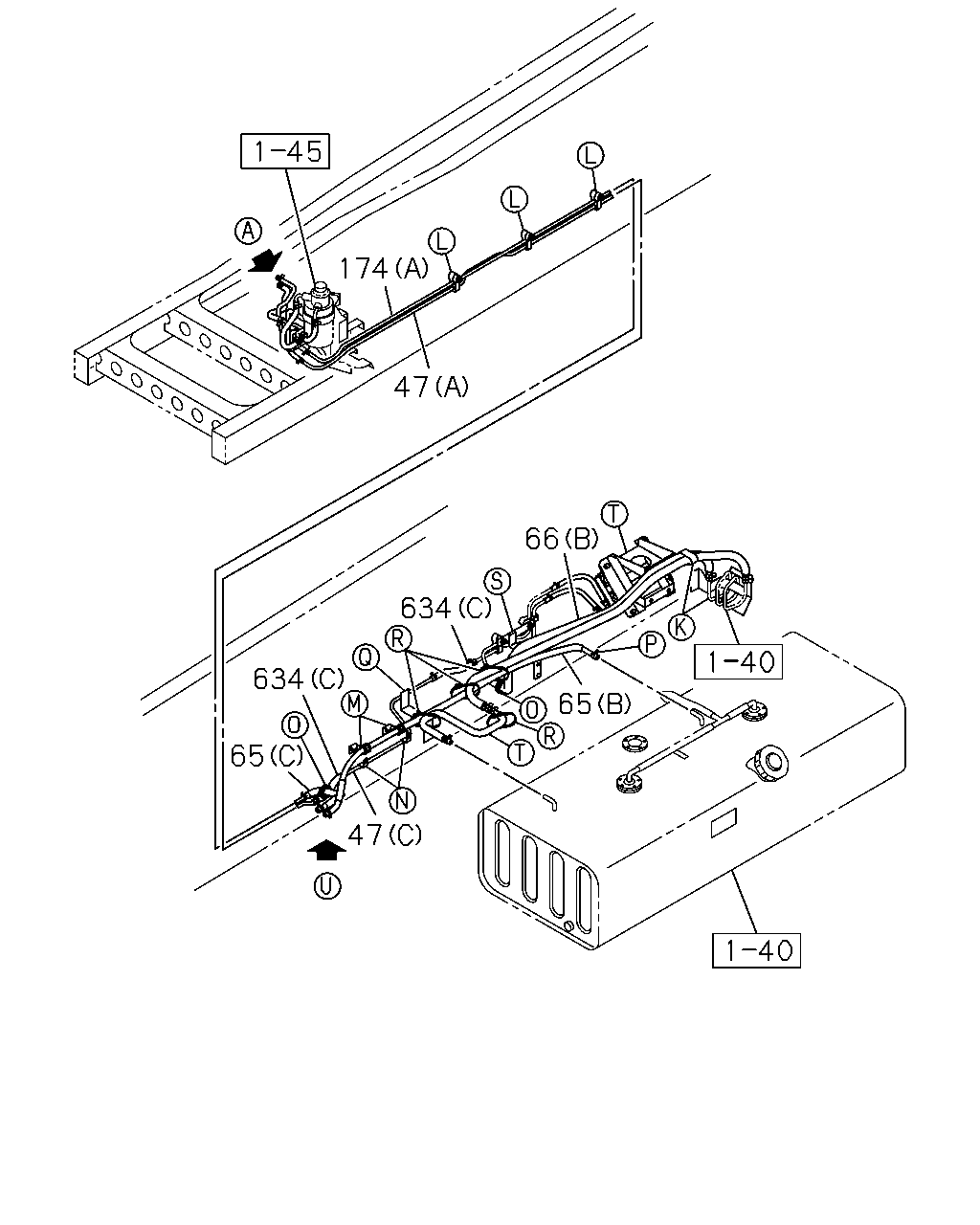

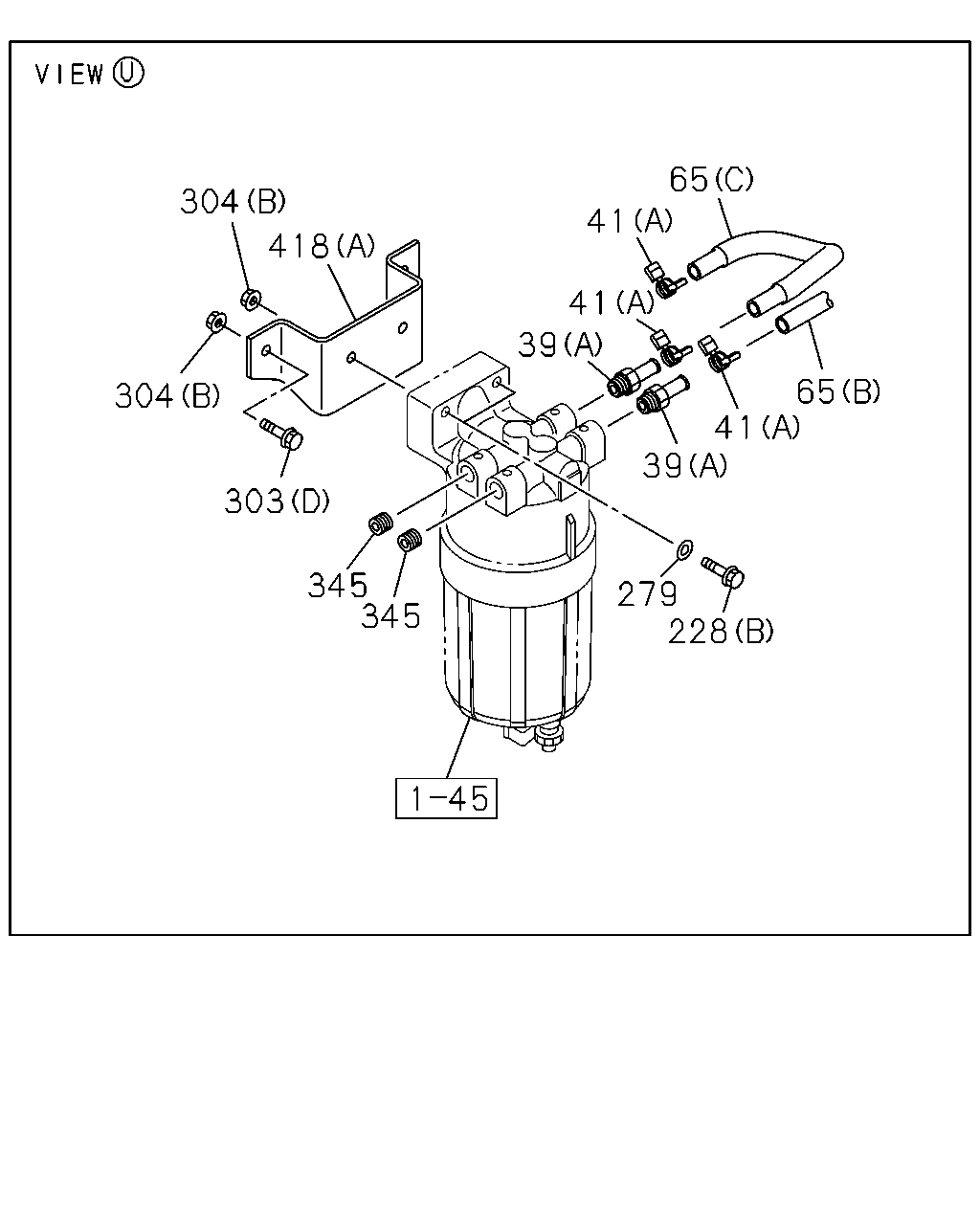

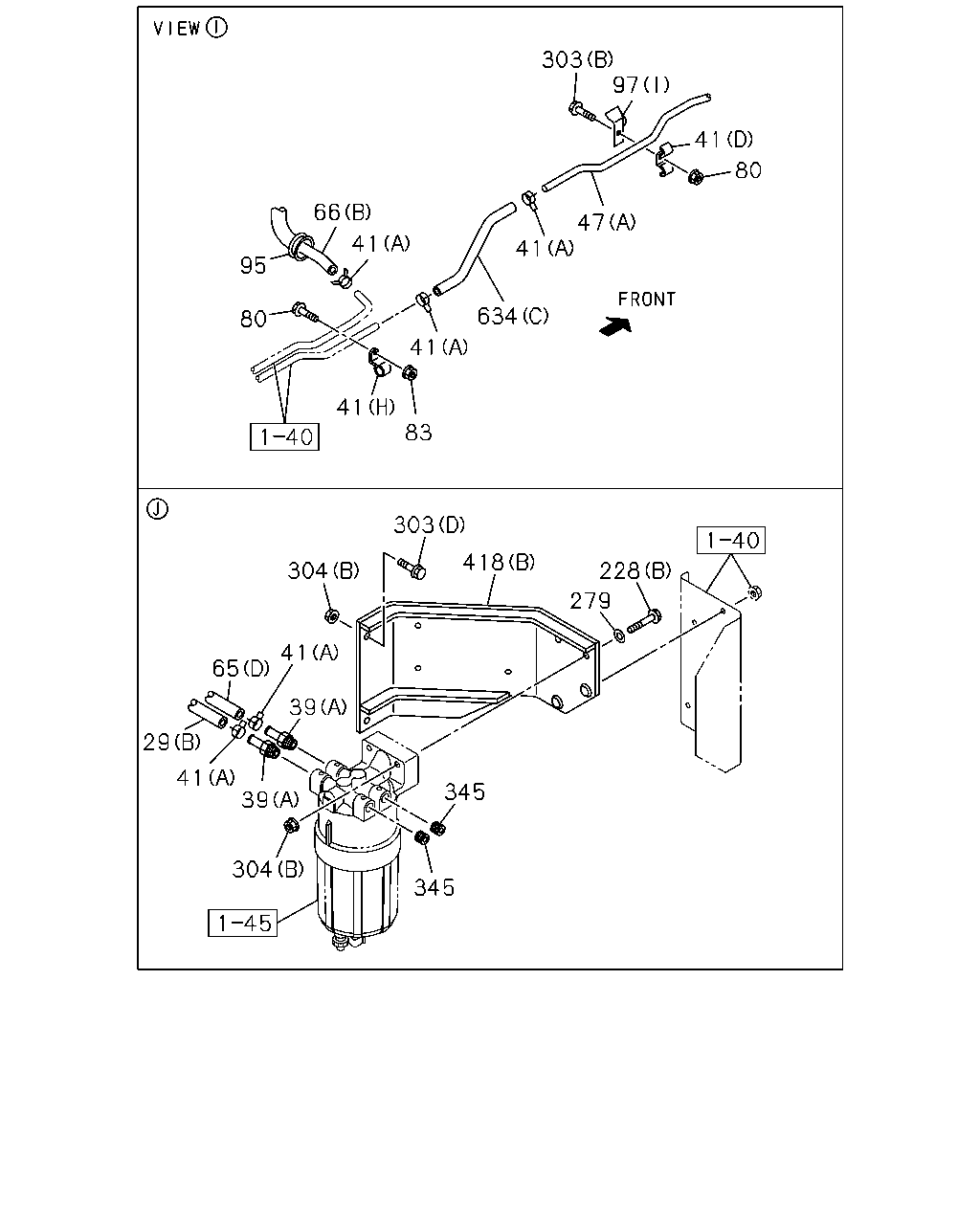

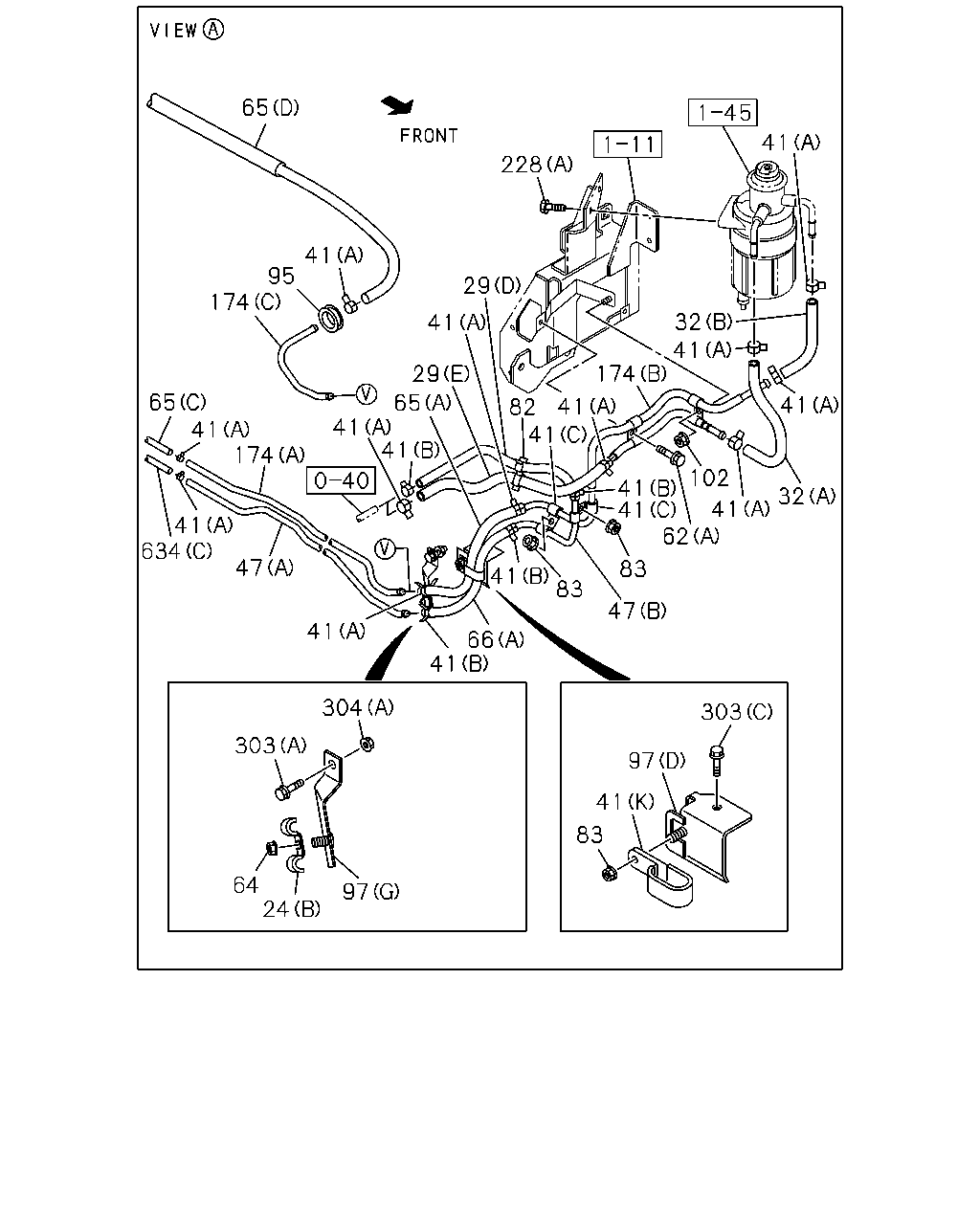

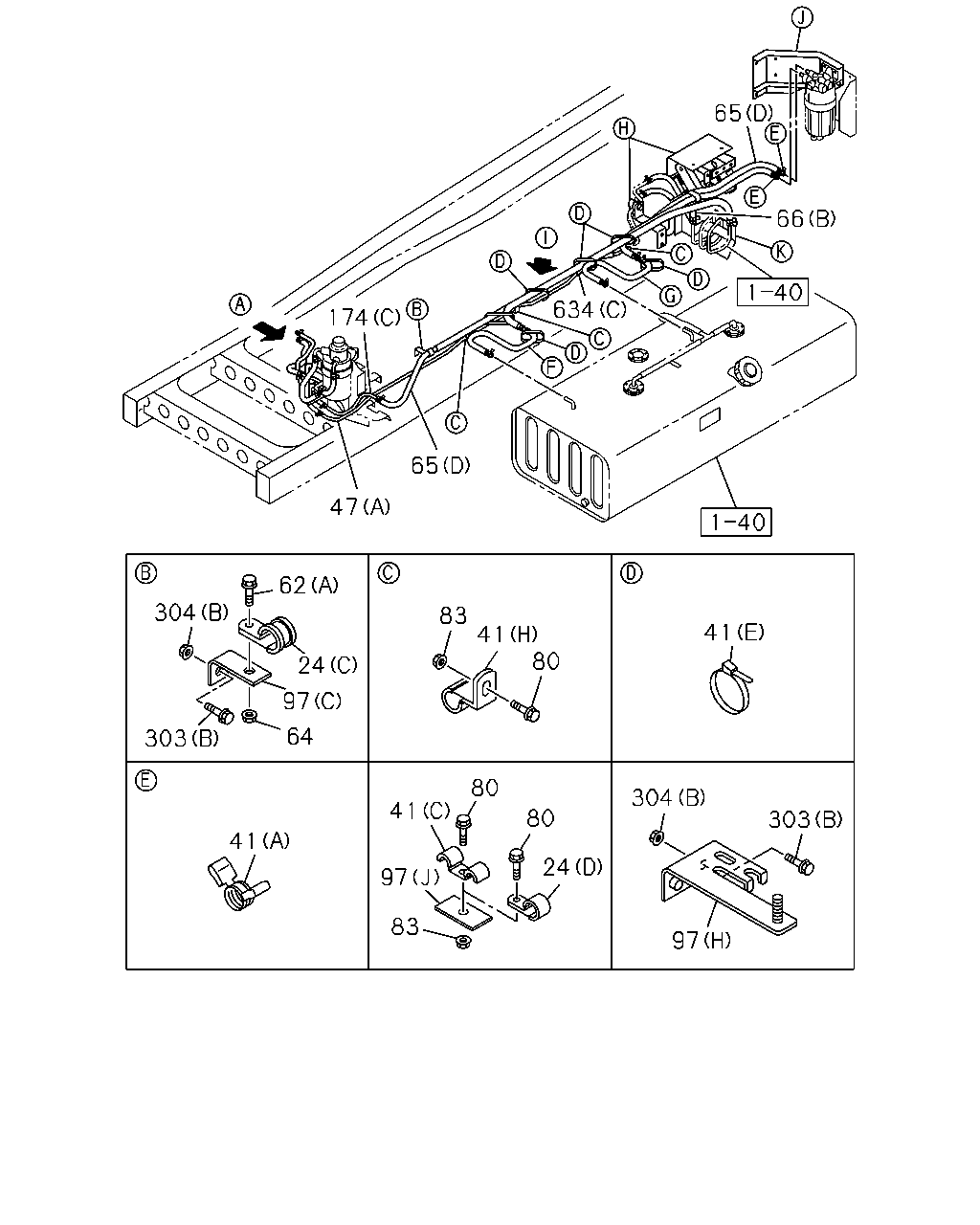

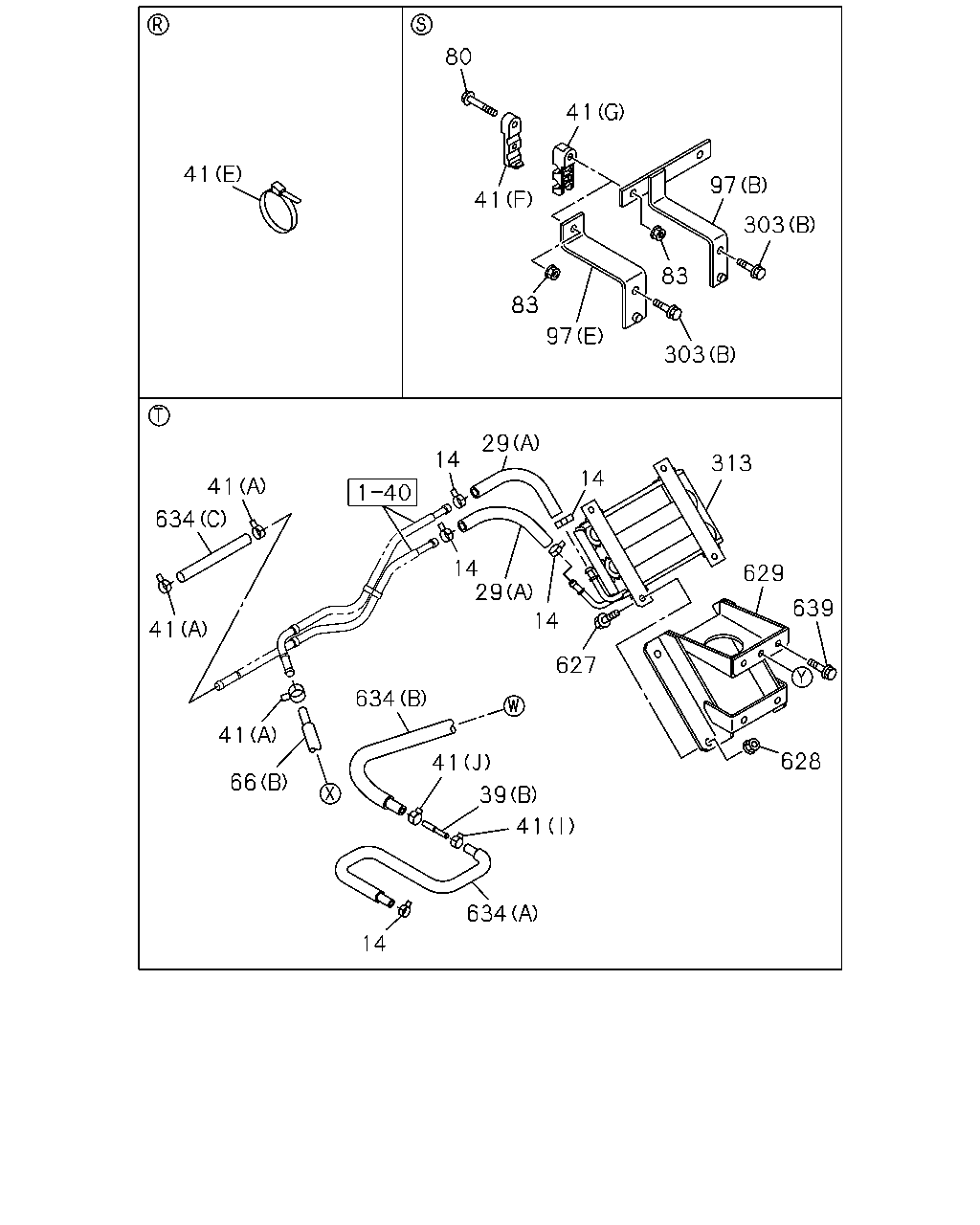

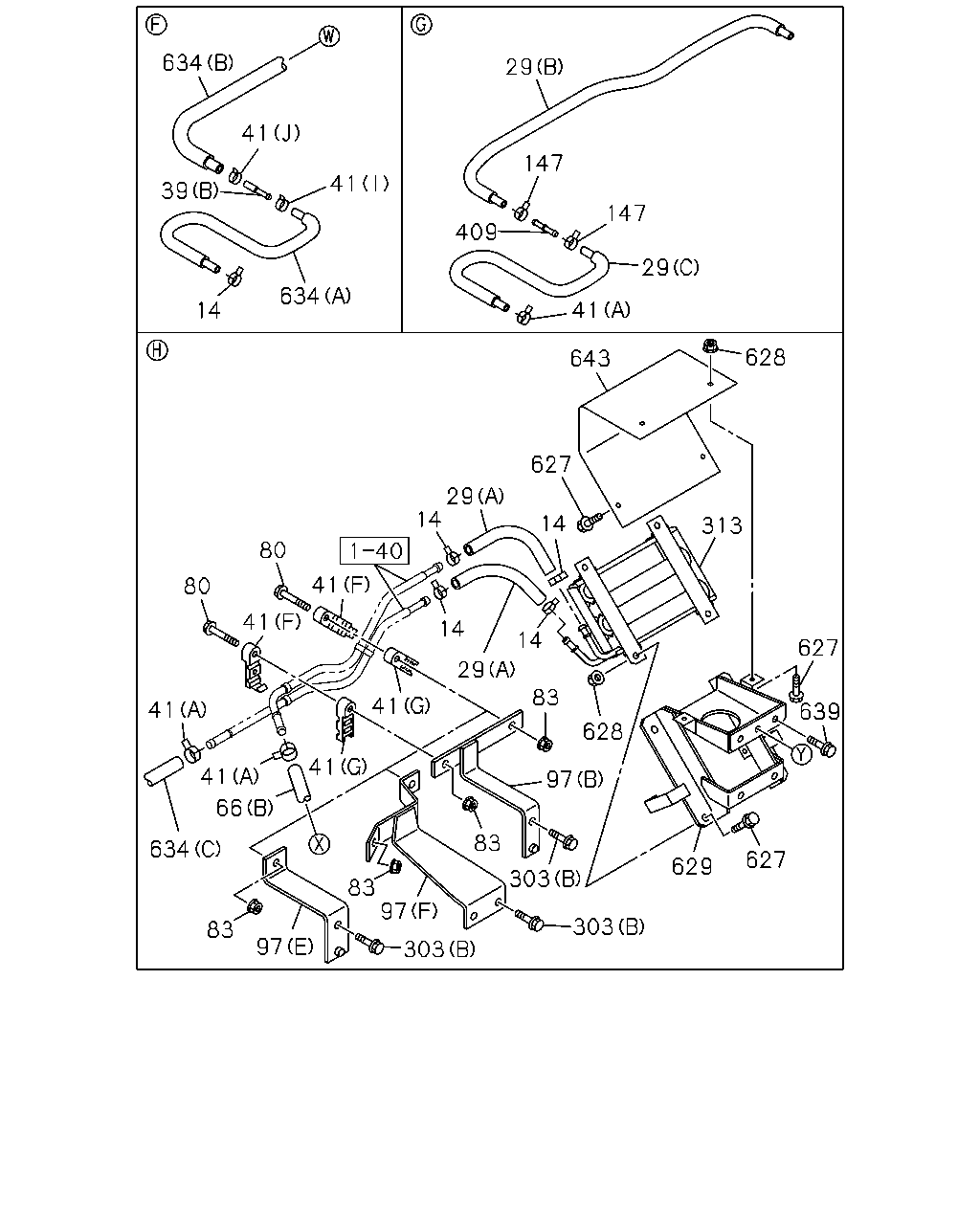

1-41 — FUEL PIPING; CHASSIS (#175476) — 775 parça

174 47 65 634 634 66 65 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (A) L=848	8-98331-406-0	01	1	1601-	●
47	PIPE; FUEL,RETURN WHEEL BASE 4000MM(40W) (A) L=1377	8-98331-410-0	01	1	1601-	●
47	PIPE; FUEL,RETURN (A) L=1561	8-98312-249-0	01	1	1601-		●
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) L=1561	8-98312-249-0	01	1	1601-	●
47	PIPE; FUEL,RETURN (C) L=945	8-98312-262-0	01	1	1601-		●
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) L=945	8-98312-262-0	01	1	1601-	●
47	PIPE; FUEL,RETURN (B) L=284	8-98209-084-0	01	1	1601-	●	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=320 SERVICED BY L=3000	0-01859-300-0	01	1	1601-	●	●
65	HOSE; FUEL,DELIVERY PIPE (B)	8-98333-842-0	01	1	1601-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98333-842-0	01	1	1601-	●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98333-843-0	01	1	1601-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C)	8-98333-843-0	01	1	1601-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (D)	8-98332-361-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE (B)	8-98333-214-0	01	1	1601-		●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98333-214-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B)	8-98332-359-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4000MM(40W) (B)	8-98333-102-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE (A) L=300 SERVICED BY L=3000	0-01558-300-0	01	1	1601-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C)	8-98331-405-0	01	1	1601-	●
174	PIPE; FUEL,FEED,FRT (A)	8-98312-248-0	01	1	1601-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A)	8-98312-248-0	01	1	1601-	●
174	PIPE; FUEL,FEED,FRT (B)	8-98209-083-0	01	1	1601-	●	●
634	HOSE; RUBBER RETURN (C) L=210 SERVICED BY L=3000	0-01859-300-0	02	1	1601-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	02	1	1601-	●
634	HOSE; RUBBER RETURN (B)	8-98333-217-0	01	1	1601-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98333-217-0	01	1	1601-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	01	1	1601-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (B)	8-98332-370-0	01	1	1601-	●
634	HOSE; RUBBER RETURN (A)	8-98312-408-0	01	1	1601-	●	●

62 24 97 64 303 304 47 65 83 41 80 41 303 304 97 24 80 80 41 97 83 41 174 634 66 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (D) ID=11 L=20	0-95235-036-0	01	1	1601-	●
24	CLIP; FUEL HOSE (A) ID=24 & 24 L=49	1-09701-018-0	01	1	1601-		●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=24 & 24 L=49	1-09701-018-0	01	1	1601-	●
24	CLIP; FUEL HOSE (C) ID=21 L=24	8-98019-191-0	02	1	1601-		●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) ID=21 L=24	8-98019-191-0	02	1	1601-	●
24	CLIP; FUEL HOSE (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1601-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	01	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (F) ID=10 & 10	1-09709-241-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (G) ID=10 & 10	1-09709-243-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (E) L=250	5-09707-030-1	09	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W) (H) ID=11 H=20 L=20	8-98033-780-0	02	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=11 H=20 L=20	8-98033-780-0	03	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (H) ID=11 H=20 L=20	8-98033-780-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-241-0	05	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (F) ID=10 & 10	1-09709-241-0	05	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=10 & 10	1-09709-243-0	05	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (G) ID=10 & 10	1-09709-243-0	05	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	07	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) L=250	5-09707-030-1	07	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	11	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=16	8-94238-568-0	11	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (I) ID=13	8-97173-220-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (J) ID=16	8-98008-098-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (K)	8-98203-791-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (F) ID=10 & 10	1-09709-241-0	02	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (G) ID=10 & 10	1-09709-243-0	02	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (A) ID=16	8-94238-568-0	09	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1601-	●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (A) L=848	8-98331-406-0	01	1	1601-	●
47	PIPE; FUEL,RETURN WHEEL BASE 4000MM(40W) (A) L=1377	8-98331-410-0	01	1	1601-	●
47	PIPE; FUEL,RETURN (A) L=1561	8-98312-249-0	01	1	1601-		●
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) L=1561	8-98312-249-0	01	1	1601-	●
47	PIPE; FUEL,RETURN (C) L=945	8-98312-262-0	01	1	1601-		●
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) L=945	8-98312-262-0	01	1	1601-	●
47	PIPE; FUEL,RETURN (B) L=284	8-98209-084-0	01	1	1601-	●	●
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	1601-		●
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1601-	●
62	BOLT; CLIP FIX (B) M8X30 FLANGE	0-28650-830-0	01	1	1601-		●
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M8X30 FLANGE	0-28650-830-0	01	1	1601-	●
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	1601-	●	●
62	BOLT; CLIP FIX WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (A) M8X20 FLANGE	0-28650-820-0	01	1	1601-	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1601-	●	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=320 SERVICED BY L=3000	0-01859-300-0	01	1	1601-	●	●
65	HOSE; FUEL,DELIVERY PIPE (B)	8-98333-842-0	01	1	1601-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98333-842-0	01	1	1601-	●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98333-843-0	01	1	1601-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C)	8-98333-843-0	01	1	1601-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (D)	8-98332-361-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE (B)	8-98333-214-0	01	1	1601-		●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98333-214-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B)	8-98332-359-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4000MM(40W) (B)	8-98333-102-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE (A) L=300 SERVICED BY L=3000	0-01558-300-0	01	1	1601-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) M8X50 FLANGE	0-28050-850-0	03	1	1601-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W) M8X25 FLANGE	0-28650-825-0	02	1	1601-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) M8X20 FLANGE	0-28650-820-0	03	1	1601-	●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28650-825-0	03	1	1601-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8X25 FLANGE	0-28650-825-0	03	1	1601-	●
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	05	1	1601-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X50 FLANGE	0-28050-850-0	05	1	1601-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) M8X50 FLANGE	0-28050-850-0	02	1	1601-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) M8X20 FLANGE	0-28650-820-0	02	1	1601-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	04	1	1601-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W) M8 FLANGE	0-91180-108-0	06	1	1601-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1601-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	03	1	1601-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	08	1	1601-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	08	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (J) L=50	1-47475-299-2	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (H)	8-98332-559-0	01	1	1601-	●
97	BRACKET; CLIP (B)	8-98239-701-0	01	1	1601-		●
97	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B)	8-98239-701-0	01	1	1601-	●
97	BRACKET; CLIP (E)	8-98304-248-0	01	1	1601-		●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (E)	8-98304-248-0	01	1	1601-	●
97	BRACKET; CLIP (C) L=55	1-47476-177-0	02	1	1601-		●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) L=55	1-47476-177-0	02	1	1601-	●
97	BRACKET; CLIP (G)	8-98159-584-0	01	1	1601-	●	●
97	BRACKET; CLIP (D)	8-98209-082-0	01	1	1601-	●	●
97	BRACKET; CLIP (A)	8-98249-018-0	01	1	1601-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98284-913-0	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (I)	8-98117-691-0	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C) L=55	1-47476-177-0	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (I)	8-98117-691-0	02	1	1601-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C)	8-98331-405-0	01	1	1601-	●
174	PIPE; FUEL,FEED,FRT (A)	8-98312-248-0	01	1	1601-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A)	8-98312-248-0	01	1	1601-	●
174	PIPE; FUEL,FEED,FRT (B)	8-98209-083-0	01	1	1601-	●	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	1601-		●
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1601-	●
303	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	01	1	1601-	●	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1601-	●	●
303	BOLT; BRKT (D) M10X35 FLANGE	0-28651-035-0	02	1	1601-	●	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-		●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-		●
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1601-	●
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	01	1	1601-	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1601-	●	●
634	HOSE; RUBBER RETURN (C) L=210 SERVICED BY L=3000	0-01859-300-0	02	1	1601-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	02	1	1601-	●
634	HOSE; RUBBER RETURN (B)	8-98333-217-0	01	1	1601-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98333-217-0	01	1	1601-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	01	1	1601-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (B)	8-98332-370-0	01	1	1601-	●
634	HOSE; RUBBER RETURN (A)	8-98312-408-0	01	1	1601-	●	●

303 97 41 80 47 41 66 41 634 41 41 95 80 83 303 418 228 279 304 41 65 39 29 41 39 304 345 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C)	8-98332-316-0	01	1	1601-	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (B)	8-98332-338-0	01	1	1601-	●
29	HOSE; FUEL (A) L=180 SERVICED BY L=3000	0-01558-300-0	02	1	1601-	●	●
29	HOSE; FUEL (D)	8-98165-972-0	01	1	1601-	●	●
29	HOSE; FUEL (E)	8-98204-103-0	01	1	1601-	●	●
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1601-	●	●
39	PIPE; FUEL (B)	8-98009-438-1	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (F) ID=10 & 10	1-09709-241-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (G) ID=10 & 10	1-09709-243-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (E) L=250	5-09707-030-1	09	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W) (H) ID=11 H=20 L=20	8-98033-780-0	02	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=11 H=20 L=20	8-98033-780-0	03	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (H) ID=11 H=20 L=20	8-98033-780-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-241-0	05	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (F) ID=10 & 10	1-09709-241-0	05	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=10 & 10	1-09709-243-0	05	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (G) ID=10 & 10	1-09709-243-0	05	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	07	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) L=250	5-09707-030-1	07	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	11	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=16	8-94238-568-0	11	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (I) ID=13	8-97173-220-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (J) ID=16	8-98008-098-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (K)	8-98203-791-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (F) ID=10 & 10	1-09709-241-0	02	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (G) ID=10 & 10	1-09709-243-0	02	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (A) ID=16	8-94238-568-0	09	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1601-	●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (A) L=848	8-98331-406-0	01	1	1601-	●
47	PIPE; FUEL,RETURN WHEEL BASE 4000MM(40W) (A) L=1377	8-98331-410-0	01	1	1601-	●
47	PIPE; FUEL,RETURN (A) L=1561	8-98312-249-0	01	1	1601-		●
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) L=1561	8-98312-249-0	01	1	1601-	●
47	PIPE; FUEL,RETURN (C) L=945	8-98312-262-0	01	1	1601-		●
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) L=945	8-98312-262-0	01	1	1601-	●
47	PIPE; FUEL,RETURN (B) L=284	8-98209-084-0	01	1	1601-	●	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=320 SERVICED BY L=3000	0-01859-300-0	01	1	1601-	●	●
65	HOSE; FUEL,DELIVERY PIPE (B)	8-98333-842-0	01	1	1601-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98333-842-0	01	1	1601-	●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98333-843-0	01	1	1601-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C)	8-98333-843-0	01	1	1601-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (D)	8-98332-361-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE (B)	8-98333-214-0	01	1	1601-		●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98333-214-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B)	8-98332-359-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4000MM(40W) (B)	8-98333-102-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE (A) L=300 SERVICED BY L=3000	0-01558-300-0	01	1	1601-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) M8X50 FLANGE	0-28050-850-0	03	1	1601-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W) M8X25 FLANGE	0-28650-825-0	02	1	1601-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) M8X20 FLANGE	0-28650-820-0	03	1	1601-	●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28650-825-0	03	1	1601-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8X25 FLANGE	0-28650-825-0	03	1	1601-	●
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	05	1	1601-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X50 FLANGE	0-28050-850-0	05	1	1601-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) M8X50 FLANGE	0-28050-850-0	02	1	1601-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) M8X20 FLANGE	0-28650-820-0	02	1	1601-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	04	1	1601-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W) M8 FLANGE	0-91180-108-0	06	1	1601-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1601-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	03	1	1601-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	08	1	1601-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	08	1	1601-	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	1601-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (J) L=50	1-47475-299-2	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (H)	8-98332-559-0	01	1	1601-	●
97	BRACKET; CLIP (B)	8-98239-701-0	01	1	1601-		●
97	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B)	8-98239-701-0	01	1	1601-	●
97	BRACKET; CLIP (E)	8-98304-248-0	01	1	1601-		●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (E)	8-98304-248-0	01	1	1601-	●
97	BRACKET; CLIP (C) L=55	1-47476-177-0	02	1	1601-		●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) L=55	1-47476-177-0	02	1	1601-	●
97	BRACKET; CLIP (G)	8-98159-584-0	01	1	1601-	●	●
97	BRACKET; CLIP (D)	8-98209-082-0	01	1	1601-	●	●
97	BRACKET; CLIP (A)	8-98249-018-0	01	1	1601-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98284-913-0	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (I)	8-98117-691-0	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C) L=55	1-47476-177-0	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (I)	8-98117-691-0	02	1	1601-	●
228	BOLT; BRKT,SEDIMENTER (B) M10X60 FLANGE	0-28051-060-0	02	1	1601-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M10X20 FLANGE	0-28651-020-0	02	1	1601-	●	●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1601-	●	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	1601-		●
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1601-	●
303	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	01	1	1601-	●	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1601-	●	●
303	BOLT; BRKT (D) M10X35 FLANGE	0-28651-035-0	02	1	1601-	●	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-		●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-		●
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1601-	●
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	01	1	1601-	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1601-	●	●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1601-	●	●
418	BRACKET; PRE FUEL FILTER (A)	8-98114-787-0	01	1	1601-		●
418	BRACKET; PRE FUEL FILTER WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A)	8-98114-787-0	01	1	1601-	●
418	BRACKET; PRE FUEL FILTER WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (B)	8-98306-550-1	01	1	1601-	●
634	HOSE; RUBBER RETURN (C) L=210 SERVICED BY L=3000	0-01859-300-0	02	1	1601-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	02	1	1601-	●
634	HOSE; RUBBER RETURN (B)	8-98333-217-0	01	1	1601-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98333-217-0	01	1	1601-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	01	1	1601-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (B)	8-98332-370-0	01	1	1601-	●
634	HOSE; RUBBER RETURN (A)	8-98312-408-0	01	1	1601-	●	●

80 41 95 83 41 304 303 64 97 24 62 83 80 41 83 80 41 303 97 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (D) ID=11 L=20	0-95235-036-0	01	1	1601-	●
24	CLIP; FUEL HOSE (A) ID=24 & 24 L=49	1-09701-018-0	01	1	1601-		●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=24 & 24 L=49	1-09701-018-0	01	1	1601-	●
24	CLIP; FUEL HOSE (C) ID=21 L=24	8-98019-191-0	02	1	1601-		●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) ID=21 L=24	8-98019-191-0	02	1	1601-	●
24	CLIP; FUEL HOSE (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1601-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	01	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (F) ID=10 & 10	1-09709-241-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (G) ID=10 & 10	1-09709-243-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (E) L=250	5-09707-030-1	09	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W) (H) ID=11 H=20 L=20	8-98033-780-0	02	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=11 H=20 L=20	8-98033-780-0	03	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (H) ID=11 H=20 L=20	8-98033-780-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-241-0	05	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (F) ID=10 & 10	1-09709-241-0	05	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=10 & 10	1-09709-243-0	05	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (G) ID=10 & 10	1-09709-243-0	05	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	07	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) L=250	5-09707-030-1	07	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	11	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=16	8-94238-568-0	11	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (I) ID=13	8-97173-220-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (J) ID=16	8-98008-098-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (K)	8-98203-791-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (F) ID=10 & 10	1-09709-241-0	02	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (G) ID=10 & 10	1-09709-243-0	02	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (A) ID=16	8-94238-568-0	09	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1601-	●
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	1601-		●
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1601-	●
62	BOLT; CLIP FIX (B) M8X30 FLANGE	0-28650-830-0	01	1	1601-		●
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M8X30 FLANGE	0-28650-830-0	01	1	1601-	●
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	1601-	●	●
62	BOLT; CLIP FIX WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (A) M8X20 FLANGE	0-28650-820-0	01	1	1601-	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1601-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) M8X50 FLANGE	0-28050-850-0	03	1	1601-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W) M8X25 FLANGE	0-28650-825-0	02	1	1601-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) M8X20 FLANGE	0-28650-820-0	03	1	1601-	●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28650-825-0	03	1	1601-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8X25 FLANGE	0-28650-825-0	03	1	1601-	●
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	05	1	1601-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X50 FLANGE	0-28050-850-0	05	1	1601-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) M8X50 FLANGE	0-28050-850-0	02	1	1601-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) M8X20 FLANGE	0-28650-820-0	02	1	1601-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	04	1	1601-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W) M8 FLANGE	0-91180-108-0	06	1	1601-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1601-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	03	1	1601-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	08	1	1601-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	08	1	1601-	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	1601-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (J) L=50	1-47475-299-2	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (H)	8-98332-559-0	01	1	1601-	●
97	BRACKET; CLIP (B)	8-98239-701-0	01	1	1601-		●
97	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B)	8-98239-701-0	01	1	1601-	●
97	BRACKET; CLIP (E)	8-98304-248-0	01	1	1601-		●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (E)	8-98304-248-0	01	1	1601-	●
97	BRACKET; CLIP (C) L=55	1-47476-177-0	02	1	1601-		●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) L=55	1-47476-177-0	02	1	1601-	●
97	BRACKET; CLIP (G)	8-98159-584-0	01	1	1601-	●	●
97	BRACKET; CLIP (D)	8-98209-082-0	01	1	1601-	●	●
97	BRACKET; CLIP (A)	8-98249-018-0	01	1	1601-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98284-913-0	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (I)	8-98117-691-0	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C) L=55	1-47476-177-0	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (I)	8-98117-691-0	02	1	1601-	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	1601-		●
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1601-	●
303	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	01	1	1601-	●	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1601-	●	●
303	BOLT; BRKT (D) M10X35 FLANGE	0-28651-035-0	02	1	1601-	●	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-		●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-		●
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1601-	●
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	01	1	1601-	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1601-	●	●

24 66 634 304 97 303 294 171 98 294 171 41 106 308 41 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (D) ID=11 L=20	0-95235-036-0	01	1	1601-	●
24	CLIP; FUEL HOSE (A) ID=24 & 24 L=49	1-09701-018-0	01	1	1601-		●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=24 & 24 L=49	1-09701-018-0	01	1	1601-	●
24	CLIP; FUEL HOSE (C) ID=21 L=24	8-98019-191-0	02	1	1601-		●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) ID=21 L=24	8-98019-191-0	02	1	1601-	●
24	CLIP; FUEL HOSE (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1601-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	01	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (F) ID=10 & 10	1-09709-241-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (G) ID=10 & 10	1-09709-243-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (E) L=250	5-09707-030-1	09	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W) (H) ID=11 H=20 L=20	8-98033-780-0	02	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=11 H=20 L=20	8-98033-780-0	03	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (H) ID=11 H=20 L=20	8-98033-780-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-241-0	05	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (F) ID=10 & 10	1-09709-241-0	05	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=10 & 10	1-09709-243-0	05	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (G) ID=10 & 10	1-09709-243-0	05	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	07	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) L=250	5-09707-030-1	07	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	11	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=16	8-94238-568-0	11	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (I) ID=13	8-97173-220-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (J) ID=16	8-98008-098-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (K)	8-98203-791-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (F) ID=10 & 10	1-09709-241-0	02	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (G) ID=10 & 10	1-09709-243-0	02	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (A) ID=16	8-94238-568-0	09	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1601-	●
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	1601-		●
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1601-	●
62	BOLT; CLIP FIX (B) M8X30 FLANGE	0-28650-830-0	01	1	1601-		●
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M8X30 FLANGE	0-28650-830-0	01	1	1601-	●
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	1601-	●	●
62	BOLT; CLIP FIX WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (A) M8X20 FLANGE	0-28650-820-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE (B)	8-98333-214-0	01	1	1601-		●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98333-214-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B)	8-98332-359-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4000MM(40W) (B)	8-98333-102-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE (A) L=300 SERVICED BY L=3000	0-01558-300-0	01	1	1601-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (J) L=50	1-47475-299-2	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (H)	8-98332-559-0	01	1	1601-	●
97	BRACKET; CLIP (B)	8-98239-701-0	01	1	1601-		●
97	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B)	8-98239-701-0	01	1	1601-	●
97	BRACKET; CLIP (E)	8-98304-248-0	01	1	1601-		●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (E)	8-98304-248-0	01	1	1601-	●
97	BRACKET; CLIP (C) L=55	1-47476-177-0	02	1	1601-		●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) L=55	1-47476-177-0	02	1	1601-	●
97	BRACKET; CLIP (G)	8-98159-584-0	01	1	1601-	●	●
97	BRACKET; CLIP (D)	8-98209-082-0	01	1	1601-	●	●
97	BRACKET; CLIP (A)	8-98249-018-0	01	1	1601-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98284-913-0	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (I)	8-98117-691-0	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C) L=55	1-47476-177-0	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (I)	8-98117-691-0	02	1	1601-	●
98	BOLT; BRKT,FUEL PIPE M8X20 FLANGE	0-28650-820-0	01	1	1601-	●	●
106	NUT; FUEL PIPE M8 FLANGE	0-91180-108-0	01	1	1601-	●	●
171	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1601-	●	●
294	CLIP; FUEL PIPE (A) ID=11 L=16	0-95235-025-0	01	1	1601-	●	●
294	CLIP; FUEL PIPE (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1601-	●	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	1601-		●
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1601-	●
303	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	01	1	1601-	●	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1601-	●	●
303	BOLT; BRKT (D) M10X35 FLANGE	0-28651-035-0	02	1	1601-	●	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-		●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-		●
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1601-	●
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	01	1	1601-	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1601-	●	●
308	BRACKET; FUEL PIPE	8-98249-019-0	01	1	1601-	●	●
634	HOSE; RUBBER RETURN (C) L=210 SERVICED BY L=3000	0-01859-300-0	02	1	1601-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	02	1	1601-	●
634	HOSE; RUBBER RETURN (B)	8-98333-217-0	01	1	1601-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98333-217-0	01	1	1601-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	01	1	1601-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (B)	8-98332-370-0	01	1	1601-	●
634	HOSE; RUBBER RETURN (A)	8-98312-408-0	01	1	1601-	●	●

304 304 303 418 65 41 41 39 65 41 39 279 228 345 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1601-	●	●
39	PIPE; FUEL (B)	8-98009-438-1	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (F) ID=10 & 10	1-09709-241-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (G) ID=10 & 10	1-09709-243-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (E) L=250	5-09707-030-1	09	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W) (H) ID=11 H=20 L=20	8-98033-780-0	02	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=11 H=20 L=20	8-98033-780-0	03	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (H) ID=11 H=20 L=20	8-98033-780-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-241-0	05	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (F) ID=10 & 10	1-09709-241-0	05	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=10 & 10	1-09709-243-0	05	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (G) ID=10 & 10	1-09709-243-0	05	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	07	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) L=250	5-09707-030-1	07	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	11	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=16	8-94238-568-0	11	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (I) ID=13	8-97173-220-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (J) ID=16	8-98008-098-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (K)	8-98203-791-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (F) ID=10 & 10	1-09709-241-0	02	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (G) ID=10 & 10	1-09709-243-0	02	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (A) ID=16	8-94238-568-0	09	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1601-	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=320 SERVICED BY L=3000	0-01859-300-0	01	1	1601-	●	●
65	HOSE; FUEL,DELIVERY PIPE (B)	8-98333-842-0	01	1	1601-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98333-842-0	01	1	1601-	●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98333-843-0	01	1	1601-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C)	8-98333-843-0	01	1	1601-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (D)	8-98332-361-0	01	1	1601-	●
228	BOLT; BRKT,SEDIMENTER (B) M10X60 FLANGE	0-28051-060-0	02	1	1601-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M10X20 FLANGE	0-28651-020-0	02	1	1601-	●	●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1601-	●	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	1601-		●
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1601-	●
303	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	01	1	1601-	●	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1601-	●	●
303	BOLT; BRKT (D) M10X35 FLANGE	0-28651-035-0	02	1	1601-	●	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-		●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-		●
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1601-	●
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	01	1	1601-	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1601-	●	●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1601-	●	●
418	BRACKET; PRE FUEL FILTER (A)	8-98114-787-0	01	1	1601-		●
418	BRACKET; PRE FUEL FILTER WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A)	8-98114-787-0	01	1	1601-	●
418	BRACKET; PRE FUEL FILTER WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (B)	8-98306-550-1	01	1	1601-	●

41 41 634 41 41 66 634 41 39 41 634 14 628 627 14 29 14 14 29 14 313 629 639 303 97 83 41 41 97 303 83 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	CLIP; HOSE ID=13	8-94238-571-0	05	1	1601-	●	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C)	8-98332-316-0	01	1	1601-	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (B)	8-98332-338-0	01	1	1601-	●
29	HOSE; FUEL (A) L=180 SERVICED BY L=3000	0-01558-300-0	02	1	1601-	●	●
29	HOSE; FUEL (D)	8-98165-972-0	01	1	1601-	●	●
29	HOSE; FUEL (E)	8-98204-103-0	01	1	1601-	●	●
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1601-	●	●
39	PIPE; FUEL (B)	8-98009-438-1	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (F) ID=10 & 10	1-09709-241-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (G) ID=10 & 10	1-09709-243-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (E) L=250	5-09707-030-1	09	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W) (H) ID=11 H=20 L=20	8-98033-780-0	02	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=11 H=20 L=20	8-98033-780-0	03	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (H) ID=11 H=20 L=20	8-98033-780-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-241-0	05	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (F) ID=10 & 10	1-09709-241-0	05	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=10 & 10	1-09709-243-0	05	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (G) ID=10 & 10	1-09709-243-0	05	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	07	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) L=250	5-09707-030-1	07	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	11	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=16	8-94238-568-0	11	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (I) ID=13	8-97173-220-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (J) ID=16	8-98008-098-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (K)	8-98203-791-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (F) ID=10 & 10	1-09709-241-0	02	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (G) ID=10 & 10	1-09709-243-0	02	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (A) ID=16	8-94238-568-0	09	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1601-	●
66	HOSE; FUEL,RETURN PIPE (B)	8-98333-214-0	01	1	1601-		●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98333-214-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B)	8-98332-359-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4000MM(40W) (B)	8-98333-102-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE (A) L=300 SERVICED BY L=3000	0-01558-300-0	01	1	1601-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) M8X50 FLANGE	0-28050-850-0	03	1	1601-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W) M8X25 FLANGE	0-28650-825-0	02	1	1601-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) M8X20 FLANGE	0-28650-820-0	03	1	1601-	●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28650-825-0	03	1	1601-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8X25 FLANGE	0-28650-825-0	03	1	1601-	●
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	05	1	1601-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X50 FLANGE	0-28050-850-0	05	1	1601-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) M8X50 FLANGE	0-28050-850-0	02	1	1601-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) M8X20 FLANGE	0-28650-820-0	02	1	1601-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	04	1	1601-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W) M8 FLANGE	0-91180-108-0	06	1	1601-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1601-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	03	1	1601-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	08	1	1601-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	08	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (J) L=50	1-47475-299-2	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (H)	8-98332-559-0	01	1	1601-	●
97	BRACKET; CLIP (B)	8-98239-701-0	01	1	1601-		●
97	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B)	8-98239-701-0	01	1	1601-	●
97	BRACKET; CLIP (E)	8-98304-248-0	01	1	1601-		●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (E)	8-98304-248-0	01	1	1601-	●
97	BRACKET; CLIP (C) L=55	1-47476-177-0	02	1	1601-		●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) L=55	1-47476-177-0	02	1	1601-	●
97	BRACKET; CLIP (G)	8-98159-584-0	01	1	1601-	●	●
97	BRACKET; CLIP (D)	8-98209-082-0	01	1	1601-	●	●
97	BRACKET; CLIP (A)	8-98249-018-0	01	1	1601-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98284-913-0	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (I)	8-98117-691-0	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C) L=55	1-47476-177-0	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (I)	8-98117-691-0	02	1	1601-	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	1601-		●
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1601-	●
303	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	01	1	1601-	●	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1601-	●	●
303	BOLT; BRKT (D) M10X35 FLANGE	0-28651-035-0	02	1	1601-	●	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-		●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-	●
313	COOLER ASM; FUEL	8-98227-679-1	01	1	1601-	●	●
627	BOLT; FUEL CLR M6X25 FLANGE	0-28650-625-0	04	1	1601-	●	●
627	BOLT; FUEL CLR WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) M6X25 FLANGE	0-28650-625-0	04	1	1601-	●
628	NUT; FUEL CLR M6 FLANGE	0-91180-106-0	04	1	1601-	●	●
628	NUT; FUEL CLR WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) M6 FLANGE	0-91180-106-0	04	1	1601-	●
629	BRACKET; FUEL CLR	8-98224-320-1	01	1	1601-		●
629	BRACKET; FUEL CLR WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)	8-98224-320-1	01	1	1601-	●
629	BRACKET; FUEL CLR WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W)	8-98306-633-0	01	1	1601-	●
634	HOSE; RUBBER RETURN (C) L=210 SERVICED BY L=3000	0-01859-300-0	02	1	1601-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	02	1	1601-	●
634	HOSE; RUBBER RETURN (B)	8-98333-217-0	01	1	1601-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98333-217-0	01	1	1601-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	01	1	1601-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (B)	8-98332-370-0	01	1	1601-	●
634	HOSE; RUBBER RETURN (A)	8-98312-408-0	01	1	1601-	●	●
639	BOLT; BRKT,FUEL CLR M10X35 FLANGE	0-28651-035-0	04	1	1601-	●	●

65 41 95 174 65 41 634 47 41 174 41 41 65 29 41 29 228 41 32 174 41 82 41 41 41 83 47 83 41 41 102 62 41 32 41 41 66 41 304 303 64 24 97 303 97 41 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (D) ID=11 L=20	0-95235-036-0	01	1	1601-	●
24	CLIP; FUEL HOSE (A) ID=24 & 24 L=49	1-09701-018-0	01	1	1601-		●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=24 & 24 L=49	1-09701-018-0	01	1	1601-	●
24	CLIP; FUEL HOSE (C) ID=21 L=24	8-98019-191-0	02	1	1601-		●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) ID=21 L=24	8-98019-191-0	02	1	1601-	●
24	CLIP; FUEL HOSE (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1601-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	01	1	1601-	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C)	8-98332-316-0	01	1	1601-	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (B)	8-98332-338-0	01	1	1601-	●
29	HOSE; FUEL (A) L=180 SERVICED BY L=3000	0-01558-300-0	02	1	1601-	●	●
29	HOSE; FUEL (D)	8-98165-972-0	01	1	1601-	●	●
29	HOSE; FUEL (E)	8-98204-103-0	01	1	1601-	●	●
32	PIPE; DELIVERY,FUEL TANK (B) L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1601-	●	●
32	PIPE; DELIVERY,FUEL TANK (A)	8-98204-102-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (F) ID=10 & 10	1-09709-241-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (G) ID=10 & 10	1-09709-243-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (E) L=250	5-09707-030-1	09	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W) (H) ID=11 H=20 L=20	8-98033-780-0	02	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=11 H=20 L=20	8-98033-780-0	03	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (H) ID=11 H=20 L=20	8-98033-780-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-241-0	05	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (F) ID=10 & 10	1-09709-241-0	05	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=10 & 10	1-09709-243-0	05	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (G) ID=10 & 10	1-09709-243-0	05	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	07	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) L=250	5-09707-030-1	07	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	11	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=16	8-94238-568-0	11	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (I) ID=13	8-97173-220-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (J) ID=16	8-98008-098-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (K)	8-98203-791-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (F) ID=10 & 10	1-09709-241-0	02	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (G) ID=10 & 10	1-09709-243-0	02	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (A) ID=16	8-94238-568-0	09	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1601-	●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (A) L=848	8-98331-406-0	01	1	1601-	●
47	PIPE; FUEL,RETURN WHEEL BASE 4000MM(40W) (A) L=1377	8-98331-410-0	01	1	1601-	●
47	PIPE; FUEL,RETURN (A) L=1561	8-98312-249-0	01	1	1601-		●
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) L=1561	8-98312-249-0	01	1	1601-	●
47	PIPE; FUEL,RETURN (C) L=945	8-98312-262-0	01	1	1601-		●
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) L=945	8-98312-262-0	01	1	1601-	●
47	PIPE; FUEL,RETURN (B) L=284	8-98209-084-0	01	1	1601-	●	●
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	1601-		●
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1601-	●
62	BOLT; CLIP FIX (B) M8X30 FLANGE	0-28650-830-0	01	1	1601-		●
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M8X30 FLANGE	0-28650-830-0	01	1	1601-	●
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	1601-	●	●
62	BOLT; CLIP FIX WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (A) M8X20 FLANGE	0-28650-820-0	01	1	1601-	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1601-	●	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=320 SERVICED BY L=3000	0-01859-300-0	01	1	1601-	●	●
65	HOSE; FUEL,DELIVERY PIPE (B)	8-98333-842-0	01	1	1601-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98333-842-0	01	1	1601-	●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98333-843-0	01	1	1601-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C)	8-98333-843-0	01	1	1601-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (D)	8-98332-361-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE (B)	8-98333-214-0	01	1	1601-		●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98333-214-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B)	8-98332-359-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4000MM(40W) (B)	8-98333-102-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE (A) L=300 SERVICED BY L=3000	0-01558-300-0	01	1	1601-	●	●
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	1601-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	04	1	1601-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W) M8 FLANGE	0-91180-108-0	06	1	1601-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1601-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	03	1	1601-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	08	1	1601-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	08	1	1601-	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	1601-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (J) L=50	1-47475-299-2	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (H)	8-98332-559-0	01	1	1601-	●
97	BRACKET; CLIP (B)	8-98239-701-0	01	1	1601-		●
97	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B)	8-98239-701-0	01	1	1601-	●
97	BRACKET; CLIP (E)	8-98304-248-0	01	1	1601-		●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (E)	8-98304-248-0	01	1	1601-	●
97	BRACKET; CLIP (C) L=55	1-47476-177-0	02	1	1601-		●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) L=55	1-47476-177-0	02	1	1601-	●
97	BRACKET; CLIP (G)	8-98159-584-0	01	1	1601-	●	●
97	BRACKET; CLIP (D)	8-98209-082-0	01	1	1601-	●	●
97	BRACKET; CLIP (A)	8-98249-018-0	01	1	1601-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98284-913-0	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (I)	8-98117-691-0	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C) L=55	1-47476-177-0	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (I)	8-98117-691-0	02	1	1601-	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	02	1	1601-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C)	8-98331-405-0	01	1	1601-	●
174	PIPE; FUEL,FEED,FRT (A)	8-98312-248-0	01	1	1601-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A)	8-98312-248-0	01	1	1601-	●
174	PIPE; FUEL,FEED,FRT (B)	8-98209-083-0	01	1	1601-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M10X60 FLANGE	0-28051-060-0	02	1	1601-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M10X20 FLANGE	0-28651-020-0	02	1	1601-	●	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	1601-		●
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1601-	●
303	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	01	1	1601-	●	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1601-	●	●
303	BOLT; BRKT (D) M10X35 FLANGE	0-28651-035-0	02	1	1601-	●	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-		●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-		●
304	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1601-	●
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	01	1	1601-	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1601-	●	●
634	HOSE; RUBBER RETURN (C) L=210 SERVICED BY L=3000	0-01859-300-0	02	1	1601-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	02	1	1601-	●
634	HOSE; RUBBER RETURN (B)	8-98333-217-0	01	1	1601-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98333-217-0	01	1	1601-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	01	1	1601-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (B)	8-98332-370-0	01	1	1601-	●
634	HOSE; RUBBER RETURN (A)	8-98312-408-0	01	1	1601-	●	●

634 41 41 39 634 14 29 147 147 409 41 29 643 628 627 29 14 80 80 41 41 41 41 14 14 14 313 29 83 41 41 66 634 83 97 83 97 303 83 303 303 629 627 97 628 627 639

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	CLIP; HOSE ID=13	8-94238-571-0	05	1	1601-	●	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C)	8-98332-316-0	01	1	1601-	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (B)	8-98332-338-0	01	1	1601-	●
29	HOSE; FUEL (A) L=180 SERVICED BY L=3000	0-01558-300-0	02	1	1601-	●	●
29	HOSE; FUEL (D)	8-98165-972-0	01	1	1601-	●	●
29	HOSE; FUEL (E)	8-98204-103-0	01	1	1601-	●	●
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1601-	●	●
39	PIPE; FUEL (B)	8-98009-438-1	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (F) ID=10 & 10	1-09709-241-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (G) ID=10 & 10	1-09709-243-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (E) L=250	5-09707-030-1	09	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W) (H) ID=11 H=20 L=20	8-98033-780-0	02	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=11 H=20 L=20	8-98033-780-0	03	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (H) ID=11 H=20 L=20	8-98033-780-0	03	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-241-0	05	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (F) ID=10 & 10	1-09709-241-0	05	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=10 & 10	1-09709-243-0	05	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (G) ID=10 & 10	1-09709-243-0	05	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	07	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) L=250	5-09707-030-1	07	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	11	1	1601-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=16	8-94238-568-0	11	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (I) ID=13	8-97173-220-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (J) ID=16	8-98008-098-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (K)	8-98203-791-0	01	1	1601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (F) ID=10 & 10	1-09709-241-0	02	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (G) ID=10 & 10	1-09709-243-0	02	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (A) ID=16	8-94238-568-0	09	1	1601-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1601-	●
66	HOSE; FUEL,RETURN PIPE (B)	8-98333-214-0	01	1	1601-		●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98333-214-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B)	8-98332-359-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4000MM(40W) (B)	8-98333-102-0	01	1	1601-	●
66	HOSE; FUEL,RETURN PIPE (A) L=300 SERVICED BY L=3000	0-01558-300-0	01	1	1601-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) M8X50 FLANGE	0-28050-850-0	03	1	1601-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W) M8X25 FLANGE	0-28650-825-0	02	1	1601-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) M8X20 FLANGE	0-28650-820-0	03	1	1601-	●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28650-825-0	03	1	1601-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8X25 FLANGE	0-28650-825-0	03	1	1601-	●
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	05	1	1601-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X50 FLANGE	0-28050-850-0	05	1	1601-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) M8X50 FLANGE	0-28050-850-0	02	1	1601-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) M8X20 FLANGE	0-28650-820-0	02	1	1601-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	04	1	1601-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W) M8 FLANGE	0-91180-108-0	06	1	1601-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1601-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	03	1	1601-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	08	1	1601-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	08	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (J) L=50	1-47475-299-2	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (H)	8-98332-559-0	01	1	1601-	●
97	BRACKET; CLIP (B)	8-98239-701-0	01	1	1601-		●
97	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B)	8-98239-701-0	01	1	1601-	●
97	BRACKET; CLIP (E)	8-98304-248-0	01	1	1601-		●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (E)	8-98304-248-0	01	1	1601-	●
97	BRACKET; CLIP (C) L=55	1-47476-177-0	02	1	1601-		●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) L=55	1-47476-177-0	02	1	1601-	●
97	BRACKET; CLIP (G)	8-98159-584-0	01	1	1601-	●	●
97	BRACKET; CLIP (D)	8-98209-082-0	01	1	1601-	●	●
97	BRACKET; CLIP (A)	8-98249-018-0	01	1	1601-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98284-913-0	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (I)	8-98117-691-0	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C) L=55	1-47476-177-0	01	1	1601-	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (I)	8-98117-691-0	02	1	1601-	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) ID=16	8-98008-098-0	02	1	1601-	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	1601-		●
303	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1601-	●
303	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	01	1	1601-	●	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1601-	●	●
303	BOLT; BRKT (D) M10X35 FLANGE	0-28651-035-0	02	1	1601-	●	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-		●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-	●
313	COOLER ASM; FUEL	8-98227-679-1	01	1	1601-	●	●
409	JOINT; PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W)	8-98333-093-0	01	1	1601-	●
627	BOLT; FUEL CLR M6X25 FLANGE	0-28650-625-0	04	1	1601-	●	●
627	BOLT; FUEL CLR WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) M6X25 FLANGE	0-28650-625-0	04	1	1601-	●
628	NUT; FUEL CLR M6 FLANGE	0-91180-106-0	04	1	1601-	●	●
628	NUT; FUEL CLR WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) M6 FLANGE	0-91180-106-0	04	1	1601-	●
629	BRACKET; FUEL CLR	8-98224-320-1	01	1	1601-		●
629	BRACKET; FUEL CLR WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)	8-98224-320-1	01	1	1601-	●
629	BRACKET; FUEL CLR WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W)	8-98306-633-0	01	1	1601-	●
634	HOSE; RUBBER RETURN (C) L=210 SERVICED BY L=3000	0-01859-300-0	02	1	1601-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	02	1	1601-	●
634	HOSE; RUBBER RETURN (B)	8-98333-217-0	01	1	1601-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98333-217-0	01	1	1601-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	01	1	1601-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (B)	8-98332-370-0	01	1	1601-	●
634	HOSE; RUBBER RETURN (A)	8-98312-408-0	01	1	1601-	●	●
639	BOLT; BRKT,FUEL CLR M10X35 FLANGE	0-28651-035-0	04	1	1601-	●	●
643	COVER; FUEL COOLER WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W)	8-98306-623-0	01	1	1601-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
