◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11720 - FRR AUST/NZ JNLT09 SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#175475) — 49 parça

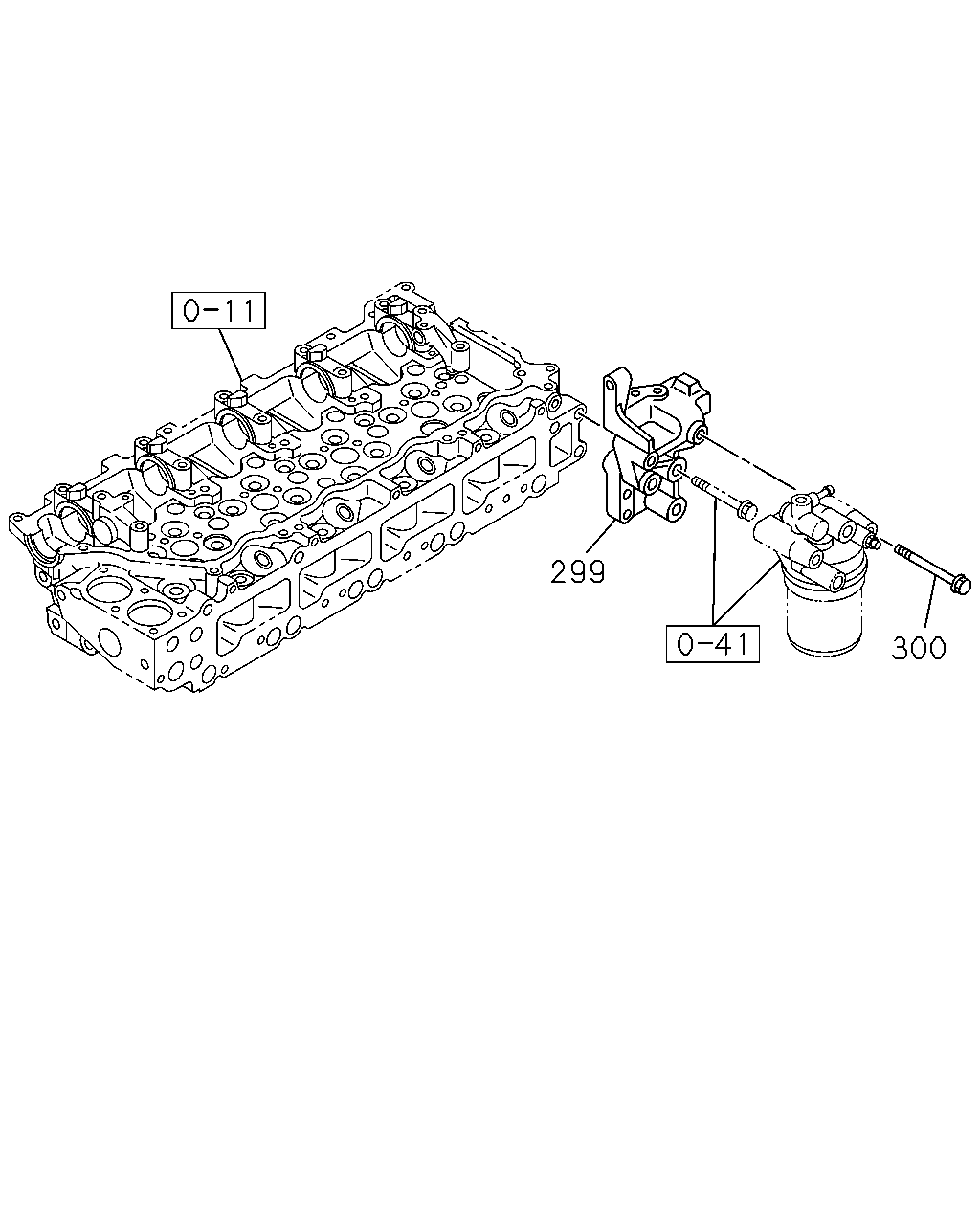

çizim 512020
299 300
BalonParca AdiParca NoAdetTipApplied Date A B
299 BRACKET; FUEL FILTER 8-98092-459-3 01 1 1601- ● ●
300 BOLT; BRKT TO BODY
M10X100 FLANGE 		0-28151-000-0 02 1 1601- ● ●
çizim 512400
468 254 468 254 346
BalonParca AdiParca NoAdetTipApplied Date A B
254 GUARD
(A) 		8-98232-427-3 01 1 1601- ●
254 GUARD
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) 		8-98232-427-3 01 1 1601- ●
254 GUARD
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (B) 		8-98306-551-0 01 1 1601- ●
346 BOLT; GUARD
M10X35 FLANGE 		0-28651-035-0 02 1 1601- ●
346 BOLT; GUARD
M10X35 FLANGE 		0-28651-035-0 02 1 1601- ●
346 BOLT; GUARD
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10X35 FLANGE 		0-28651-035-0 02 1 1601- ●
346 BOLT; GUARD
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10X35 FLANGE 		0-28651-035-0 02 1 1601- ●
346 BOLT; GUARD
WHEEL BASE 3700MM(37W) M8X20 FLANGE 		0-28050-820-0 02 1 1601- ●
468 NUT
(A) M10 FLANGE 		0-91180-210-0 01 1 1601- ●
468 NUT
(A) M10 FLANGE 		0-91180-210-0 01 1 1601- ●
468 NUT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M10 FLANGE 		0-91180-210-0 01 1 1601- ●
468 NUT
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M10 FLANGE 		0-91180-210-0 01 1 1601- ●
468 NUT
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (B) M8 FLANGE 		0-91180-208-0 02 1 1601- ●

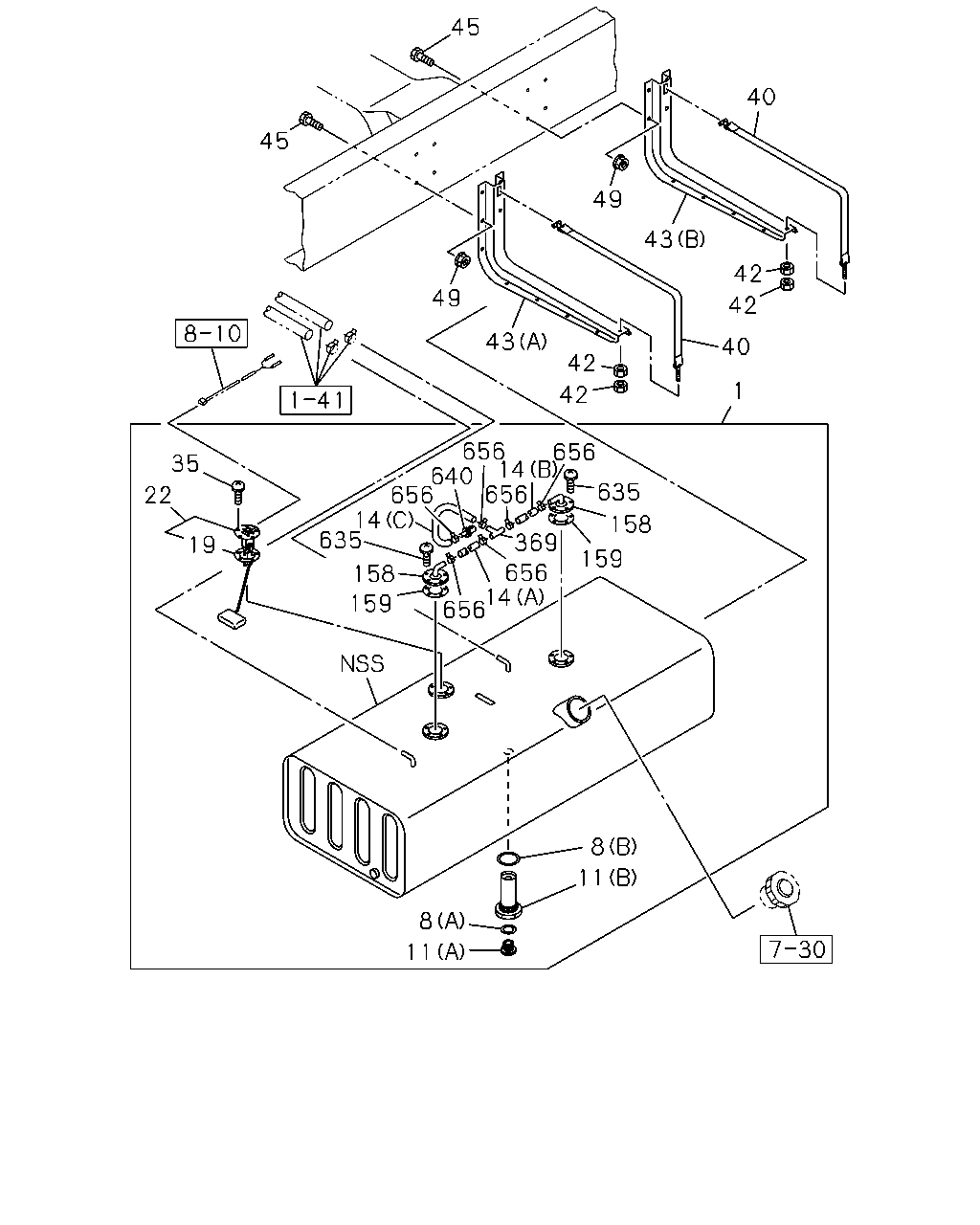

çizim 513677
45 45 35 22 19 635 14 656 640 656 14 656 158 159 656 14 656 369 656 635 158 159 8 11 8 11 1 42 42 43 49 40 42 42 43 49 40
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
1345X532X322 200L 		8-98271-186-0 01 1 1601- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=30 		8-98067-041-0 01 1 1601- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(A) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1601- ● ●
11 PLUG; DRAIN,FUEL TANK
(B) M30 		8-98067-038-0 01 1 1601- ● ●
11 PLUG; DRAIN,FUEL TANK
(A) M18 		8-98068-006-0 01 1 1601- ● ●
14 HOSE; BREATHER,OUTLET
(A) L=430 		8-98131-037-0 01 1 1601- ● ●
14 HOSE; BREATHER,OUTLET
(C) L=460 		8-98304-414-0 01 1 1601- ● ●
14 HOSE; BREATHER,OUTLET
(B) L=90 		8-98304-415-0 01 1 1601- ● ●
19 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1601- ● ●
22 UNIT; FUEL TANK 8-98099-320-0 01 1 1601- ● ●
35 SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER 		0-36220-512-0 05 1 1601- ● ●
40 BELT; SUPPORT,FUEL TANK
L=880 		8-98042-715-1 02 1 1601- ● ●
42 NUT; SUPPORT BELT
M12 		0-91110-512-0 04 1 1601- ● ●
43 BRACKET; FUEL TANK
(A) 		8-98088-123-0 01 1 1601- ● ●
43 BRACKET; FUEL TANK
(B) 		8-98122-883-0 01 1 1601- ● ●
45 BOLT; BRKT,FUEL TANK
M10X35 FLANGE 		0-28651-035-0 12 1 1601- ● ●
49 NUT; BRKT
M10 FLANGE 		0-91180-210-0 12 1 1601- ● ●
158 VALVE; ROLL OVER & FLOAT 8-98067-039-0 02 1 1601- ● ●
159 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 02 1 1601- ● ●
369 JOINT; HOSE 8-98067-080-0 01 1 1601- ● ●
635 SCREW; ROLL OVER & FLOAT VALVE
M5X10 W/LK WASHER 		0-36220-510-0 10 1 1601- ● ●
640 VENTILATOR; HOSE,BREATHER 8-98092-398-0 01 1 1601- ● ●
656 CLAMP; FUEL TANK 8-98304-416-0 06 1 1601- ● ●

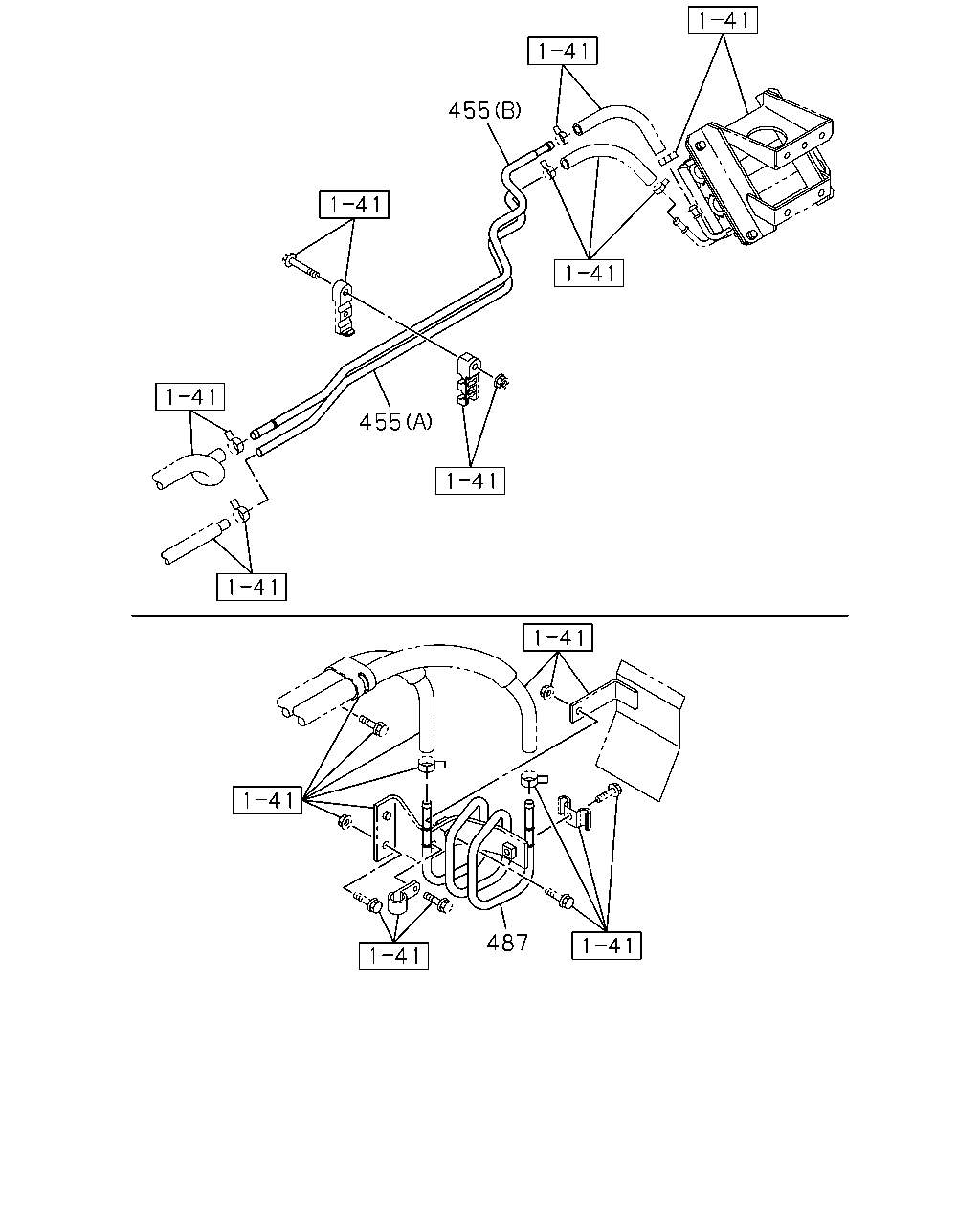

çizim 513749
455 455 487
BalonParca AdiParca NoAdetTipApplied Date A B
455 PIPE; FUEL,RETURN
(A) L=417 		8-98312-246-0 01 1 1601- ●
455 PIPE; FUEL,RETURN
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) L=417 		8-98312-246-0 01 1 1601- ●
455 PIPE; FUEL,RETURN
(B) L=478 		8-98312-247-0 01 1 1601- ●
455 PIPE; FUEL,RETURN
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) L=478 		8-98312-247-0 01 1 1601- ●
455 PIPE; FUEL,RETURN
WHEEL BASE 3700MM(37W) (B) L=845 		8-98312-024-0 01 1 1601- ●
455 PIPE; FUEL,RETURN
WHEEL BASE 3700MM(37W) (A) L=946 		8-98312-025-0 01 1 1601- ●
455 PIPE; FUEL,RETURN
WHEEL BASE 4000MM(40W) (A) L=700 		8-98312-228-0 01 1 1601- ●
455 PIPE; FUEL,RETURN
WHEEL BASE 4000MM(40W) (B) L=378 		8-98313-026-0 01 1 1601- ●
455 PIPE; FUEL,RETURN
WHEEL BASE 4600MM(46W) (A) L=977 		8-98312-238-0 01 1 1601- ●
455 PIPE; FUEL,RETURN
WHEEL BASE 4600MM(46W) (B) L=886 		8-98312-239-0 01 1 1601- ●
487 PIPE; FUEL HOSE
L=901 		8-98249-017-0 01 1 1601- ● ●
