1-31 — AIR DUCT (#175473) — 53 parça

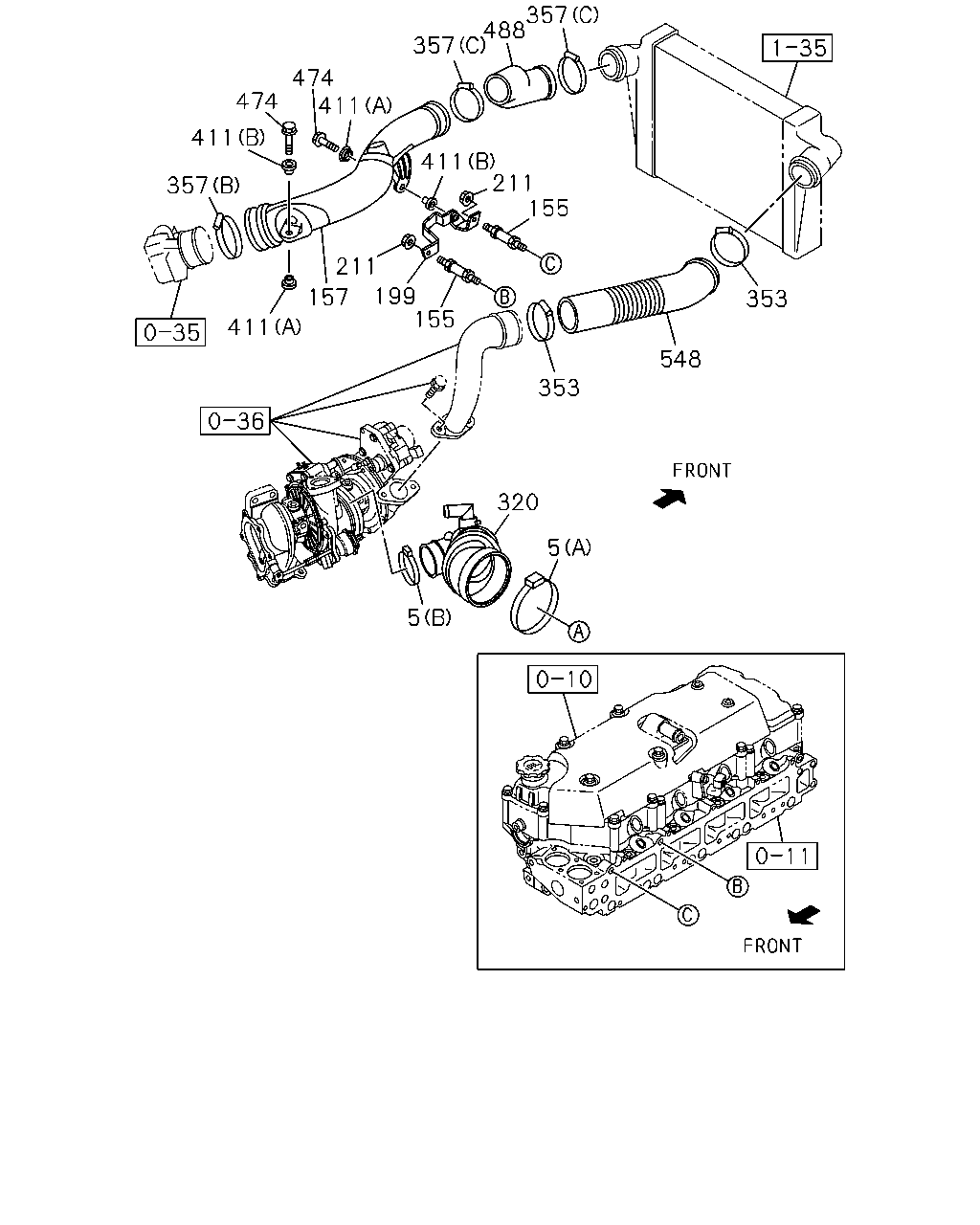

çizim 512485
5 5 320 353 548 353 155 211 411 155 199 211 157 411 357 411 474 411 474 357 488 357
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1601-
5 CLIP; AIR DUCT
(B) ID=75 		8-98206-613-0 01 1 1601-
155 BOLT; BRKT 8-98165-255-0 02 1 1601-
157 PIPE; AIR 8-98107-744-2 01 1 1601-
199 BRACKET; PIPE 8-98166-709-0 01 1 1601-
211 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1601-
320 HOSE; CONN,ACL 8-98107-742-1 01 1 1601-
320 HOSE; CONN,ACL 8-98152-296-1 01 1 1601-
353 CLIP; RUBBER HOSE
ID=68-85 		8-98096-592-0 02 1 1601-
357 CLIP; RUBBER HOSE
(B) ID=77-99 		1-09707-141-0 01 1 1601-
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1601-
357 CLIP; RUBBER HOSE
(C) ID=68-85 		8-98096-592-0 02 1 1601-
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 1601-
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1601-
474 BOLT; PIPE
M8X40 FLANGE 		0-28650-840-0 02 1 1601-
488 HOSE; RUBBER,PIPE 8-98107-921-0 01 1 1601-
488 HOSE; RUBBER,PIPE 8-98230-516-0 01 1 1601-
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98270-040-0 01 1 1601-
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98230-515-0 01 1 1601-

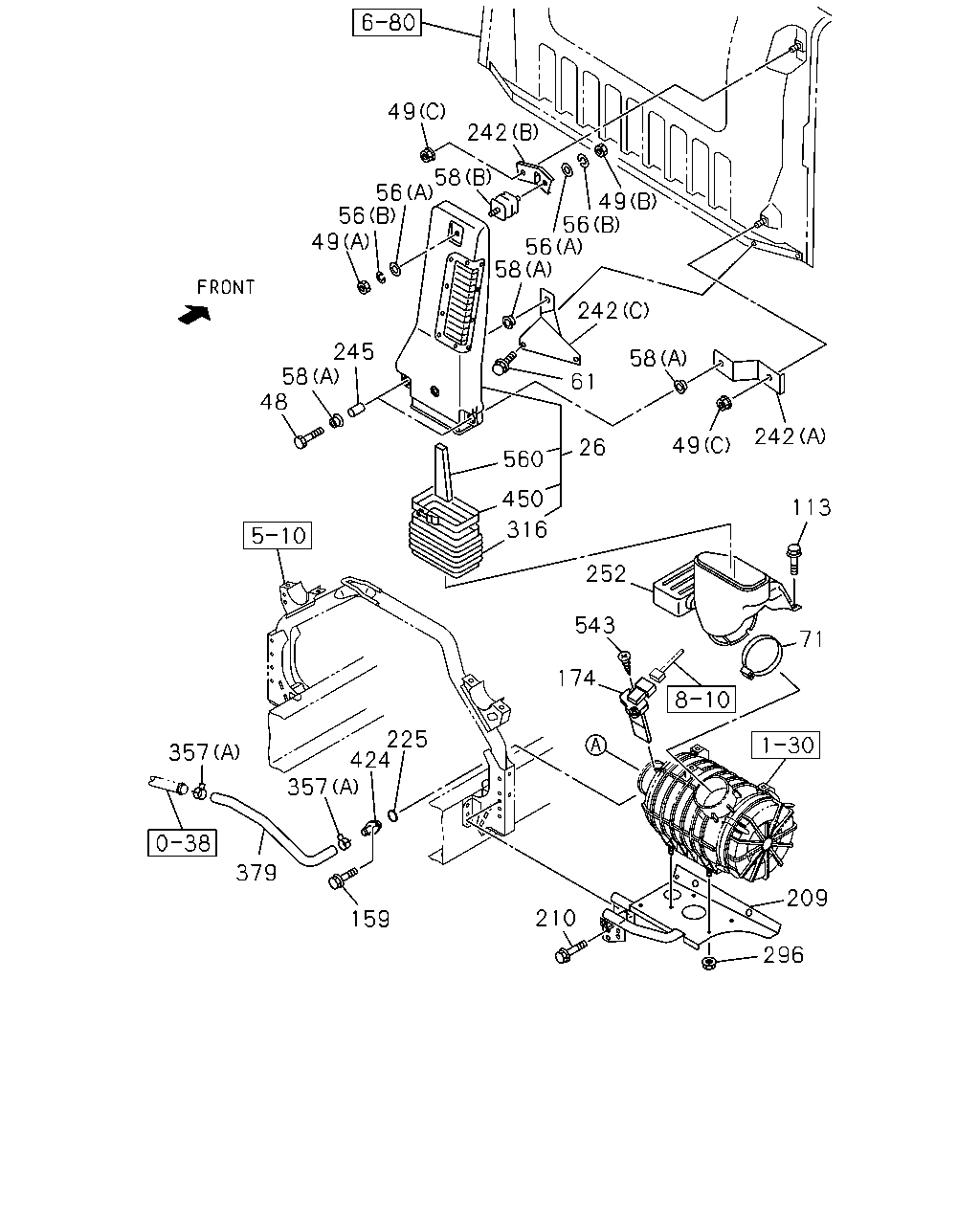

çizim 513595
49 56 56 49 245 58 48 357 379 357 225 424 159 210 174 543 252 71 113 209 296 316 560 26 450 49 242 58 61 242 58 56 56 49 58 242
BalonParca AdiParca NoAdetTipApplied Date
26 DUCT; AIR INT 8-98010-361-2 01 1 1601-
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1601-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1601-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1601-
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1601-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1601-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1601-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1601-
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1601-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1601-
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1601-
113 BOLT; RESONATOR
M6X16 W/PL WASHER 		8-98094-071-0 03 1 1601-
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1601-
174 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1601-
209 BRACKET; ACL 8-98010-343-4 01 1 1601-
209 BRACKET; ACL 8-98152-298-0 01 1 1601-
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1601-
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1601-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1601-
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1601-
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 1601-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1601-
252 DUCT; AIR INT 8-98095-778-0 01 1 1601-
252 DUCT; AIR INT 8-98207-266-0 01 1 1601-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1601-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1601-
357 CLIP; RUBBER HOSE
(B) ID=77-99 		1-09707-141-0 01 1 1601-
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1601-
357 CLIP; RUBBER HOSE
(C) ID=68-85 		8-98096-592-0 02 1 1601-
379 HOSE; RUBBER 8-98126-531-0 01 1 1601-
424 PIPE; AIR,INL 8-98081-835-0 01 1 1601-
450 CLAMP; HOSE 9-09915-504-1 01 1 1601-
543 SCREW; SENSOR
M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1601-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1601-
