Isuzu WW
▶
TRUCKS
▶
FRR
▶
11720 - FRR AUST/NZ JNLT09 SPACECAB
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶

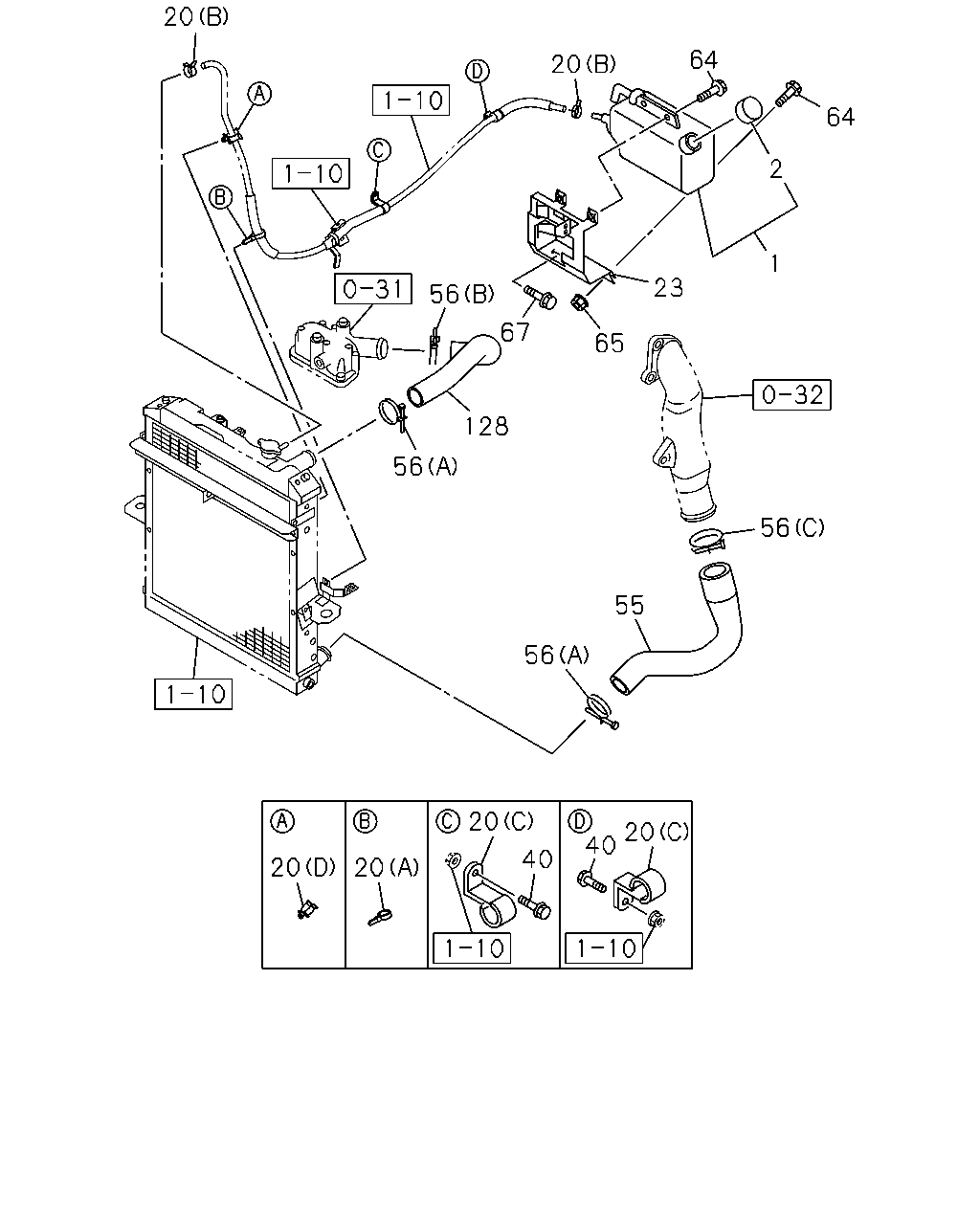

1-11 — RADIATOR HOSE AND SUB TANK
(#175471) — 19 parça
20
20
64
2
64
1
23
65
67
128
56
56
20
20
20
40
40
20
56
55
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
8-98171-757-0
01
1
1601-
2
CAP; SURGE TANK
8-98178-074-0
01
1
1601-
20
CLIP; HOSE,RAD
(C) ID=12 H=24 L=20
1-09700-605-0
02
1
1601-
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
02
1
1601-
20
CLIP; HOSE,RAD
(D) ID=12
8-98029-256-0
01
1
1601-
20
CLIP; HOSE,RAD
(A) ID=20 L=50
9-09917-430-0
01
1
1601-
23
BRACKET; RESERVE TANK
8-98253-099-1
01
1
1601-
40
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1601-
55
HOSE; WATER,RAD OUTLET
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98107-612-4
01
1
1601-
55
HOSE; WATER,RAD OUTLET
8-98235-622-0
01
1
1601-
55
HOSE; WATER,RAD OUTLET
SMOOTHER-FX(TYPE2)(8NS)
8-98235-622-0
01
1
1601-
56
CLIP; WATER HOSE,RAD
(A) ID=48
8-98133-956-0
01
1
1601-
56
CLIP; WATER HOSE,RAD
(A) ID=48
8-98133-956-0
01
1
1601-
56
CLIP; WATER HOSE,RAD
(B) ID=52
1-09704-057-0
01
1
1601-
56
CLIP; WATER HOSE,RAD
(C) ID=62
8-98133-957-0
01
1
1601-
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
03
1
1601-
65
NUT; BRKT,SUB TANK
M8 FLANGE
0-91180-108-0
01
1
1601-
67
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
03
1
1601-
128
HOSE; WATER,RAD INL
8-98107-609-0
01
1
1601-
