◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11720 - FRR AUST/NZ JNLT09 SPACECAB ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-90 - POWER TAKE OFF; FLYWHEEL ▶
0-90 — POWER TAKE OFF; FLYWHEEL (#175468) — 48 parça

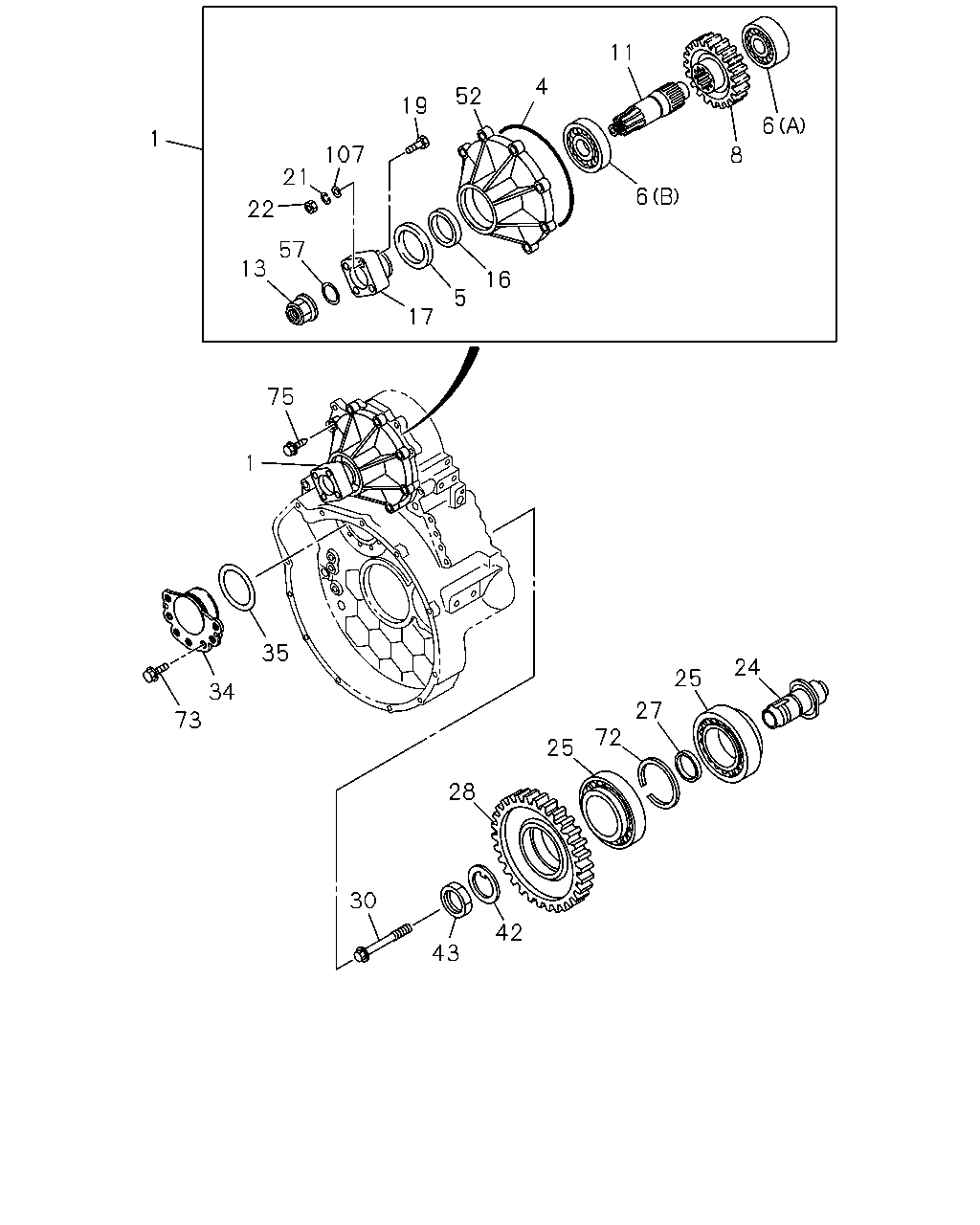

çizim 512435
1 22 21 107 19 52 4 11 8 6 6 16 5 17 57 13 75 1 35 34 73 28 25 72 27 25 24 30 43 42
BalonParca AdiParca NoAdetTipApplied Date
1 POWER TAKE OFF ASM; ENG RR
POWER TAKE OFF-FLYWHEEL<6SZ> 		8-98011-447-1 01 1 1601-
4 GASKET; BRG CASE
ALSO INCLUDED IN GASKET SET(ENGINE). POWER TAKE OFF-FLYWHEEL<6SZ> ID=196.3 		9-09720-519-0 01 1 1601-
5 SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE). POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97388-533-0 01 1 1601-
6 BEARING; FLYWHEEL PTO
POWER TAKE OFF-FLYWHEEL<6SZ> (B) 		8-98011-439-0 02 1 1601-
6 BEARING; FLYWHEEL PTO
POWER TAKE OFF-FLYWHEEL<6SZ> (A) 		8-98066-078-0 02 1 1601-
8 GEAR; FLYWHEEL PTO
POWER TAKE OFF-FLYWHEEL<6SZ> Z=60 		8-98011-441-0 01 1 1601-
11 SHAFT; PTO,FLYWHEEL
POWER TAKE OFF-FLYWHEEL<6SZ> 		8-98011-444-1 01 1 1601-
13 NUT; SHAFT,FLYWHEEL PTO
POWER TAKE OFF-FLYWHEEL<6SZ> M27 H=25 		8-97360-410-0 01 1 1601-
16 THROWER; OIL,FLYWHEEL PTO
POWER TAKE OFF-FLYWHEEL<6SZ> 		8-98011-449-0 01 1 1601-
17 FLANGE; PTO,FLYWHEEL
POWER TAKE OFF-FLYWHEEL<6SZ> 		1-38189-010-2 01 1 1601-
19 BOLT; FLANGE
POWER TAKE OFF-FLYWHEEL<6SZ> M12X40 		0-20951-240-0 04 1 1601-
21 WASHER; LK,FLANGE
POWER TAKE OFF-FLYWHEEL<6SZ> ID=12.2 		0-91510-812-0 04 1 1601-
22 NUT; FLANGE
POWER TAKE OFF-FLYWHEEL<6SZ> M12 		0-91110-512-0 04 1 1601-
24 SHAFT; IDLE GEAR
POWER TAKE OFF-FLYWHEEL<6SZ> 		8-94396-895-1 01 1 1601-
25 BEARING; IDLE DRIVEN GEAR,FLYWHEEL PTO
POWER TAKE OFF-FLYWHEEL<6SZ> ID=45 OD=85 		9-00032-209-0 02 1 1601-
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF-FLYWHEEL<6SZ> T=6.05 		1-38226-016-0 01 1 1601-
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF-FLYWHEEL<6SZ> T=6.12 		1-38226-017-0 01 1 1601-
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF-FLYWHEEL<6SZ> T=6.19 		1-38226-018-0 01 1 1601-
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF-FLYWHEEL<6SZ> T=6.26 		1-38226-019-0 01 1 1601-
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF-FLYWHEEL<6SZ> T=6.33 		1-38226-020-0 01 1 1601-
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF-FLYWHEEL<6SZ> T=6.40 		1-38226-021-0 01 1 1601-
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF-FLYWHEEL<6SZ> T=6.47 		1-38226-022-0 01 1 1601-
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF-FLYWHEEL<6SZ> T=6.54 		1-38226-023-0 01 1 1601-
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF-FLYWHEEL<6SZ> T=6.61 		1-38226-024-0 01 1 1601-
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF-FLYWHEEL<6SZ> T=6.68 		1-38226-025-0 01 1 1601-
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF-FLYWHEEL<6SZ> T=6.75 		1-38226-026-0 01 1 1601-
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF-FLYWHEEL<6SZ> T=6.82 		1-38226-027-0 01 1 1601-
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF-FLYWHEEL<6SZ> T=6.89 		1-38226-028-0 01 1 1601-
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF-FLYWHEEL<6SZ> T=6.96 		1-38226-029-0 01 1 1601-
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF-FLYWHEEL<6SZ> T=7.03 		1-38226-030-0 01 1 1601-
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF-FLYWHEEL<6SZ> T=7.10 		1-38226-031-0 01 1 1601-
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF-FLYWHEEL<6SZ> T=7.17 		1-38226-032-0 01 1 1601-
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF-FLYWHEEL<6SZ> T=7.24 		1-38226-033-0 01 1 1601-
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF-FLYWHEEL<6SZ> T=7.31 		1-38226-034-0 01 1 1601-
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF-FLYWHEEL<6SZ> T=7.38 		1-38226-035-0 01 1 1601-
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF-FLYWHEEL<6SZ> T=7.45 		1-38226-036-0 01 1 1601-
28 GEAR; IDLE
POWER TAKE OFF-FLYWHEEL<6SZ> Z=72 		8-98011-442-0 01 1 1601-
30 BOLT; SPINDLE
POWER TAKE OFF-FLYWHEEL<6SZ> M14X125 FLANGE W/PL WASHER 		1-09070-043-1 01 1 1601-
34 COVER; PTO,FLYWHEEL
POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97600-138-0 01 1 1601-
35 GASKET; COVER
POWER TAKE OFF-FLYWHEEL<6SZ> ID=80.5 		8-94396-903-0 01 1 1601-
42 WASHER; LK,BRG
POWER TAKE OFF-FLYWHEEL<6SZ> ID=47 		1-09533-003-0 01 1 1601-
43 NUT; BRG IDLE GEAR
POWER TAKE OFF-FLYWHEEL<6SZ> M45 		8-98013-634-0 01 1 1601-
52 CASE; BRG,PTO
POWER TAKE OFF-FLYWHEEL<6SZ> 		8-98011-446-1 01 1 1601-
57 GASKET; FLANGE,PTO,FLYWHEEL
POWER TAKE OFF-FLYWHEEL<6SZ> ID=35.7 		1-09623-285-0 01 1 1601-
72 SPACER; OUTER,IDLE DRIVEN GEAR,PTO
POWER TAKE OFF-FLYWHEEL<6SZ> T=3 		1-38226-015-0 01 1 1601-
73 BOLT; COVER,PTO
POWER TAKE OFF-FLYWHEEL<6SZ> M10X25 FLANGE 		0-28151-025-0 07 1 1601-
75 BOLT; COVER
POWER TAKE OFF-FLYWHEEL<6SZ> M10X28 FLANGE 		8-98044-944-0 08 1 1601-
107 WASHER; PL,FLANGE
POWER TAKE OFF-FLYWHEEL<6SZ> ID=12.5 OD=22 		0-91610-512-0 04 1 1601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
