0-65 — STARTER (#175464) — 23 parça

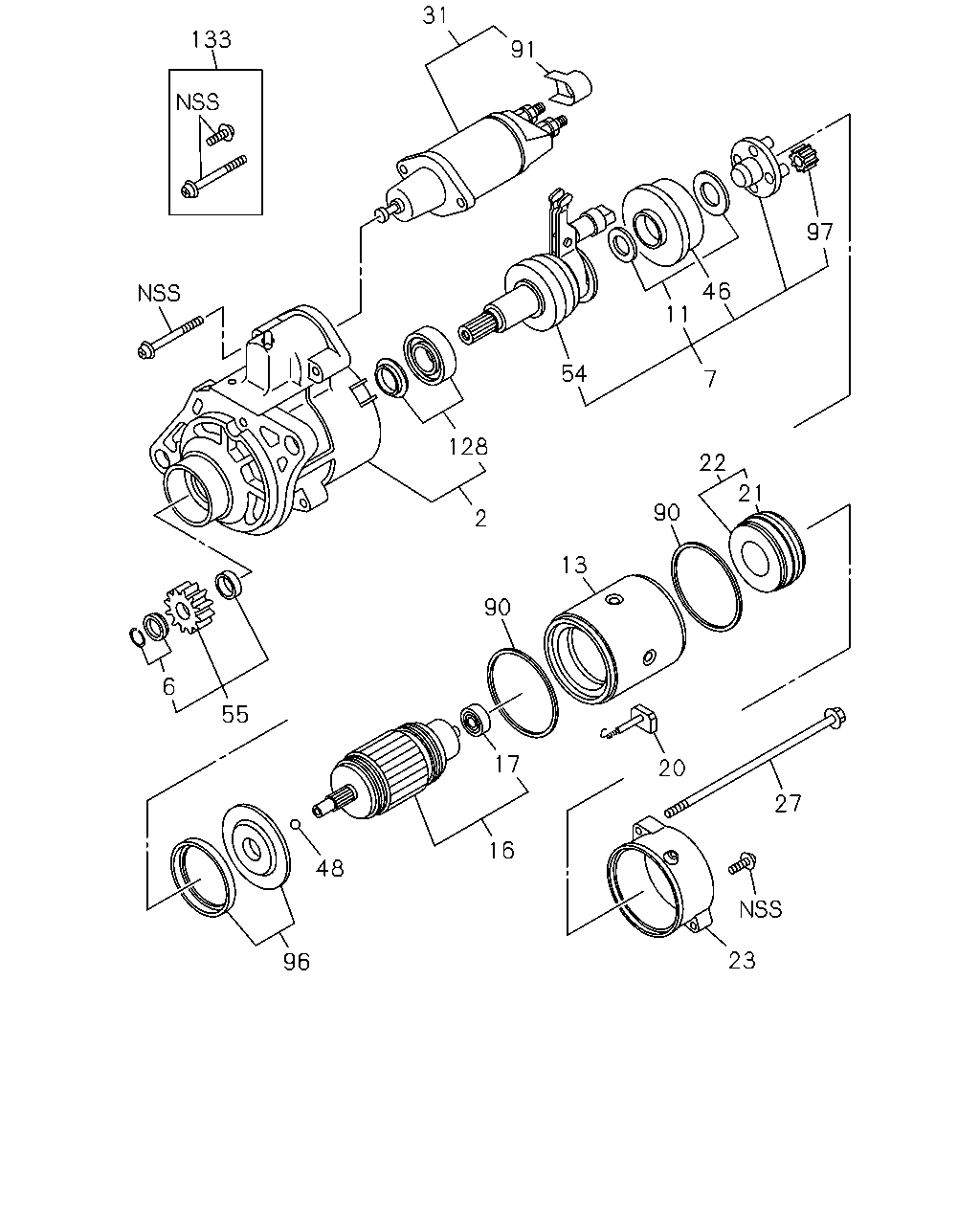

çizim 512412
133 31 91 54 11 7 46 97 128 2 90 90 13 55 6 48 96 16 17 20 27 23 22 21
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; PINION,STARTER
ASM PART: A = 8-98242-589-1 		8-98261-349-0 01 1 -
6 STOPPER; PINION STARTER
ASM PART: A = 8-98242-589-1 		8-94475-688-0 01 1 -
7 CLUTCH ASM; PINION,STARTER
ASM PART: A = 8-98242-589-1 		8-98281-699-0 01 1 -
11 WASHER; GEAR SHAFT STARTER
ASM PART: A = 8-98242-589-1 		8-97116-484-0 01 1 -
13 YOKE; STARTER
ASM PART: A = 8-98242-589-1 		8-98246-423-0 01 1 -
16 ARMATURE; STARTER
ASM PART: A = 8-98242-589-1 		1-81121-075-0 01 1 -
17 BEARING; ARMATURE,STARTER
ASM PART: A = 8-98242-589-1 		1-81129-837-0 01 1 -
20 BRUSH; (+),STARTER
ASM PART: A = 8-98242-589-1 		8-98246-425-0 01 1 -
21 SPRING; BRUSH HOLDER STARTER
ASM PART: A = 8-98242-589-1 		1-81129-768-0 04 1 -
22 HOLDER; BRUSH STARTER
ASM PART: A = 8-98242-589-1 		8-98246-424-0 01 1 -
23 COVER; RR COVER STARTER
ASM PART: A = 8-98242-589-1 		8-98248-764-0 01 1 -
27 BOLT; THROUGH,STARTER
ASM PART: A = 8-98242-589-1 		1-81129-769-0 01 1 -
31 SWITCH; ENGAGE STARTER
ASM PART: A = 8-98242-589-1 		8-98281-701-0 01 1 -
46 GEAR; CLU STARTER
ASM PART: A = 8-98242-589-1 		8-97116-485-0 01 1 -
48 BALL; PINION,STARTER
ASM PART: A = 8-98242-589-1 		8-97116-515-0 01 1 -
54 CLUTCH; PINION,STARTER
ASM PART: A = 8-98242-589-1 		8-98281-700-0 01 1 -
55 PINION; CLU,STARTER
ASM PART: A = 8-98242-589-1 		8-98060-835-0 01 1 -
90 GASKET; ARMATURE
ASM PART: A = 8-98242-589-1 		1-81129-767-0 02 1 -
91 COVER; STARTER
ASM PART: A = 8-98242-589-1 		1-81129-764-0 01 1 -
96 GASKET; FRT CASE
ASM PART: A = 8-98242-589-1 		8-98248-761-0 01 1 -
97 GEAR; STARTER
ASM PART: A = 8-98242-589-1 		8-97116-490-0 04 1 -
128 BEARING; STARTER
ASM PART: A = 8-98242-589-1 		1-81129-758-0 01 1 -
133 SCREW SET; STARTER
ASM PART: A = 8-98242-589-1 		1-81129-765-0 01 1 -
