0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#175463) — 41 parça

107 11 10 2 1 13 112 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY L=280	8-98025-412-3	01	1	1601-	●	●
2	CABLE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=240	8-98165-856-0	01	1	1601-	●	●
2	CABLE; BATTERY BATTERY 115E41L<8MA> L=390	8-98165-857-0	01	1	1601-	●	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> POWER TAKE OFF-FLYWHEEL<6SZ>	8-98336-320-0	01	1	1601-		●
8	CABLE; BATTERY,STARTER POWER TAKE OFF-FLYWHEEL<6SZ> BATTERY 115E41L<8MA>	8-98336-321-0	01	1	1601-		●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98289-332-0	01	1	1601-	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL<6SZ>	8-98289-332-0	01	1	1601-		●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA>	8-98289-333-0	01	1	1601-	●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> EXC. POWER TAKE OFF-FLYWHEEL<6SZ>	8-98289-333-0	01	1	1601-		●
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1601-	●	●
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1601-	●	●
13	GROMMET; BATTERY CABLE ID=28 OD=35 T=17	9-09956-256-2	01	1	1601-	●	●
107	CLIP; BAND L=140	5-09707-031-1	01	1	1601-	●	●
112	TERMINAL; BATTERY <+>	8-98290-356-0	01	1	1601-	●	●

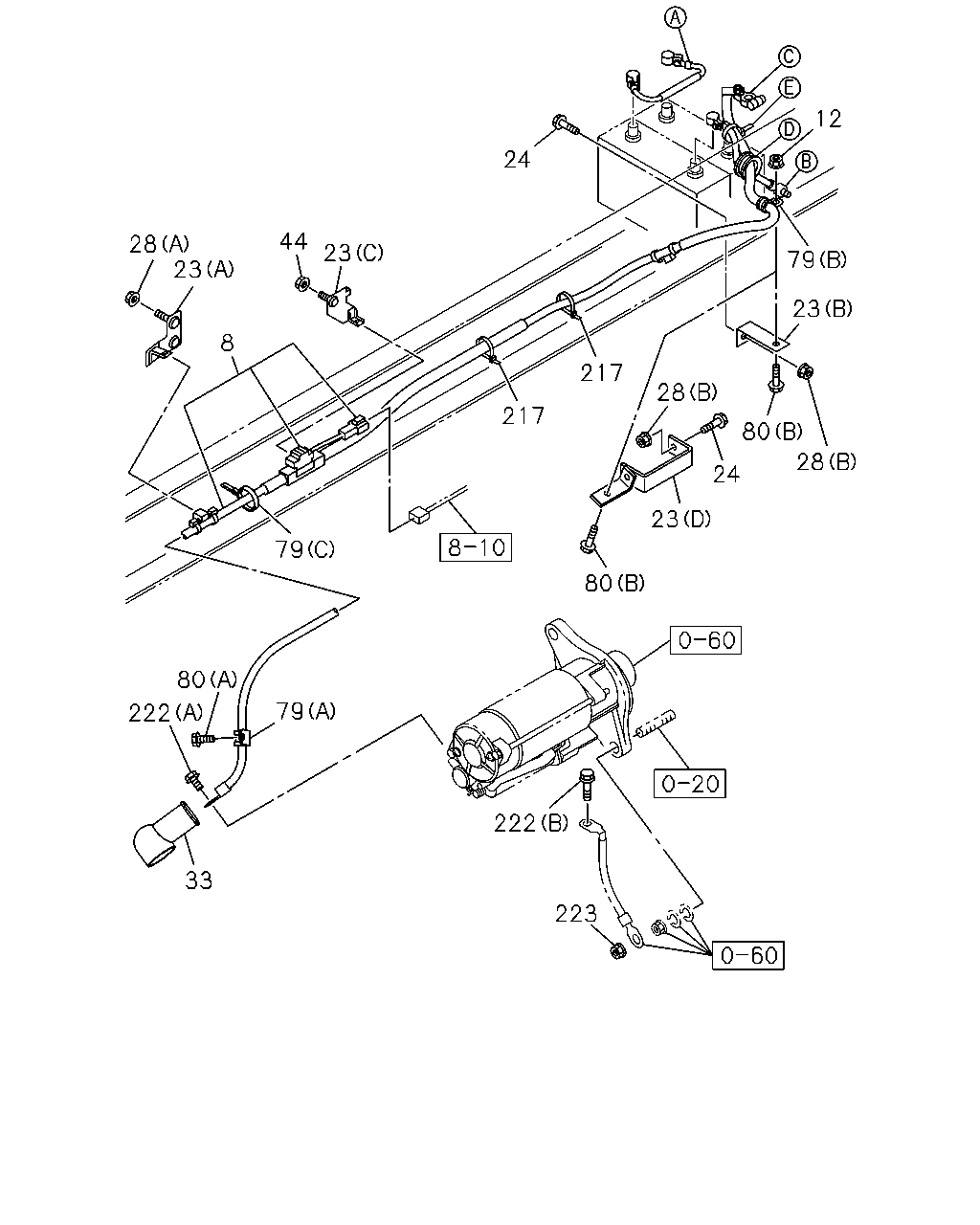

28 44 23 8 23 80 222 33 79 79 217 217 24 12 79 23 80 28 23 24 28 80 222 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> POWER TAKE OFF-FLYWHEEL<6SZ>	8-98336-320-0	01	1	1601-		●
8	CABLE; BATTERY,STARTER POWER TAKE OFF-FLYWHEEL<6SZ> BATTERY 115E41L<8MA>	8-98336-321-0	01	1	1601-		●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98289-332-0	01	1	1601-	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL<6SZ>	8-98289-332-0	01	1	1601-		●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA>	8-98289-333-0	01	1	1601-	●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> EXC. POWER TAKE OFF-FLYWHEEL<6SZ>	8-98289-333-0	01	1	1601-		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	1601-	●	●
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98116-577-0	01	1	1601-	●	●
23	BRACKET; CABLE CLIP TO FRAME (B) L=95	1-82699-085-0	01	1	1601-	●
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (B) L=95	1-82699-085-0	01	1	1601-		●
23	BRACKET; CABLE CLIP TO FRAME SMOOTHER-FX(TYPE2)(8NS) (C)	8-98044-882-0	01	1	1601-	●	●
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 3700MM(37W) (D)	8-98096-020-0	01	1	1601-		●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	01	1	1601-	●	●
28	NUT; BRKT TO FRAME (B) M8 FLANGE	0-91180-108-0	01	1	1601-	●	●
28	NUT; BRKT TO FRAME (A) M10 FLANGE	0-91180-210-0	01	1	1601-	●	●
33	CAP; INSULATOR	1-82699-431-0	01	1	1601-	●	●
44	NUT; BRKT SMOOTHER-FX(TYPE2)(8NS) M10 FLANGE	0-91180-210-0	01	1	1601-	●	●
79	CLIP; BATTERY CABLE (C) ID=20 L=50	9-09917-430-0	01	1	1601-	●	●
79	CLIP; BATTERY CABLE (C) ID=20 L=50	9-09917-430-0	01	1	1601-	●	●
79	CLIP; BATTERY CABLE (A) ID=15 L=28	1-09701-216-0	01	1	1601-	●	●
79	CLIP; BATTERY CABLE (B) ID=21 L=24	8-98019-191-0	01	1	1601-	●	●
80	BOLT; BATTERY CABLE CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1601-	●	●
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1601-	●	●
217	CLIP; BAND,CABLE L=250	1-09707-126-0	02	1	1601-	●	●
222	BOLT; EARTH CABLE (A) M8X16 FLANGE	0-28050-816-0	01	1	1601-	●	●
222	BOLT; EARTH CABLE (B) M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1601-	●	●
223	NUT; EARTH CABLE M14 FLANGE	0-91180-114-0	01	1	1601-	●	●
