0-52 — OIL AND VACUUM PIPING; ENGINE (#175459) — 109 parça

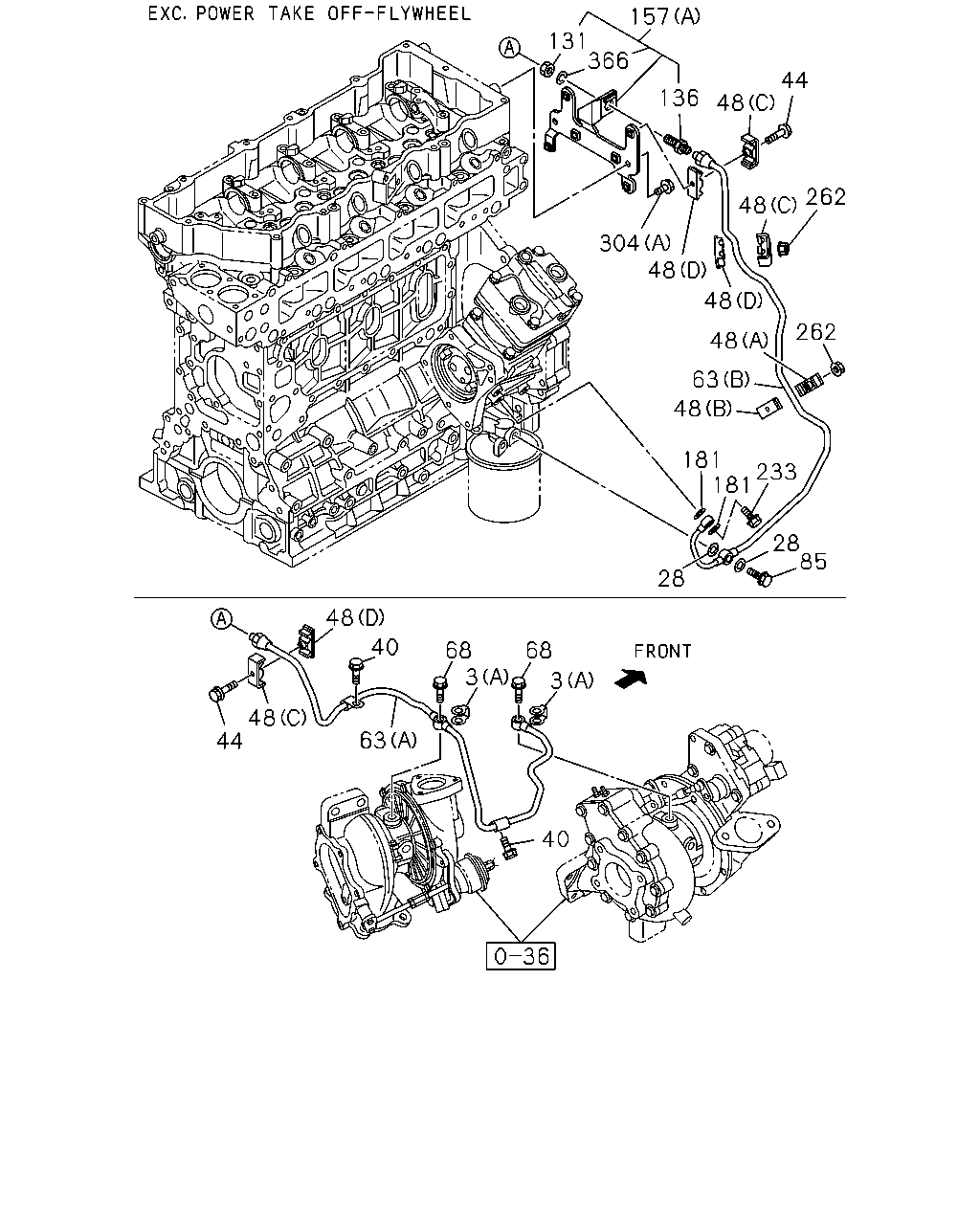

131 157 366 136 48 44 304 48 48 48 63 48 181 181 233 28 28 85 262 48 262 48 44 48 40 63 68 3 68 3 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2	8-98158-135-0	02	1	1601-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). POWER TAKE OFF-FLYWHEEL<6SZ> (C) ID=10.2 OD=16.0	9-09571-410-0	02	1	1601-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). POWER TAKE OFF-FLYWHEEL<6SZ> (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	1601-
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	1601-
40	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1601-
40	BOLT; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M8X16 FLANGE	0-28050-816-0	02	1	1601-
40	BOLT; OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> M8X16 FLANGE	0-28050-816-0	03	1	1601-
44	BOLT; CLIP,OIL PIPE M6X35 FLANGE	0-28050-635-0	02	1	1601-
44	BOLT; CLIP,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M6X35 FLANGE	0-28050-635-0	02	1	1601-
44	BOLT; CLIP,OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> M6X35 FLANGE	0-28050-635-0	01	1	1601-
48	CLIP; OIL PIPE (C) ID=7 & 9 L=25	1-09701-228-3	03	1	1601-
48	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (C) ID=7 & 9 L=25	1-09701-228-3	03	1	1601-
48	CLIP; OIL PIPE (D) ID=7 & 9 L=25	1-09701-229-2	03	1	1601-
48	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (D) ID=7 & 9 L=25	1-09701-229-2	03	1	1601-
48	CLIP; OIL PIPE (A) ID=9 & 9 L=25	1-09701-180-0	01	1	1601-
48	CLIP; OIL PIPE (B) ID=9 & 9 L=25	8-94393-280-3	01	1	1601-
48	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (E)	1-09701-240-0	02	1	1601-
63	PIPE; OIL,TURBOCHARGER FEED (A)	8-98107-155-1	01	1	1601-
63	PIPE; OIL,TURBOCHARGER FEED EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A)	8-98107-155-1	01	1	1601-
63	PIPE; OIL,TURBOCHARGER FEED (B)	8-98169-372-0	01	1	1601-
63	PIPE; OIL,TURBOCHARGER FEED EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (B)	8-98169-372-0	01	1	1601-
63	PIPE; OIL,TURBOCHARGER FEED POWER TAKE OFF-FLYWHEEL<6SZ> (C)	8-98140-115-1	01	1	1601-
63	PIPE; OIL,TURBOCHARGER FEED POWER TAKE OFF-FLYWHEEL<6SZ> (D)	8-98140-127-1	01	1	1601-
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M10X27	8-98164-400-0	02	1	1601-
85	BOLT; EYE,OIL PIPE FIX M10X28	8-98037-823-0	01	1	1601-
131	NUT; UNION M16	0-91111-516-0	01	1	1601-
136	UNION M16 L=65 STRAIGHT	0-92123-110-0	01	1	1601-
157	BRACKET; OIL PIPE (A)	8-98107-383-2	01	1	1601-
157	BRACKET; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A)	8-98107-383-2	01	1	1601-
157	BRACKET; OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (D)	8-98055-852-0	01	1	1601-
157	BRACKET; OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (C)	8-98140-116-2	01	1	1601-
157	BRACKET; OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (B)	8-98140-128-0	01	1	1601-
181	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	1601-
233	BOLT; EYE M10X22	1-09675-028-0	01	1	1601-
262	NUT; CLIP,OIL PIPE M6 FLANGE	0-91180-106-0	02	1	1601-
262	NUT; CLIP,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M6 FLANGE	0-91180-106-0	02	1	1601-
262	NUT; CLIP,OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> M6 FLANGE	0-91180-106-0	01	1	1601-
304	BOLT; BRKT,OIL PIPE (A) M8X16 FLANGE	0-28050-816-0	01	1	1601-
304	BOLT; BRKT,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) M8X16 FLANGE	0-28050-816-0	01	1	1601-
304	BOLT; BRKT,OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (B) M8X20 FLANGE	0-28650-820-0	02	1	1601-
304	BOLT; BRKT,OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (D) M10X20 FLANGE	0-28751-020-0	02	1	1601-
304	BOLT; BRKT,OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (C) M10X30 FLANGE	0-28751-030-0	02	1	1601-
366	WASHER; LK ID=16.2	0-91510-816-0	01	1	1601-

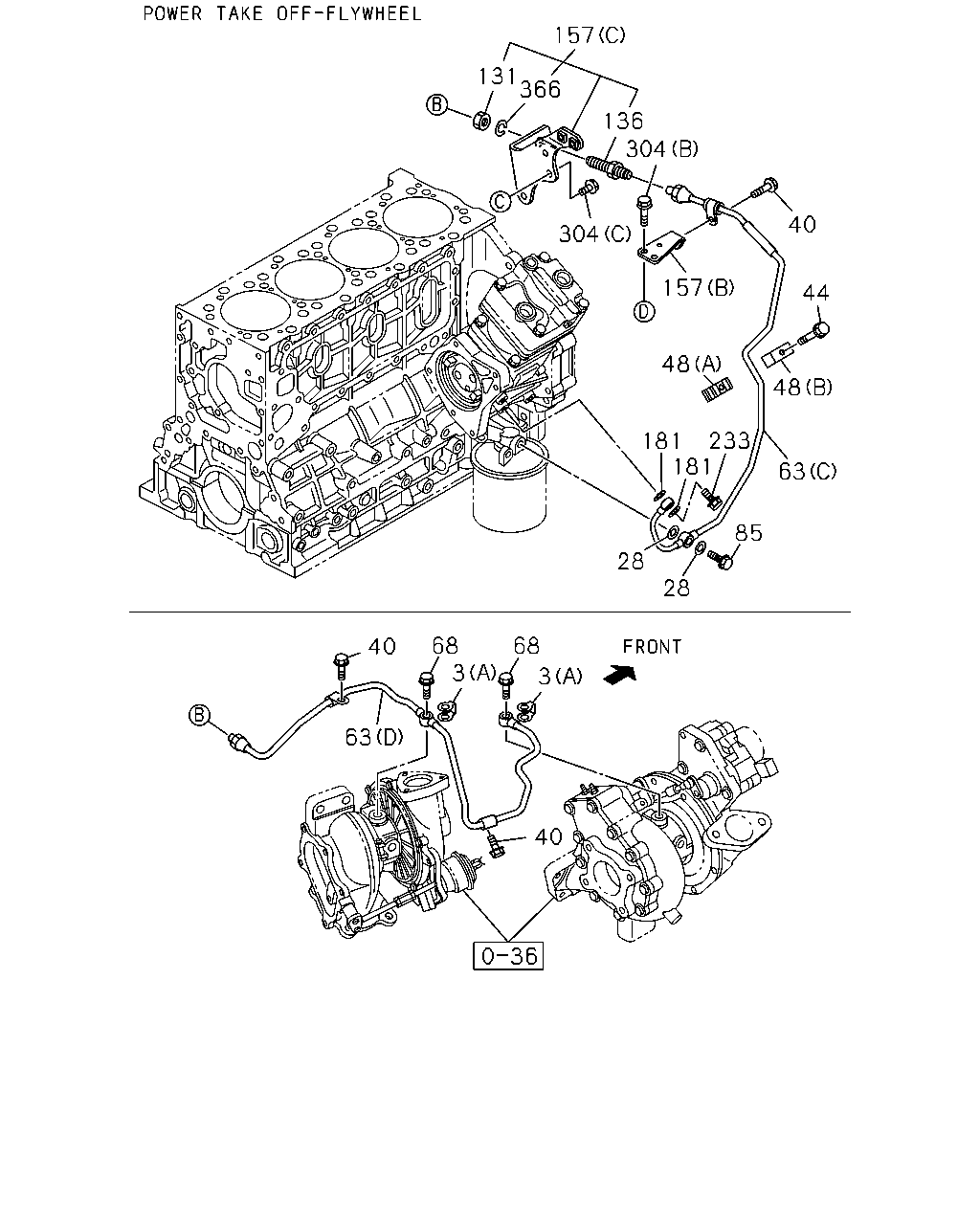

131 157 366 304 136 304 157 48 44 40 48 181 85 233 181 28 28 3 68 3 68 40 63 40 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2	8-98158-135-0	02	1	1601-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). POWER TAKE OFF-FLYWHEEL<6SZ> (C) ID=10.2 OD=16.0	9-09571-410-0	02	1	1601-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). POWER TAKE OFF-FLYWHEEL<6SZ> (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	1601-
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	1601-
40	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1601-
40	BOLT; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M8X16 FLANGE	0-28050-816-0	02	1	1601-
40	BOLT; OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> M8X16 FLANGE	0-28050-816-0	03	1	1601-
44	BOLT; CLIP,OIL PIPE M6X35 FLANGE	0-28050-635-0	02	1	1601-
44	BOLT; CLIP,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M6X35 FLANGE	0-28050-635-0	02	1	1601-
44	BOLT; CLIP,OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> M6X35 FLANGE	0-28050-635-0	01	1	1601-
48	CLIP; OIL PIPE (C) ID=7 & 9 L=25	1-09701-228-3	03	1	1601-
48	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (C) ID=7 & 9 L=25	1-09701-228-3	03	1	1601-
48	CLIP; OIL PIPE (D) ID=7 & 9 L=25	1-09701-229-2	03	1	1601-
48	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (D) ID=7 & 9 L=25	1-09701-229-2	03	1	1601-
48	CLIP; OIL PIPE (A) ID=9 & 9 L=25	1-09701-180-0	01	1	1601-
48	CLIP; OIL PIPE (B) ID=9 & 9 L=25	8-94393-280-3	01	1	1601-
48	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (E)	1-09701-240-0	02	1	1601-
63	PIPE; OIL,TURBOCHARGER FEED (A)	8-98107-155-1	01	1	1601-
63	PIPE; OIL,TURBOCHARGER FEED EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A)	8-98107-155-1	01	1	1601-
63	PIPE; OIL,TURBOCHARGER FEED (B)	8-98169-372-0	01	1	1601-
63	PIPE; OIL,TURBOCHARGER FEED EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (B)	8-98169-372-0	01	1	1601-
63	PIPE; OIL,TURBOCHARGER FEED POWER TAKE OFF-FLYWHEEL<6SZ> (C)	8-98140-115-1	01	1	1601-
63	PIPE; OIL,TURBOCHARGER FEED POWER TAKE OFF-FLYWHEEL<6SZ> (D)	8-98140-127-1	01	1	1601-
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M10X27	8-98164-400-0	02	1	1601-
85	BOLT; EYE,OIL PIPE FIX M10X28	8-98037-823-0	01	1	1601-
131	NUT; UNION M16	0-91111-516-0	01	1	1601-
136	UNION M16 L=65 STRAIGHT	0-92123-110-0	01	1	1601-
157	BRACKET; OIL PIPE (A)	8-98107-383-2	01	1	1601-
157	BRACKET; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A)	8-98107-383-2	01	1	1601-
157	BRACKET; OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (D)	8-98055-852-0	01	1	1601-
157	BRACKET; OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (C)	8-98140-116-2	01	1	1601-
157	BRACKET; OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (B)	8-98140-128-0	01	1	1601-
181	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	1601-
233	BOLT; EYE M10X22	1-09675-028-0	01	1	1601-
304	BOLT; BRKT,OIL PIPE (A) M8X16 FLANGE	0-28050-816-0	01	1	1601-
304	BOLT; BRKT,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) M8X16 FLANGE	0-28050-816-0	01	1	1601-
304	BOLT; BRKT,OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (B) M8X20 FLANGE	0-28650-820-0	02	1	1601-
304	BOLT; BRKT,OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (D) M10X20 FLANGE	0-28751-020-0	02	1	1601-
304	BOLT; BRKT,OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (C) M10X30 FLANGE	0-28751-030-0	02	1	1601-
366	WASHER; LK ID=16.2	0-91510-816-0	01	1	1601-

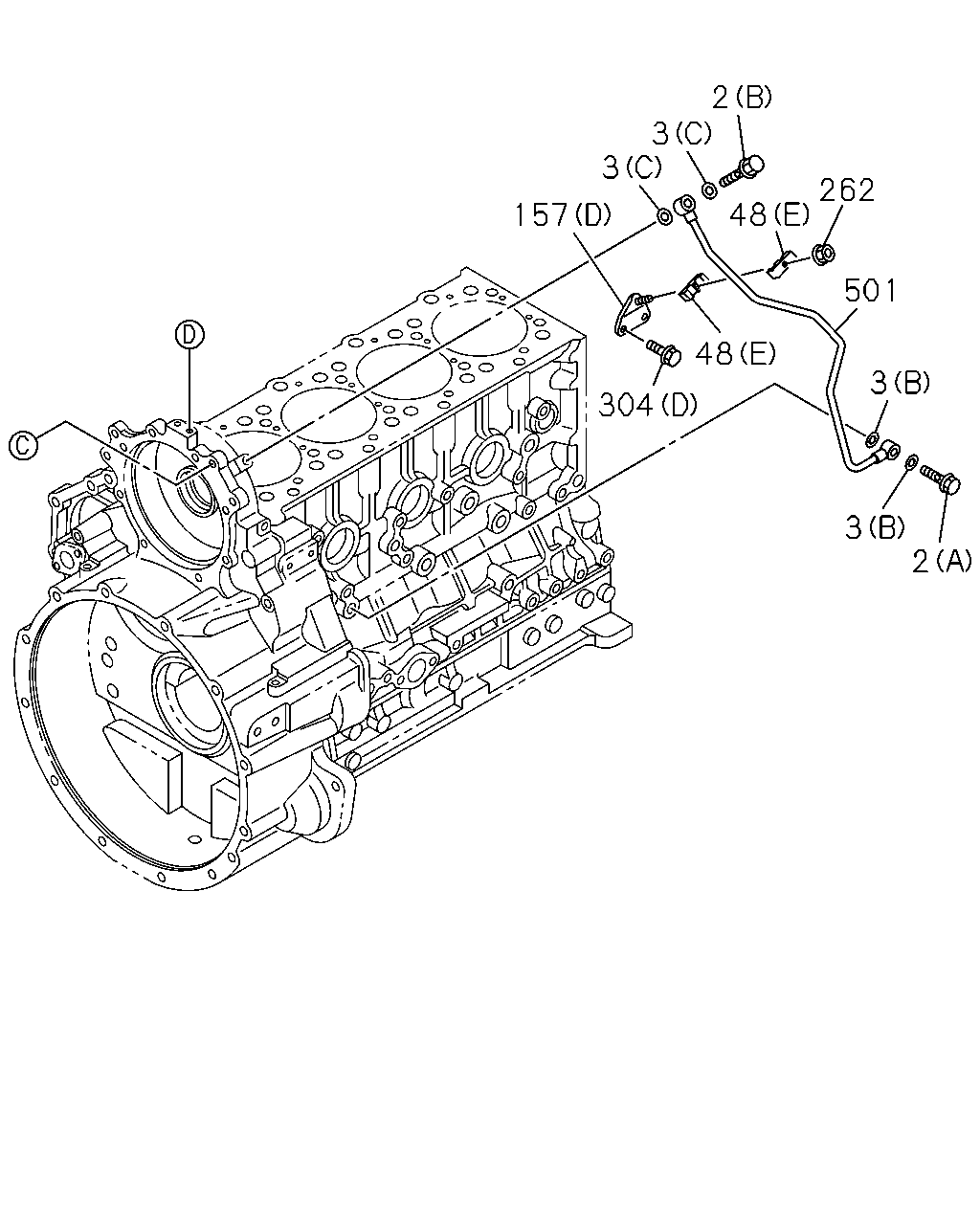

2 3 3 157 304 48 3 2 3 501 48 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1601-
2	BOLT; EYE,OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (B) M10X25	8-98072-919-0	01	1	1601-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2	8-98158-135-0	02	1	1601-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). POWER TAKE OFF-FLYWHEEL<6SZ> (C) ID=10.2 OD=16.0	9-09571-410-0	02	1	1601-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). POWER TAKE OFF-FLYWHEEL<6SZ> (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	1601-
48	CLIP; OIL PIPE (C) ID=7 & 9 L=25	1-09701-228-3	03	1	1601-
48	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (C) ID=7 & 9 L=25	1-09701-228-3	03	1	1601-
48	CLIP; OIL PIPE (D) ID=7 & 9 L=25	1-09701-229-2	03	1	1601-
48	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (D) ID=7 & 9 L=25	1-09701-229-2	03	1	1601-
48	CLIP; OIL PIPE (A) ID=9 & 9 L=25	1-09701-180-0	01	1	1601-
48	CLIP; OIL PIPE (B) ID=9 & 9 L=25	8-94393-280-3	01	1	1601-
48	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (E)	1-09701-240-0	02	1	1601-
157	BRACKET; OIL PIPE (A)	8-98107-383-2	01	1	1601-
157	BRACKET; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A)	8-98107-383-2	01	1	1601-
157	BRACKET; OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (D)	8-98055-852-0	01	1	1601-
157	BRACKET; OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (C)	8-98140-116-2	01	1	1601-
157	BRACKET; OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (B)	8-98140-128-0	01	1	1601-
262	NUT; CLIP,OIL PIPE M6 FLANGE	0-91180-106-0	02	1	1601-
262	NUT; CLIP,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M6 FLANGE	0-91180-106-0	02	1	1601-
262	NUT; CLIP,OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> M6 FLANGE	0-91180-106-0	01	1	1601-
304	BOLT; BRKT,OIL PIPE (A) M8X16 FLANGE	0-28050-816-0	01	1	1601-
304	BOLT; BRKT,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) M8X16 FLANGE	0-28050-816-0	01	1	1601-
304	BOLT; BRKT,OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (B) M8X20 FLANGE	0-28650-820-0	02	1	1601-
304	BOLT; BRKT,OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (D) M10X20 FLANGE	0-28751-020-0	02	1	1601-
304	BOLT; BRKT,OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (C) M10X30 FLANGE	0-28751-030-0	02	1	1601-
501	PIPE; OIL,PTO FEED POWER TAKE OFF-FLYWHEEL<6SZ>	8-98140-037-0	01	1	1601-
