◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11720 - FRR AUST/NZ JNLT09 SPACECAB ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#175455) — 20 parça

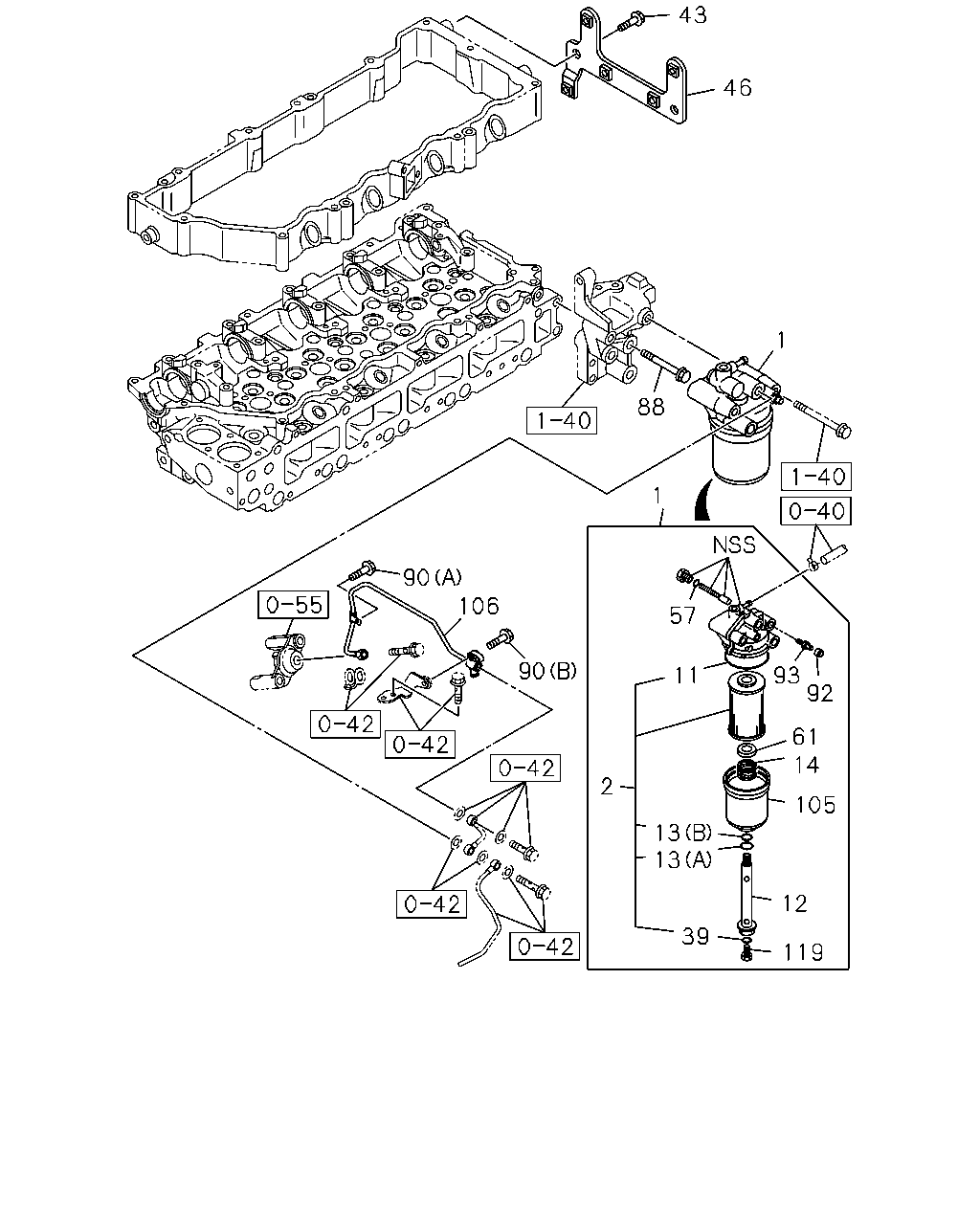

çizim 512278
43 46 88 1 90 106 90 57 11 2 13 13 39 119 12 105 14 61 92 93 1
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL 8-98087-925-4 01 1 1601-
2 ELEMENT KIT; FUEL FILTER 8-98147-525-0 01 1 1601-
11 GASKET; CASE TO BODY,FUEL FILTER 8-98024-708-0 01 1 1601-
12 BOLT; CENTER,FUEL FILTER 8-98093-406-0 01 1 1601-
13 GASKET; CENTER BOLT
(A) 		8-98158-464-0 01 1 1601-
13 GASKET; CENTER BOLT
(B) 		8-98165-968-0 01 1 1601-
14 SPRING; ELEMENT SUPPORT,FUEL FILTER 8-98093-413-0 01 1 1601-
39 GASKET; DRAIN PLUG 8-98158-466-0 01 1 1601-
43 BOLT; BRKT
POWER TAKE OFF-FLYWHEEL<6SZ> M8X16 FLANGE 		0-28050-816-0 02 1 1601-
46 BRACKET
POWER TAKE OFF-FLYWHEEL<6SZ> 		8-98140-126-0 01 1 1601-
57 GASKET; PLUG 8-98159-365-0 01 1 1601-
61 SEAT; SPR ELEMENT 8-98110-233-0 01 1 1601-
88 BOLT; BRKT,FUEL FILTER
M12X80 		0-28151-280-0 03 1 1601-
90 BOLT; PIPE TO BRKT
(A) M6X16 FLANGE 		0-28050-616-0 01 1 1601-
90 BOLT; PIPE TO BRKT
(B) M8X35 FLANGE 		0-28050-835-0 01 1 1601-
92 CAP; FUEL FILTER 8-98034-314-0 01 1 1601-
93 CONNECTOR; FUEL FILTER
M8X10 		8-98034-312-0 01 1 1601-
105 CASE; FUEL FILTER 8-98093-416-0 01 1 1601-
106 PIPE; FUEL 8-98202-495-0 01 1 1601-
119 PLUG; DRAIN,FUEL FILTER
M10 		1-09000-105-0 01 1 1601-
