0-39 — AIR COMPRESSOR; BRAKE (#175453) — 20 parça

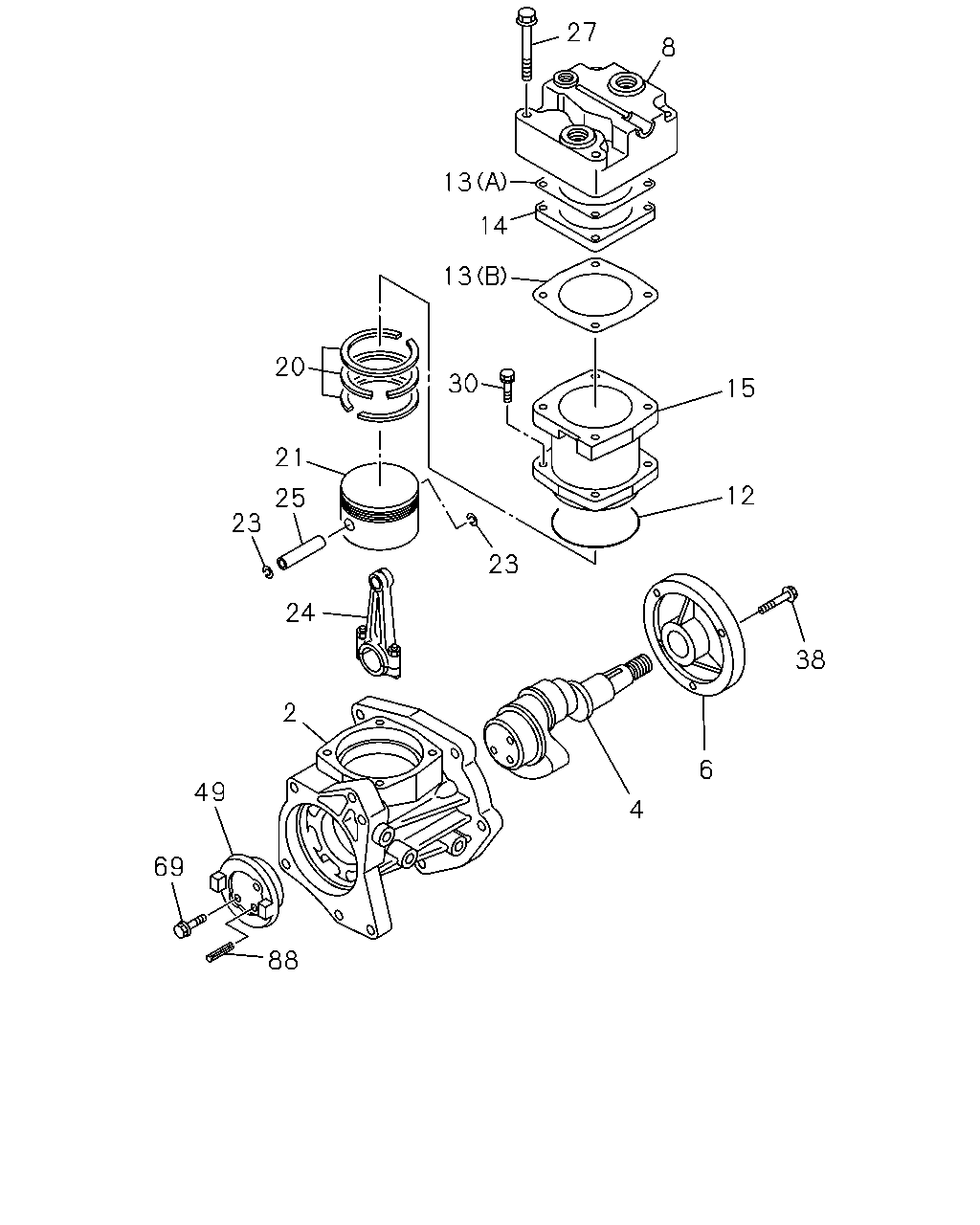

çizim 512251
88 69 49 2 4 6 38 12 15 23 24 23 21 20 30 13 13 25 27 14 8
BalonParca AdiParca NoAdetTipApplied Date
2 CRANKCASE; AIR CMPR 1-19151-303-0 01 1 1601-
4 CRANKSHAFT; AIR CMPR 1-19171-090-1 01 1 1601-
6 COVER ASM; BRG,AIR CMPR 1-19156-086-1 01 1 1601-
8 HEAD ASM; CYL,AIR CMPR 1-19110-075-0 01 1 1601-
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1601-
13 GASKET; AIR CMPR
(A) 		1-19115-015-0 01 1 1601-
13 GASKET; AIR CMPR
(B) 		1-19115-016-0 01 1 1601-
14 PLATE; AIR CMPR 8-98271-713-0 01 1 1601-
15 CYLINDER; AIR CMPR 1-19163-068-1 01 1 1601-
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 1601-
21 PISTON; AIR CMPR 1-19161-027-0 01 1 1601-
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 1601-
24 ROD ASM; CONN,AIR CMPR 1-19173-023-0 01 1 1601-
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 1601-
27 BOLT; HD 8-98188-172-0 04 1 1601-
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 1601-
38 BOLT; COVER FIX 1-19159-023-0 03 1 1601-
49 COUPLING ASM 1-19179-032-0 01 1 1601-
69 BOLT ASM; AIR COMP 1-19179-033-0 02 1 1601-
88 PIN; SPRING 1-19179-034-0 01 1 1601-
