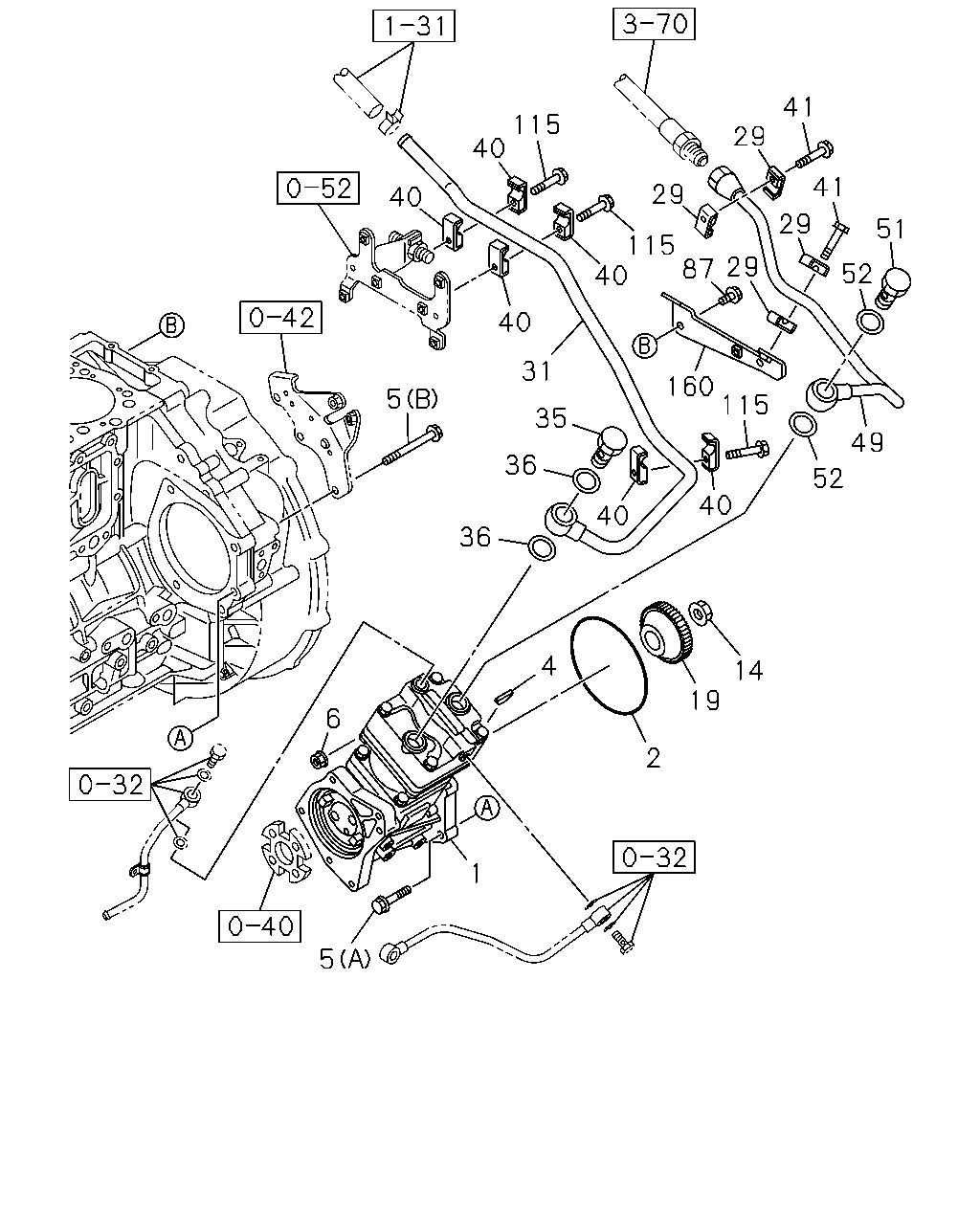

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#175452) — 68 parça

40 40 115 29 29 41 41 29 51 52 49 52 14 19 2 4 1 5 6 36 40 40 115 160 29 87 115 40 40 31 35 36 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1601-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1601-
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1601-
5	BOLT; AIR CMPR FIX (B) M12X100 FLANGE	0-28161-200-0	01	1	1601-
5	BOLT; AIR CMPR FIX EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (B) M12X100 FLANGE	0-28161-200-0	01	1	1601-
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE	0-28151-270-0	01	1	1601-
5	BOLT; AIR CMPR FIX POWER TAKE OFF-FLYWHEEL<6SZ> (C) M12X160	8-97388-159-0	01	1	1601-
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	1601-
14	NUT; GEAR M18	8-97141-154-0	01	1	1601-
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	1601-
29	CLIP; AIR PIPE ID=14 L=15	1-09701-282-0	04	1	1601-
29	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> ID=14 L=15	1-09701-282-0	04	1	1601-
29	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL<6SZ> ID=14 L=15	1-09701-282-0	06	1	1601-
31	PIPE; AIR,AIR CMPR SUCTION	8-98178-856-0	01	1	1601-
31	PIPE; AIR,AIR CMPR SUCTION EXC. POWER TAKE OFF-FLYWHEEL<6SZ>	8-98178-856-0	01	1	1601-
31	PIPE; AIR,AIR CMPR SUCTION POWER TAKE OFF-FLYWHEEL<6SZ>	8-98178-858-0	01	1	1601-
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1601-
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1601-
40	CLIP; AIR PIPE ID=17 L=17	1-09701-284-0	06	1	1601-
41	BOLT; CLIP M6X40 FLANGE	0-28050-640-0	02	1	1601-
41	BOLT; CLIP EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M6X40 FLANGE	0-28050-640-0	02	1	1601-
41	BOLT; CLIP POWER TAKE OFF-FLYWHEEL<6SZ> M6X40 FLANGE	0-28050-640-0	03	1	1601-
49	PIPE; AIR,CHARGE	8-98178-857-0	01	1	1601-
49	PIPE; AIR,CHARGE EXC. POWER TAKE OFF-FLYWHEEL<6SZ>	8-98178-857-0	01	1	1601-
49	PIPE; AIR,CHARGE POWER TAKE OFF-FLYWHEEL<6SZ>	8-98178-859-0	01	1	1601-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1601-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1601-
87	BOLT; BRKT FIX M8X16 FLANGE	0-28050-816-0	02	1	1601-
87	BOLT; BRKT FIX EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M8X16 FLANGE	0-28050-816-0	02	1	1601-
87	BOLT; BRKT FIX POWER TAKE OFF-FLYWHEEL<6SZ> M10X30 FLANGE	0-28151-030-0	02	1	1601-
115	BOLT; AIR PIPE M8X45 FLANGE	0-28050-845-0	03	1	1601-
160	BRACKET; AIR PIPE	8-98141-500-1	01	1	1601-
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ>	8-98141-500-1	01	1	1601-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL<6SZ>	8-98140-125-3	01	1	1601-

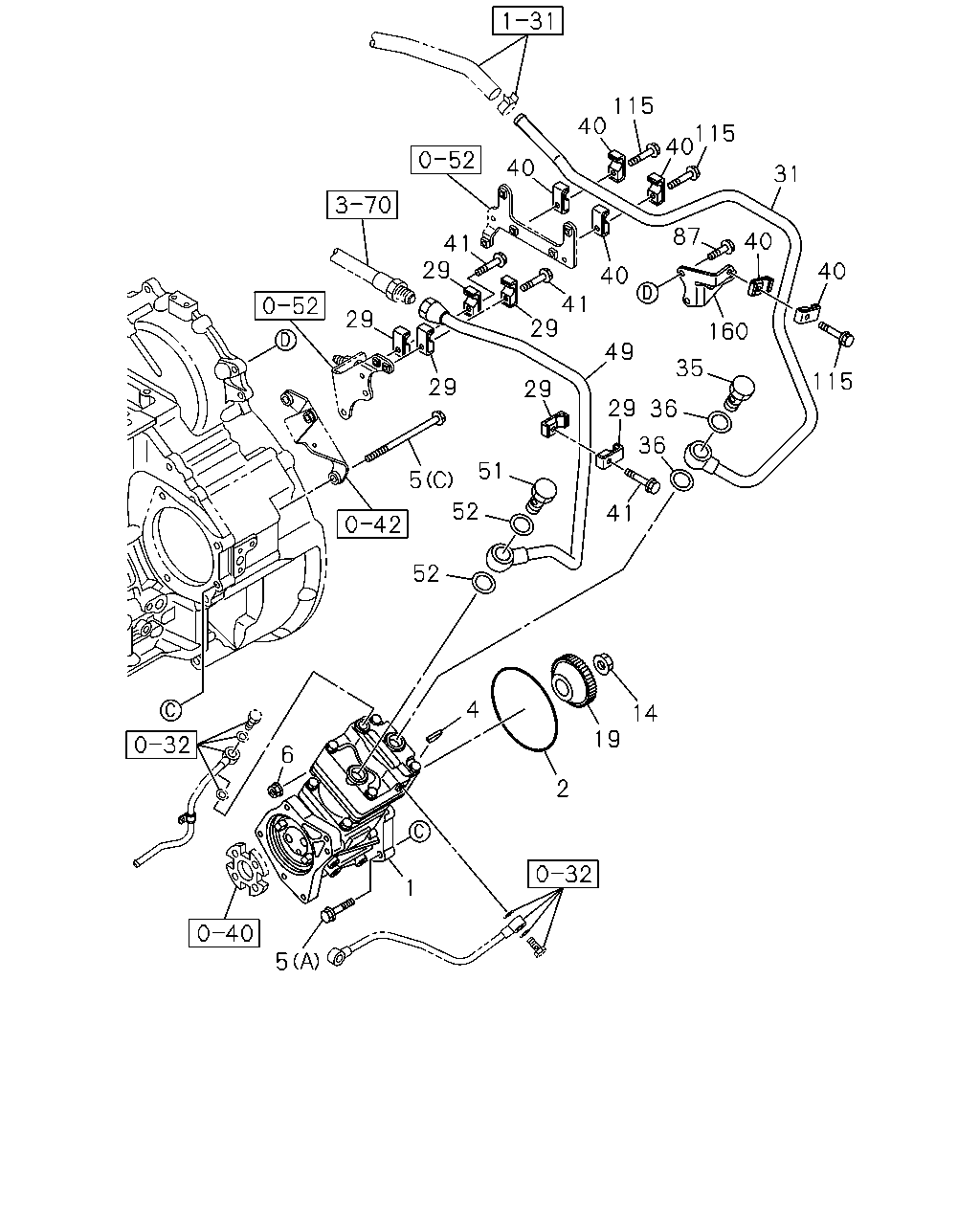

5 6 2 19 4 14 52 52 51 5 41 36 36 29 35 160 40 115 40 31 115 40 115 40 40 41 29 29 29 29 29 41 40 49 87 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1601-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1601-
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1601-
5	BOLT; AIR CMPR FIX (B) M12X100 FLANGE	0-28161-200-0	01	1	1601-
5	BOLT; AIR CMPR FIX EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (B) M12X100 FLANGE	0-28161-200-0	01	1	1601-
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE	0-28151-270-0	01	1	1601-
5	BOLT; AIR CMPR FIX POWER TAKE OFF-FLYWHEEL<6SZ> (C) M12X160	8-97388-159-0	01	1	1601-
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	1601-
14	NUT; GEAR M18	8-97141-154-0	01	1	1601-
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	1601-
29	CLIP; AIR PIPE ID=14 L=15	1-09701-282-0	04	1	1601-
29	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> ID=14 L=15	1-09701-282-0	04	1	1601-
29	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL<6SZ> ID=14 L=15	1-09701-282-0	06	1	1601-
31	PIPE; AIR,AIR CMPR SUCTION	8-98178-856-0	01	1	1601-
31	PIPE; AIR,AIR CMPR SUCTION EXC. POWER TAKE OFF-FLYWHEEL<6SZ>	8-98178-856-0	01	1	1601-
31	PIPE; AIR,AIR CMPR SUCTION POWER TAKE OFF-FLYWHEEL<6SZ>	8-98178-858-0	01	1	1601-
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1601-
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1601-
40	CLIP; AIR PIPE ID=17 L=17	1-09701-284-0	06	1	1601-
41	BOLT; CLIP M6X40 FLANGE	0-28050-640-0	02	1	1601-
41	BOLT; CLIP EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M6X40 FLANGE	0-28050-640-0	02	1	1601-
41	BOLT; CLIP POWER TAKE OFF-FLYWHEEL<6SZ> M6X40 FLANGE	0-28050-640-0	03	1	1601-
49	PIPE; AIR,CHARGE	8-98178-857-0	01	1	1601-
49	PIPE; AIR,CHARGE EXC. POWER TAKE OFF-FLYWHEEL<6SZ>	8-98178-857-0	01	1	1601-
49	PIPE; AIR,CHARGE POWER TAKE OFF-FLYWHEEL<6SZ>	8-98178-859-0	01	1	1601-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1601-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1601-
87	BOLT; BRKT FIX M8X16 FLANGE	0-28050-816-0	02	1	1601-
87	BOLT; BRKT FIX EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M8X16 FLANGE	0-28050-816-0	02	1	1601-
87	BOLT; BRKT FIX POWER TAKE OFF-FLYWHEEL<6SZ> M10X30 FLANGE	0-28151-030-0	02	1	1601-
115	BOLT; AIR PIPE M8X45 FLANGE	0-28050-845-0	03	1	1601-
160	BRACKET; AIR PIPE	8-98141-500-1	01	1	1601-
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ>	8-98141-500-1	01	1	1601-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL<6SZ>	8-98140-125-3	01	1	1601-
