4-31 — STEERING COLUMN AND SHAFT (#17544) — 26 parça

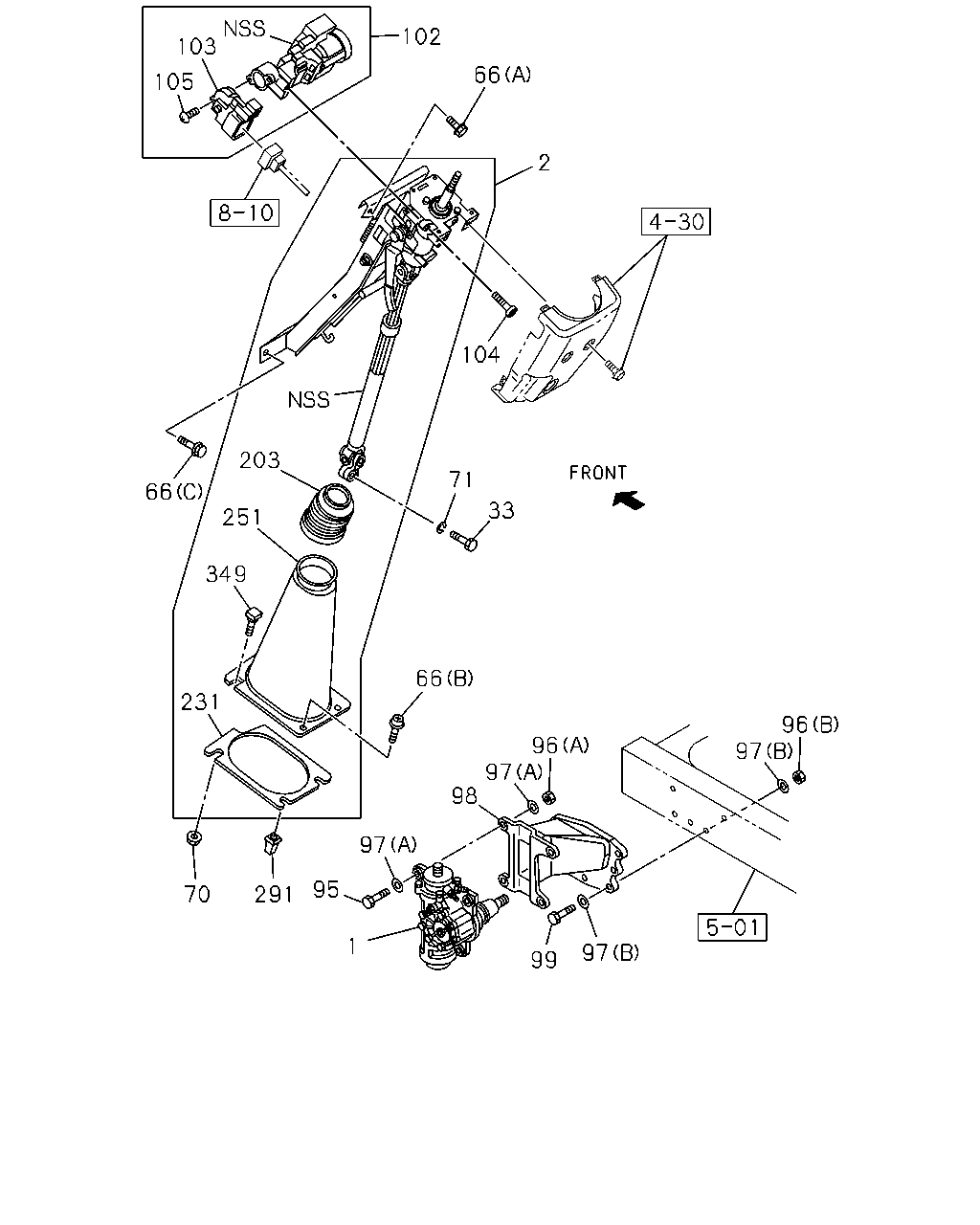

çizim 110138
103 102 66 105 2 104 203 71 66 33 251 349 66 231 96 97 96 97 98 97 95 70 291 1 97 99
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-930-2 01 1 1109-
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE<PR2> BLACK 		8-97415-620-2 01 1 1505-
2 SHAFT ASM; STRG
BLACK 		8-97415-618-2 01 1 1109-1504
2 SHAFT ASM; STRG
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> BLACK 		8-97415-618-2 01 1 1505-
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 01 1 1109-
66 BOLT; STRG COLUMN
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1109-
66 BOLT; STRG COLUMN
(B) M5X18 TAPPING 		0-72180-518-0 02 1 1109-
66 BOLT; STRG COLUMN
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 02 1 1109-
70 NUT; STRG COLUMN
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1109-
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 1109-
95 BOLT; STRG UNIT
M16X66 		1-09000-305-0 04 1 1109-
96 NUT; STRG UNIT
(A) M16 		0-91110-516-0 02 1 1109-
96 NUT; STRG UNIT
(B) M14 		1-09440-097-0 06 1 1109-
97 WASHER; PL,STRG UNIT
(A) ID=16.2 		1-09503-316-0 06 1 1109-
97 WASHER; PL,STRG UNIT
(B) ID=15 		8-98010-627-1 12 1 1109-
98 BRACKET; STRG GEAR BOX 1-44226-180-0 01 1 1109-
99 BOLT; BRKT TO FRAME
M14X50 		1-09000-787-1 06 1 1109-
102 LOCK ASM; STRG 8-98006-150-0 01 1 1109-
103 SWITCH; IGNITION 8-98045-349-0 01 1 1109-
104 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT 		8-97321-385-0 02 1 1109-
105 SCREW; IGN SW 8-98045-346-0 02 1 1109-
203 BOOT; STRG COLUMN LWR 8-98137-333-0 01 1 1109-
231 SEAL; RUBBER,STRG COLUMN 8-98137-330-0 01 1 1109-
251 COVER; LWR
BLACK 		8-97417-050-0 01 1 1109-
291 GROMMET; STRG SHAFT COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1109-
349 BOLT; COVER 8-98137-334-0 02 1 1109-
