Isuzu WW
▶
TRUCKS
▶
FRR
▶
11720 - FRR AUST/NZ JNLT09 SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-14 - CAMSHAFT AND VALVE
▶
0-14 — CAMSHAFT AND VALVE
(#175438) — 65 parça
◀

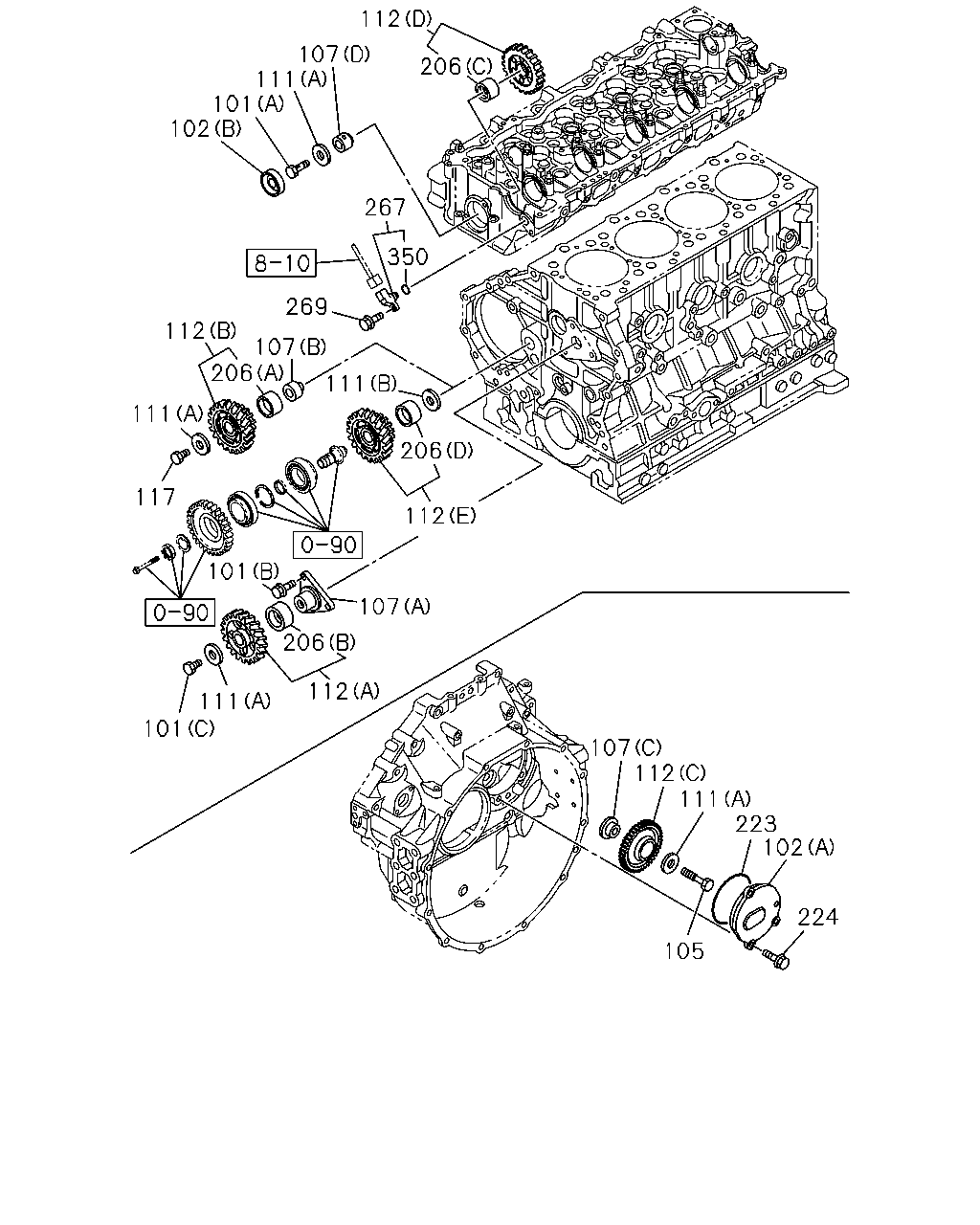

[014A] IDLE GEAR (33 parça)

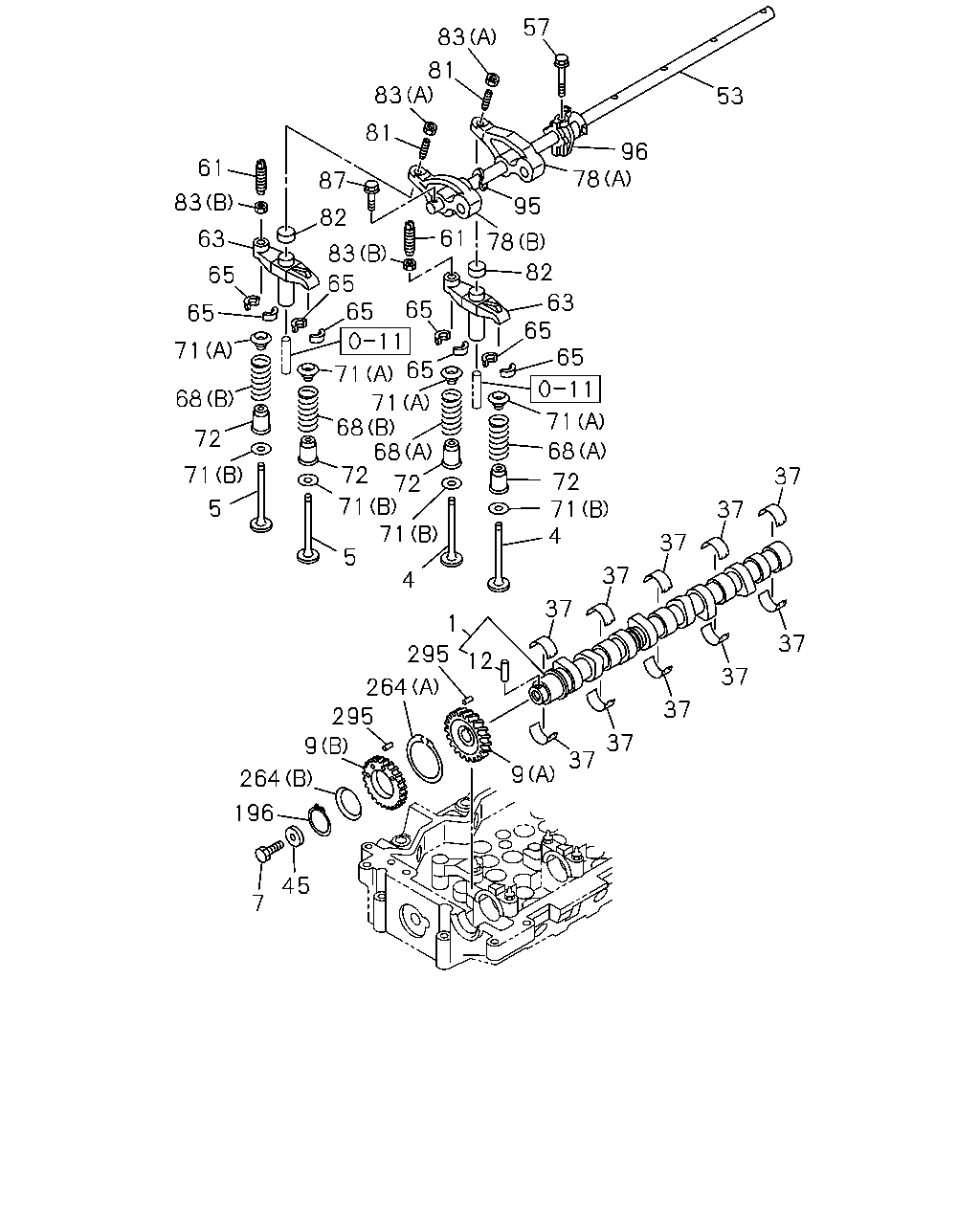

[014A] VALVE AND CAMSHAFT (32 parça)
▶
112
107
111
101
102
267
350
269
107
112
206
111
117
101
206
111
101
112
107
112
206
111
206
107
112
111
223
102
224
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
101
BOLT; THRUST COLLAR
(C) M14X25
0-23951-425-0
01
1
1601-
101
BOLT; THRUST COLLAR
(B) M8X16 FLANGE
0-28060-816-0
03
1
1601-
101
BOLT; THRUST COLLAR
(A) M14X36.5
8-94372-221-1
01
1
1601-
102
COVER; IDLE GEAR
(B) OD=51
8-97096-826-0
01
1
1601-
102
COVER; IDLE GEAR
(A)
8-98023-824-1
01
1
1601-
105
BOLT; IDLE GEAR SHAFT
M14X65
8-97066-798-0
01
1
1601-
107
SHAFT; IDLE GEAR
(B)
8-98060-780-0
01
1
1601-
107
SHAFT; IDLE GEAR
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (B)
8-98060-780-0
01
1
1601-
107
SHAFT; IDLE GEAR
(C)
8-94334-682-1
01
1
1601-
107
SHAFT; IDLE GEAR
(D)
8-97186-398-1
01
1
1601-
107
SHAFT; IDLE GEAR
(A)
8-97350-021-0
01
1
1601-
111
COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46
8-97209-728-2
01
1
1601-
111
COLLAR; THRUST,IDLE GEAR
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) ID=14.5 OD=46
8-97209-728-2
01
1
1601-
111
COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46
8-97209-728-2
03
1
1601-
111
COLLAR; THRUST,IDLE GEAR
POWER TAKE OFF-FLYWHEEL<6SZ> (B) ID=24 OD=60
8-94396-897-0
01
1
1601-
112
GEAR; IDLE
(B) Z=72-60-30
8-98254-970-0
01
1
1601-
112
GEAR; IDLE
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (B) Z=72-60-30
8-98254-970-0
01
1
1601-
112
GEAR; IDLE
(C) Z=34
8-94394-509-3
01
1
1601-
112
GEAR; IDLE
(A) Z=61
8-97606-767-0
01
1
1601-
112
GEAR; IDLE
(D) Z=41
8-97606-929-0
01
1
1601-
112
GEAR; IDLE
POWER TAKE OFF-FLYWHEEL<6SZ> (E) Z=72-60-30
8-98021-069-0
01
1
1601-
117
BOLT; FLANGE
M14X65 FLANGE
8-97113-167-0
01
1
1601-
117
BOLT; FLANGE
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M14X65 FLANGE
8-97113-167-0
01
1
1601-
206
BUSHING; IDLE GEAR
(A) AFTER PRESS FITTING, MACHINE IT.
8-98255-899-0
01
1
1601-
206
BUSHING; IDLE GEAR
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) AFTER PRESS FITTING, MACHINE IT.
8-98255-899-0
01
1
1601-
206
BUSHING; IDLE GEAR
(B) AFTER PRESS FITTING, MACHINE IT.
8-97606-768-0
01
1
1601-
206
BUSHING; IDLE GEAR
(C) AFTER PRESS FITTING, MACHINE IT.
8-97606-770-0
01
1
1601-
206
BUSHING; IDLE GEAR
POWER TAKE OFF-FLYWHEEL<6SZ> (D) AFTER PRESS FITTING, MACHINE IT.
8-98021-070-0
01
1
1601-
223
GASKET; COVER,IDLE GEAR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=110
8-94394-186-0
01
1
1601-
224
BOLT; COVER
M8X16 FLANGE
0-28050-816-0
03
1
1601-
267
SENSOR; CAM ANGLE
8-98019-024-0
01
1
1601-
269
BOLT; SENSOR
M6X12 FLANGE
0-28050-612-0
01
1
1601-
350
GASKET; SENSOR,CAM ANGLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=18.8
8-97369-404-0
01
1
1601-
57
83
81
83
81
96
53
78
95
78
82
63
65
65
71
68
72
71
4
61
87
82
83
65
65
65
71
65
71
68
68
72
72
71
71
4
5
5
71
72
68
71
65
65
63
83
61
1
295
264
295
9
264
196
45
7
9
37
37
37
37
37
37
37
37
37
37
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAMSHAFT
8-98199-270-0
01
1
1601-
4
VALVE; INL
8-98038-870-0
08
1
1601-
5
VALVE; EXH
8-98158-376-1
08
1
1601-
7
BOLT; CM/SHF GEAR
M14X40
8-94396-439-0
01
1
1601-
9
GEAR; CM/SHF
(B) SUB Z=35
8-97300-972-2
01
1
1601-
9
GEAR; CM/SHF
(A) MAIN Z=35
8-98074-015-0
01
1
1601-
12
KEY; CAM GEAR SET
OD=7 L=7.5
8-94399-487-0
01
1
1601-
37
METAL; CM/SHF
B=16
8-97386-189-0
10
1
1601-
45
WASHER; GEAR CAM
ID=14.5
9-09851-850-3
01
1
1601-
53
SHAFT; ROCKER ARM
8-98089-251-1
01
1
1601-
57
BOLT; ROCKER ARM BRKT
M10X80 FLANGE
8-98060-997-0
03
1
1601-
61
SCREW; ADJ,BRIDGE
M8X21
8-94394-803-0
08
1
1601-
63
BRIDGE
8-98148-513-0
08
1
1601-
65
COLLAR; SPLIT
5-12565-004-0
32
1
1601-
68
SPRING; VLV
(B) EXHAUST MARK RED
8-97210-682-0
08
1
1601-
68
SPRING; VLV
(A) INLET MARK BLUE
8-97352-888-0
08
1
1601-
71
SEAT; SPR
(A) UPPER OD=32.8 T=12.75
8-94390-783-2
16
1
1601-
71
SEAT; SPR
(B) LOWER ID=14.3 T=1.0
8-94391-468-0
16
1
1601-
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97376-720-0
16
1
1601-
78
ARM; ROCKER
(A) INLET
8-98089-243-2
04
1
1601-
78
ARM; ROCKER
(B) EXHAUST
8-98089-244-2
04
1
1601-
81
SCREW; ADJ,ROCKER ARM
M8 L=36
8-98149-158-0
08
1
1601-
82
CAP; ROCKER SHAFT
8-98148-514-0
08
1
1601-
83
NUT; ADJ SCREW,LK
(A) M12
0-91111-512-0
08
1
1601-
83
NUT; ADJ SCREW,LK
(B) M8 FLANGE
9-09844-574-0
08
1
1601-
87
BOLT; ROCKER SHAFT
M10X50 FLANGE
0-28151-050-0
02
1
1601-
95
SPRING; ROCKER SHAFT
8-98070-950-0
04
1
1601-
96
BRACKET; ROCKER ARM SHAFT
8-98089-253-0
03
1
1601-
196
RING; SNAP
ID=50.8
9-09180-055-0
01
1
1601-
264
SPRING; GEAR
(A)
8-97190-117-1
01
1
1601-
264
SPRING; GEAR
(B)
8-97190-118-1
01
1
1601-
295
PIN; CM/SHF GEAR
OD=4 L=8.0
8-97213-454-0
02
1
1601-
