0-13 — OIL PAN AND LEVEL GAUGE
(#175437) — 24 parça
◀

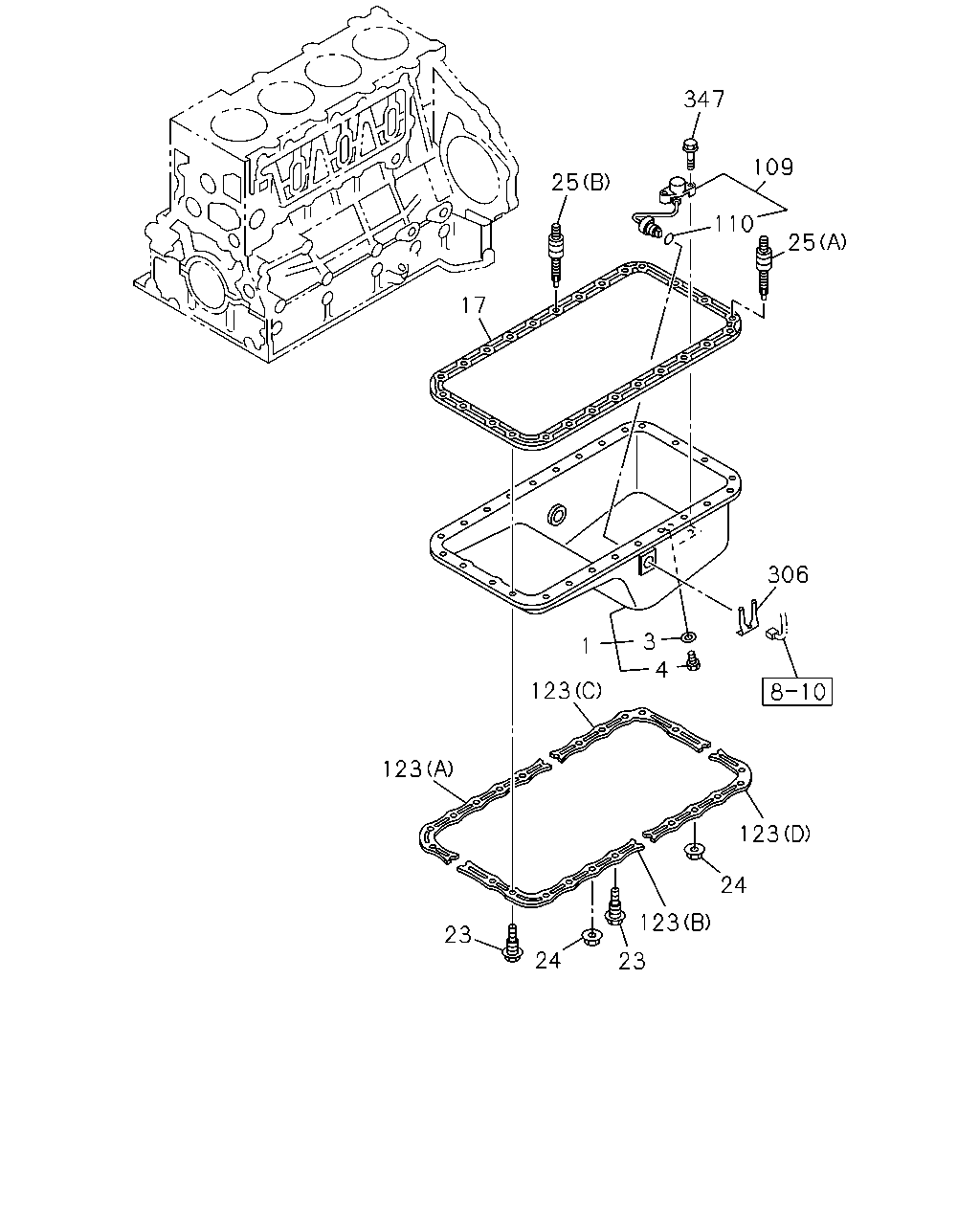

[013A] OIL PAN (16 parça)

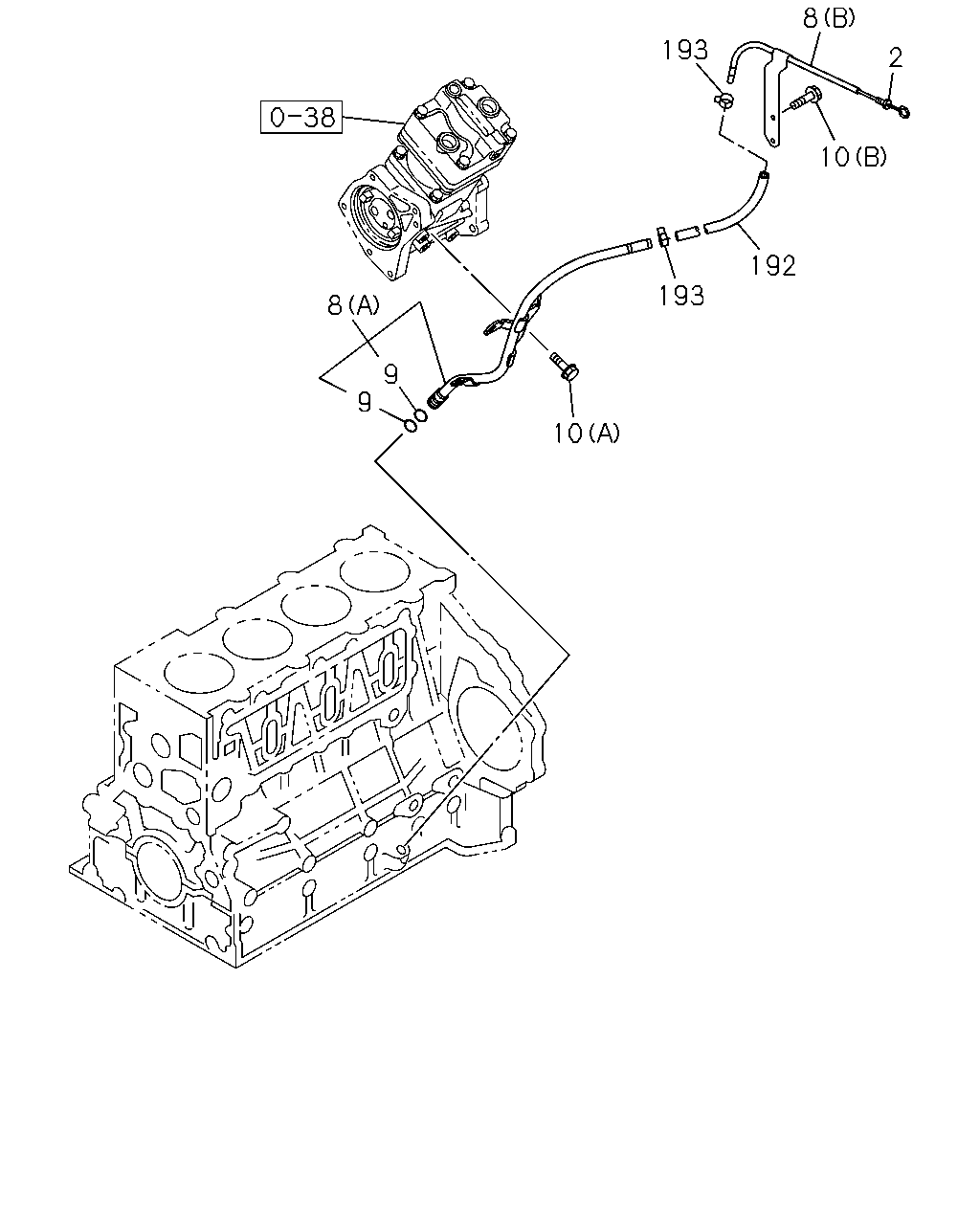

[013A] LEVEL GAUGE AND GUIDE TUBE (8 parça)
▶
17
25
347
110
109
25
123
123
1
4
3
306
123
123
23
24
23
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-98154-054-0
01
1
1601-
3
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24
8-94158-328-0
01
1
1601-
4
PLUG; DRAIN,OIL
M14X14
8-94152-613-0
01
1
1601-
17
GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE).
8-98067-440-0
01
1
1601-
23
BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE
8-97190-390-0
13
1
1601-
24
NUT; OIL PAN
M8 FLANGE
0-91180-108-0
13
1
1601-
25
STUD; OIL PAN
(A) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE
8-97190-391-0
01
1
1601-
25
STUD; OIL PAN
(B) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE
8-97190-392-0
09
1
1601-
109
SWITCH; OIL LEVEL
8-97328-993-1
01
1
1601-
110
GASKET; SW,OIL LEVEL
8-98048-191-0
01
1
1601-
123
RUBBER; SEAL OIL
(D)
8-97187-000-0
01
1
1601-
123
RUBBER; SEAL OIL
(C)
8-98068-031-0
01
1
1601-
123
RUBBER; SEAL OIL
(A)
8-98068-032-0
01
1
1601-
123
RUBBER; SEAL OIL
(B)
8-98072-270-0
01
1
1601-
306
CLIP; CONNECTOR
8-97229-219-0
01
1
1601-
347
BOLT; OIL LEVEL SW
M6X25 FLANGE
0-28650-625-0
02
1
1601-
8
9
9
10
193
192
10
193
8
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GAUGE; OIL LEVEL
8-98244-653-0
01
1
1601-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-98010-328-1
01
1
1601-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-98106-636-5
01
1
1601-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1601-
10
BOLT; GUIDE TUBE
(B) M8X20 FLANGE
0-28650-820-0
02
1
1601-
10
BOLT; GUIDE TUBE
(A) M6X12 FLANGE
0-28050-612-0
01
1
1601-
192
HOSE; GUIDE TUBE
L=230
8-98152-175-0
01
1
1601-
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
1601-
