Sayfa 9-01 - Isuzu EPC

253 252

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	252	BRACKET; EXTINGUISHER	8-98105-271-0	01	1	1509-
	253	BOLT; EXTINGUISHER M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	1509-

1 4 42 43 31 32 33 34 35 9 12 13 17 363 22 20 23 29 29 29 21 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER	9-23110-018-0	01	1	1509-
4	WRENCH KIT; SOCKET	1-85000-491-0	01	1	1509-
9	WRENCH; WHEEL PIN B=33X30 L=450	1-85111-033-1	01	1	1509-
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	1509-
13	WRENCH; MONKEY L=247	1-85117-006-0	01	1	1509-
17	HAMMER	9-85121-406-0	01	1	1509-
20	WRENCH; 10X12 10X12	0-95902-510-0	01	1	1509-
21	WRENCH; 14X17 14X17	0-95902-514-0	01	1	1509-
22	WRENCH; 19X22 19X22	0-95902-519-0	01	1	1509-
23	WRENCH; 24X27 24X27	0-95902-524-0	01	1	1509-
29	DRIVER; SCREW (A) <-> L=285	1-85151-004-0	01	1	1509-
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	1509-
29	DRIVER; SCREW (B) <+> L=275	9-09595-023-0	01	1	1509-
30	BOX; SOCKET WRENCH	1-85000-492-0	01	1	1509-
31	WRENCH; 12	1-85000-495-0	01	1	1509-
32	WRENCH; 14	1-85000-496-0	01	1	1509-
33	WRENCH; 17	1-85000-497-0	01	1	1509-
34	WRENCH; 19	1-85000-498-0	01	1	1509-
35	WRENCH; 22	1-85000-499-0	01	1	1509-
42	HANDLE; SLIDING	1-85000-500-0	01	1	1509-
43	BAR; EXTENSION,SOCKET WRENCH	1-85000-501-0	01	1	1509-
363	WRENCH; OPEN END 8X10 8X10	0-95902-508-0	02	1	1509-

193 208 231 237 227 230 453

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
193	JACK ASM 15TON	1-85510-019-2	01	1	1509-
208	HANDLE; JACK L=600	8-98181-437-0	01	1	1509-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	1509-
230	PUMP; GREASE	1-85556-007-5	01	1	1509-
231	HOSE; FLEX,GREASE PUMP	8-98228-834-0	01	1	1509-
237	BAG; TOOL	8-97130-902-1	01	1	1509-
453	TOOL; SETTING,COUPLING	8-97620-813-0	19	1	1509-

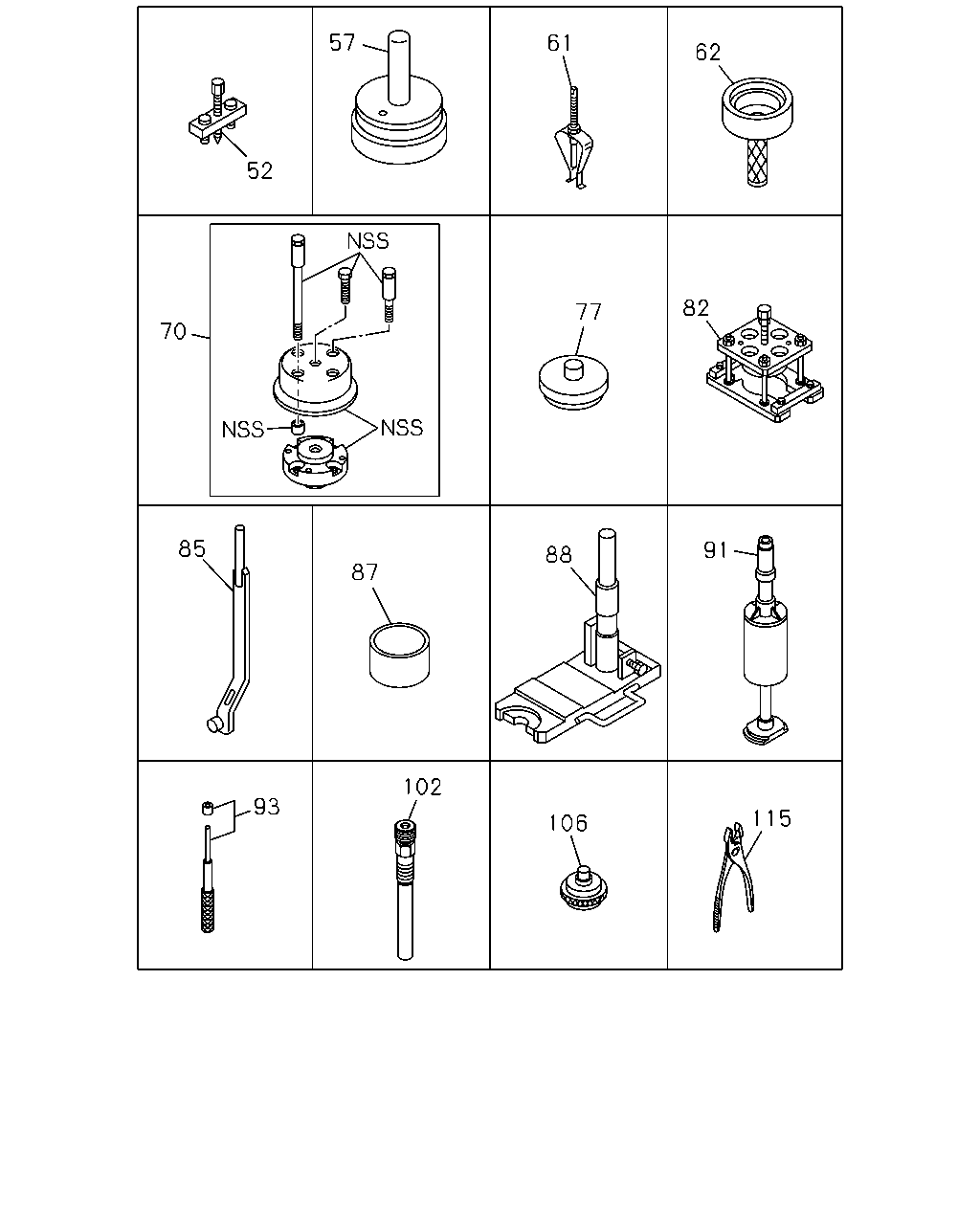

57 61 62 52 70 77 82 91 88 87 85 93 102 106 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	REMOVER; WATER PUMP	1-85210-047-0	03	1	1509-
57	TOOL; SETTING CRANK GEAR ID=165.8	1-85221-075-0	04	1	1509-
57	TOOL; SETTING CRANK GEAR ID=144.5	1-85221-072-0	05	1	1509-
61	PULLER ASM; PILOT BRG	1-85220-028-0	06	1	1509-
62	TOOL ASM; SETTING WEAR RING	1-85221-079-0	07	1	1509-
70	TOOL; SETTING,OIL SEAL	8-98194-607-0	08	1	1509-
77	TOOL; SETTING,CYL LINER	1-85221-073-0	09	1	1509-
82	PULLER ASM; CR/SHF GEAR	1-85210-051-0	10	1	1509-
85	REPLACER ASM; VALVE SPR	1-85235-007-0	11	1	1509-
87	TOOL; PISTON	1-85221-082-0	12	1	1509-
88	TOOL; CONNROD BUSHING	1-85220-037-0	13	1	1509-
91	REPLACER ASM; CYL LINER	1-85231-021-0	14	1	1509-
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	15	1	1509-
102	ADAPTER; COMP GAGE	5-85317-001-0	16	1	1509-
106	TOOL; SETTING PILOT BRG	1-85221-080-0	17	1	1509-
115	PLIER	5-85171-002-0	01	1	1509-

124 127 143 153 129 125 126 140 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	1509-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	1509-
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-1	01	1	1509-
127	WRENCH ASM; HUB BRG NUT L=400 B=116	8-98119-000-1	01	1	1509-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	1509-
140	REMOVER; WEAR RING	1-85210-053-0	18	1	1509-
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	1509-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	1509-
154	SLEEPER; KING PIN	1-85238-003-0	01	1	1509-

169 160 171 172 192 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	1509-
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	1509-
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	1509-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	1509-
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	1509-
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	1509-
