Isuzu WW
▶
TRUCKS
▶
FYH
▶
11664 - FYH LHD CHINA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

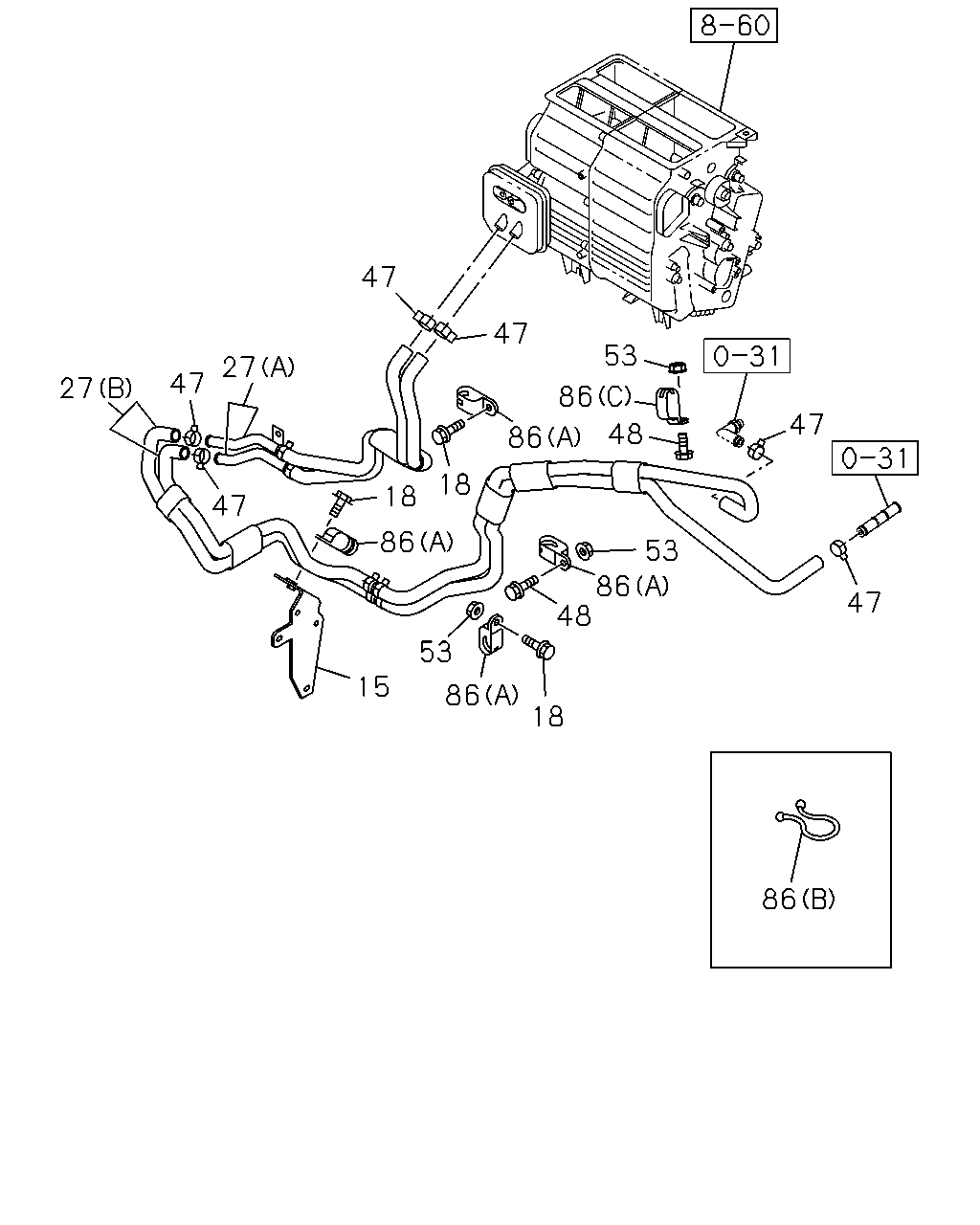

8-45 — HEATER PIPING
(#175421) — 23 parça
◀
[845A] PIPING (13 parça)
[845A] COMPONENT (10 parça)
▶
47
47
27
47
27
47
18
86
15
86
53
18
48
53
86
18
53
86
86
48
47
47
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
BRACKET; WATER HOSE
8-98228-344-0
01
1
1509-
18
BOLT; WATER HOSE
M8X20 FLANGE
0-28650-820-0
02
1
1509-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
(B)
8-98228-357-1
01
1
1509-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
(A)
8-98228-358-0
01
1
1509-
47
CLAMP; WATER HOSE,HTR
8-97431-317-0
04
1
1509-
47
CLAMP; WATER HOSE,HTR
8-97431-317-0
02
1
1509-
48
BOLT; CLIP FIX
M8X20 FLANGE
0-28650-820-0
01
1
1509-
48
BOLT; CLIP FIX
M8X20 FLANGE
0-28650-820-0
01
1
1509-
53
NUT; HOSE CLIP
M8 FLANGE
0-91180-108-0
03
1
1509-
86
CLIP; HTR HOSE
(B) ID=44
8-94463-508-0
01
1
1509-
86
CLIP; HTR HOSE
(A) ID=24X2 L=25
1-09700-710-0
03
1
1509-
86
CLIP; HTR HOSE
(C)
8-97431-314-0
01
1
1509-
86
CLIP; HTR HOSE
(A) ID=24X2 L=25
1-09700-710-0
01
1
1509-
27
63
63
102
102
102
56
56
56
56
63
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
(B)
8-98228-357-1
01
1
1509-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
(A)
8-98228-358-0
01
1
1509-
56
CLAMP; HTR HOSE
ID=22
8-94382-401-0
04
1
1509-
63
HOSE; WATER
(B)
8-97350-952-0
01
1
1509-
63
HOSE; WATER
(C)
8-97376-325-0
01
1
1509-
63
HOSE; WATER
(A)
8-97350-951-0
01
1
1509-
63
HOSE; WATER
(D)
8-97350-954-0
01
1
1509-
102
COVER; WATER HOSE
(C)
8-97376-328-0
01
1
1509-
102
COVER; WATER HOSE
(B)
8-97376-327-0
01
1
1509-
102
COVER; WATER HOSE
(A)
8-97376-326-0
01
1
1509-
